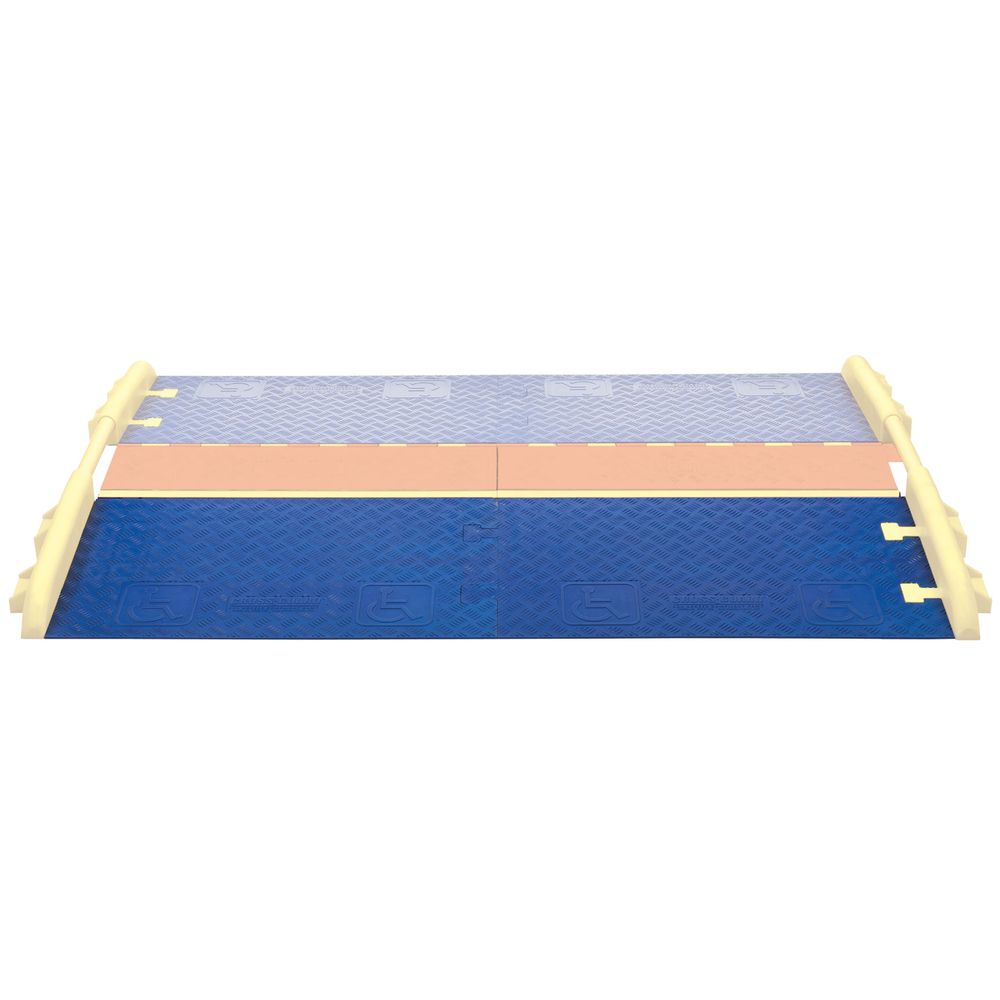

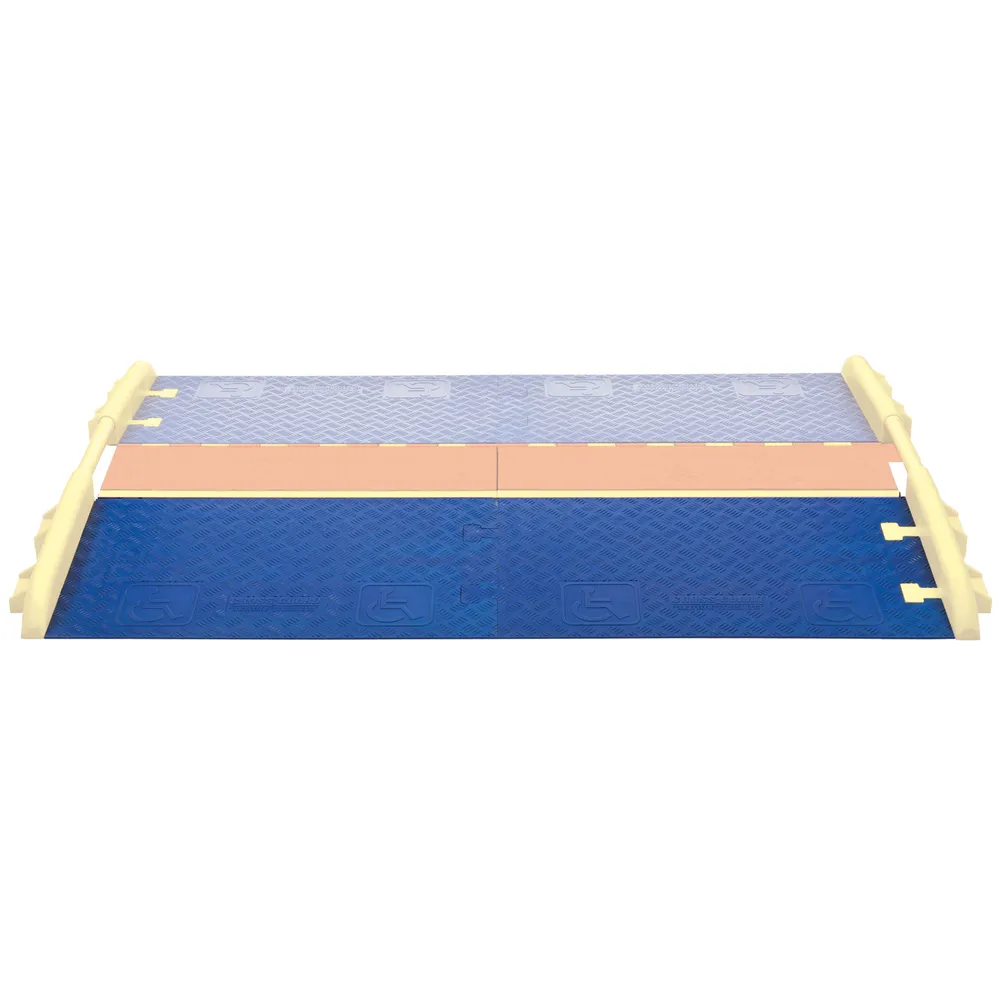

Cross-Guard ADA Compliant Cable Ramp

ADA compliant cable ramp is for use with the Linebacker 5 channel general purpose cable ramps only. The Cross-Guard ramps connect with the cable ramps to provide a gradual slope and slip-resistant surface to ensure a safe crossing for wheelchairs, pedestrians and vehicles. Manufactured to meet ADA and DDA compliant specifications.

$509.99
CPRP-5GP-BLU
$28.00
In Stock. Ships Directly from Manufacturer.
3 week lead time

Detail

The ADA compliant cable ramp is designed to connect with the Linebacker General Purpose 5 channel cable ramps making the cable ramps ADA compliant. Creates a gradual slope with slip-resistant surface to ensure a safe crossing point for pedestrians, wheelchairs, carts and vehicles. Multiple cable ramps and ADA cable protector ramps can be connected to create a custom modular system ideal for fairs, concerts, sporting events, or any public area where cable protectors are being used. ADA compliant cable ramps still allow for easy access to cables and cords so they can be placed, removed or adjusted easily. Constructed from all weather polyurethane that withstands tough conditions. Rails are also available to provide edge protection preventing potential dangers like falls and roll-offs.

Please Note: These ADA cable protector ramps are specifically designed to only work with the Linebacker General Purpose 5 channel cable ramp and use with any other ramp will result in product failure. Cable protectors and rails sold separately.

ADA Compliant Cable Ramp for model # CP5X125-GP
(2 Ramps & 4 Connectors)
36" (914.4 mm)
21.88" (555.75 mm)
2" (50.8 mm)
1.3" (33 mm)
1.3" (33 mm)
40 lbs (18.1 kg)
20,150 lbs
40,300 lbs
70°F (21°C)
Polyurethane (UV stabilized)
-40°F to 120°F (-40°C to 48°C)
Safety warning symbol molded into lid: Wheel Chair Symbol
Reinforced fiberglass
Per ANSI. Z535.3-1991

Product Features

  • Modular system connects with one or more cable protectors
  • Provides a gradual slope to ground
  • For pedestrians, carts, forklifts, vehicles with small wheels and heavy trucks
  • Slip-resistant surface for safe crossing
  • Meets ADA and DDA compliant specifications
  • Still allows access to cables and cords
  • All weather polyurethane construction
  • Safety symbols molded onto the surface
  • No tools required for installation
  • Made in the USA

Works With

Warning and Usage Guidelines

  • Use with any other ramp will result in product failure
  • Cable protectors and rails sold separately

Documents

Instruction Manual
