Heavy Duty Aircraft Loading Ramps

Portable Aircraft Ramps are designed to lay over and extend the existing aircraft ramp door. Works with C5, C130 and C17 aircrafts. Made in the USA!

  • ATTLA Certified (2012.02.06.1) for USAF C-130, C-130J-30, C-17, and C-5 Aircraft
  • Versatile and fully adjustable ramp system sets up in minutes
  • Ramps are rated at 20,000 lbs per axle
1 Year Warranty USA GSA Contract Holder

30" Wide Aircraft Ramp Systems - 20,000 lb Capacity

Item # Description Weight Diagram Availability Price
20-30-206-02-02-M-C-17-ASSY DAMAS C-17 Basic Shoring Aircraft Ramp System (30" wide ramps)
(4) Q5466 30" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5481 30" x 18" WEDGE
128 lbs per ramp
886 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
20-30-206-02-02-M-C-130-ASSY-T DAMAS C-130 Basic Shoring Aircraft Ramp System (30" wide ramps)
(4) Q5466 30" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5481 30" x 18" WEDGE
(2) Q5470 C-130 26" -38" STAND
(2) Q5458 URETHANE PAD
128 lbs per ramp
972 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
20-30-224-02-02-M-C-130-ASSY C-130 Basic Shoring Aircraft Ramp System (30" wide ramps)
(4) Q5466 30" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(4) Q5481 30" x 18" WEDGE
128 lbs per ramp
948 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
20-30-224-02-02-M-C-5-ASSY DAMAS C-5 Basic Shoring Aircraft Ramp System (30" wide ramps)
(4) Q5466 30" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(4) Q5481 30" x 18" WEDGE
128 lbs per ramp
948 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
20-30-354-02-02-M-C-130-ASSY-E DAMAS C-130 Low Clearance Layover Shoring Aircraft Ramp System (30" wide ramps)
(6) Q5466 30" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5481 30" x 18" WEDGE
(2) Q5470 C-130 26" -38" STAND
(2) Q5469 30" x 54" LEAD UP RAMP
128 lbs per ramp
1,434 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
20-30-354-02-02-M-C-5-ASSY-E DAMAS C-5 Low Clearance Extended Shoring Aircraft Ramp System (30" wide ramps)
(6) Q5466 30" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5756 20" - 26" STAND
(2) Q5481 30" x 18" WEDGE
(2) Q5469 30" x 54" LEAD UP RAMP
128 lbs per ramp
1,470 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
20-30-340-02-02-M-C-130-ASSY-T DAMAS C-130 Low Clearance Extended Shoring Aircraft Ramp System (30" wide ramps)
(6) Q5466 30" x 94" RAMP
(2) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5756 20" - 26" STAND
(2) Q5469 30" x 54" LEAD UP RAMP
(2) Q5470 C-130 26" - 32" STAND
(2) Q5458 URETHANE PAD
128 lbs per ramp
1,494 lbs total system
View Drawing
In Stock. Ships within 24 hrs.
Call for Pricing
For shipping quotes and ordering, call us toll free at 1-888-651-3431

36" Wide Aircraft Ramp Systems - 20,000 lb Capacity

Item # Description Weight Availability Price
20-36-206-02-02-M-C-17-ASSY DAMAS C-17 Basic Shoring Aircraft Ramp System (36" wide ramps)
(4) Q5505 36" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5506 36" x 18" WEDGE
137 lbs per ramp
932 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
20-36-206-02-02-M-C-130-ASSY-T DAMAS C-130 Basic Shoring Aircraft Ramp System (36" wide ramps)
(4) Q5505 36" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5506 36" x 18" WEDGE
(2) Q5470 C-130 26" -38" STAND
(2) Q5458 URETHANE PAD
137 lbs per ramp
1,018 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
20-36-224-02-02-M-C-130-ASSY C-130 Basic Shoring Aircraft Ramp System (36" wide ramps)
(4) Q5505 36" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(4) Q5506 36" x 18" WEDGE
137 lbs per ramp
1,004 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
20-36-224-02-02-M-C-5-ASSY DAMAS C-5 Basic Shoring Aircraft Ramp System (36" wide ramps)
(4) Q5505 36" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(4) Q5506 36" x 18" WEDGE
137 lbs per ramp
1,004 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
20-36-354-02-02-M-C-130-ASSY-E DAMAS C-130 Low Clearance Layover Shoring Aircraft Ramp System (36" wide ramps)
(6) Q5505 36" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5506 36" x 18" WEDGE
(2) Q5470 C-130 26" -38" STAND
(2) Q5507 36" x 54" LEAD UP RAMP
137 lbs per ramp
1,512 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
20-36-354-02-02-M-C-5-ASSY-E DAMAS C-5 Low Clearance Extended Shoring Aircraft Ramp System (36" wide ramps)
(6) Q5505 36" x 94" RAMP
(4) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5756 20" - 26" STAND
(2) Q5506 36" x 18" WEDGE
(2) Q5507 36" x 54" LEAD UP RAMP
137 lbs per ramp
1,512 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
20-36-340-02-02-M-C-130-ASSY-T DAMAS C-130 Low Clearance Extended Shoring Aircraft Ramp System (36" wide ramps)
(6) Q5505 36" x 94" RAMP
(2) Q5467 RAMP PAD
(2) Q6030 13" - 15" STAND
(2) Q5756 20" - 26" STAND
(2) Q5507 36" x 54" LEAD UP RAMP
(2) Q5470 C-130 26" - 32" STAND
(2) Q5458 URETHANE PAD
137 lbs per ramp
1,562 lbs total system
In Stock. Ships within 24 hrs.
Call for Pricing
For shipping quotes and ordering, call us toll free at 1-888-651-3431

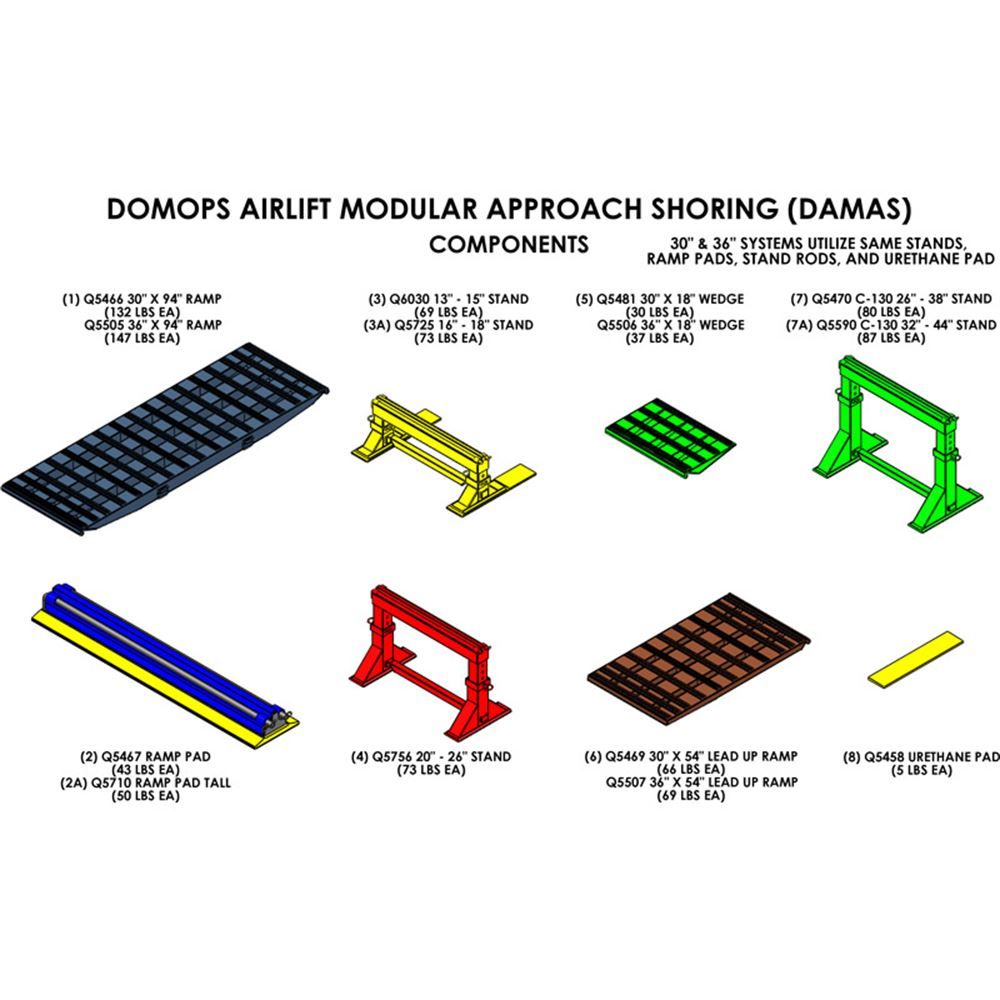

Aircraft Ramp Components

Item # Description Weight Diagram Availability Price
Q5466 30" x 94" RAMP 128 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5505 36" x 94" RAMP 137 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q6030 13" - 15" STAND 72 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5481 30" x 18" WEDGE 31 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5506 36" x 18" WEDGE 36 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5470 C-130 26" - 35" STAND 83 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5467 RAMP PAD 42 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5756 20" - 26" STAND 73 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5469 30" x 54" LEAD UP RAMP 63 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5507 36" x 54" LEAD UP RAMP 70 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
Q5458 URETHANE PAD 5 lbs View Drawing
In Stock. Ships Directly from Manufacturer.
Call for Pricing
For shipping quotes and ordering, call us toll free at 1-888-651-3431

Detail

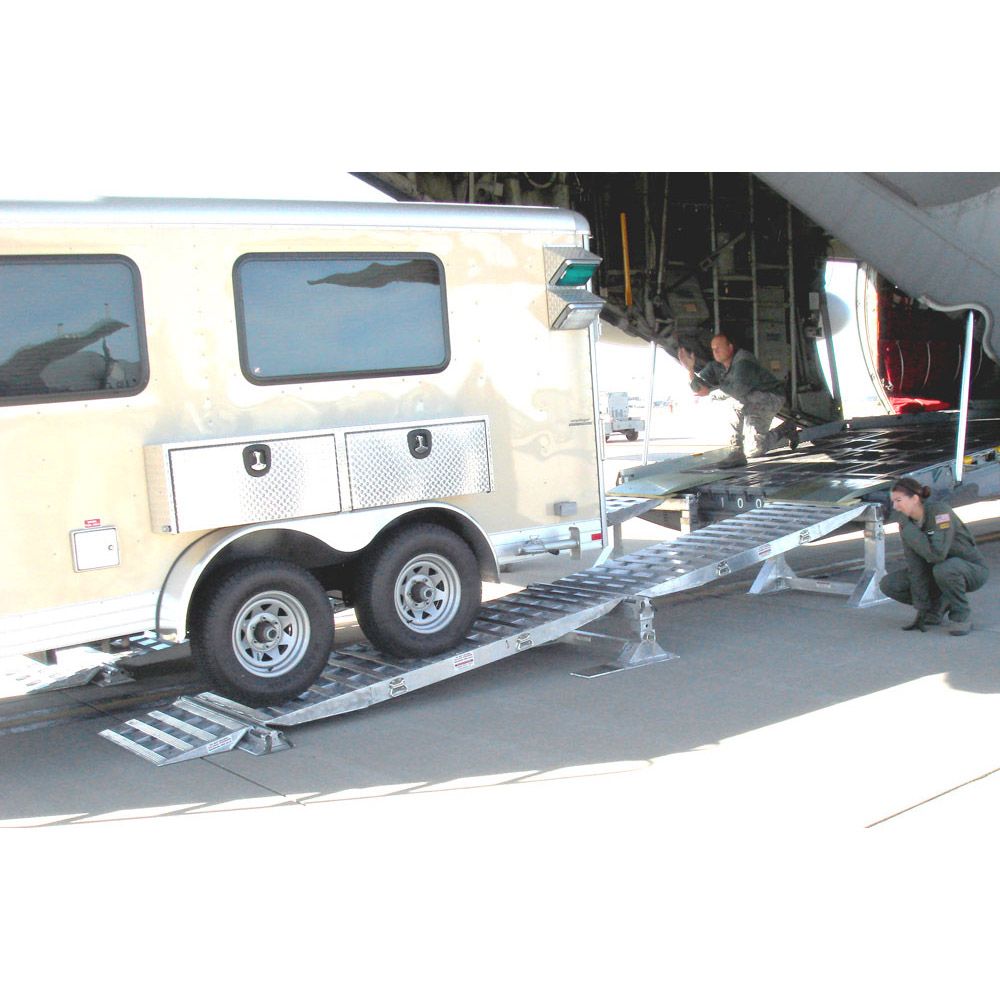

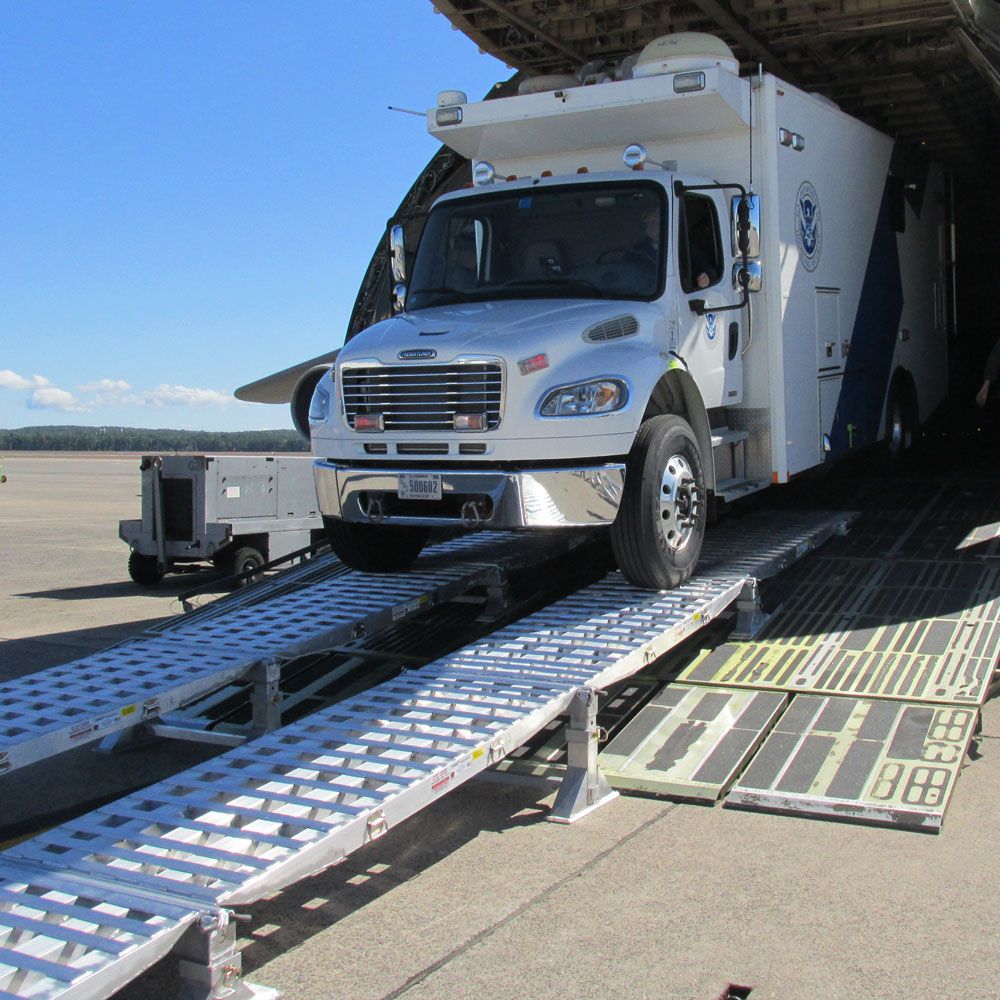

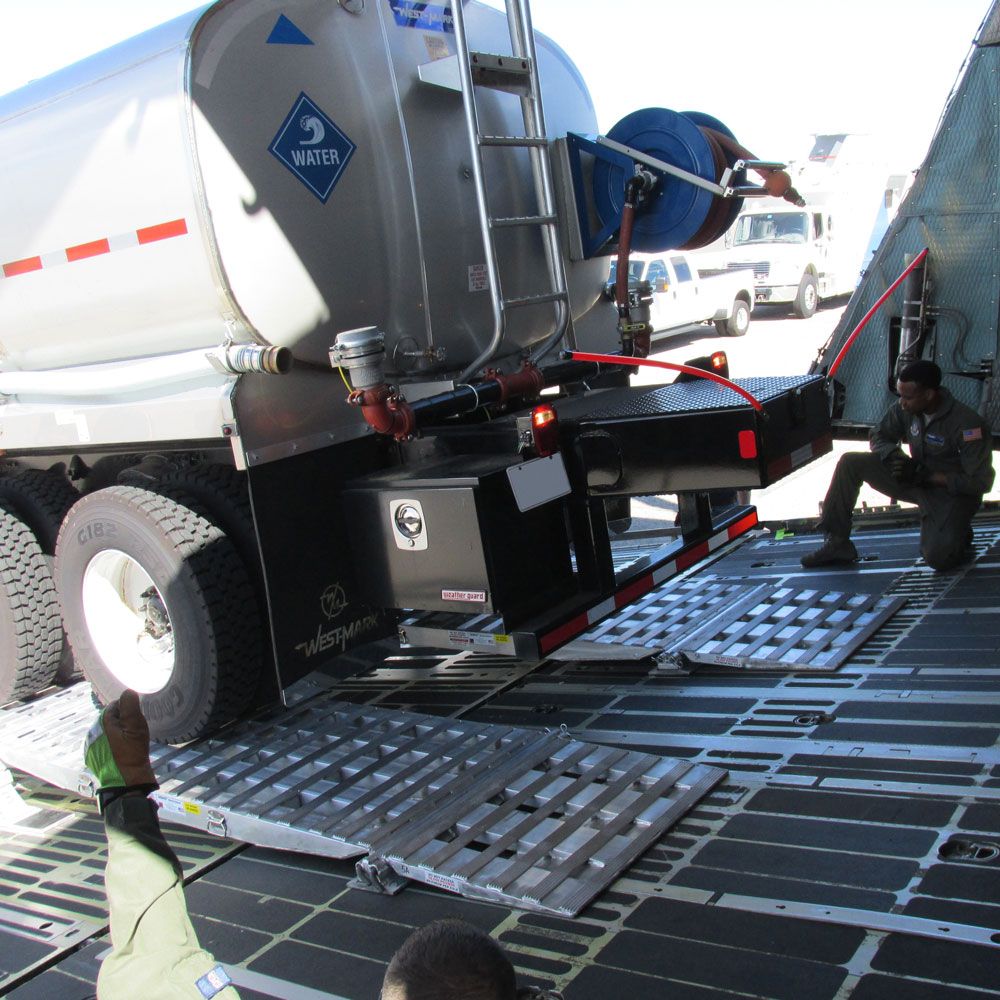

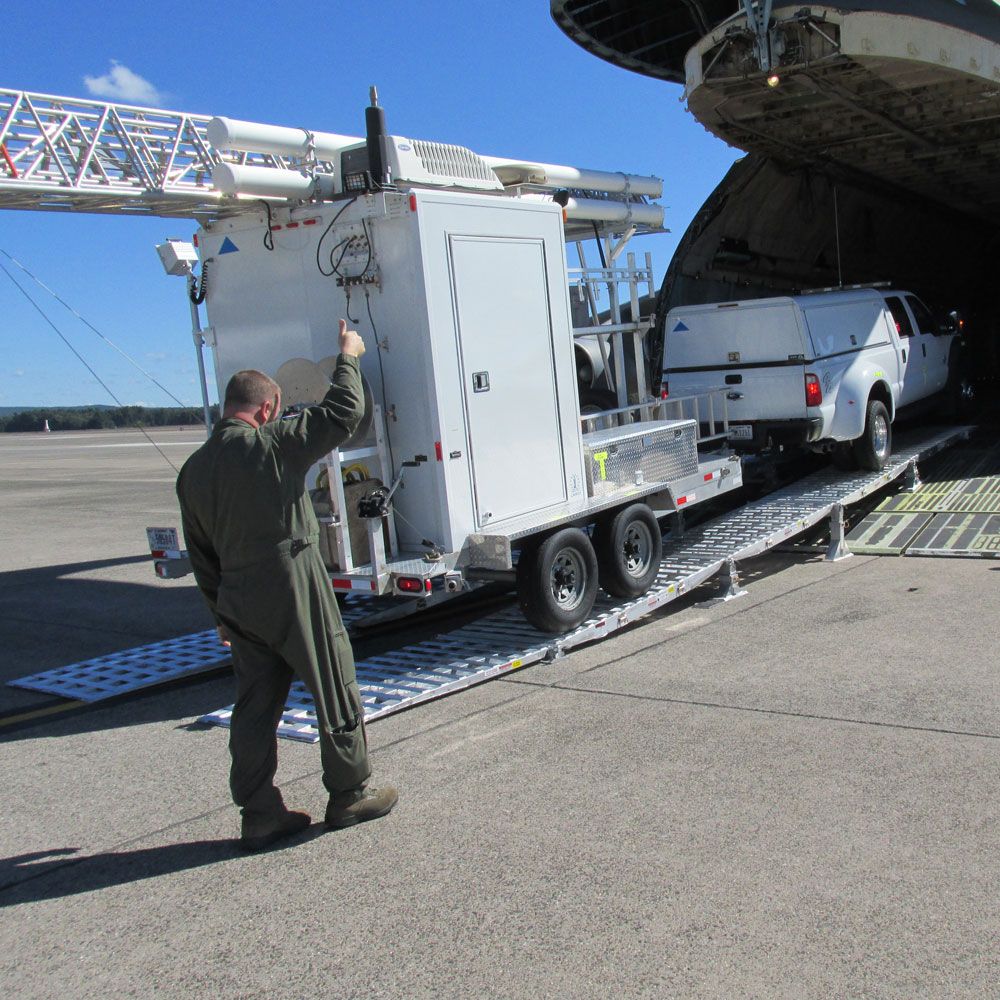

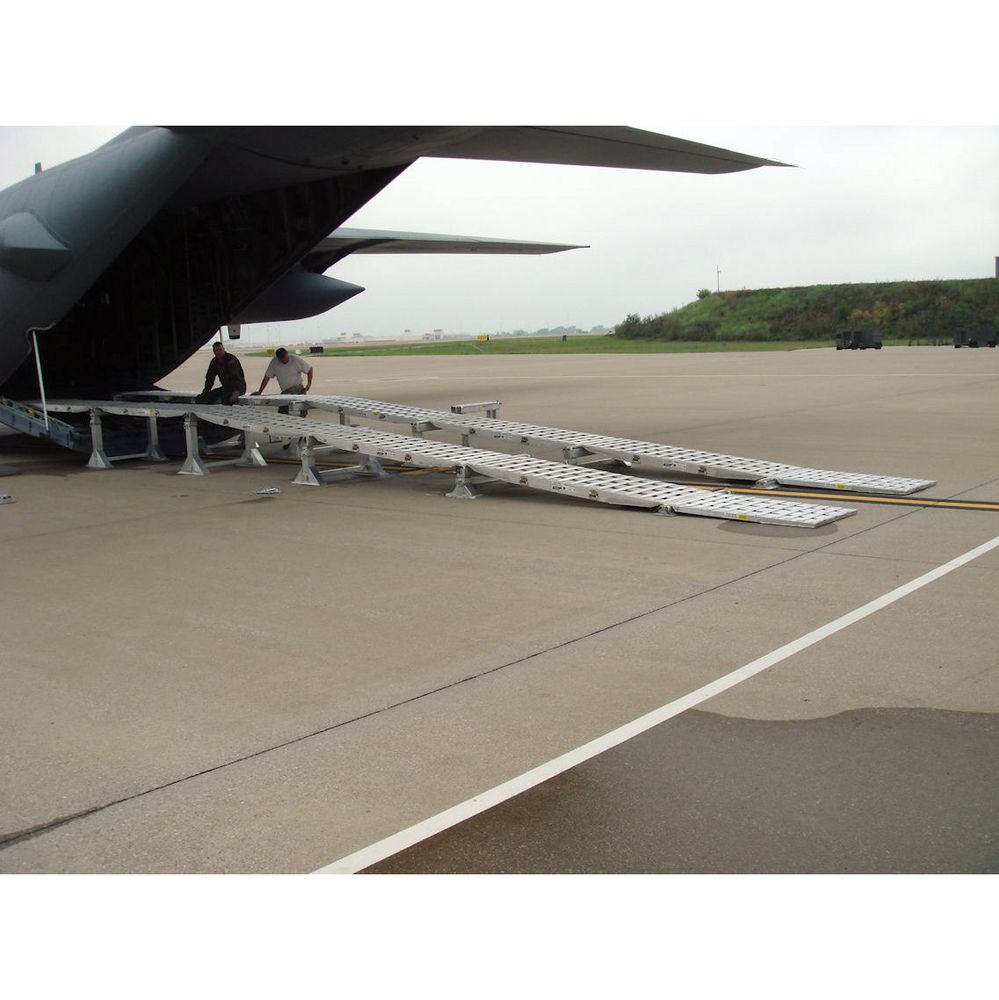

These portable aircraft ramps are designed to lay over the top of the existing aircraft ramp door and extend the door out to allow additional clearance for loading military vehicles and utility trailers. This aircraft assist ramp system eliminates and ground clearance problems. The portable aircraft ramp system is built in the USA (West Bend, WI) and is constructed of lightweight 47,000 psi yield aluminum allowing the system to break down in minutes and store compact inside the aircraft. This complete airplane ramp system can be set up in a couple of minutes and is very simple to use. We spent many years designing and testing this aircraft ramp system on the C5, C17 and C130 aircrafts. These heavy duty Aircraft Loading Ramps are ATTLA Certified (2012.02.06.1) for USAF C-130, C-130J-30, C-17, C-5 Aircrafts (AIR TRANSPORTABILITY TEST LOADING AGENCY). The aircraft ramp system is rated at 20,000 lb per axle and it consists of 94" long ramps x 30" & 36" wide. Ramps can be configured in any of the kits listed below. Customer can also configure there own system to meet thier specific loading needs. Kits also include center, and end support stands that adjust to variable heights. The existing aircraft door holds the support stand in place by sitting on a flat plate on the bottom of the stand. To protect the aircraft existing door we bonded a rubber pad to the underside of the top ramps that lay on the aircrafts door. The bottom ramps have been re-designed to now sit flat on the ground. The pictures show an earlier design but have since been updated. You can view the drawing to see the new style system.

Product Features

  • All ramps are constructed from 47,000 psi yield aluminum
  • Works on C5, C17 and C130 aircrafts
  • Versatile and fully adjustable ramp system sets up in minutes
  • Serrated cleats offers excellent traction in all weather conditions
  • Eliminates the use for shoring lumber
  • Ramps are rated at 20,000 lbs per axle
  • Rubber pad bonded to bottom of ramps to protect the aircraft ramp door
  • Strongest, lightest ramps on the market!
  • ATTLA Certified (2012.02.06.1) for USAF C-130, C-130J-30, C-17, C-5 Aircrafts (AIR TRANSPORTABILITY TEST LOADING AGENCY)
  • 1 Year Warranty
  • US Patent # 8448278
  • Proudly made in the USA (West Bend, WI)
