This American-made three-piece set of cord covers is comprised of two side ramps and a center section. The Advanced Modular System features a set of flat prongs and slots that allow an unlimited amount of center pieces and side ramps to be combined to create a complete cable management system. The polyurethane cable ramp?s channels protect up to five hoses and cables up to 1.25" diameter from vehicles weighing up to 32,600 lbs per axle.
Protects 1.25" diameter cables and hoses
Withstands up to 32,600 lbs per axle
All-weather polyurethane construction weighs 29.35 lbs
Interlocking male/female connectors and Dog Bone connectors allow multiple units to be connected

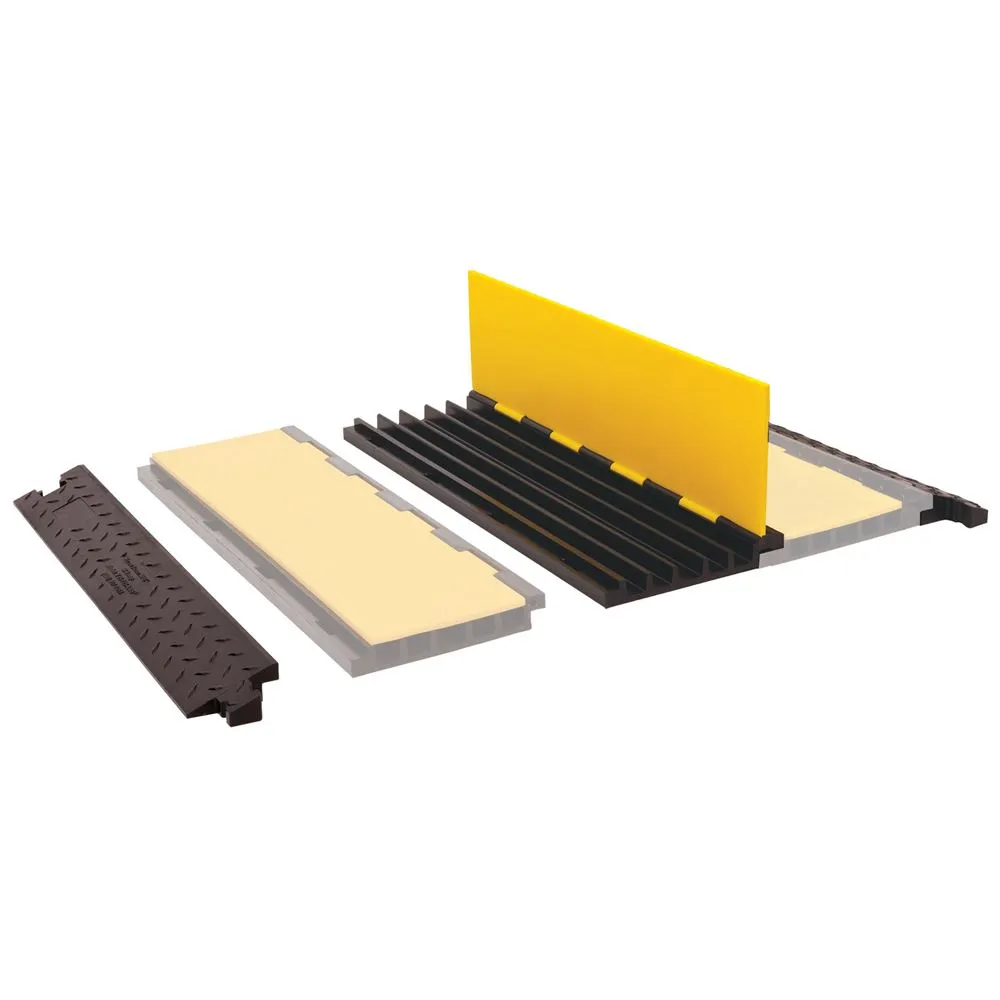

The full AMS (Advance Modular System) cord covers are quick and easy to set up and tear down. Manufactured from lightweight polyurethane, the full system consists of a single, five-channel cable protector center section, a female side ramp, and a male side ramp. A hinged lid makes it easy to access the five cable channels during installation and tear-down, or for maintenance. Any number of additional center sections can be plugged into each other to expand the number of channels for cables to run through. The male and female side ramps feature Dog Bone connectors that connect the side ramps. The male side ramps contain flat prongs that drop into the slots on the center sections. The female counter-parts contain slots that are inserted into the flat prongs on the opposite side of the center section. All three pieces are covered in raised diamond tread patterns that enhance traction during the cold and wet winter months. The American-made AMS Yellow Jacket system is designed for use with pedestrians, carts, mobility chairs, and bus traffic.
32,600 lbs per axle
Interlocking brackets for channel expansion

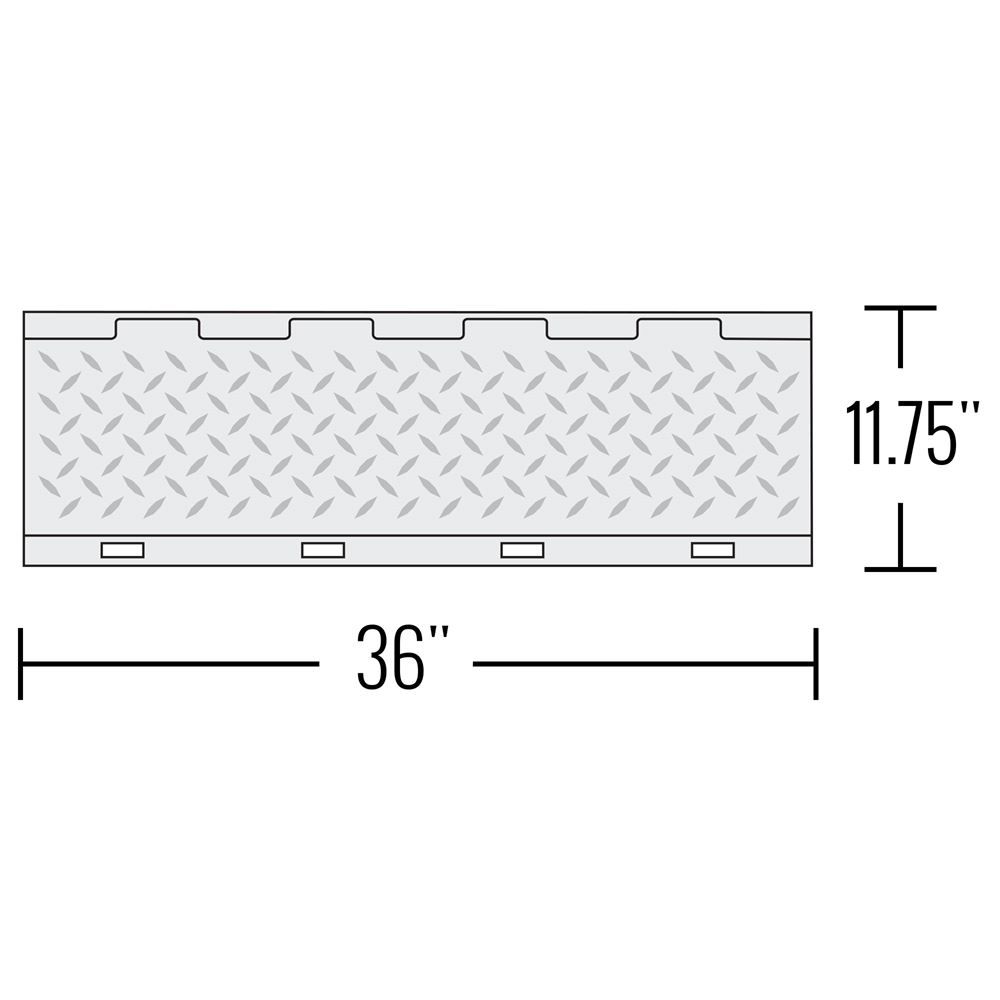

(1) center section

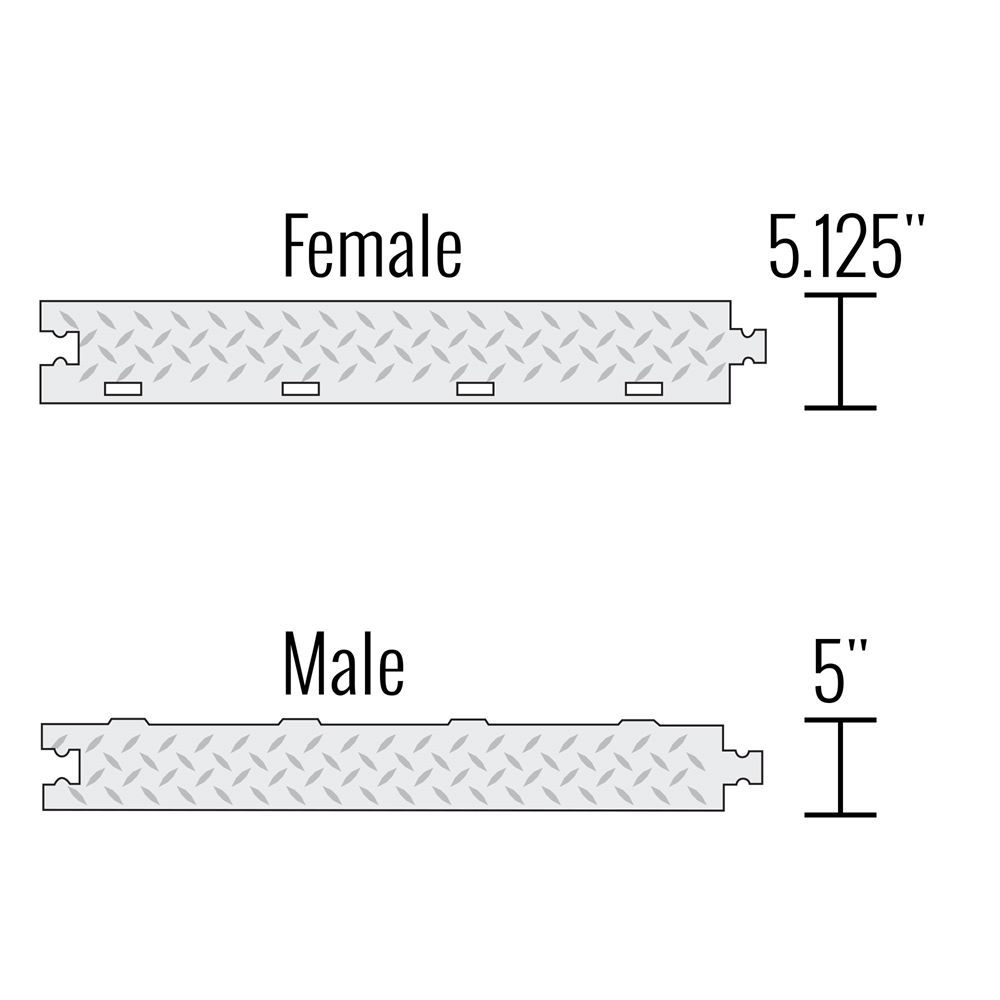

(2) side ramps (Male & female)

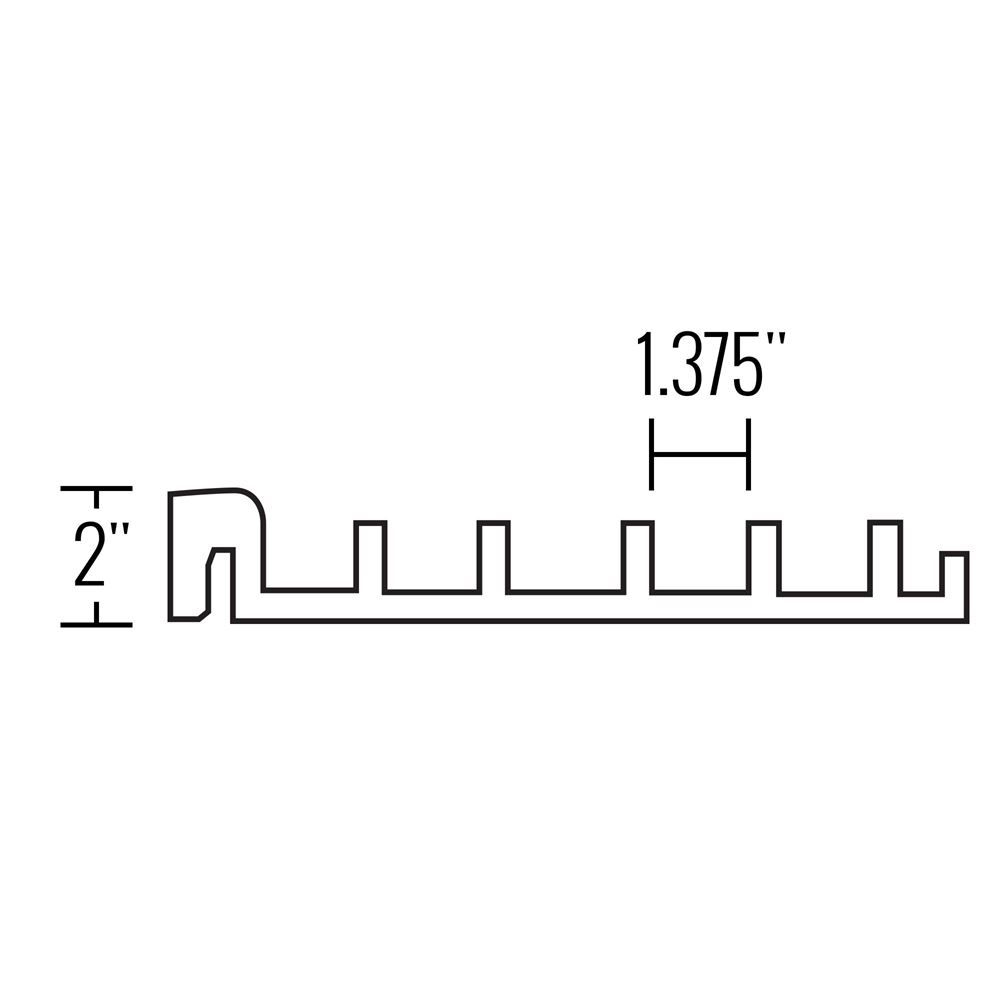

(5) channels for cords, pipes, cable, etc. up to 1.25" in diameter
