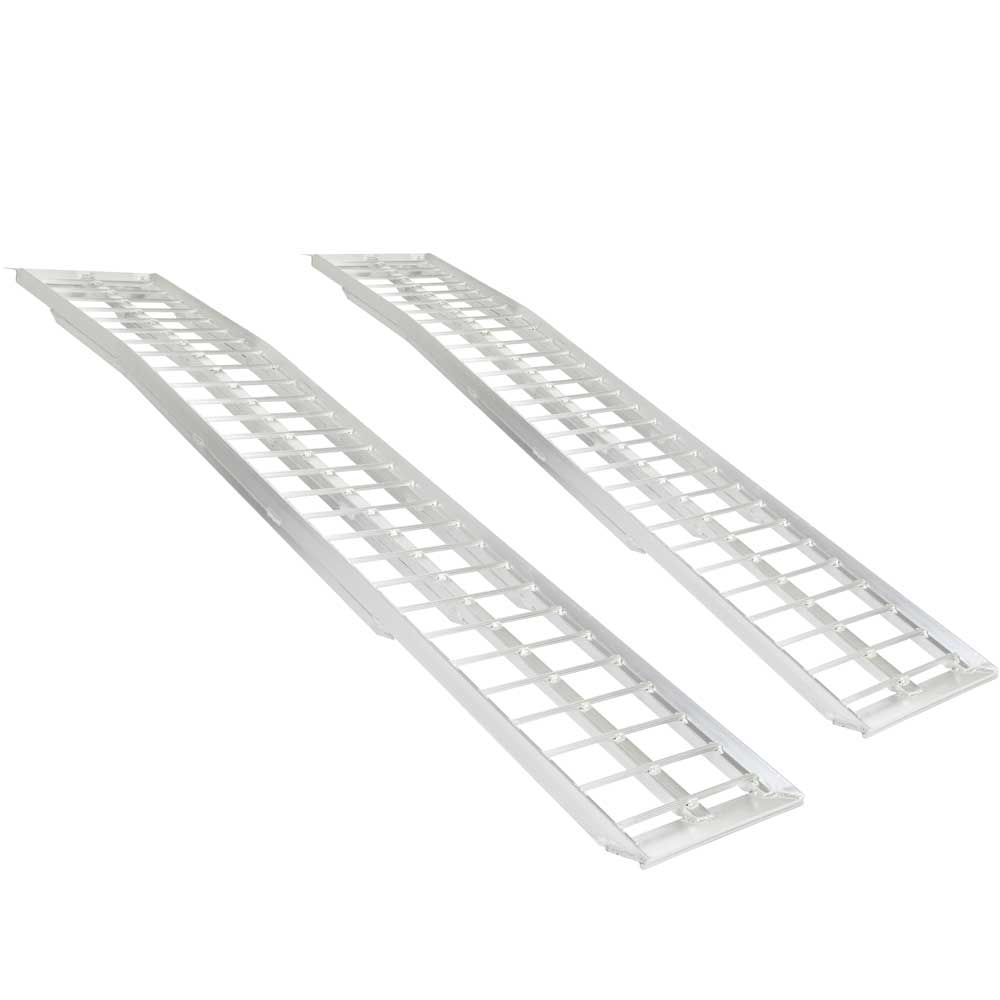

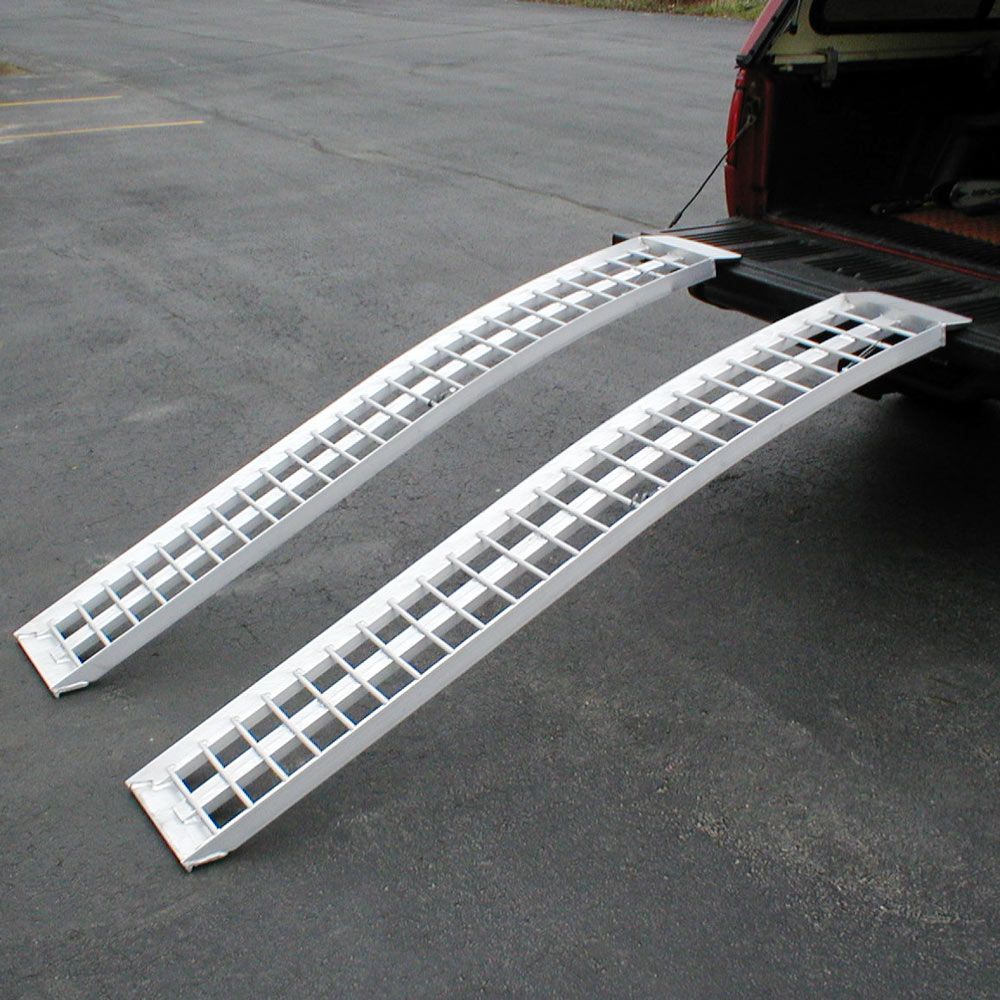

Aluminum Arched Dual Runner ATV Ramps

Dual arched ATV Ramps provide additional clearance and are loaded for use with ATVs, UTVs, and garden tractors. Available in 12" and 16" wide sizes to meet various application styles.

1 Year Warranty
Item # Length Width Weight Weight
Status Price Quantity
A-8412-1200-2 84" 12" 28 lbs 1,200 lbs per pair
A-8416-3000-2 84" 16" 44 lbs 3,000 lbs per pair
A-8912-1800-2 89" 12" 35 lbs 1,800 lbs per pair
A-9512-1200-2 95" 12" 37 lbs 1,200 lbs per pair
A-9516-3000-2 95" 16" 48 lbs 3,000 lbs per pair

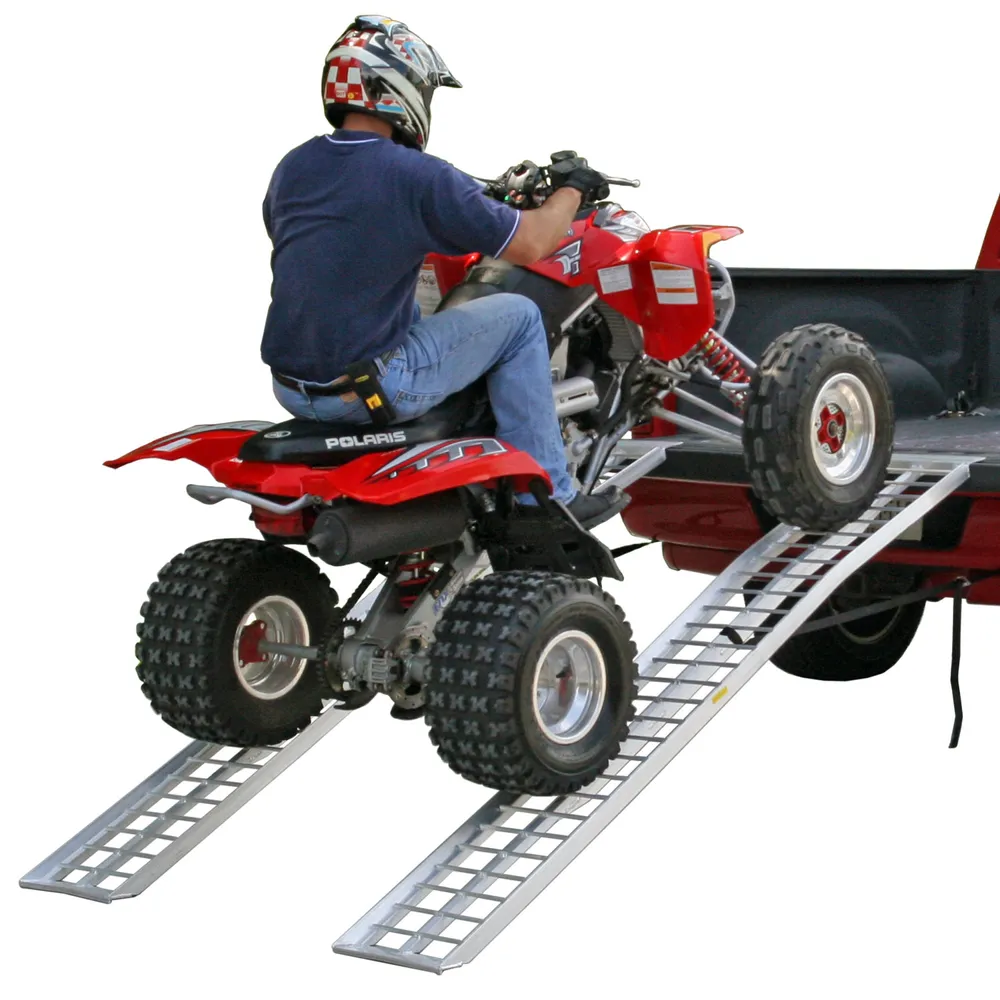

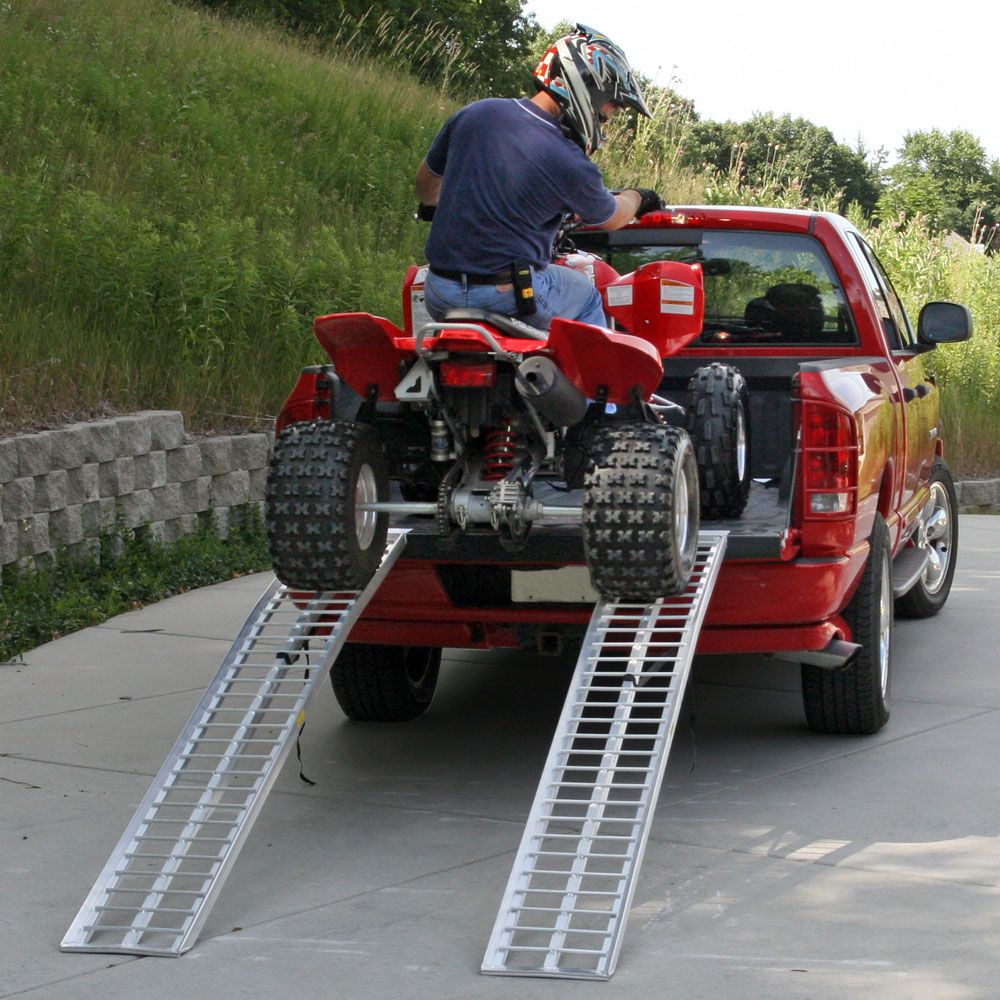

Patented dual arched ATV Ramps feature an all aluminum construction and are the perfect solution for loading ATVs, UTVs and garden tractors onto trailers, trucks, or low dock areas. Easy to set up, transport, and store, each ATV Ramp is angled for maximum clearance. Available in 12" and 16" wide models with a weight capacity of 1200 and 3000-lbs respectively. ATV Ramps have three inch rung spacing between the serrated cross bars for smooth, secure loading. These ATV Ramps are high quality and full of safety features such as raised sides to help keep tires in the ramp channels, cam buckle safety straps to keep the ramps secure in place, a full width plate style attaching lip for the most area of contact on loading surfaces, and serrated cross bars for sure traction even in the mud, rain, or snow.


Product Features

  • Arched for maximum clearance
  • All aluminum construction is lightweight and will not rust

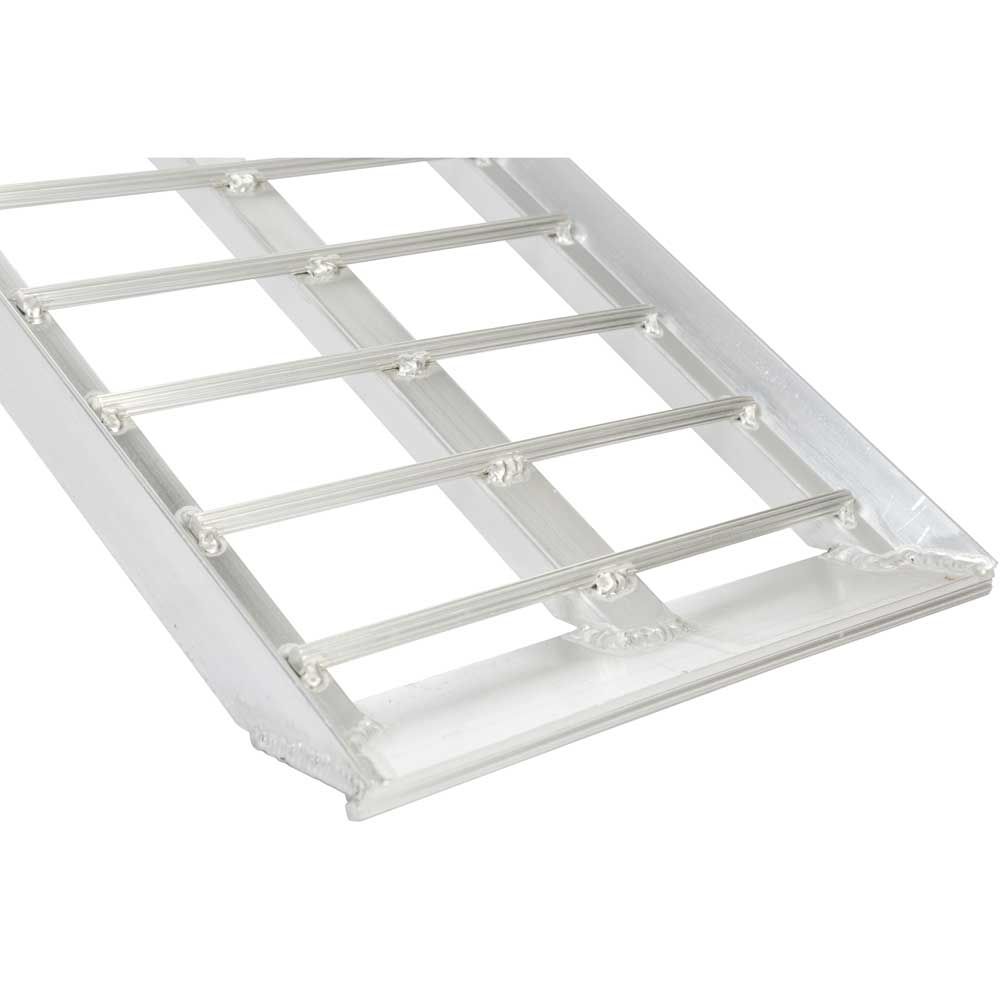

  • 3" rung spacing for a smooth ride
  • Raised, beveled side rails keep tires on ramps

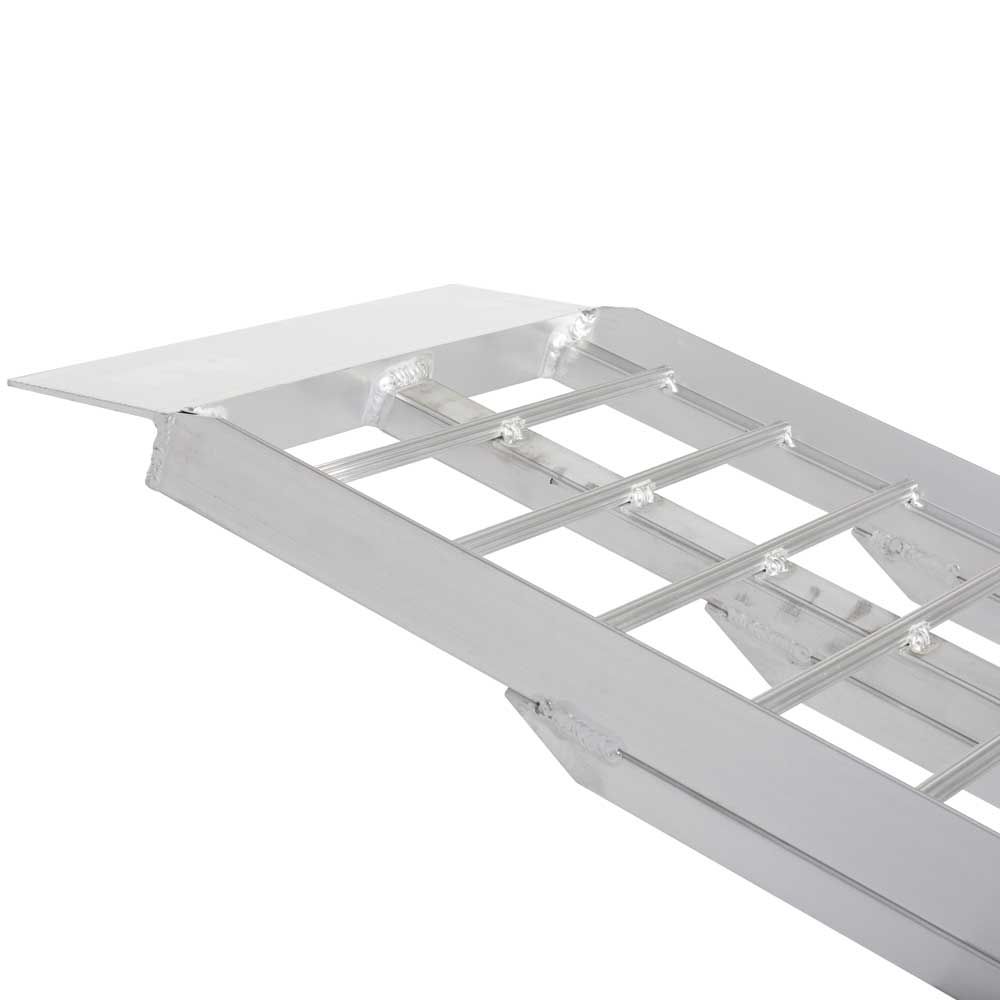

  • Full width attaching lip and cam buckle safety straps
  • One year warranty
  • Quality, heavy duty construction


Instruction Manual


How to Load a Golf Cart into a Truck
How to Choose the Correct ATV Ramp

Review Summary (Based on 2 Reviews)


5 Stars Aluminum arched 16" wide ramps.

Wayne from ID wrote (July 23, 2016):

Ordered the 95" long 16" wide arched aluminum ramps for loading a 1,000 pound UTV in the back of a pickup. They arrived in a few days and I have used them a couple times. They look to be good quality and the shipping was fast. They are lightweight and handle the load without bending. They came with straps to attach to the bumper to hold the ramp in place while loading. A very handy tool. I am very satisfied with them. I definitely would order these again.

5 Stars Good Product

Gary from LA wrote (October 07, 2015):

I bought these ramps to provide a way to drive my side-by-side onto an elevated dry storage area when I am not using it. They are strong, well made and work perfectly for the task. I got the 16 inch width for safety. An added benefit is that they are sufficiently light to be easy to handle. I looked at a lot of ramps and you cannot beat these for any price. And, they were less expensive than most all I looked at.

Fill in the form below to see the minimum ramp length you need.

Need help measuring? Click Here

Please enter wheel base.
Please enter wheel base.
Please enter wheel base.


Minimum ramp length
