2-Channel Guardian Cable Protector for 1.125" diameter cables

Ships today!
Call for Shipping Discounts on Large Quantities

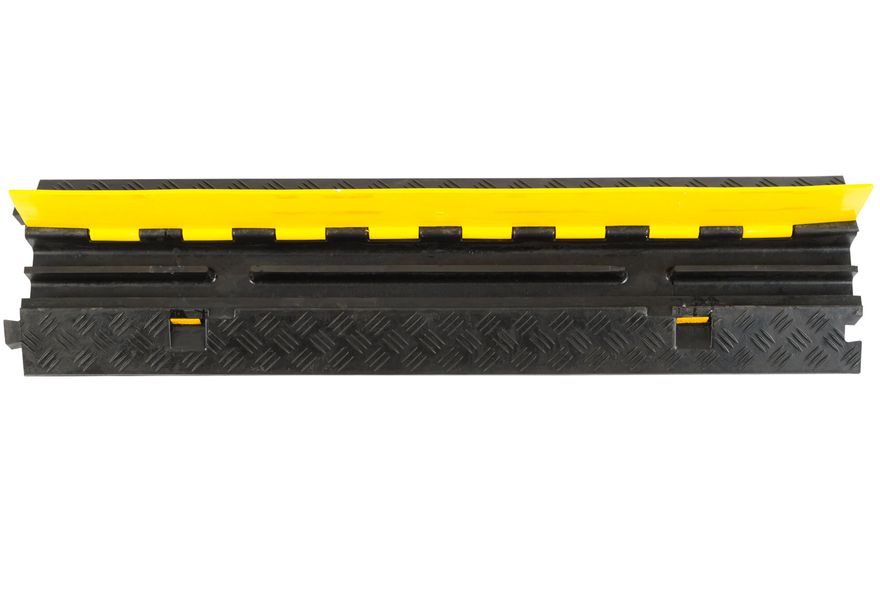

Protect up to two 1.125" diameter cables and wires from vehicle, forklift, and heavy equipment traffic with our Guardian dual-channel cable protector. Made from durable heavy-duty rubber, this cable ramp can support vehicles weighing up to 12,000 lbs per axle. Connect straight sections to left or right curves using the interlocking trapezoid connectors for a compete cable management system.

  • Protects 1.125" diameter wires and cables
  • Supports forklifts and other vehicles weighing up to 12,000 lbs per axle
  • Features two channels with gaps for easy cable management
  • Commercial-grade rubber construction weighs 15.75 lbs
  • Uses an interlocking trapezoid connector system to link additional straight or curved pieces

Our dual-channel Guardian cable ramp was designed specifically to protect wires and cables from being damaged by forklifts and other vehicles weighing up to 12,000 lbs per axle. Interlocking trapezoid connectors at each end of the cable protector link multiple ramps together to cover greater lengths of cable. This heavy-duty cable protector features a smooth 28° incline for a gradual approach angle and two channels for running 1.125" diameter cables through. There are also four integrated safety reflectors and two 2" wide channel gaps for crossing cables from one channel to the other, if necessary. Featuring a heavy-duty commercial-grade rubber base and a reinforced, hinged PVC lid, this Guardian cable protector comes with a one year manufacturer's warranty.

12,000 lbs per axle
15.75 lbs

Product Features

  • Great for indoor or outdoor use
  • Dual 1.125" x 1.125" cable channels
  • Interlocking connectors hook multiple cable protector pieces together
  • Bright yellow safety lid with warning symbols
  • 12,000 lb. capacity per axle allows heavy vehicles such as forklifts to cross cables
  • 28° incline smooth approach angle
  • 2" channel gaps for cable cross-over
  • Straight pieces (DH-CP-5) have (4) integrated safety reflectors
  • Each turn piece (DH-CP-5R & DH-CP-5L) provides a 45° bend
  • Heavy duty commercial grade rubber base with a PVC flap
  • Includes a 1 year warranty
  • For other sizes, please view our Cable Ramps & Protectors selection
