2 Channel Heavy Duty Linebacker Cable Ramps

These 2 channel cable ramps are some of the largest open top cable protectors on the market with room to hold cables up to 3-1/4" in diameter. A modular design allows multiple cable ramps to be connected to create custom lengths for any application. Made in the USA!

$419.99
CP2X325-YO
$28.00
In Stock. Ships Directly from Manufacturer.
USA
2 Channel HD Cable Ramp
Yellow Lid / Orange Ramp

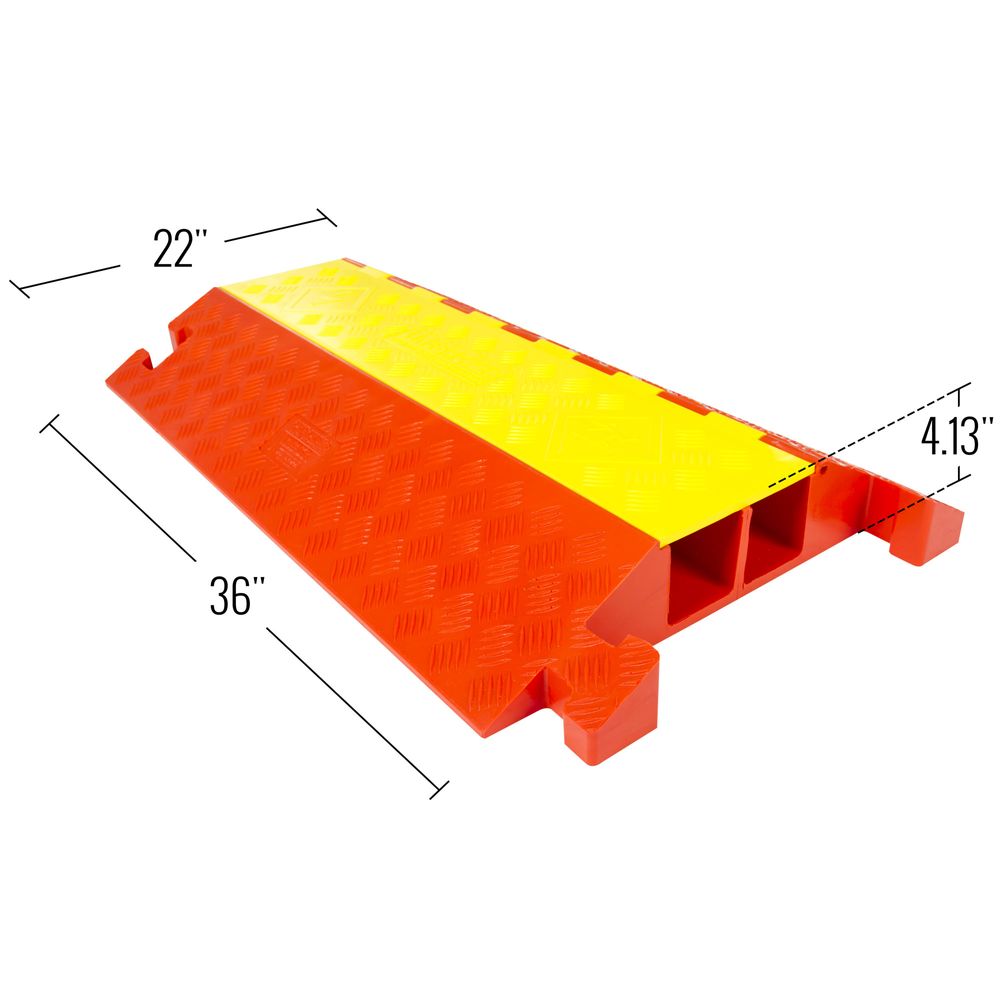

36" (914.4 mm)
22" (558.8 mm)
4.13" (101.6 mm)
3-1/4" (82.6 mm)
3-1/4" (82.6 mm)
33 lbs (15.0 kg)
Polyurethane (UV stabilized)
-40°F to 120°F (-40°C to 48°C)
`Reinforced fiberglass
14,210 lbs
21,760 lbs
Safety warning symbols molded into lid: Trip Hazard - Electric Hazard
Per ANSI. Z535.3-1991

Summary

These 2 channel cable ramps are some of the largest open top cable protectors on the market with room to hold cables up to 3.25" in diameter. A modular design allows multiple cable ramps to be connected to create custom lengths for any application. Made in the USA!

Detail

These Linebacker cable ramps have 2 wide channels to prevent cables, cords and hoses up to 3-1/4" in diameter from being damaged. Linebacker cable protectors have an orange base and yellow lid for visibility. The surface of the cable ramps have a 5-bar tread for traction and the lid has molded safety warnings. A reinforced hinged lid opens allowing cables to easily be placed inside. The heavy duty polyurethane construction won't break or crack in extreme weather conditions or under the weight of heavy trucks and forklifts. Ideal for use in heavy duty environments like military, industrial, mining and more.

Product Features

  • Wide channels to hold cables up to 3.25" in diameter

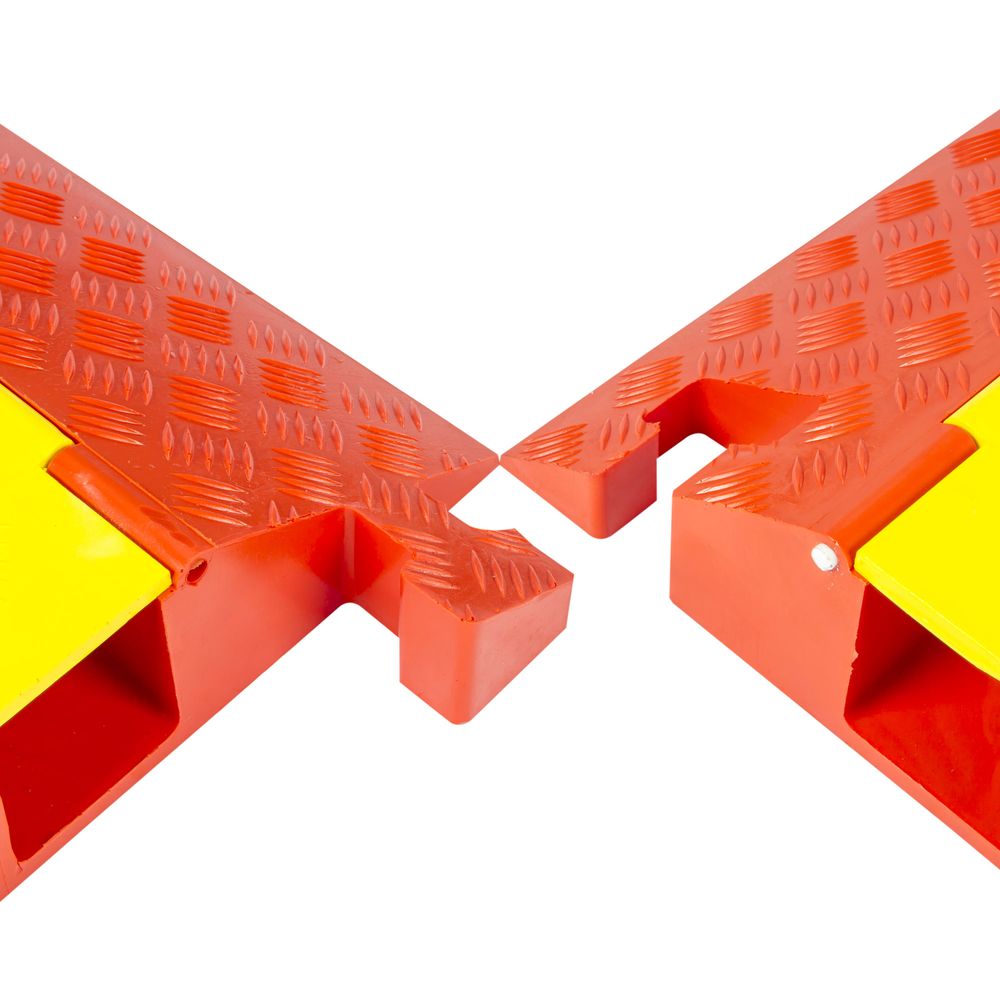

  • Modular design connects with additional cable ramps for custom lengths

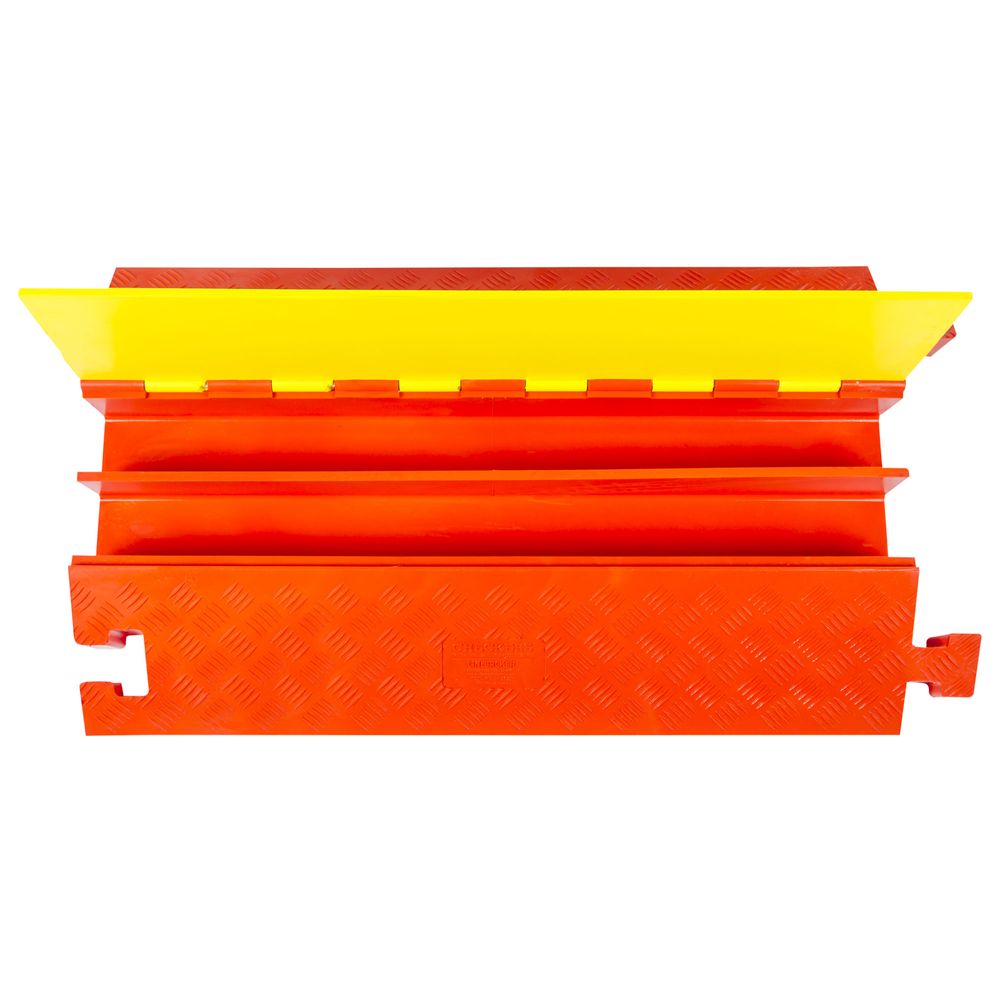

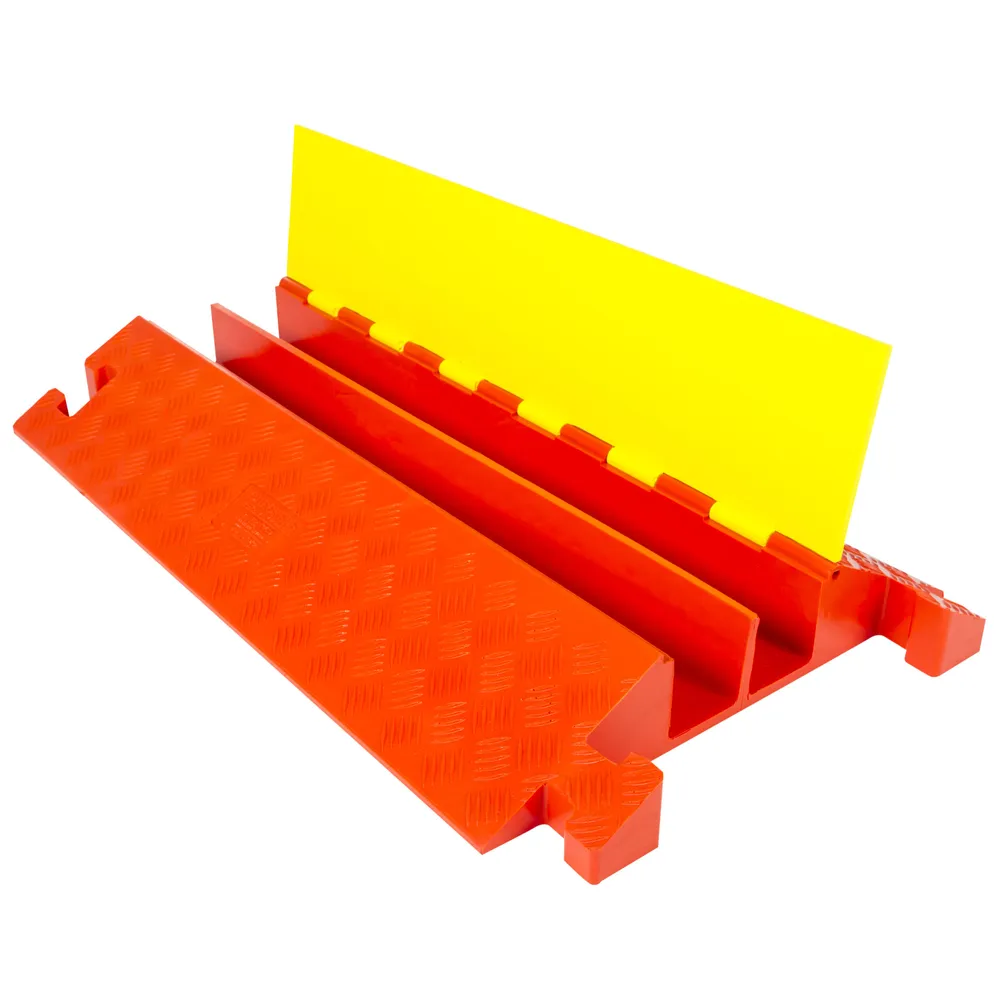

  • Reinforced hinged lid opens for easy cable placement
  • Safety warnings molded into lid surface
  • 5-bar tread on surface for traction
  • All weather polyurethane construction
  • Works indoors or outdoors

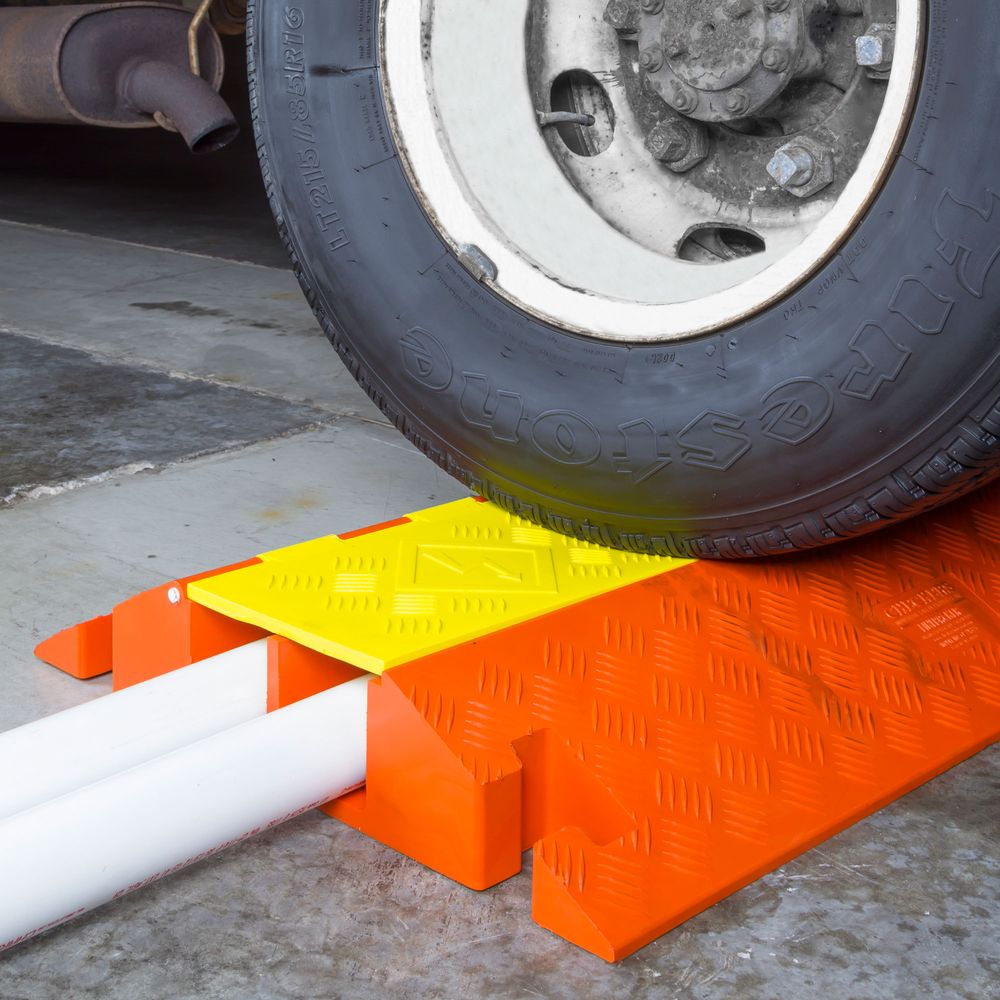

  • Ideal for use in heavy duty environments with heavy trucks and forklifts
  • Made in the USA

Documents

Instruction Manual
