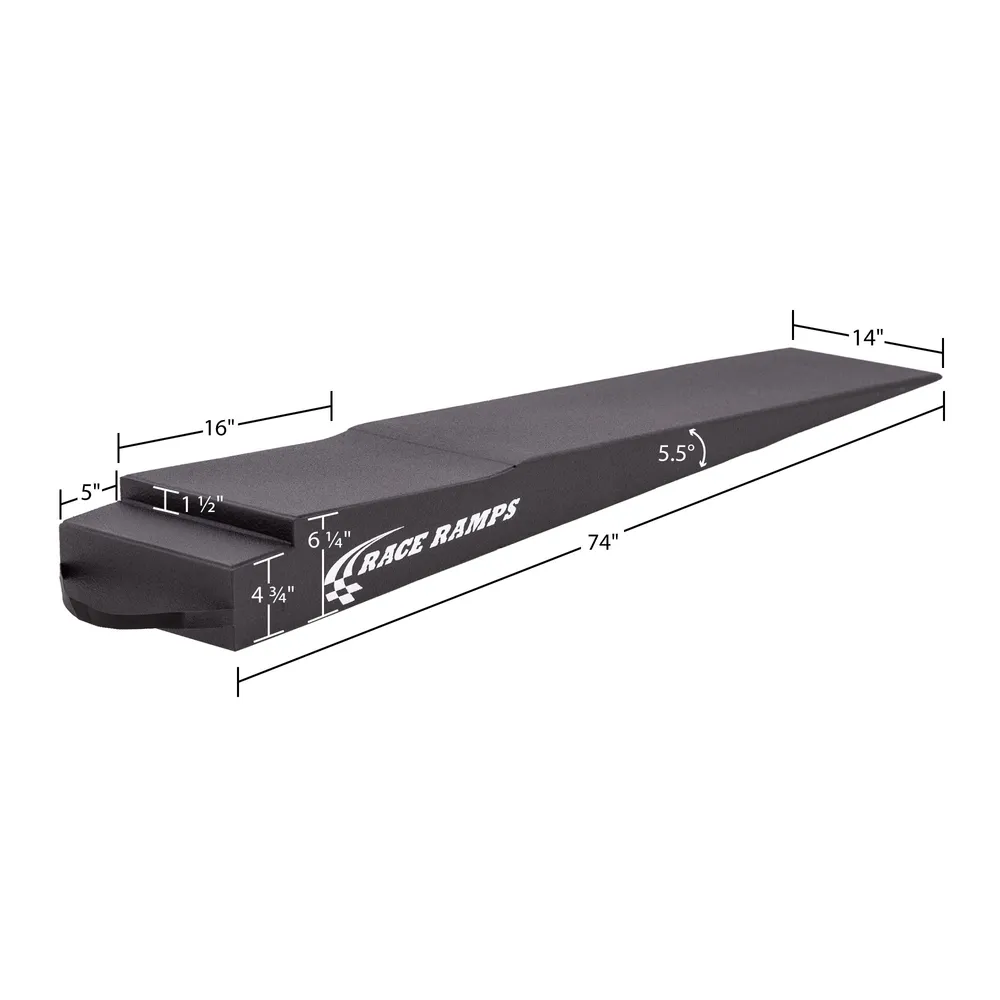

The cut-out trailer ramps are designed to load low-profile vehicles into enclosed trailers that contain an extension flap. The first end cut-out is designed as a resting place for the trailer door. A second cut-out is the resting place for the extension flap. This helps create a smooth and gradual transition when loading a low-profile vehicle.
Designed for enclosed trailers
Loads low profile vehicles
Cut-outs for trailer door rest
Reduces approach angle by 5.2 degrees
14" width fits wider tires
6,000 lb weight capacity (each)
Race Ramps trailer ramps with flap cut-out help load and unload low profile vehicles safely into enclosed trailers with an extension ramp. These ramps have a specially designed cut-out that allows a flap up to 16" to rest on it during loading. The ramps reduce the angle of approach to 5.2° to prevent scraping the underside of a vehicle.
Race Ramps flap cut-out trailer ramp is specially designed for enclosed trailer ramps that include an extension flap. This ramp has a built-in cut-out that provides a resting place for up to a 16" trailer flap. Trailer ramps with a flap cut-out are designed to safely get low ground clearance vehicles on and off trailers without scraping or damaging the underside of the vehicle. Made by Brute Industries, these ramps use a patented lightweight technology when constructing the ramps to ensure that they are durable and very stable. The material used for the flap cut-out trailer ramp is easy to clean and won't rust like metal trailer ramps. The unique coated surface won't scratch or scuff garage floors or asphalt and provides a no-slip surface. For storage, trailer ramps conveniently hang on a wall with the attached handles located at the end of each ramp. If this is not the trailer ramp you're looking for, then check out Race Ramps standard length trailer ramps, available in several different heights.

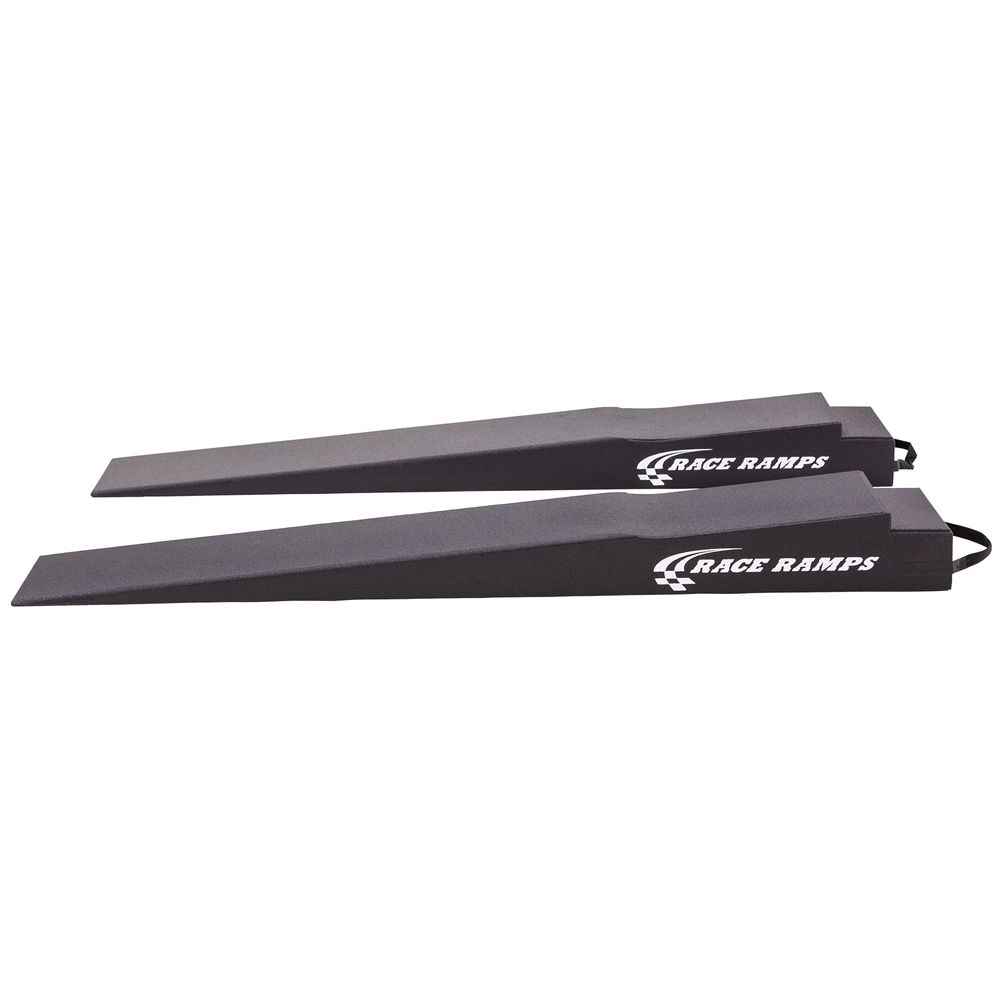

Race Ramps Trailer Ramps with Flap Cut-Out to fit up to a 16" extension flap - Set of 2
Specially designed for enclosed trailer doors that have an extension flap

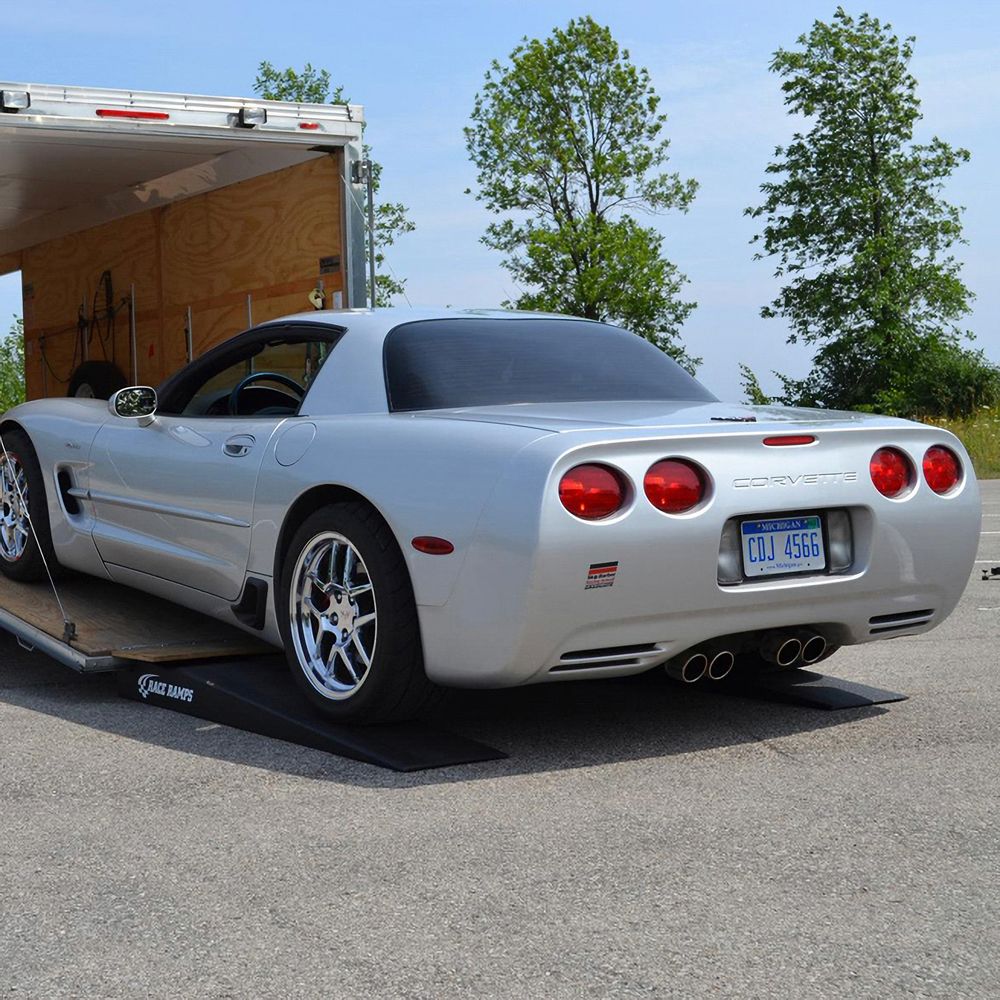

Load and unload low profile vehicles onto a trailer without scraping
Cut-outs in the ramp provide a resting place for up to a 16" flap
Reduces the ramp angle of approach to 5.2°
14" wide to accommodate cars with wide tires
Built with patented material to ensure these ramps are lightweight, durable and very stable
Coated surface prevents scratches and damages to flooring
Easy to clean and won't rust
Built in straps for easy transport and to hang on a wall for storage
Supports up to a 6,000 lb vehicle (per pair)
1 year warranty
Warning and Usage Guidelines
Before using the ramps ensure other persons are clear of the vehicle and the ramps
Ensure that the ramps are free from damage or corrosion before use.
Use only a single pair of wheel ramps at the front or rear, do not use two ramps on one side of the vehicle
Position the ramps in line with the wheels, with the steering wheel pointed straight and the incline against the tire tread
Carefully drive the vehicle onto the automotive ramps until it is in the correct position
Turn the engine off, apply the parking brake, get out of the vehicle and securely chock the remaining wheels on the ground
Before starting work, walk around the vehicle ensuring it is securely positioned
Always use jack stand if a person will be going under the vehicle
On completion of the work, check the parking brake is still firmly on and remove the chocks
It is important to drive very slowly when coming off the ramps to prevent the automotive bodywork from making contact with the car ramp
Exercise caution when using these car ramps with a trailer or three wheeled vehicle
