General Purpose Linebacker Cable Ramp

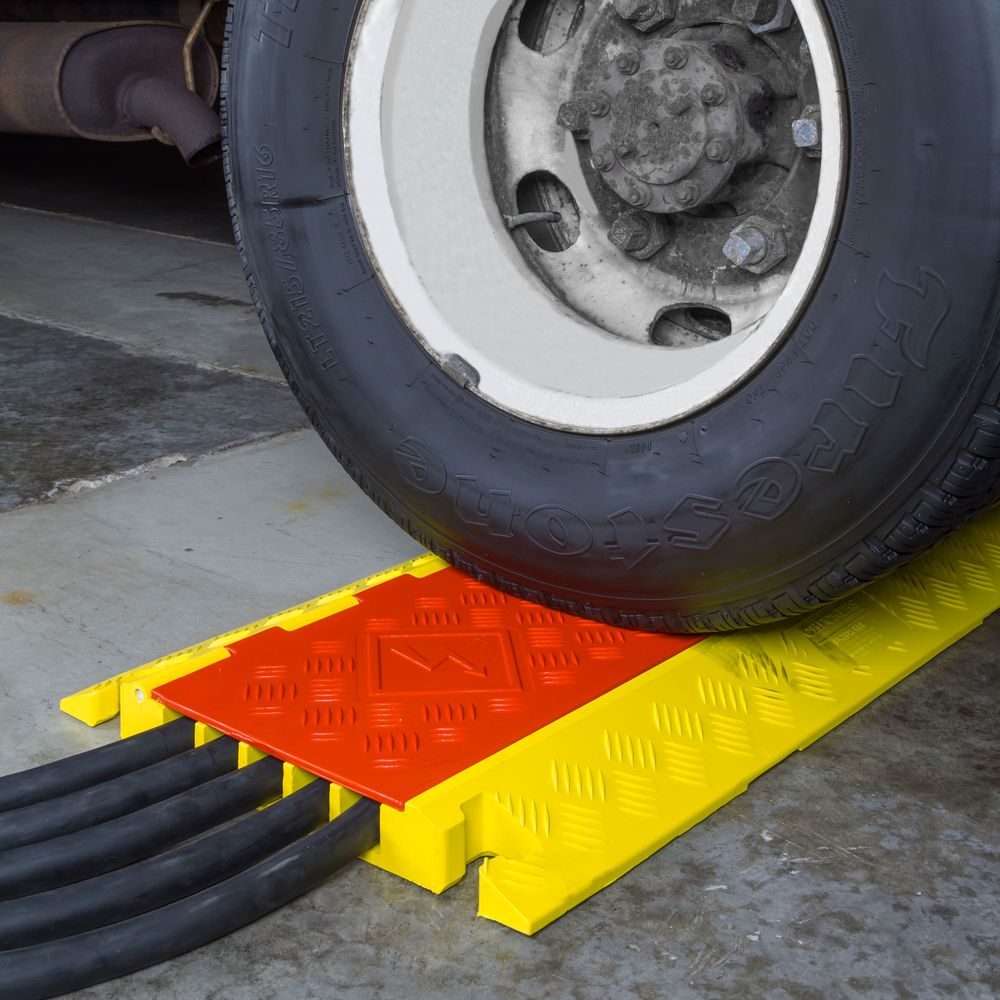

Protect your cables and prevent accidents with the general purpose linebacker cable ramp. Easy to set up, it's perfect for use in public, commercial and industrial areas where exposed cables need to be protected. The 5-channel system comes in orange and yellow for the best visibility and has a patented 5-bar tread pattern for maximum traction.

  • All-weather, lightweight polyurethane construction

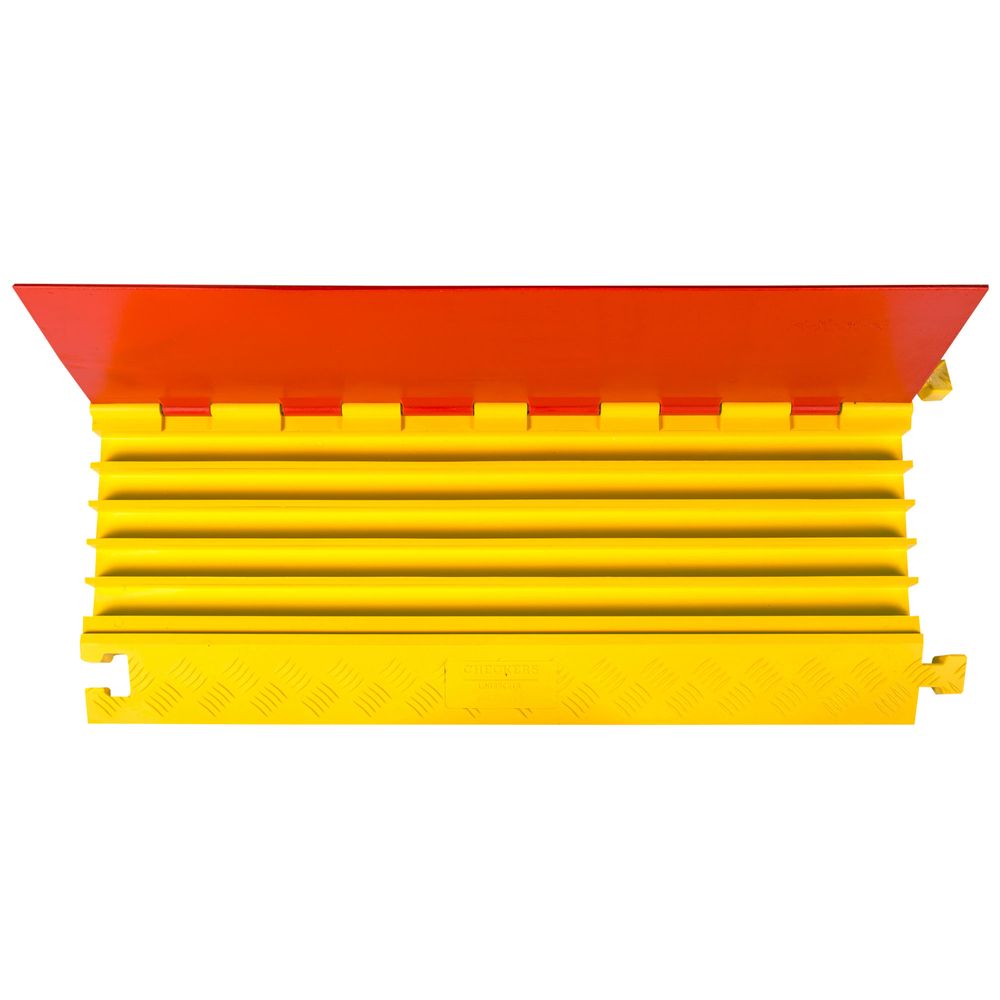

  • Hinged lid for easy cable placement
  • Carrying handle underneath

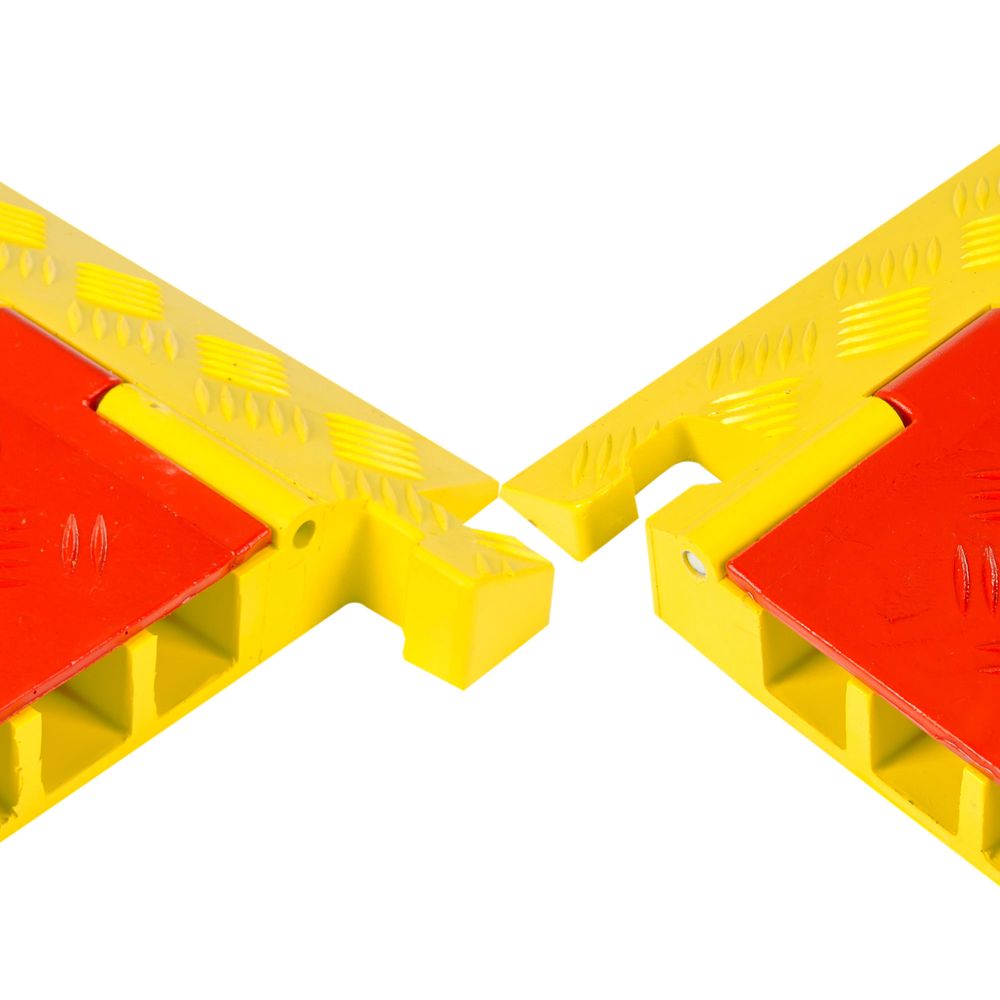

  • T-shaped connectors interlock modular sections
$169.99
CP5X125-GP-OY
$18.00
Available
Call for Shipping Discounts on Large Quantities
1 Year Warranty

Summary

Keep cables and pedestrians safe with general purpose cable ramps. The ramps are available in orange and yellow color options providing high visibility. The ramps have five channels holding cables up to 1-5/16" in diameter. The surface of the ramps are covered with a patented 5-bar tread pattern for traction and warning symbols for safety.

Detail

General Purpose Linebacker Cable Ramps are perfect for use in public, commercial, and industrial areas where exposed cables need to be protected. These cable ramps are available in 5 channel systems and are available in orange and yellow. The surface of the cable ramps have a patented 5-bar tread pattern for maximum traction. The hinged lid on the surface allows for easy placement and removal of cables to and from the ramp and prevent human contact with the cables. Underneath the cable ramp sections is a carrying handle for easy maneuverability and setup. Each end of the ramp sections has a male and female "T" connector to interlock modular sections. Also available are female and male tapered end caps to protect the "T" connectors at the end of your modular system. The ramps are constructed of an all weather polyurethane for worry free use outdoors. Custom company logos can be molded into the ramp lids (call for details). No tools required for setup and assembly!

5 Channel Cable Ramp
36" (914.4 mm)
17-1/2" (444.5 mm)
1-19/20" (50 mm)
1-3/10" (33 mm)
1-3/10" (33 mm)
20.1 lbs (9.1 kg)
Orange Lid / Yellow Ramp
Polyurethane (UV stabilized)
-40°F to 120°F
Reinforced Fiberglass
Per ANSI. Z535.3-1991
10,500 lbs (4,763 kg)
21,000 lbs (9,526 kg)
Safety warning symbols molded into lid: Trip Hazard - Electric Hazard
CP5X125-GP-O/Y

Product Features

  • All weather, lightweight polyurethane construction
  • Hinged lid for easy cable placement
  • Tapered end caps available
  • Easy setup and assembly
  • Safety warnings molded into lid surface
  • Carrying handle underneath ramp sections
  • T shaped connectors interlock modular sections
  • Custom company logos can be molded into the lid surface
  • 1 year warranty
