TLR3 Pickup Rack
Ships today!
1 Year Warranty

Designed specifically to organize ladders and other long cargo on a side bed rail, freeing up valuable truck bed space for various other cargo. Includes all necessary hardware for installation. Requires drilling.


Upgrade a pickup truck to easily carry ladders, lumber, pipes and other materials with a Pickup Rack designed to organize cargo on a side bed rail. With plenty of space available in the truck bed for other cargo, tools and more, the Pickup Rack increases the functionality of a pickup truck bed.

Pickup Rack holds up to 3 ladders, or up to 250lbs evenly distributed weight, safely in the back of a pickup truck for convenient transportation. One ladder can be stored in the 4-1/2" deep overhead dual width ladder supports, with a second ladder in the angled secondary position, and a third ladder hanging from the secondary position 4-1/4" deep ladder supports (where the second ladder rests in a two ladder setup).

Ladders are then secured to the pickup rack with (4) included velcro straps to (6) looped tie-down points on the frame, or further secured with rope to the frame using any combination of the (12) eyelet points.

Each pickup rack includes all necessary hardware for mounting. Full installation requires drilling. Comes with a 1 Year Manufacturer's Warranty. Please read the instructions for proper installation and safety recommendations.

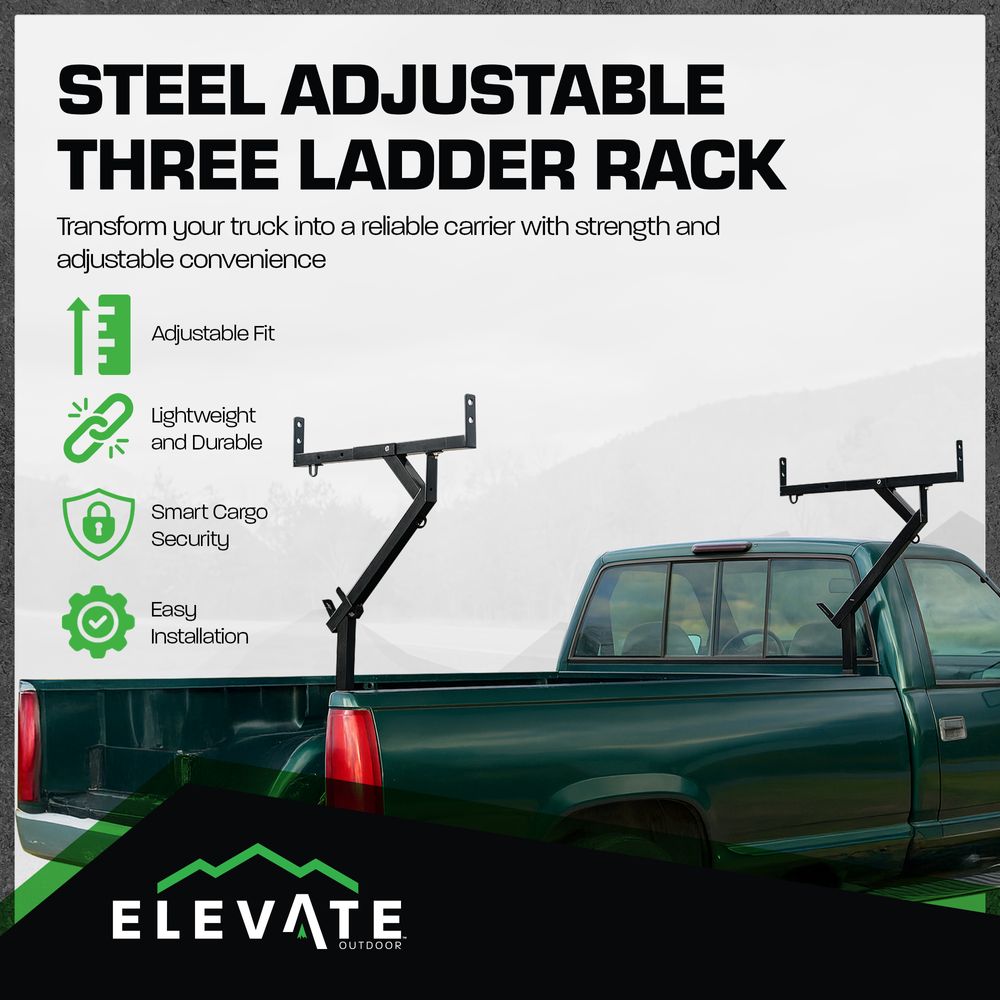

3 Ladder Truck Rack - Side-mount Pickup Truck Bed
*Requires Drilling
44 lbs
250 lbs (evenly distributed)

Product Features

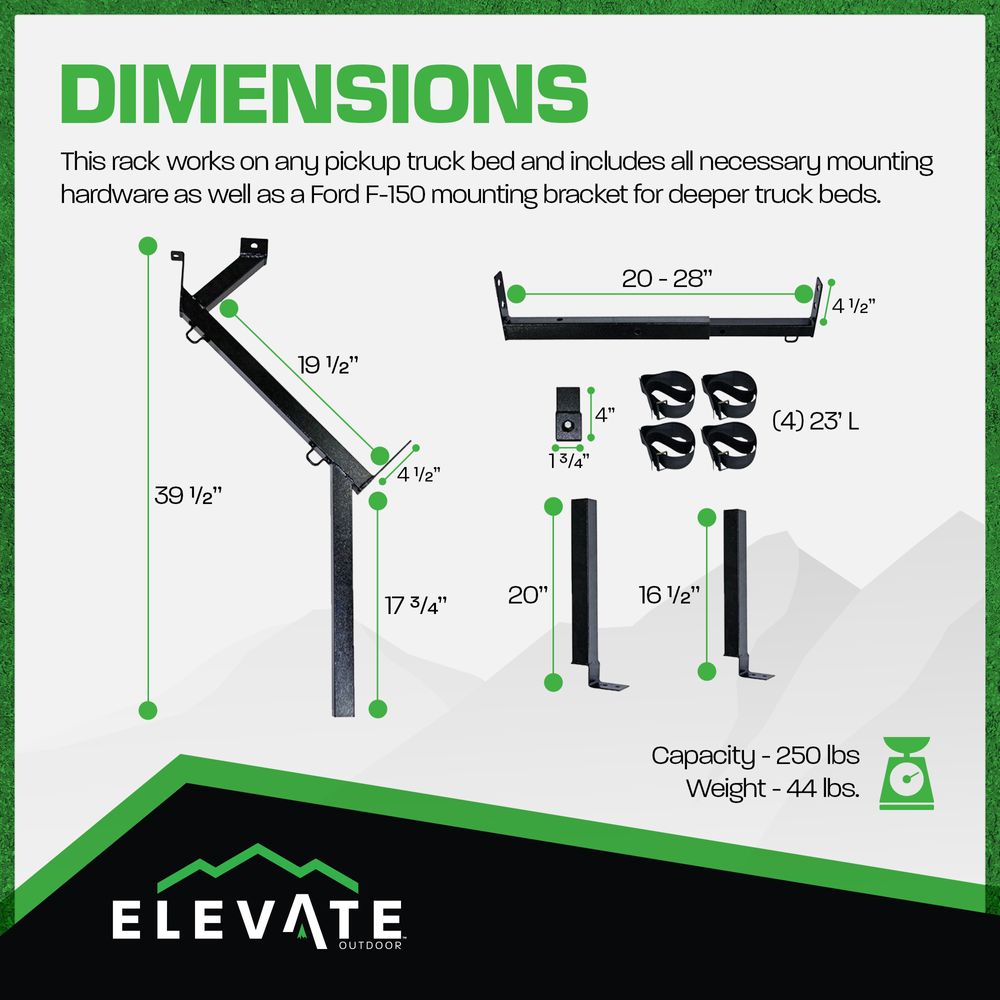

  • Truss-style support system for added stability
  • 4-1/4" and 4-1/2" deep ladder supports
  • (6) Tie-down loop points
  • (12) Rope eyelet points
  • Holds up to 3 ladders (1 up top, 1 in the secondary position, and 1 from the secondary hooks)
  • Fits most pickup truck bed rails
  • F-150 bracket included for deeper truck beds
  • Dual width crossbars for 20" or 28" wide loads
  • Safely remove both main support arms when not in use
  • Heavy duty black powder coat finish
  • 1-3/4" square tube steel framework
  • Includes: (4) Velcro tie straps, 2 main supports, 2 crossbars, 2 ladder uprights, and all necessary mounting hardware
  • 1 Year Manufacturer Warranty

Warning and Usage Guidelines

Installation required. * Requires drilling.


Instruction Manual

Review Summary (Based on 6 Reviews)


2 Stars Poor Construction

Kurt from TX wrote (January 20, 2016):

I'll get to the point. Installation wasn't too difficult. However, the welds on the rack are terrible. The lock nut that was welded to the upright broke off while I was trying to secure the rack in the mount. Then after about two weeks of use, the weld on the diagonal that ties to the upright broke on three welds. It appears that in an effort to make it look nice they ground off too much of the weld. But when the lock nut came off there was rust behind the nut, so that weld wasn't good to start.

4 Stars working great

Dave from MD wrote (March 28, 2015):

This racks are reasonable priced. They haul what I need no problem. They look good I have friends tell. these summer I will see if they won't haul my canoe for some fishing.

5 Stars Excited

Edward F. Schwartz from CO wrote (January 30, 2015):

Thank you for a great product at a great price. This is exactly what I was looking for, didn't mind the installation. Pretty straight forward.

5 Stars tlr3 pickup rack

shay from NJ wrote (January 28, 2015):

great product, easy to install, very sturdy, fast delivery. i also like that the assembly instructions are on line instead of wasting paper, save the trees.

4 Stars Great Engineering

Terry from CO wrote (January 23, 2015):

The design and versatility of this rack is terrific. Instructions were a bit vague but not a big problem - just had to refer to the schematic often ! I would gladly pay extra for the rack IF it were made in the U.S.A. ONLY reason I did not give the rack 5 stars is because it was made in China !!

3 Stars pretty much on our own

Steve from NJ wrote (May 09, 2014):

This rack appears to be of good quality and should suite my needs. However the directions are next to useless, they lack any clear explanation and the pictures are also misleading as I was under the impression that the rack slid into the existing holes in bed rail. Made in China !
