Rubber 5 Channel Cable Protector

This 5 channel heavy-duty rubber Cable Protector keeps up to 5 cables, hoses, or wires protected from traffic in all conditions. Made from commercial grade yellow and black rubber, the heavy duty construction of this cable ramp allows it to support up to 18,000 lbs. per axle. Straight sections can be paired with right and left-hand turn sections to create customized solutions for your application. Diamond tread pattern on all outer surfaces for maximum traction

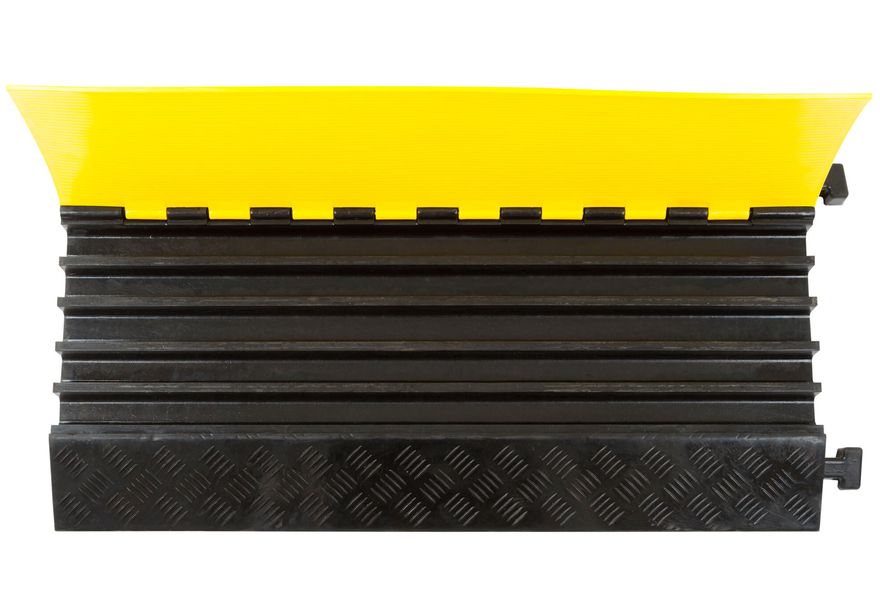

  • Protects up to 5 cables or wires from any type of traffic
  • Made from heavy duty rubber
  • 27 degree incline angle
  • 35 1/2" long x 19 3/4" wide
  • 18,000 lb weight capacity
  • Uses an interlocking tab system to connect additional straight or curved pieces
  • Yellow and black for maximum visibility
  • Diamond tread pattern to prevent slips

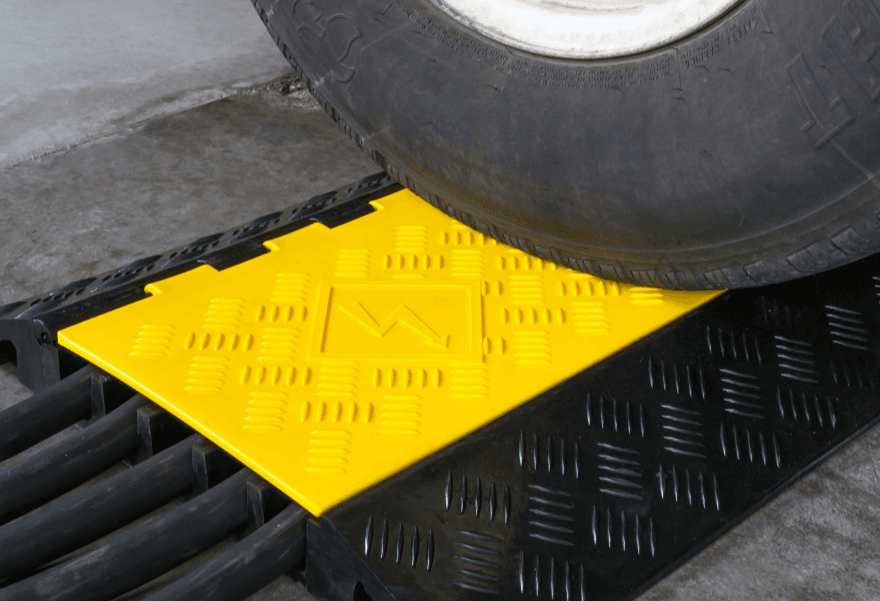

  • Hinged lid for easy placing and removing of cables
$94.99
DH-CP-2
$29.00
In Stock. Ships within 24 hrs.
Call for Shipping Discounts on Large Quantities
1 Year Warranty

Summary

The DH-CP-2 is a commercial grade 5 channel cable protector made from heavy duty rubber. Straight sections and turn sections can be joined to go around poles, or racking when needed. The rubber cable protector has a 18,000 lbs. per axle weight limit and comes with a 1 year warranty.

Detail

The DH-CP-2 5 channel heavy-duty rubber Cable Protector keeps up to 5 cables, hoses, or wires protected from traffic. The cable protector has (4) 38 mm x 38mm (1 1/2" x 1 1/2") channels and a larger center 41mm x 41mm (1 5/8") to accommodate various size hoses and cables. The protector is made from a commercial grade rubber base with a PVC flap, allowing it to support up to 18,000 lbs. per axle. Center sections and optional DH-CP-2R turn sections (4 turn sections are required to make a 90° turn) are joined together with male and female connectors on either side making it ideal for curving around warehouse racking, large poles, or other objects. The surface has a diamond pattern tread for additional traction. The yellow flip-up lid is easily visible, and has molded in safety warnings. Comes with a one year warranty.

5-Channel Rubber Cable Ramp
902mm (35-1/2")
502mm (19-3/4")
51mm (2")
36 lbs
Yellow Lid
Black Ramp
(4) 38mm (1-1/2")
(4) 38mm (1-1/2")
(1) 41mm (1-5/8")
(1) 41mm (1-5/8")
9,000 lbs
18,000 lbs
-40°F to 131°F

Product Features

  • Great for indoor or outdoor use
  • (4) 38mm x 38mm cable channels and a single 41mm x 41 mm center channel
  • Yellow safety lid has molded in warning symbols
  • 18,000 lbs. per axle weight capacity
  • Male/Female interlocking connectors join multiple sections and corner pieces
  • Easy to set-up and use
  • Ideal for most weather conditions
  • Made from commercial grade rubber with a PVC flap
  • 4 Corner sections needed to make 90 degree turn
  • 27° incline angle
  • Includes a 1 year warranty
  • For other sizes, please view our Cable Ramps & Protectors selection
