500 lb Capacity Aluminum Power Wheelchair & Scooter Carrier
FREE SHIPPING!
Power Wheelchair & Scooter Carrier
Play Video

Need mobility? Our wheelchair and scooter carrier gives you the freedom to go where you want - when you want to at a great price. This scooter carrier is made from lightweight aluminum and attaches to any standard Class III or IV receiver. The carrier comes with an easy-to-use 3 position loading ramp which folds into the carrier when not in use. Rated at 500 lb capacity, this versatile wheelchair carrier is the perfect solution to your mobility needs. The carrier folds up against your vehicle when not in use for extra clearance.

  • Accommodates most wheelchairs and scooter and carries up to 500 lbs
  • Made from lightweight but durable aluminum
  • 46-1/2" x 30-1/4" usable platform
  • Ramps is 59" long for easy loading
  • Easy to assemble and install - weighs only 81 lbs
  • Comes with loading ramp which folds away when not in use
  • Fits Class III and IV 2" hitches
  • Comes with four tie down points
  • Includes 5/8" hitch pin, ramp and anti-rattle device
$359.99
SC500-AF

In Stock. Ships within 24 hrs.
1 Year Warranty Curt Fit Guide

Summary

Easily transport a power chair or scooter weighing up to 500 lbs using a 2" Class III/IV vehicle hitch receiver. Load a scooter or power chair with the integrated folding ramp system designed to lock vertically when loaded or fold flat into the carrier for rear hatch or tailgate access. Includes a 1 year warranty!

Detail

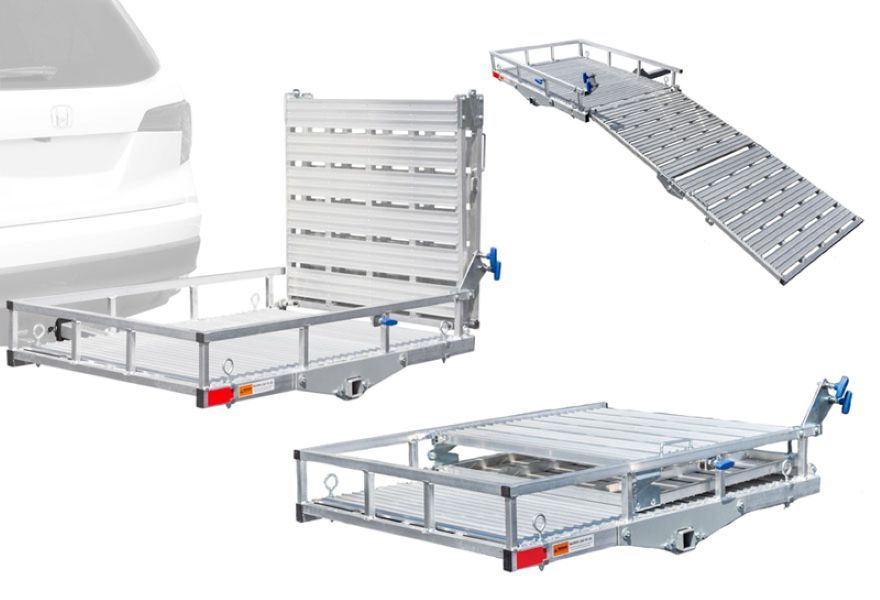

The SC500-AF scooter carrier is an affordable way to transport a power chair, wheelchair, or scooter by using a vehicle hitch receiver! An integrated 59-1/4" long loading ramp guides a powerchair or scooter up to 28-1/4" wide into the carrier and then folds up vertically for transport. When the carrier is not loaded, the loading ramp can be folded flat for rear hatch or tailgate access or can be folded vertical for extra clearance for parking spaces or garages. The loading ramp is locked vertically by two spring pull pins and features two anti-rattle springs to reduce ramp vibrations during travel. The SC500-AF scooter transport carrier also includes an Anti-Tilt bracket and Pinch bolt (use one or the other) to reduce carrier wobble and a 5/8" hitch pin.

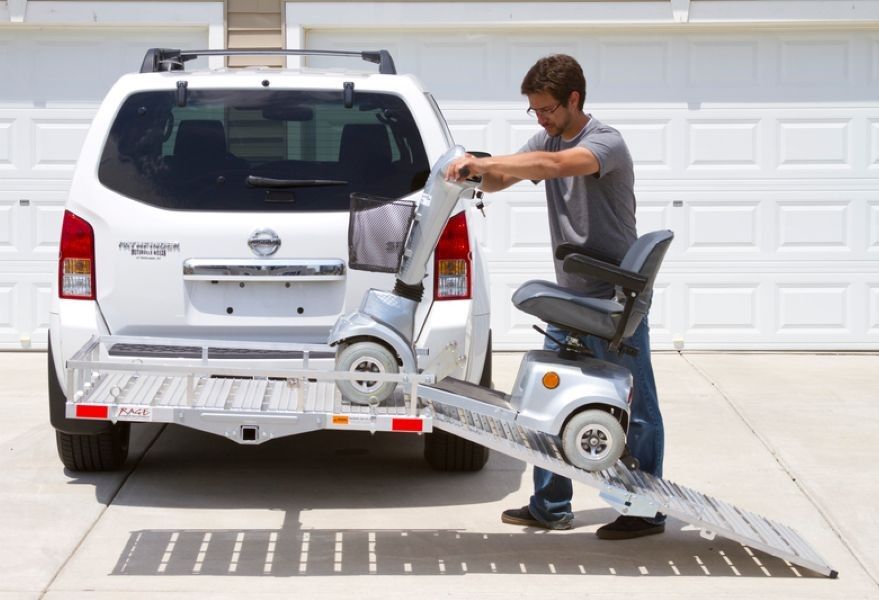

Scooters or power wheelchairs weighing up to 500 lbs are secured to (4) 1"D eyelet tie-down points located near each corner of the 46-1/2" x 30-1/4" (usable size) platform. These eyelets are designed for use hook-end tie-down straps and use with the strongest part of the carrier frame for support. It's recommended to use these tie-down points instead of securing straps to the platform rails which may cause the straps to slide or become loose during transport. Be sure to properly secure a power scooter using hook-end tie-downs with the transport carrier eyelets.

Raised-edge 4" wide rungs are spaced 1" apart along the loading ramp and scooter carrier platform. Ramp rungs are designed for high traction with power scooter or wheelchair tires during loading while the platform rungs help eliminate scooter or powerchair shifting from side to side while hauling behind a vehicle. Spaces between the rungs allow water and debris to pass through, reducing build-up on the scooter transport carrier surface.

The power wheelchair and scooter transport carrier platform, frame, rungs, and ramp are constructed from heavy duty aluminum while the underside support tube and brackets are made from heavy duty reinforced steel with a gray powder-coat finish. Conveniently folds upright when unoccupied with a scooter or power wheelchair. Some assembly is required and easy to follow instructions are included. Comes with a 1 year warranty!

Aluminum
Folding Aluminum Power Wheelchair and Scooter Carrier with Loading Ramp - Folds upright for storage
48-1/4"
32-1/4"
46-1/2"
30-1/4"
7-5/8"
5-1/4" (Usable)
5" (From top of carrier tray)
59-1/4"
29-1/2"
28-1/4" (Usable)
81 lbs
25.25 lbs
Class III or IV (2")
13" - 18"
6-5/8"
19-3/4"
500 lbs

Product Features

  • Accommodates most power wheelchairs and scooters
  • Loading ramp folds flat into the carrier for rear hatch or tailgate access

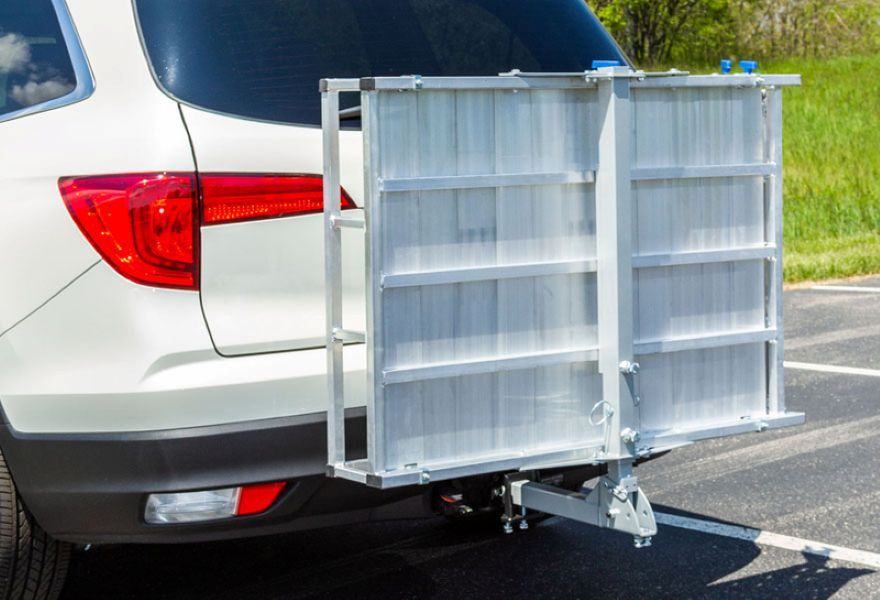

  • Carrier folds vertical in the hitch for extra clearance in parking lots or garage
  • Spring pull pins lock the loading ramp in a vertical position or flat in the carrier tray
  • (4) 1"D Eyelet tie-down points, great for hook-end straps
  • Anti-Rattle Ramp Springs reduce ramp vibrations during transport
  • Raised-edge 4" wide rungs with 1" spacing
  • Heavy duty 500 lb weight capacity
  • Lightweight, only weighs 81 lbs
  • Includes an anti-tilt locking device and pinch bolt to prevent carrier wobble
  • For use with 2" class III or IV trailer hitches
  • Not for use with 1-1/4" hitches
  • Includes 5/8" hitch pin
  • 1 Year Warranty
  • Some assembly is required

Warning and Usage Guidelines

  • Carrying Capacity: Designed to safely hold up to 500 lbs
  • Hitch Weight Limit: 10% GTW - Standard Class III hitches are rated for 500 lbs & Standard Class IV hitches are rated for 1,000 lbs
  • Vehicle Hauling Capacity: Hauling weight may be limited by the vehicle's hitch load capacity
  • Will not work with any 1-1/4" class II or smaller receivers
  • Some vehicles may require air shocks or heavier springs to stiffen up the suspension to prevent sagging
  • Please check with your dealer to find out your vehicle's carrying capacity
  • NOT recommended for tow-behind trailers including 5th wheel trailers & camping trailers
  • NOT recommended for use with hitch adapters/extensions
  • NOT designed to carry scooter or wheelchair while occupied
  • Maximum scooter or power wheelchair width is 28-1/4" wide

For 1/2" pinch bolt hole, subtract 1"
