Steel Basket Folding Utility Cargo Carrier - 500 lb Capacity

Ships today!
Ships by truck freight on a wood pallet. Total package weight is 220 lbs. Customer is responsible for unloading lift from truck. Lift gate service is an additional charge-please call for pricing.

The UC500-XL heavy duty cargo carrier is perfect for carrying heavy lawn equipment, large wheeled tools, or generators. This carrier is a great alternative to trailering your gear. 500lb weight capacity. Includes an integrated steel loading ramp which folds up and out of the way when not in use. For safety and convenience the entire carrier folds up against the vehicle when not in use.

  • Made from strong black powder coated steel
  • Heavy duty dual support tube design increases strength - reduces wobble
  • 500 lb capacity
  • 10 tie down points
  • 5 carrying handles
  • Includes anti-tilt locking device to prevent wobble
  • Self-storing ramp to save time and space

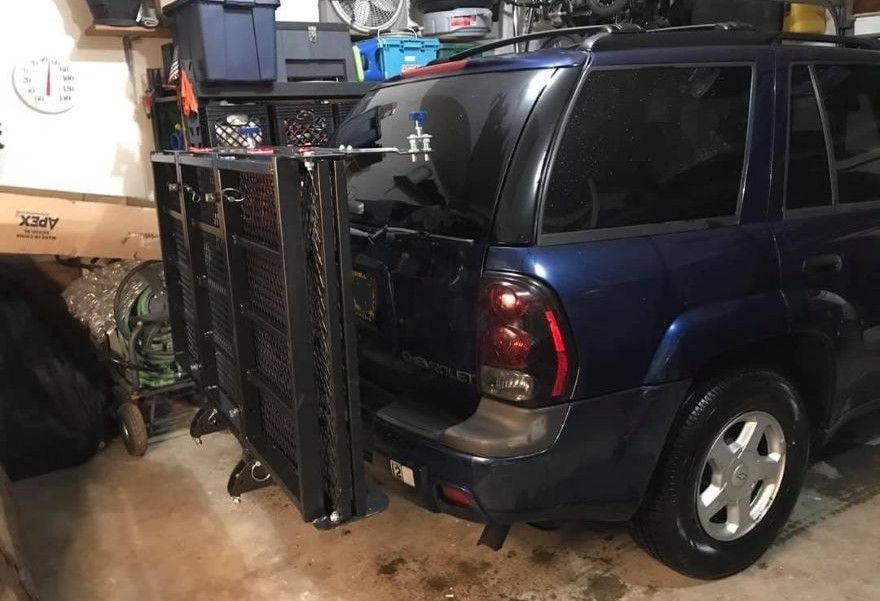

  • Carrier folds up to save space when not in use

The UC500-XL hitch rack is the perfect equipment transport solution for the hardworking homeowner or professional contractor. The hitch rack is packed full of features to make hauling a snowblower, lawnmower, generator, or 500 lbs of other cargo a breeze. Durable and tough, the UC500-XL features a full steel construction wrapped with a thick black powder coat to safeguard through rigorous use.

Loading wheeled equipment is made simple with the included heavy duty folding loading ramp. To save space while the rack is installed, simply fold up the carrier, making it convenient for use in garages or parking lots. The UC500-XL trailer hitch rack is a great alternative for anyone who wants to transport larger equipment but doesn't want the hassle of hooking up, towing, and storing a bulky trailer.

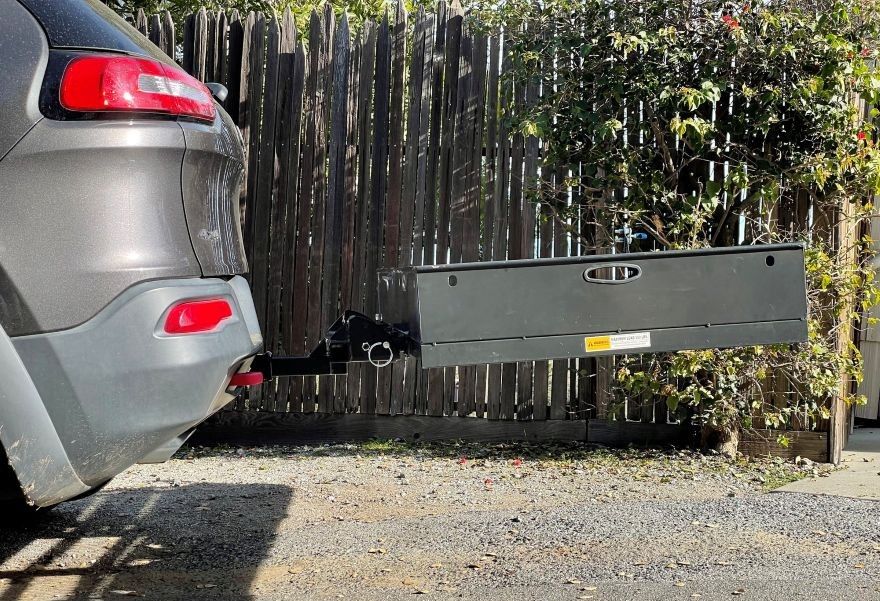

The carrier features a large 60" x 33" tray with deep 6-1/2" side rails providing ample room for all your cargo and equipment. The surface of the hitch rack tray is manufactured from expanded steel mesh, preventing dirt and debris from building up. The trailer hitch rack side rails feature ten tie down points for versatility when securing cargo and five rubber lined handles for quick and easy rack setup. For added safety, the front of the carrier features reflective stickers for increased visibility at night. A spring pull pin is also included on the front of the rack to keep the ramp secured in the flat position.

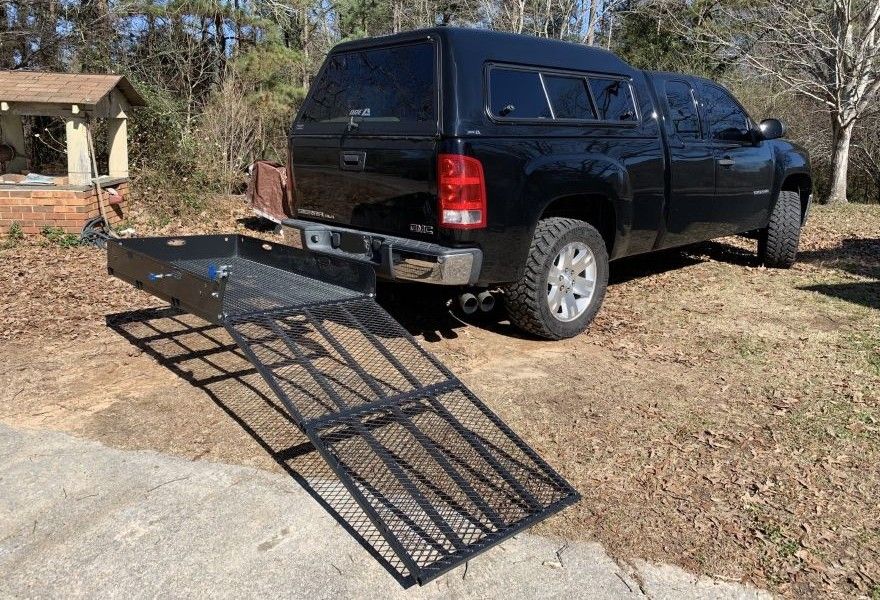

Built into the UC500-XL is an extra long 60" ramp for conveniently loading wheeled equipment. The ramp is fold-able and can be stored flat in the carrier when not in use or placed in the vertical position using the ramp bracket with spring pull pins. With the ramp unfolded, easily walk the equipment right up into the rack! The ramp is 32-1/2" wide with a 500 lb capacity and features a built in handle for easy folding and unfolding.

The UC500-XL fits any class III or IV 2" trailer hitch with a max hitch height of 11" - 18". Supporting the carrier is a heavy duty dual support tube giving the hitch rack its strength and preventing excessive side to side rocking when in use. To keep the carrier even more stable, an anti-tilt locking device is included to remove the extra play commonly found in hitch mounted products by pinching the carrier tube tight to the receiver hitch. The carrier tray is connected to the rack via four bolts and two safety pins to ensure the carrier tray stays secure. To save space when the carrier is not in use, just pull the two pivot pins and fold the carrier up.

Heavy Duty Trailer Hitch Rack w/ loading ramp for hauling equipment, cargo, generators, wheelchairs, power scooters & more
11" - 18"
Class III or IV (2")
164 lbs
500 lbs
NOT recommended for any tow-behind trailers including 5th wheel trailers & camping trailers due to excessive bouncing of the vehicle's suspension
Basket with Ramp

Product Features

  • Heavy duty dual support tube design increases carrier strength and reduces side to side wobble
  • Self storing loading ramp saves time when loading and unloading
  • Spring pull pins keep the ramp secure when in the folded and vertical position
  • Carrier folding design saves space
  • Thick black powder coat protects from the elements
  • Heavy duty 500 lb weight capacity
  • Steel expanded mesh surface with raised 6-1/2" side rails
  • 10 tie down points (tie-down straps sold separately)
  • 5 carrying handles
  • Includes an anti-tilt locking device to prevent carrier wobble
  • For use with 2" class III or IV trailer hitches
  • 1 year warranty

Warning and Usage Guidelines

  • Carrier Carrying Capacity: The UC500-XL carrier is designed to safely carry 500 lbs
  • Hitch Weigh Limit: Most Class III hitches are rated for 500 lbs Most Class IV hitches are rated for 1,000 lbs
  • Vehicle Hauling Capacity: Your hauling weight may be limited by your vehicle's capacity to carry a load
  • Will not work with class II or smaller receivers
  • Some vehicles may require air shocks or heavier springs to stiffen up the suspension to prevent sagging
  • Please check with your dealer to find out your vehicle's carrying capacity
  • Not for use with 1-1/4" hitches
  • NOT recommended for use with hitch adapters / extensions


Instruction Manual
