Semi Truck Wheel Riser Service Ramps

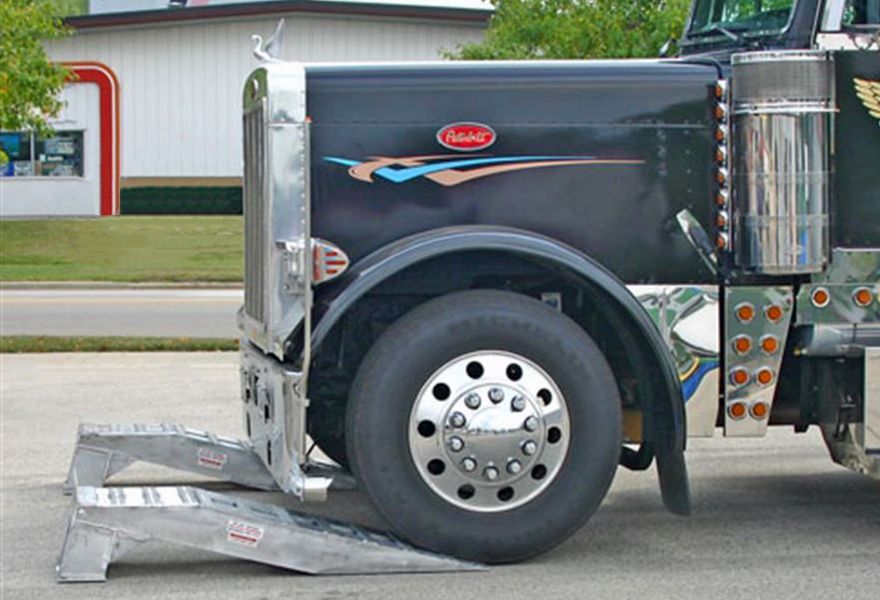

Service, repair, and perform routine maintenance quickly and easily. Wheel riser service ramps are made for heavy vehicle application to provide safe underside access to the vehicle's engine block, suspension, brake, and wheel components instantly. An extra long approach ramp design accommodates low clearance and is deal for large vehicle servicing up to 20,000 lbs. per axle.

  • Great for RV's, camper motor homes, semi tractors, commercial vehicles and small buses
  • Works with single and dual wheel setups
  • High-traction extra wide cross-rung loading surface
  • Heavy duty reinforced all-aluminum construction
Ships today!
1 Year Warranty USA

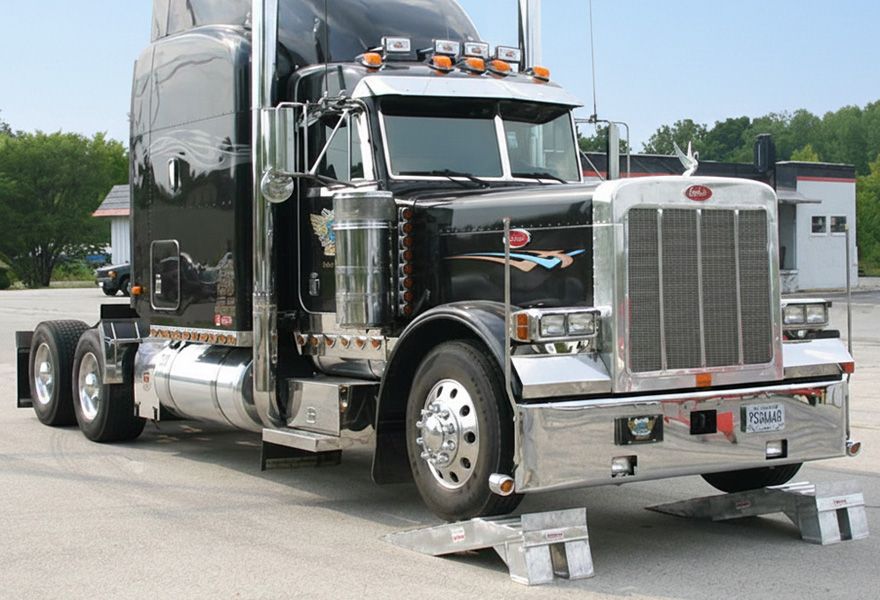

The truck wheel risers are rated at 20,000 lbs and constructed from heavy duty aluminum. These truck service ramps and wheel risers are the best solution for maintenance & service of a semi tractor, a small bus or heavy duty truck.


Heavy duty wheel risers are a great solution for maintaining or servicing RVs, campers, motor homes, semi tractors, class A commercial vehicles and small buses. Wheel risers are constructed with aluminum and have been load tested safely for 20,000 lbs per axle. These truck wheel riser ramps weigh only 48 lbs each allowing stands to be transported just about anywhere. The wheel risers are 64" long to allow lower clearance commercial vehicles to be serviced. Recommended for Class 8 rubber wheeled vehicles or smaller.

(2) Aluminum Truck Wheel Risers / Truck Service ramps
48 lbs each
20,000 lb maximum axle
10 1/2"

Product Features

  • Load tested safely for a 20,000 lbs maximum axle
  • Ideal for recreational vehicles, campers, motor homes, semi tractors, class A commercial vehicles and small buses
  • Aluminum construction for superior durability and strength

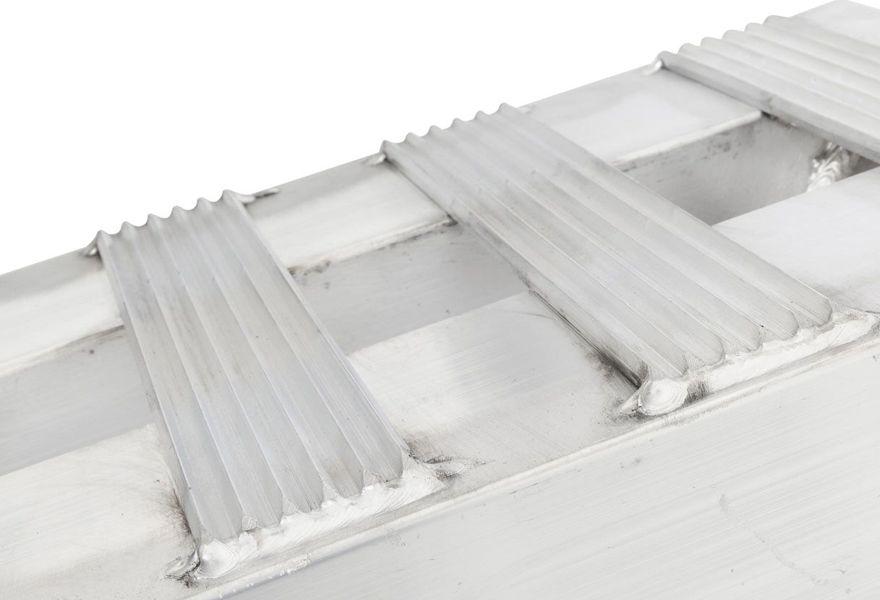

  • Extra wide cross bar plate design rungs with a serrated non-slip traction surface
  • 48 lbs each makes these ramps portable for road side repairs
  • Accommodates single wheels or dual wheels
  • Manufactured by certified AWS welders
  • 1 year warranty
  • Made in the USA

Warning and Usage Guidelines

Not recommended for road grinders, fork lifts, track machines or rollers.
