Female Ramp for 3-Channel Yellow Jacket AMS Cable Protector for 2-1/4" Diameter Cables

$382.99
2-4 Weeks Lead Time - Call for Volume Discounts on Large Quantities
ITEM #WSA-225-RFAH-DY
In Stock - Ready to Ship This product is currently available.

Key Features:

  • Provides ADA-compliant gradual slope for wheelchair access over cable protectors designed for 2-1/4" cables
  • Manufactured from all-weather polyurethane and weighs 90 lbs.
  • 28,420 lb. per axle weight capcity

See More…

Overview
Specifications
Made in the USA
Length:
36"
Width:

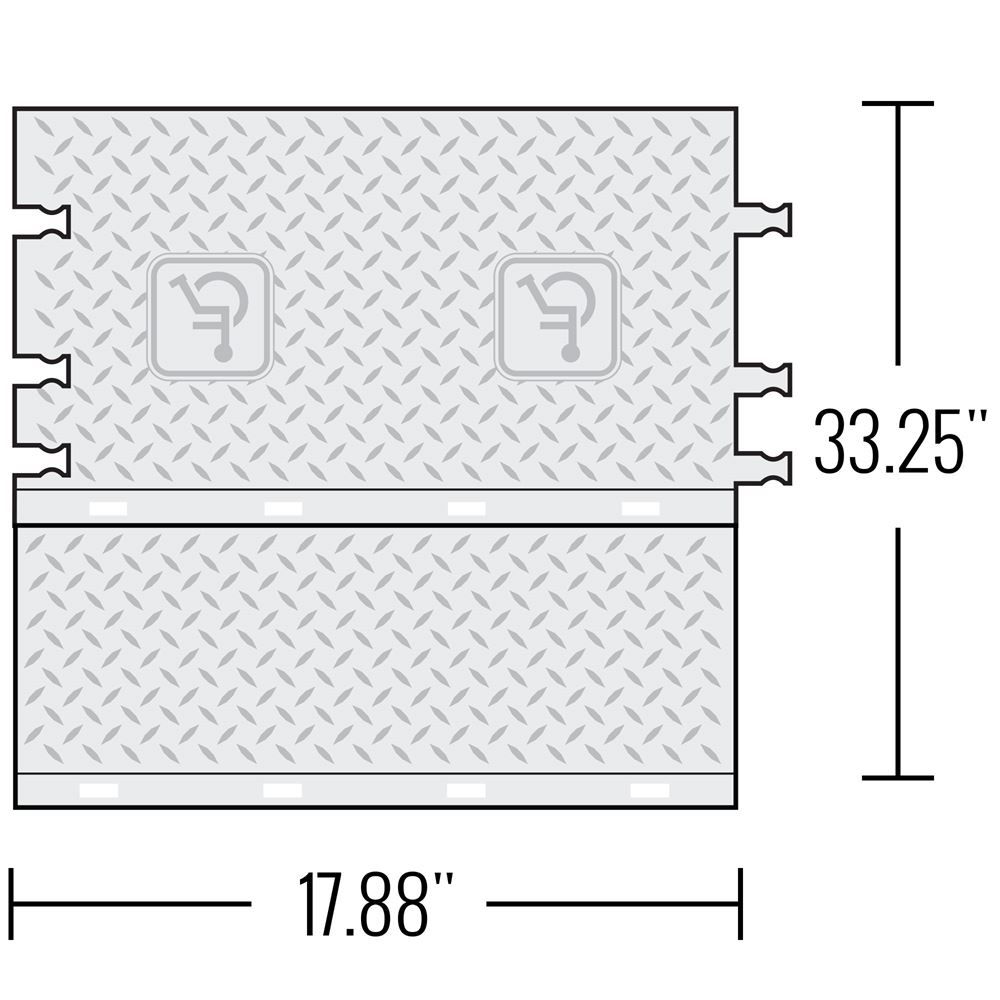

33-1/4"
Height:
3"
Weight:
90.1 lbs.
Maximum Capacity:
28,420 lbs. per axle
Color:
Yellow
Outside Diameter:
2-1/4"
Connector:
Dog Bone
Brand:
More Information

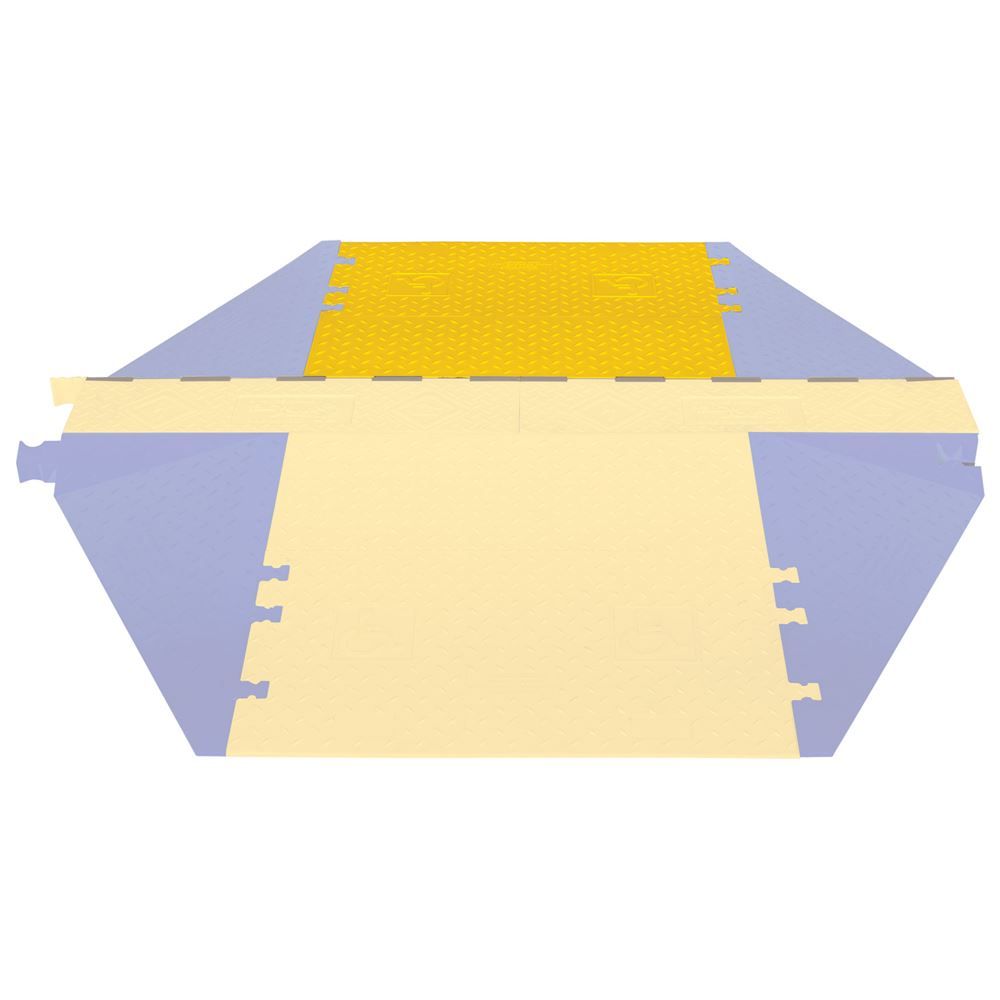

Wheelchairs, carts, forklifts, and small-wheeled equipment will have no problem maneuvering over up to five 2.25" diameter cables when you configure an ADA/DDA-compliant cable protection and management system using this Female Ramp along with Yellow Jacket AMS three-channel center sections and other modular ramp sections. These industrial-strength polyurethane ramp sections support up to 28,420 lbs per axle, feature integrated slip-resistant surfaces, and will not rust or corrode. Each cable protector female ramp section features patented Hourglass connectors that attach to female side ramps and center sections. Proudly made in the USA, Yellow Jacket AMS ramps are manufactured to comply with all ADA/DDA specifications.

  • Provides ADA-compliant gradual slope for wheelchair access over cable protectors designed for 2-1/4" cables
  • Manufactured from all-weather polyurethane and weighs 90 lbs.
  • 28,420 lb. per axle weight capcity
  • Attaches to 3 channel Yellow Jacket AMS center sections for 2-1/4" cables
  • Interlocking dog bone connectors allow for multiple cable covers to be connected
  • Includes a two-section female accessibility ramp
  • Meets the Americans with Disabilities Act (ADA) requirements
Checkers

This product is backed by the manufacturer's One Year Warranty.

WARNING: This product can expose you to chemicals, including Benzyl Butyl Phthalate, Carbon Black, Formaldehyde and Titanium Dioxide, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
