30' L x 70" W, 25,000 lb. Capacity Bluff Steel Yard Ramp

$23,811.25
Select Length
Select Width
Non-Returnable Item
ITEM #25SYS7030
Made to Order, 2-4 Week Lead Time

Key Features:

  • Manufactured from durable steel
  • Measures 30' L x 70" W
  • 25,000 lb. weight capacity

See More…

Overview
Specifications
Made in the USA
Length:
30'
Width:
5' 10"
Minimum Height:
40"
Maximum Height:
72"
Weight:
4,780 lbs.
Maximum Capacity:
25,000 lbs.
Material:
Steel
Lift Type:
Double-Action Hydraulic Pump
Guard Rail Height:
8"
Usable Width:
5' 4"
Tire Size:
18"
More Information

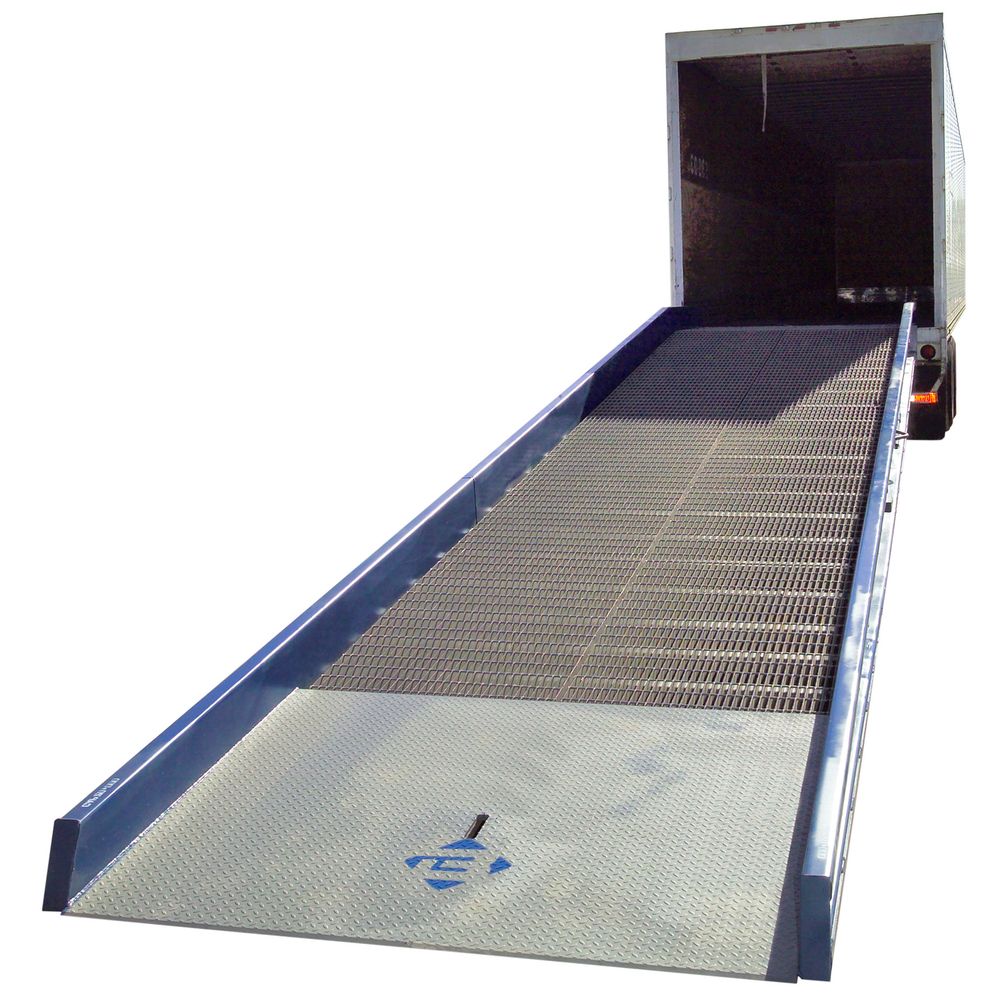

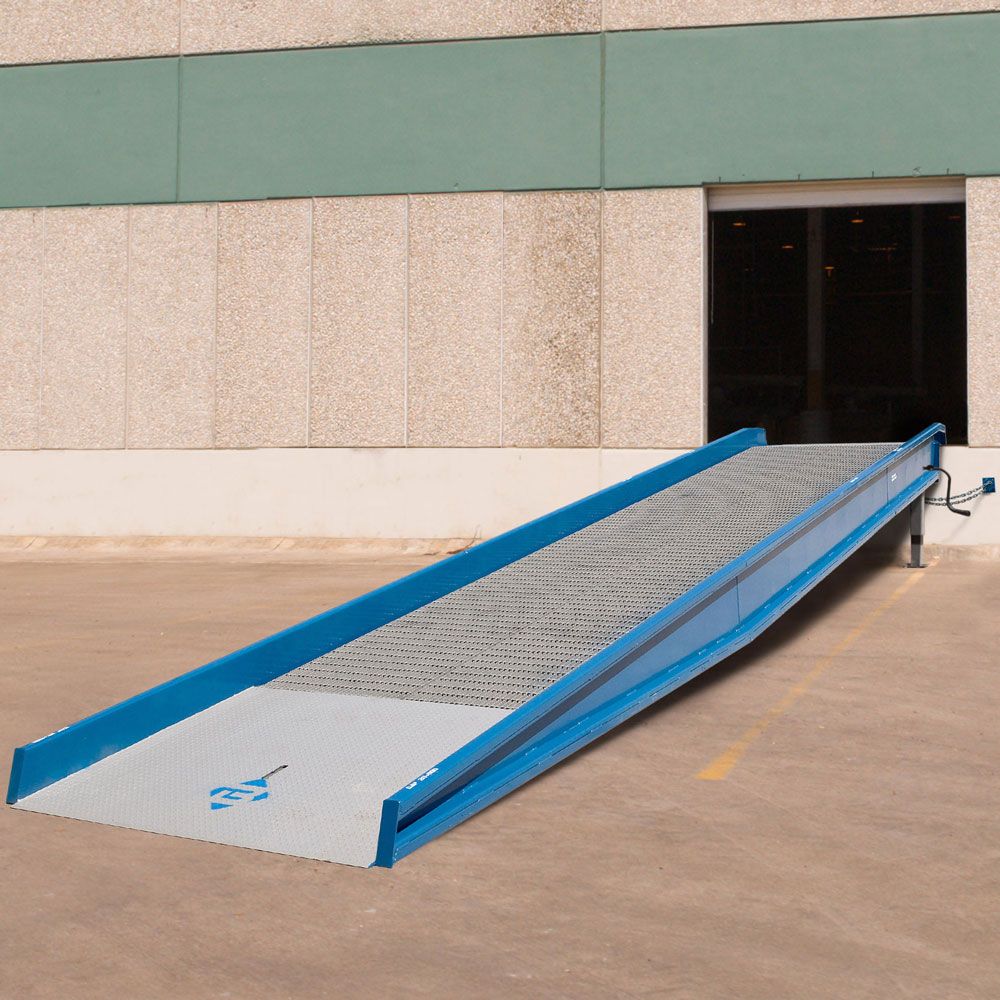

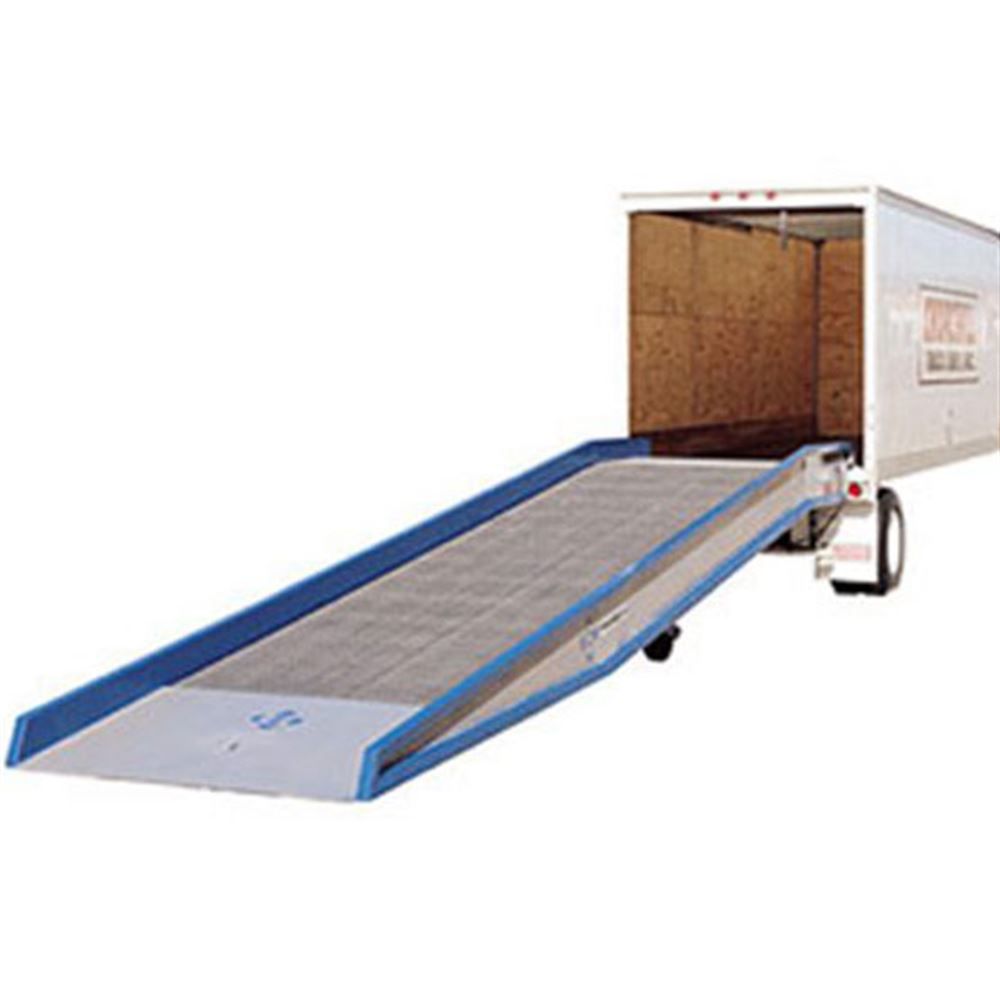

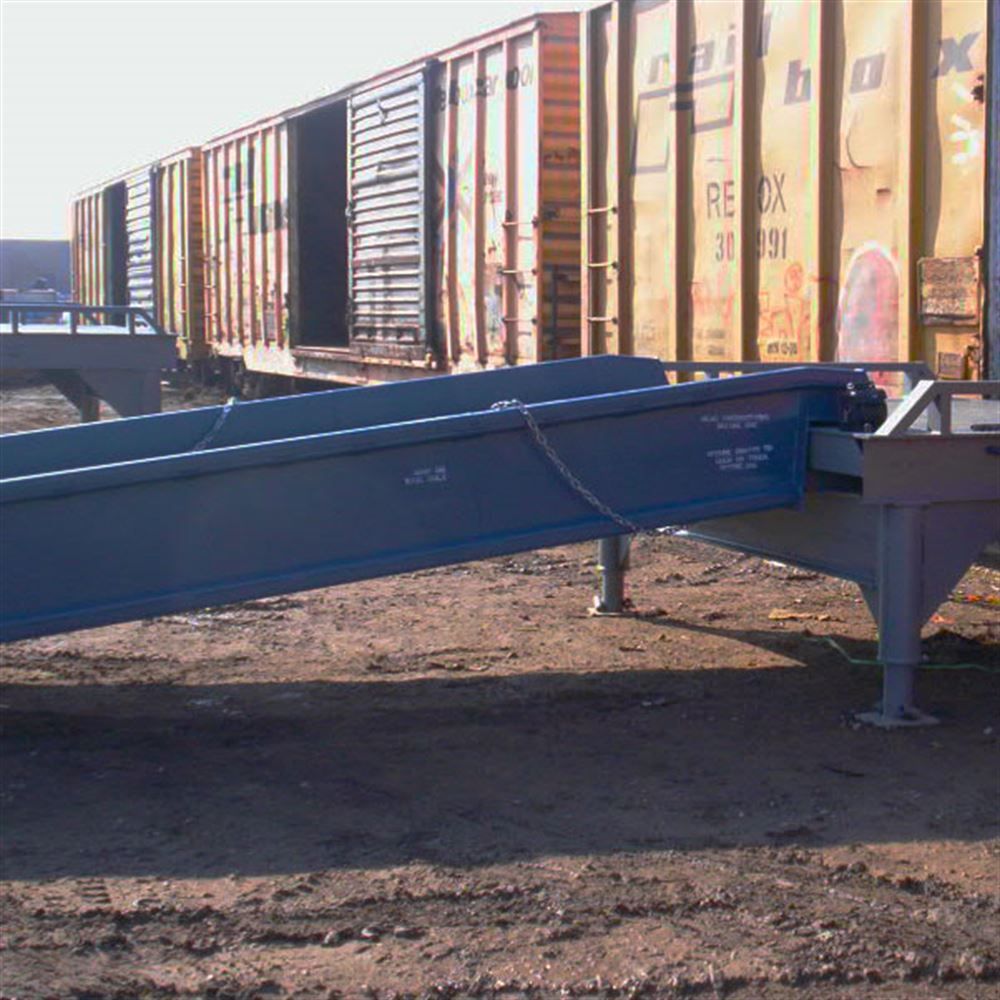

Provide safe forklift access into a trailer, rail-car, or dock with the portable Bluff Steel Yard Ramp. The integrated double-action hydraulic pump and release valve make the yard ramp easy to raise to the appropriate height and safely lower. The loading dock ramp features durable 18" rubber tires that withstand the weight without blowing out (optional pneumatic tires are available upon request) and make positioning the ramp easy! The diamond-plated approach creates a smooth and effortless transition onto the ramp, and the rest of the ramp features serrated steel grating for maximum traction while allowing snow, dirt, and other debris to fall through and prevent build-up. Raised steel girders help keep the forklift on the ramp, and a safety chain is attached to securely hold the ramp to the trailer or dock. Optional tow bar attaches to the front of the ramp, allowing the ramp to be safely towed with a forklift. Optional ramp clamp allows the forklift operator to maneuver the ramp using the forklift tines. Pneumatic wheel option and dock-mounted chain bracket also available.

  • Manufactured from durable steel
  • Measures 30' L x 70" W
  • 25,000 lb. weight capacity
  • 8" steel curbs, 15" overlapping lip, and a locking chain for added safety
  • Serrated steel grating allows moisture and debris to fall through and provides additional traction
  • 18" solid rubber won't blow out and provide easy maneuverability

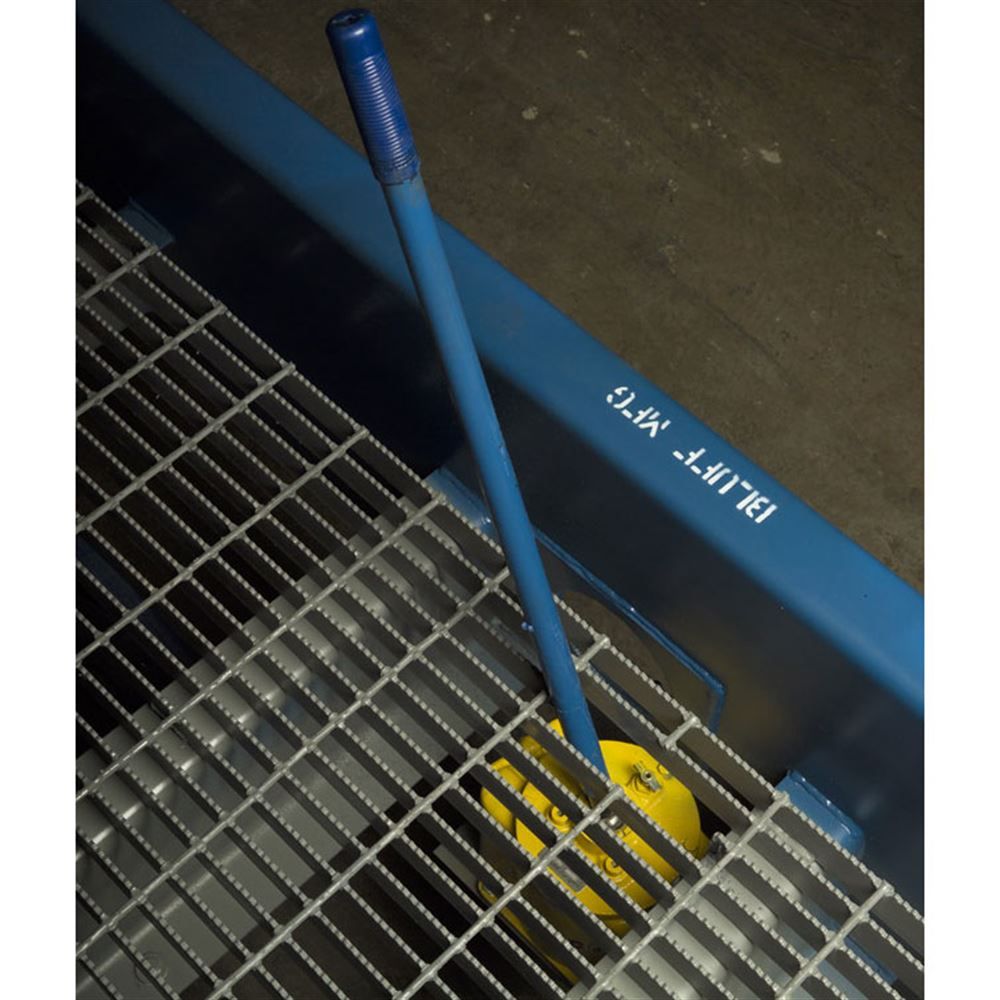

  • Easy to use double-action hydraulic pump easily adjusts the ramp from 40" to 72"

This product is backed by the manufacturer's One Year Warranty.
