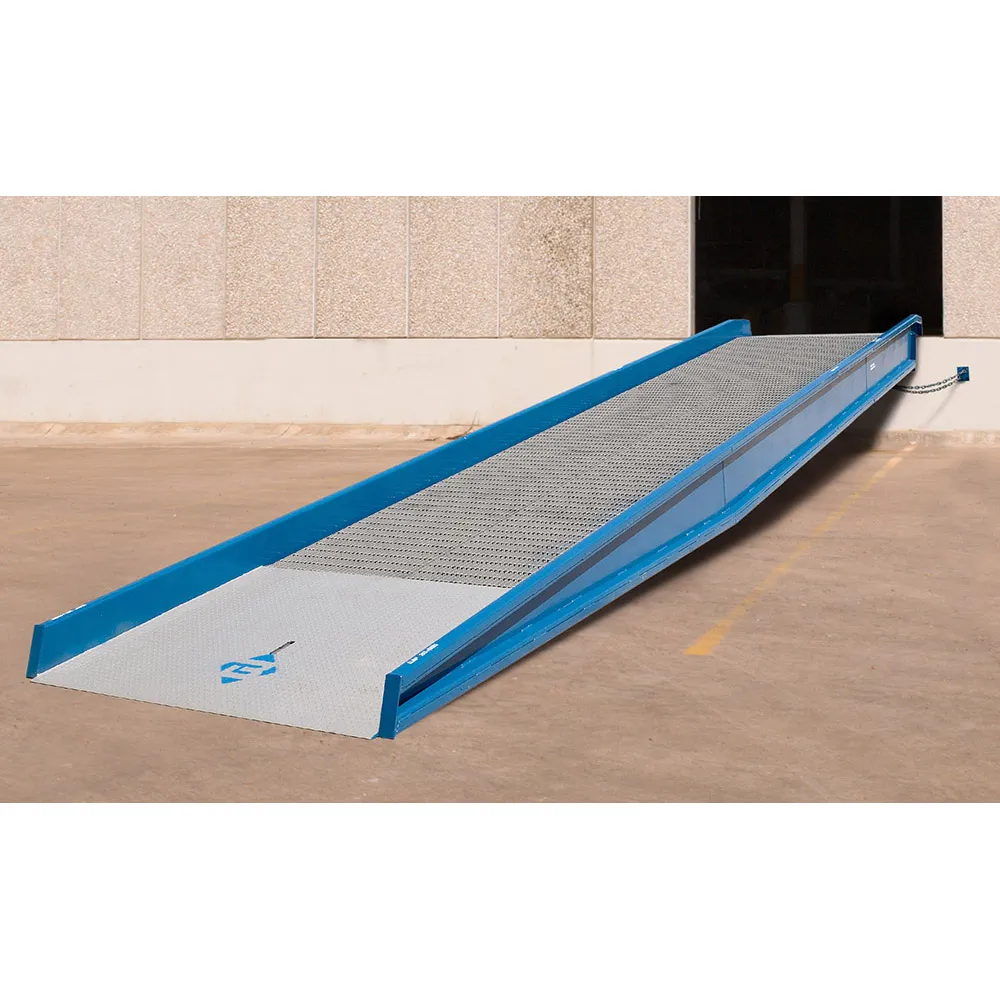

30' L x 70" W, 16,000 lb. Capacity Bluff Steel Stationary Ground-to-Dock Yard Ramp

$13,564.99
16SYS7030NU
In Stock
Select Width:
  • Manufactured from durable steel
  • 16,000 lb. Weight capacity
  • 8" H curbs on each side for run-off protection
  • Steel diamond deck approach plates on the top and bottom
  • Serrated steel grating for traction and self-cleaning
  • Standard safety chains connect the ramp securely to the dock
Placeholder
16SYS7030NU 30 L x 70 W 16000 lb Capacity Bluff Steel Stationary Ground-to-Dock Yard Ramp
Price
Rating
Availability
Brand
Material
Maximum Capacity
Length
Width
Weight
Current Item
16SYS7030NU 30 L x 70 W 16000 lb Capacity Bluff Steel Stationary Ground-to-Dock Yard Ramp
$13,564.99
In Stock
Bluff Manufacturing
Steel
16,000 lbs.
30'
5' 10"
4,265 lbs.
Steel Portable Yard or Dock Ramp - 22,000 lb. Capacity RYR-30-22 Steel Portable Yard or Dock Ramp - 22000 lb Capacity
$13,449.99
The average rating for this product is 5 out of 5 stars (1)
Ships today!
Discount Ramps
Steel
22,000 lbs.
30'
6' 11-1/2"
4,167 lbs.
30' L x 70" W, 20,000 lb. Capacity Bluff Steel Stationary Ground-to-Dock Yard Ramp 20SYS7030NU 30 L x 70 W 20000 lb Capacity Bluff Steel Stationary Ground-to-Dock Yard Ramp
$14,784.99
In Stock
Bluff Manufacturing
Steel
20,000 lbs.
30'
5' 10"
4,265 lbs.

When you need to bridge the gap between the ground and your dock, pick a yard ramp that's up to the challenge. This 70-inch wide Bluff Stationary Ground-to-Dock Yard Ramp is manufactured in durable steel and has 8-inch high curbs on both sides to prevent run-offs. Below the upper grating, heavy-duty steel side girders provide sturdy, load-bearing support. Steel diamond deck approach plates at the top and bottom ensure easy transitions on and off, with an added benefit of absorbing the weight impact of the forklifts entering the ramp. These full width approach plates also serve as a turning pad for forklift tires that won't damage the grated portion of the ramp and will help preserve tire life. This ramp has excellent traction as the steel serrated grating on top allows snow, mud and debris to pass right through. This ramp can support up to 16,000 pounds.

30'
5' 10"
40"
72"
4,265 lbs.
16,000 lbs.
Steel
8"
5' 4"
Please follow the manufacturer's suggested instructions for unloading your equipment. Personnel unloading should consider all safety practices to safely unload the unit. When the unit is in use, it must be adequately secured.
