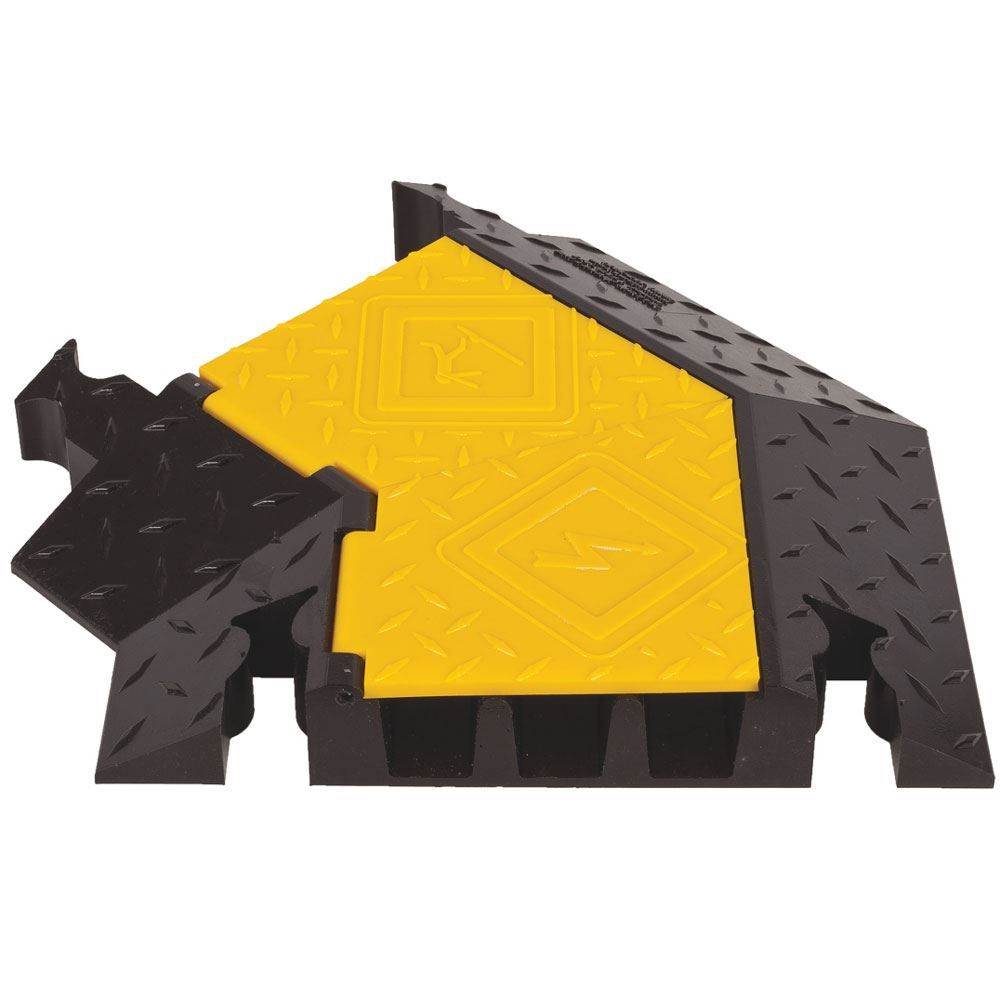

3-Channel Left Turn Yellow Jacket Cable Protector for 2-1/8" Diameter Cables

$259.99
YJ3TL-225-YB
In Stock
2-4 Weeks Lead Time - Call for Volume Discounts on Large Quantities
  • Creates a 45° left angle for cables and hoses up to 2-1/8" in outside diameter
  • Manufactured from all-weather polyurethane and weighs 19 lbs.
  • 28,420 lb. per axle weight capacity
  • Includes 3 channels to easily manage multiple cables and wires
  • Interlocking dog bone connectors allow for multiple cable covers to be connected
  • Designed for heavy-duty industrial use in material handling, manufacturing, and some mining applications
  • Hinged lid protects cables and provides easy cable placement

The angled covers contain three separate channels to protect cables, wires, and hoses up to 2.125" in outside diameter. The 45° angle adjusts the direction of cables when obstacles may impede a direct path.

The angled cable covers are manufactured from heavy duty polyurethane that holds cords, a group of wires, or hoses up to 2.125" in outside diameter. The thick polyurethane covers are designed to withstand constant vehicle traffic with a rating of up to 28,420 lbs per axle. A yellow lid with reinforced fiberglass hinges covers up three channels that help separate cable lines. The hinged lid makes it easy to set up and take down during temporary public events. Male and female Dog Bone connectors are attached to additional angled sections, straight sections, or intersections that contain three channels. When straight sections, angled sections, and intersections are combined, the setup possibilities are endless. Raised diamond-shaped treads add traction to the ramps during outdoor activities in the snow or rain. The angled wire cover is a part of the Yellow Jacket family and units are proudly made in the USA.

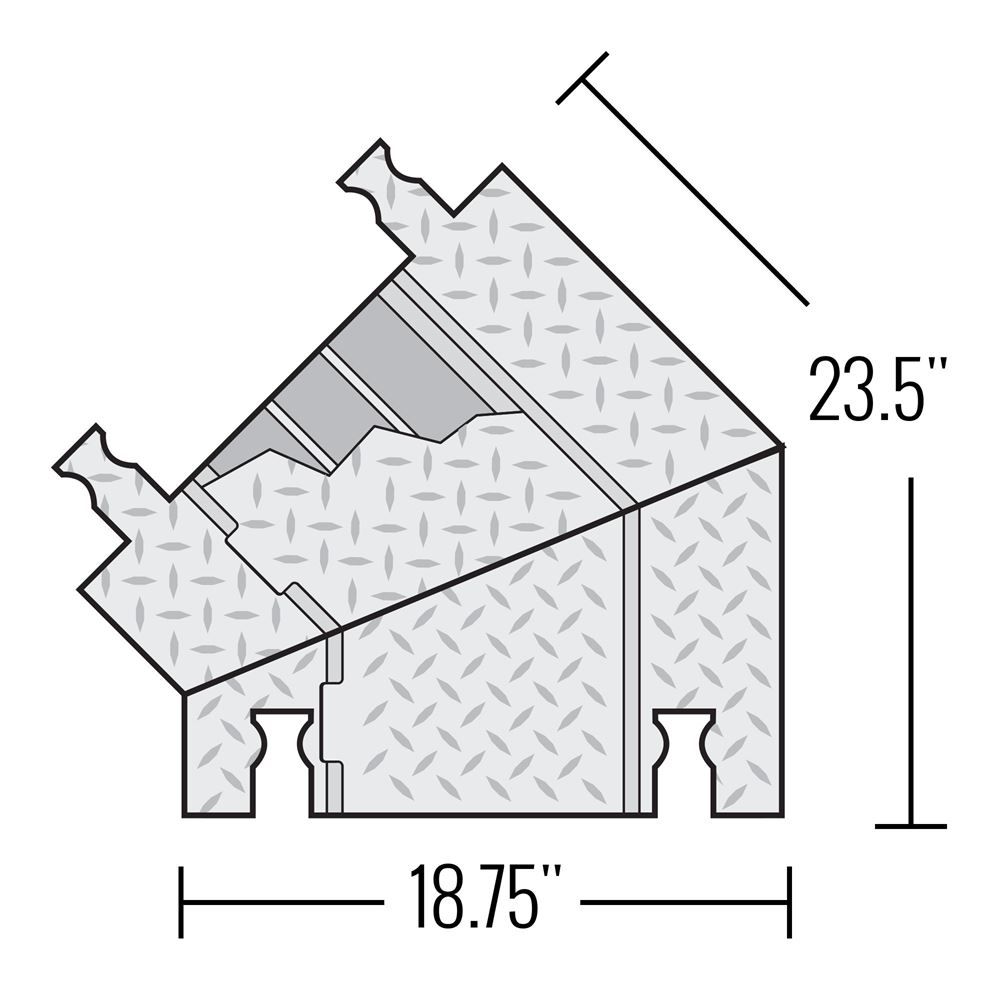

18-3/4"
19 lbs.
28,420 lbs. per axle
3
2-1/8"
Dog Bone
WARNING: This product can expose you to chemicals including Carbon Black, Titanium Dioxide, Formaldehyde, and Benzyl Butyl Phthalate, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Reviews
Product Q&A
Warranty Badge
  • This product is covered by the manufacturer’s One-Year Warranty.
