8' x 18" Aluminum Ramps with Double Pin-On Ends - 23,500 lb. Weight Capacity

Ships today!
Select Width:
  • Manufactured from high-strength, lightweight aluminum
  • Load vehicles from the front, back, or top step
  • Measures 8' L x 18" W x 5" H
  • 23,500 lb. per-axle weight capacity
  • Weighs 92 lbs.
  • Extra-wide serrated cross bars offer maximum traction in the rain, mud, or snow

Have questions? Call us at 888-651-3431 for assistance

8' Long
3 Widths available
Loading heavy vehicles

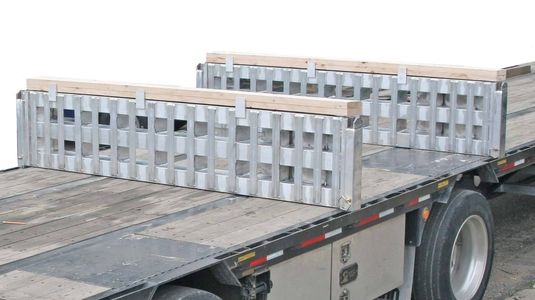

Leveling step deck loads
20k or 23.5k lbs. per axle
Weighs under 100 lbs.
Double pin-on ends

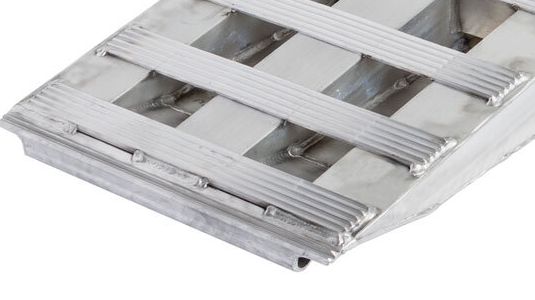

Wide serrated rungs

These 8' L step deck trailer ramps are part of a versatile ramp system for loading tractors, loaders, trucks, and heavy equipment onto step deck trailers, loading docks, or flatbed trailers. Manufactured from high-strength, lightweight aluminum, this pair of ramps is easy to set up and can support up to 23,500 pounds per axle.

These heavy-duty ramps feature a reinforced stubbed toe so that they may be used as a modular system, or used as 8' ramps on the rear of a trailer. The stubbed toe also prevents ramps from bending under the weight of heavy loads. Each ramp weighs just 92 pounds, allowing them to be set up quickly and easily by just one person without the use of heavy machinery.

8' x 18" Ramps
23,500 lbs. per axle
92 lbs.
Not recommended for trucks with mounted cranes, forklifts, or steel track vehicles. Never exceed the maximum axle capacity of this ramp system. Pin End Ramps must be pinned into skid seat brackets before using ramps. The best way to determine your vehicles axle weight is to drive the heaviest axle of the vehicle on a scale. Normally the front end of the truck is the heaviest axle weight because of the engine.
