8’ L x 20" W 2 Bunk Load Leveler / 2 Ramp System for 26" H Step Deck Trailers - 23,500 lb. Capacity

$3,564.87
Select Length
Select Description
ITEM #23-26-096-02-02-MLL-2
In Stock, Ready to Ship
Delivered in 3 to 5 Business Days

Key Features:

  • Manufactured from high-strength, lightweight aluminum - no component weighs more than 94 lbs.
  • 23,500 lb. per axle weight capacity
  • Kit includes two 8' L x 20" W x 5" H aluminum ramps with pin-on ends, four stake pocket supports for load levelers, and six lumber securing clips, and two load leveler spacers

See More…

Overview
Specifications
Made in the USA
Description:
2 Bunk Load Leveler
Maximum Capacity:
23,500 lbs. per axle
Length:
8'
Width:
20"
Height:
5"
Weight:
304 lbs.
Surface Type:
Rung
Brand:
More Information

Affordable, lightweight, and safe, this innovative ramp system converts to load levelers to maximize step deck capabilities. This convenient system is an essential tool for 102" wide drop deck trailers with an 26" upper step drop. Adjustable stakes ensure the load levelers will fit all 102" wide step deck trailers without any modifications.

The safest system on the market, our load levelers and stake pockets are secured directly to your step deck trailer, preventing kick-outs caused by short stops or chain failure. Simply slide inserts over the pin end of the ramps into your stake pockets, then chain them down with load binders for unbeatable security. For maximum safety, each step deck kit includes three lumber clips and two stake pocket inserts per load leveler.

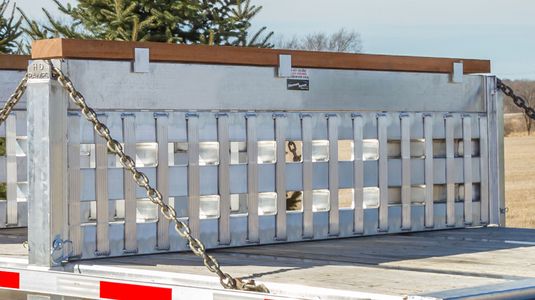

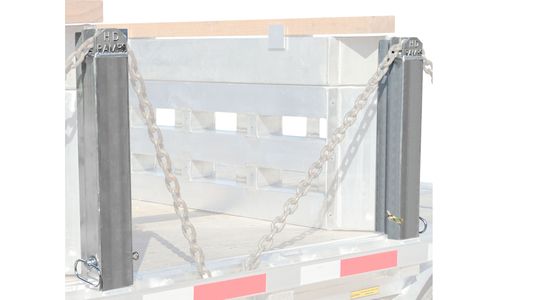

This kit includes two 8' x 20" ramps, four stake pocket supports, two load levler spacers, and six lumber clips. The modular design of these step deck systems allows you to add on pieces when necessary, and gives you the ability to easily replace pieces as needed. Browse our variety of step deck products for step deck add-ons and other accessories. Please note, ramps must be pinned into skid seat brackets before use. US Patent #8347439, #7930788.

  • Manufactured from high-strength, lightweight aluminum - no component weighs more than 94 lbs.
  • 23,500 lb. per axle weight capacity

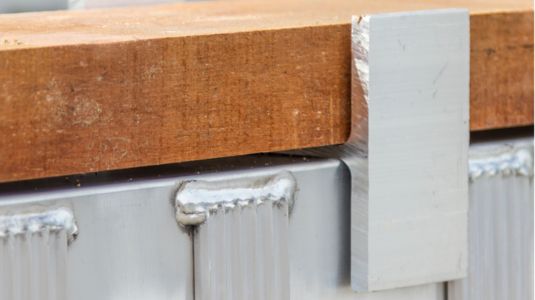

  • Kit includes two 8' L x 20" W x 5" H aluminum ramps with pin-on ends, four stake pocket supports for load levelers, and six lumber securing clips, and two load leveler spacers
  • High-traction ramp surface works in all weather conditions
  • Specifically manufactured for 26" H step deck trailers
  • Load levelers fit 102" wide trailers
Usage Guidelines
Rated at 23,500 lbs. per axle; Never exceed the maximum axle capacity of this ramp system; Not recommended for trucks with mounted cranes, forklifts, steel track vehicles. Must use a true 5" wide lumber for the load levelers (2x6's cut down).
HD Ramps

This product is backed by a Five Year Warranty.
