8’ L x 20” W 4 Bunk Load Leveler / 4 Ramp Master Kit for 26” H Step Deck Trailers – 23,500 lb. Capacity

Out of Stock
Select Length:
Select Description:
  • Manufactured from high-strength, lightweight aluminum - no component weighs more than 94 lbs.
  • 23,500 lb. per axle weight capacity

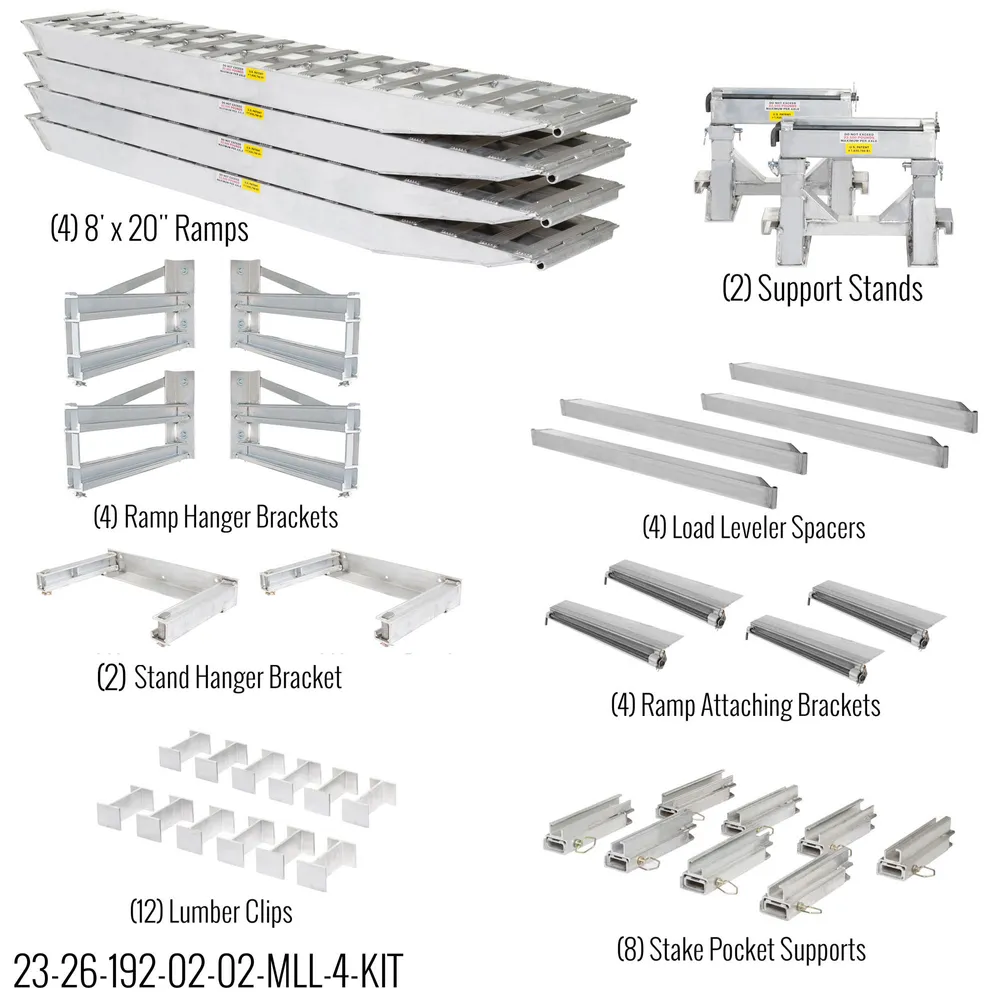

  • Kit includes four 8' L x 20" W x 5" H aluminum ramps with pin-on ends, eight stake pocket supports for load levelers, twelve lumber securing clips, four load leveler spacers, two adjustable ramp support stands, two pairs of lockable bolt-on ramp hanger brackets, one pair of lockable bolt-on stand hanger brackets, and four 36" aluminum ramp attaching brackets
  • High-traction ramp surface works in all weather conditions
  • Specifically manufactured for 26" H step deck trailers
  • Load levelers fit 102" wide trailers

Affordable, lightweight, and safe, this innovative ramp system converts to load levelers to maximize step deck capabilities. This convenient system is an essential tool for 102” wide drop deck trailers with an 26” upper step drop. Adjustable stakes ensure the load levelers will fit all 102” wide step deck trailers without any modifications.

The safest system on the market, our load levelers and stake pockets are secured directly to your step deck trailer, preventing kick-outs caused by short stops or chain failure. Simply slide inserts over the pin end of the ramps into your stake pockets, then chain them down with load binders for unbeatable security. For maximum safety, each step deck kit includes three lumber clips and two stake pocket inserts per load leveler.

This kit includes four 8' L x 20" W lightweight ramps, two adjustable lower ramp support stands, eight stake pocket supports for load levelers, four load leveler spacers, twelve lumber securing clips, two pairs of lockable bolt-on ramp hanger brackets, one pair of lockable bolt-on stand hanger brackets, and four 36" aluminum ramp attaching brackets. The modular design of these step deck systems allows you to add on pieces when necessary, and gives you the ability to easily replace pieces as needed. Browse our variety of step deck products for step deck add-ons and other accessories. Please note, ramps must be pinned into skid seat brackets before use.

4 Bunk Load Leveler Master Kit
23,500 lbs. per axle
879 lbs.
Rated at 23,500 lbs. per axle; Never exceed the maximum axle capacity of this ramp system; Not recommended for trucks with mounted cranes, forklifts, steel track vehicles. Must use a true 5" wide lumber for the load levelers (2x6's cut down).
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to
Product Q&A
Warranty Badge
General Warranty Information
  • Discount Ramps offers a Five-Year Warranty and guarantees this product to be free of defects at the time of receipt. Please note that all warranty claims must be made directly to the original place of purchase.
Warranty Service
  • If you wish to submit a warranty claim, please contact us promptly at (888) 651-3431, Mon - Fri from 8am to 5:30pm CST.
  • Please be prepared to submit photos to assist our staff with processing your claim. Any defects will be determined by Discount Ramps with relevant evidence. If a defect is confirmed, Discount Ramps will replace the defective part with the same or similar product at no charge. The purchaser is responsible for labor charges.
Warranty Limitations
  • This warranty is non-transferrable, and becomes void if the product has been misused, neglected, altered, damaged or tampered with.
  • The product manufacturer reserves the right to substitute, discontinue, alter or modify any product or part at any time without notifying the purchaser. If this product is discontinued or modified prior to the warranty claim, Discount Ramps will substitute the defective product or part.
  • Products not manufactured by Discount Ramps are covered under the warranty of their manufacturer.
Limited Liability
  • Discount Ramps shall not be held liable for any damages that arise from the use of this product, including and not limited to property damage, loss of value of the product or loss of use of the product.
