8’ L x 18” W 2 Bunk Load Leveler / 4 Ramp System for 18” H Step Deck Trailers – 23,500 lb. Capacity

Ships today!
Select Length:
Select Description:
In Stock Item
  • Manufactured from high-strength, lightweight aluminum - no component weighs more than 94 lbs.
  • 23,500 lb. per axle weight capacity

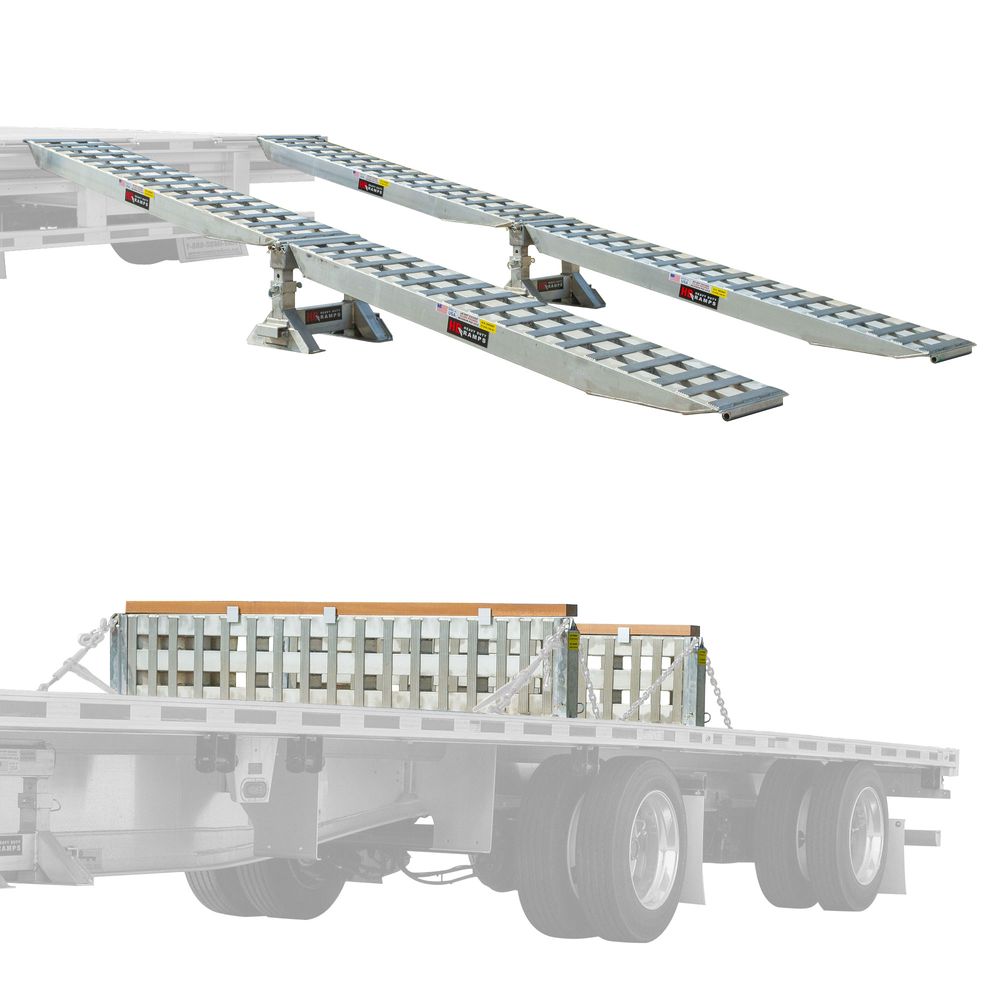

  • Kit includes four 8' L x 18" W x 5" H aluminum ramps with pin-on ends, four stake pocket supports for load levelers, six lumber securing clips, and two adjustable ramp support stands
  • High-traction ramp surface works in all weather conditions
  • Specifically manufactured for 18" H step deck trailers
  • Load levelers fit 102" wide trailers

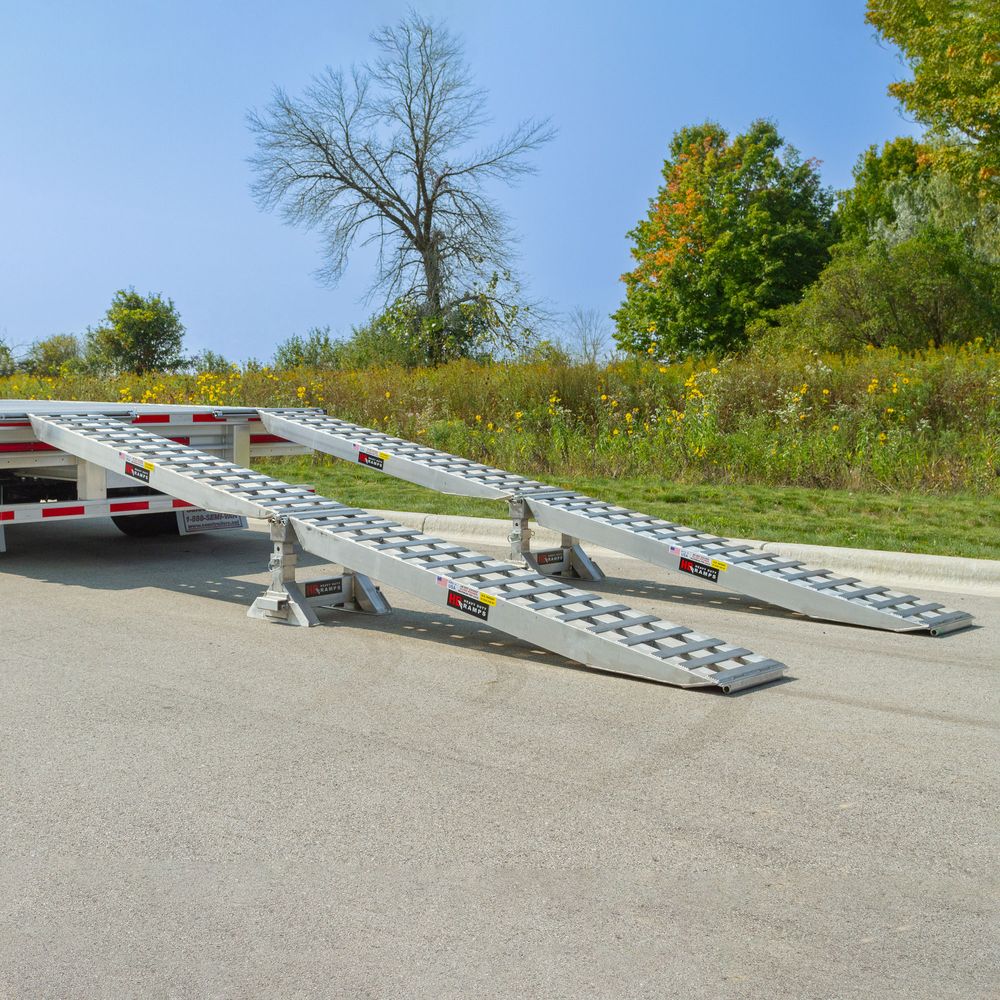

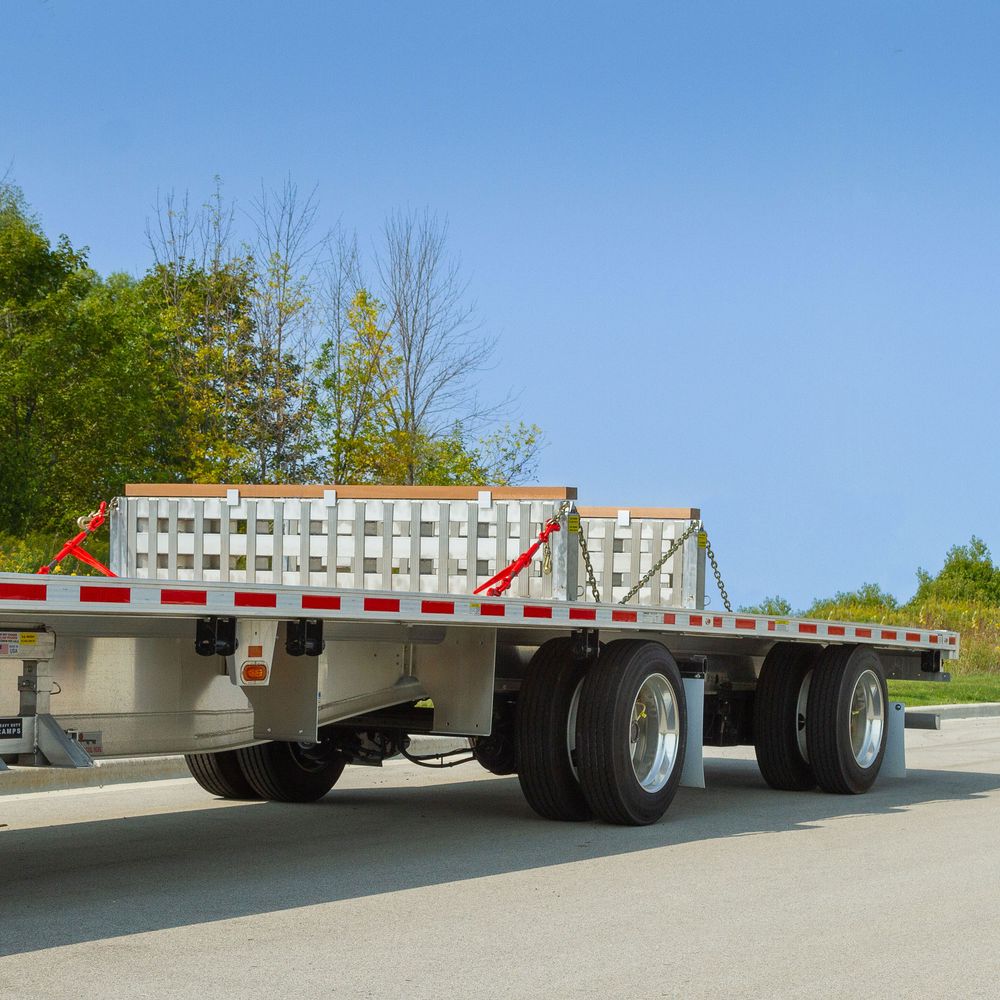

Affordable, lightweight, and safe, this innovative ramp system converts to load levelers to maximize step deck capabilities. This convenient system is an essential tool for 102” wide drop deck trailers with an 18” upper step drop. Adjustable stakes ensure the load levelers will fit all 102” wide step deck trailers without any modifications.

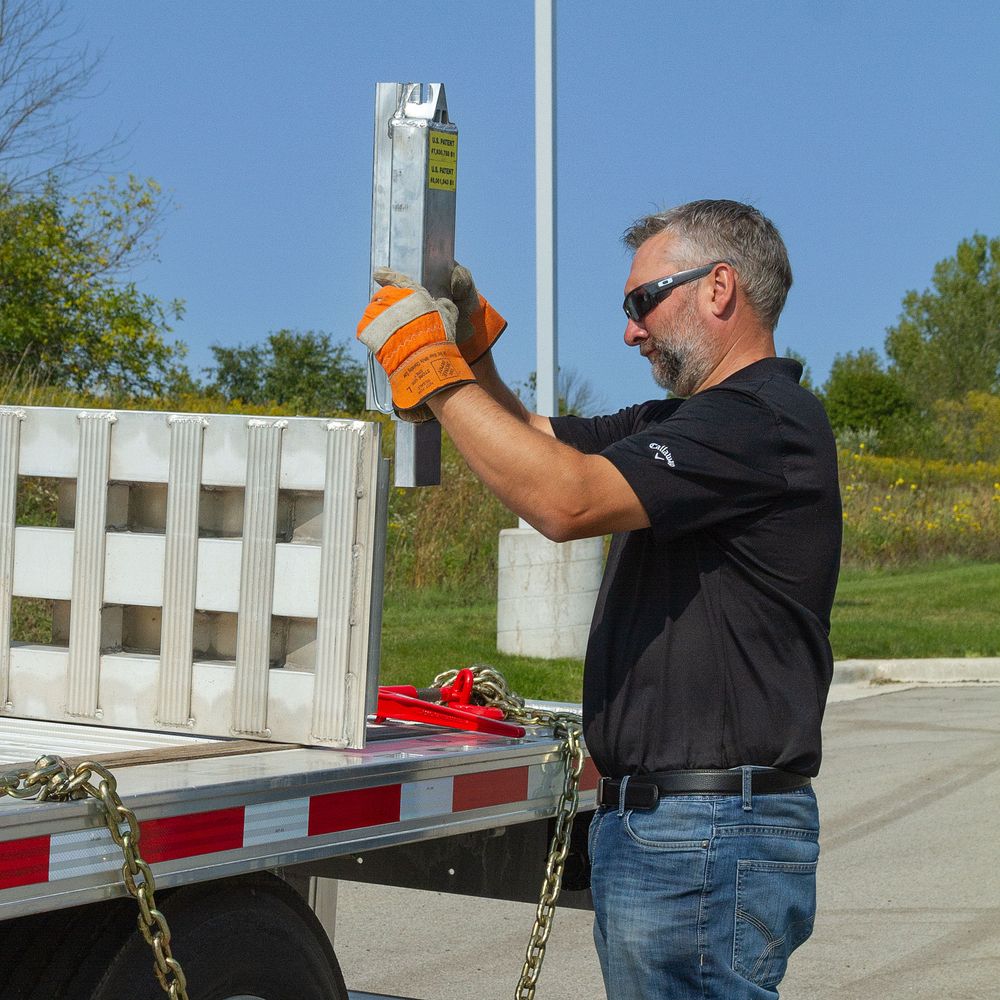

The safest system on the market, our load levelers and stake pockets are secured directly to your step deck trailer, preventing kick-outs caused by short stops or chain failure. Simply slide inserts over the pin end of the ramps into your stake pockets, then chain them down with load binders for unbeatable security. For maximum safety, each step deck kit includes three lumber clips and two stake pocket inserts per load leveler.

This kit includes four 8' x 18" ramps, four stake pocket supports, six lumber clips, and two support stands. The modular design of these step deck systems allows you to add on pieces when necessary, and gives you the ability to easily replace pieces as needed. Browse our variety of step deck products for step deck add-ons and other accessories. Please note, ramps must be pinned into skid seat brackets before use.

2 Bunk Load Leveler
23,500 lbs. per axle
506 lbs.
Rated at 23,500 lbs. per axle; Never exceed the maximum axle capacity of this ramp system; Not recommended for trucks with mounted cranes, forklifts, steel track vehicles. Must use a true 5" wide lumber for the load levelers (2x6's cut down).
All products are guaranteed to be free of defects at time of receipt. Warranties are non-transferable. If you have a question regarding the warranty on a specific item, contact our product experts at 1-888-651-3431, Monday - Friday from 8:00am to 5:30pm Central Standard Time.
