8' L x 20" W 4 Bunk Load Leveler / 4 Ramp System for 20" H Step Deck Trailers - 23,500 lb. Capacity

Ships today!
Select Length:
Select Description:
In Stock Item
  • Manufactured from high-strength, lightweight aluminum - no component weighs more than 94 lbs.
  • 23,500 lb. per axle weight capacity

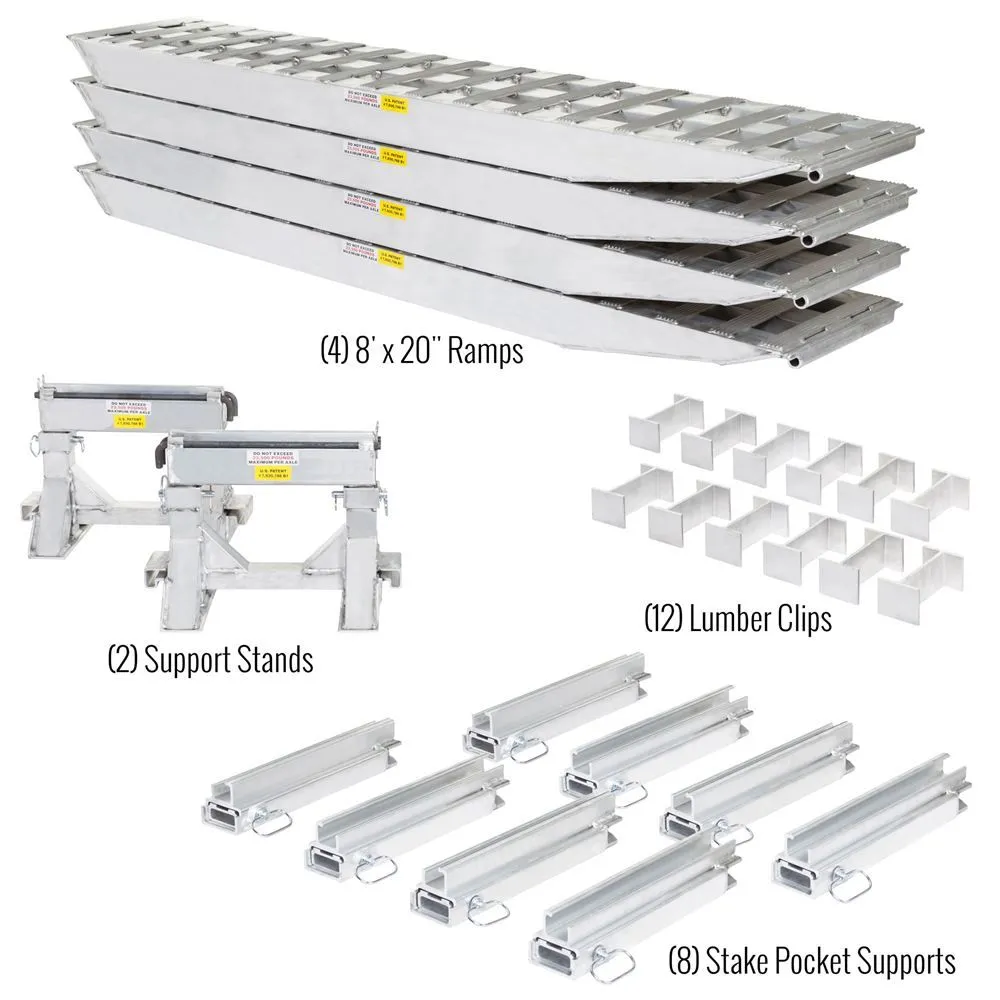

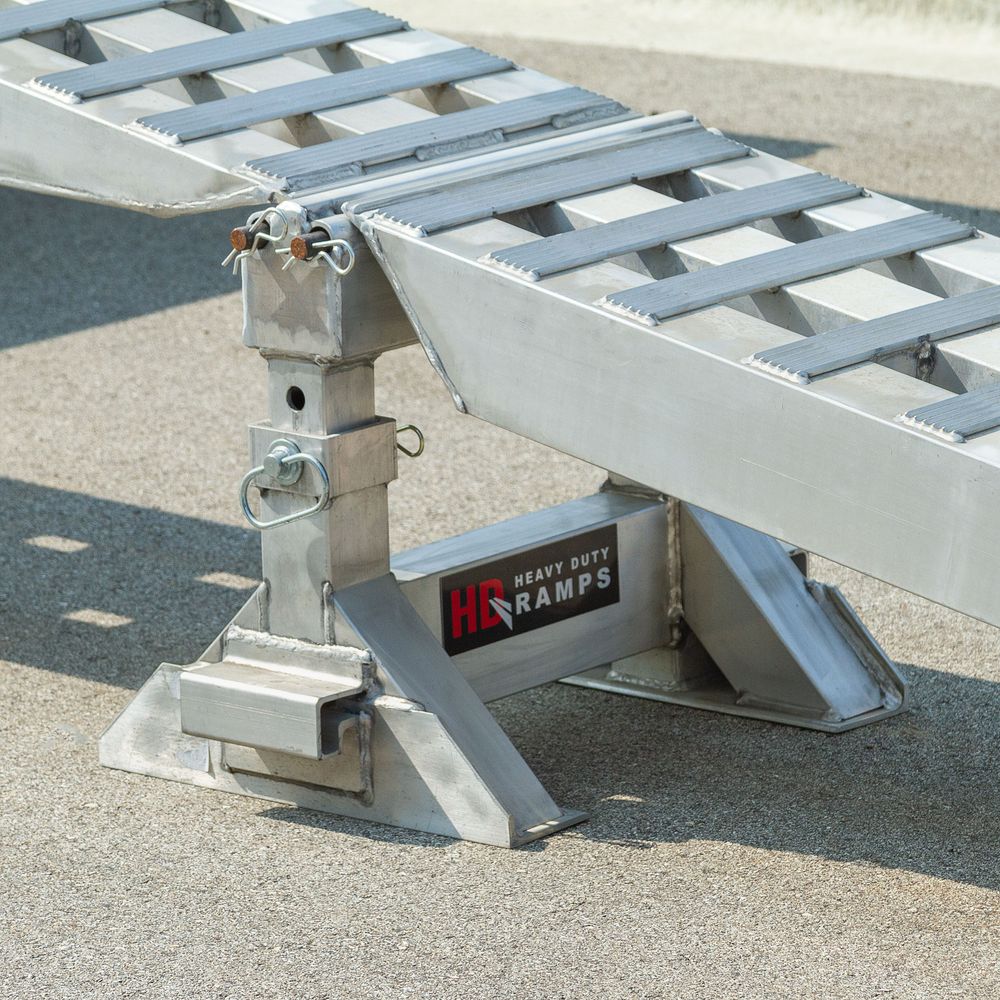

  • Kit includes four 8' L x 20" W x 5" H aluminum ramps with pin-on ends, eight stake pocket supports for load levelers, 12 lumber securing clips, two adjustable ramp support stands
  • High-traction ramp surface works in all weather conditions
  • Specifically manufactured for 20" H step deck trailers
  • Load levelers fit 102" wide trailers

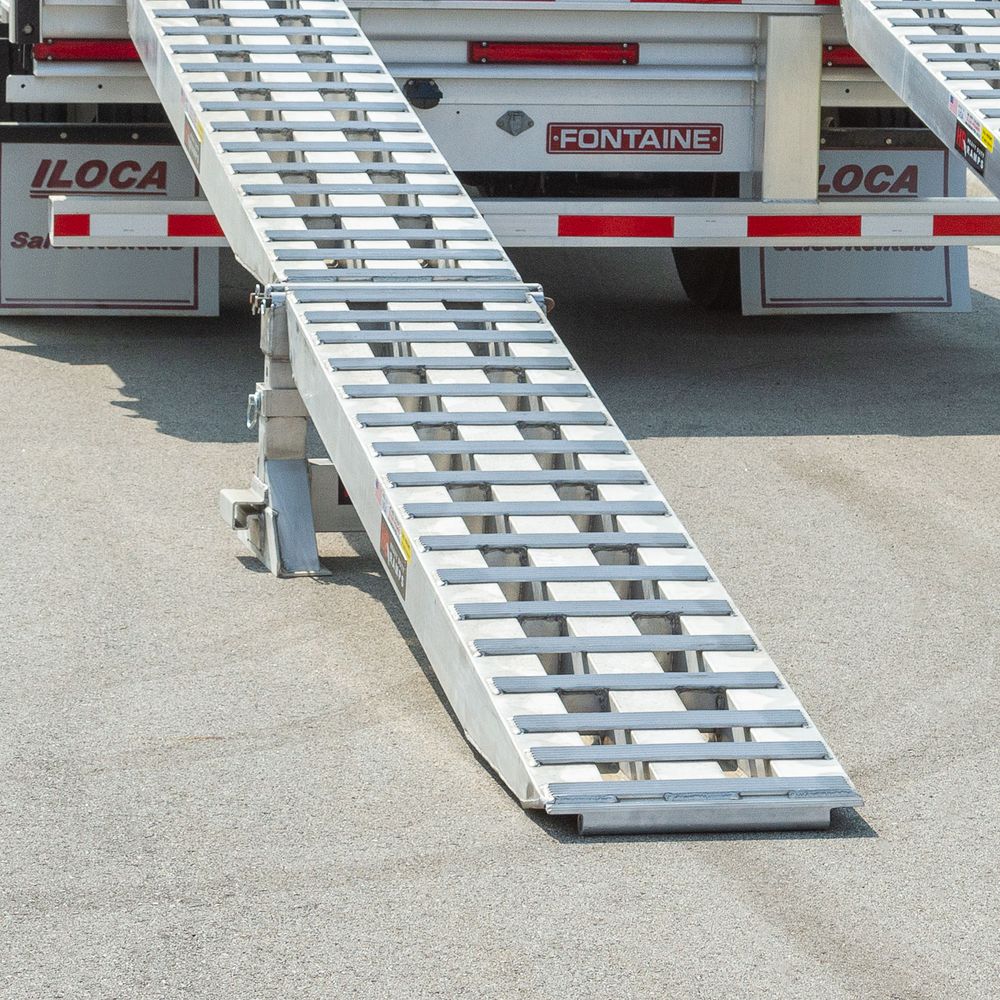

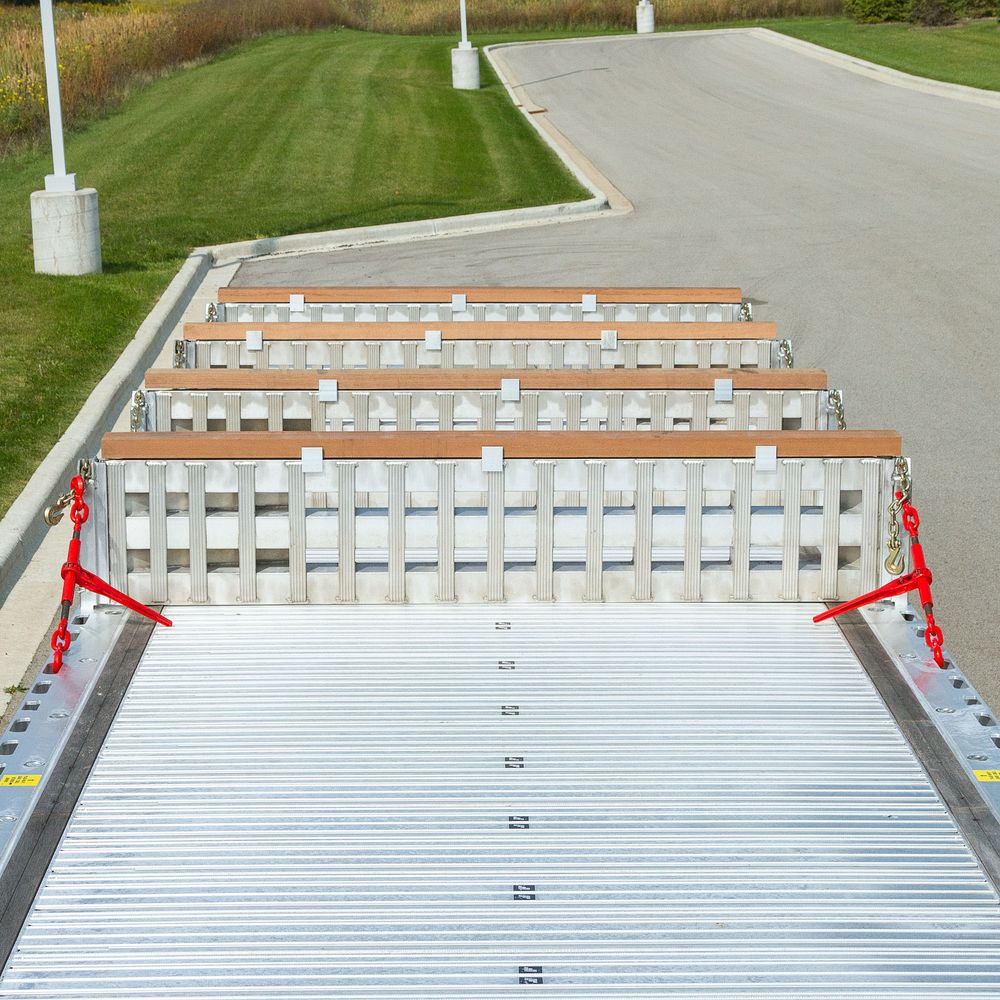

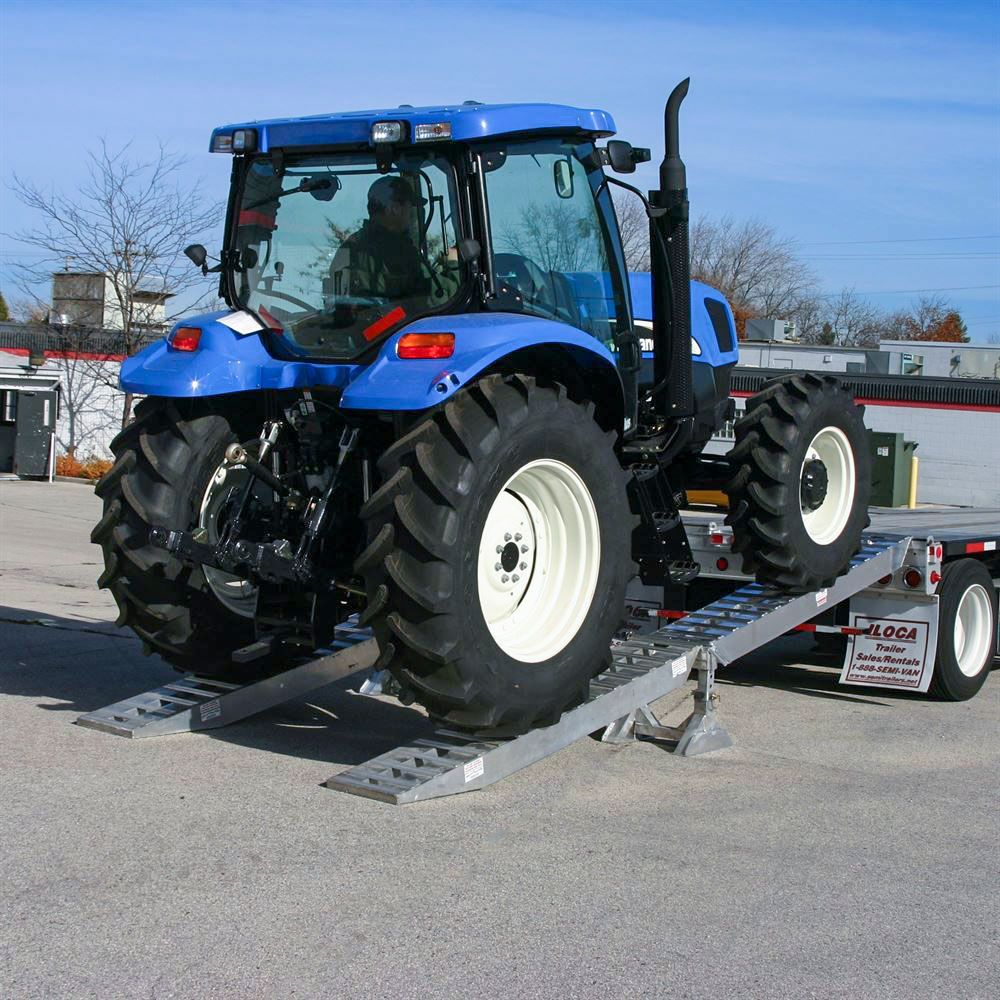

Affordable, lightweight, and safe, this innovative ramp system allows you to load your step deck-deck trailer, then convert the four ramp pieces into load levelers so that you maximize the capabilities of your step deck. This 4 Load Leveler/4 Ramp System works with all 102" wide drop-deck trailers with an 20" upper step drop.

This system includes four 8' x 20" ramps, eight stake pocket supports, 12 lumber clips and two support stands. The modular design of these step deck systems allows you to add on pieces when necessary, and gives you the ability to easily replace pieces as needed. Adjustable stakes ensure the load levelers will fit all 102" wide step deck trailers without any modifications.

This system is one of the safest on the market as our load levelers and stake pockets are secured directly to your step deck trailer, preventing kick-outs caused by short stops or chain failure. Simply slide inserts over the pin end of the ramps into your stake pockets, then chain them down with load binders for unbeatable security.

4 Bunk Load Leveler
23,500 lbs. per axle
560 lbs.
Rated at 23,500 lbs. per axle; Never exceed the maximum axle capacity of this ramp system; Not recommended for trucks with mounted cranes, forklifts, steel track vehicles. Must use a true 5" wide lumber for the load levelers (2x6's cut down).
