5" L x 100-7/8" W x 18" H Aluminum Load Leveler Bridge - 20,000 lb. Capacity

$844.99
Select Height:
ITEM #20-04-101-18-LL
In Stock - Ready to Ship Product In Stock Delivered in 3 to 5 Business Days

Key Features:

  • Manufactured from high-strength, lightweight aluminum
  • Measures 5" L x 100-7/8" W x 18" H
  • 20,000-lb maximum load capacity per bridge (over 48" span)

See More…

Overview
Specifications
Made in the USA
Maximum Capacity:
20,000 lbs.
Length:
5"
Width:
100-7/8"
Height:
18"
Weight:
55 lbs.
Material:
Aluminum
Brand:
More Information

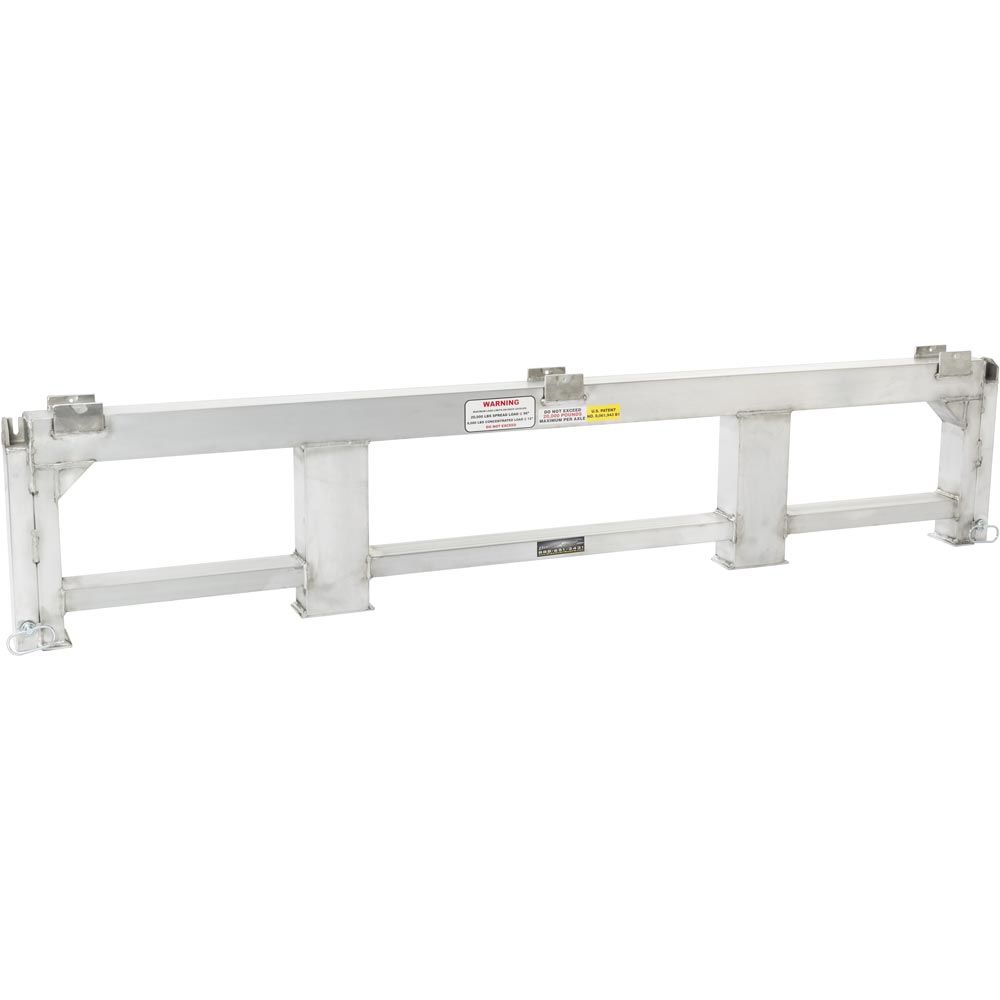

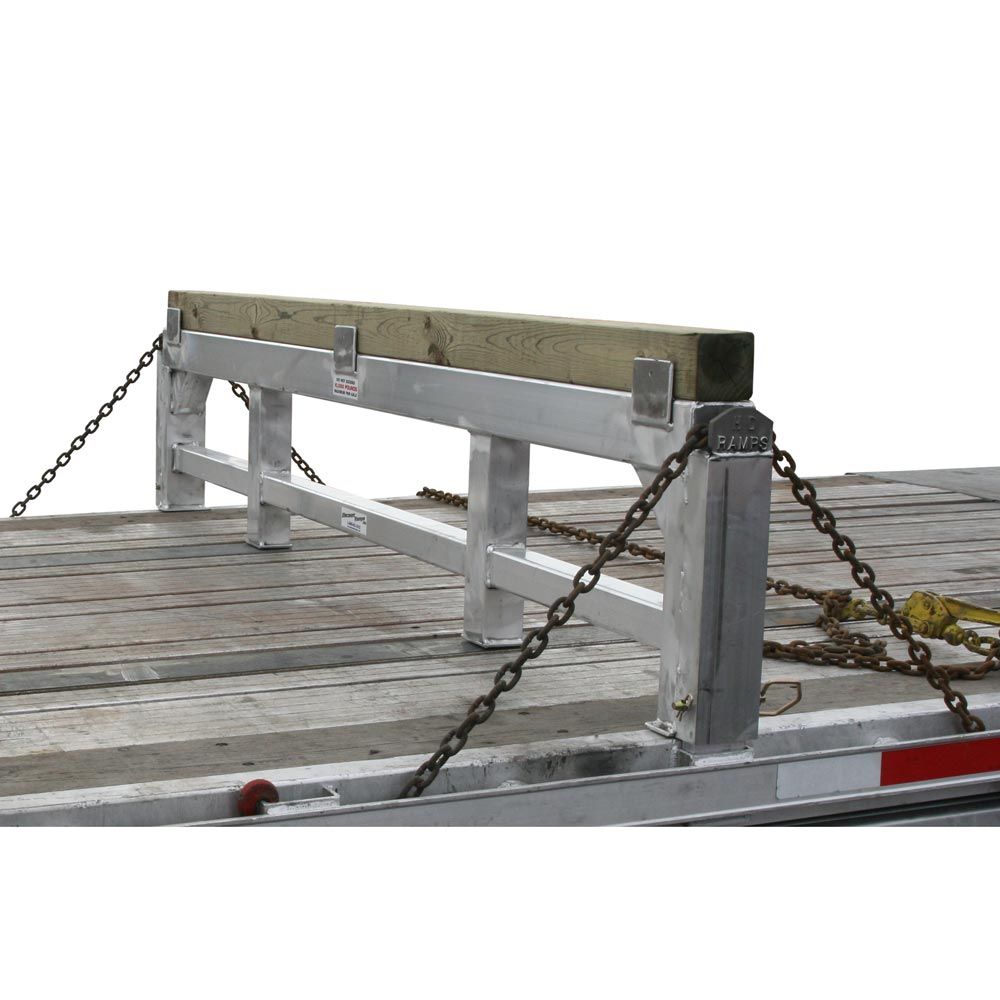

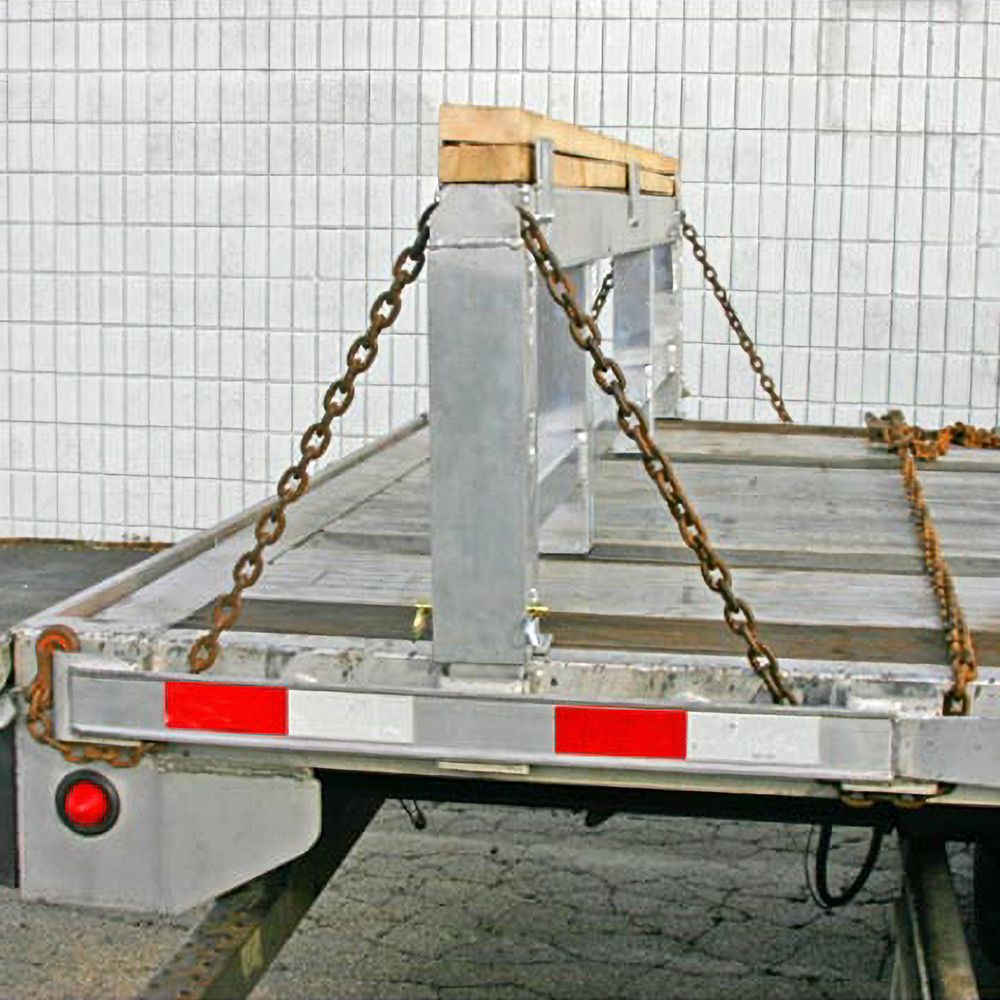

This 18" H load leveler bridge is an essential tool for truckers transporting flatbed loads on a step deck trailer. The load leveler has an adjustable offset stake pocket post that can be rotated to different positions and allows for a .5 inch of overall width adjustment to accommodate most drop deck trailers by simply pulling a pin and rotating. This load leveler will fit trailers with a 18" drop including Doonan, Featherlite, and Transcraft stepdeck trailers.

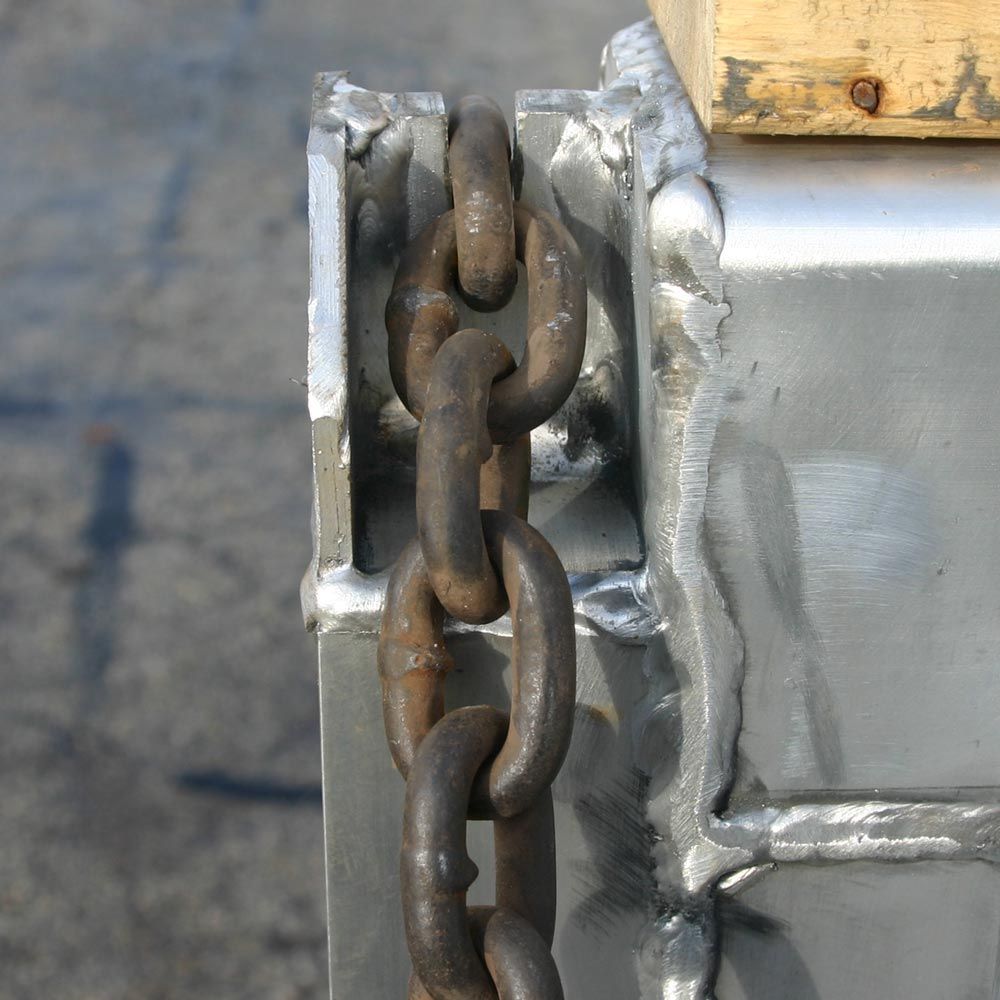

The stake pockets adjust from 97.25" - 97.75" W (inside measurement of stake pockets across width of trailer). This load leveler bridge can be set up in minutes and must be secured with chains and binders (not included). Welded brackets on the bridge are sized to receive and secure a 4x4 piece of wood (not included). Manufactured from lightweight aluminum, this bridge is easy to handle. Load leveler and ramp combo kits are also available if a modular loading ramp is needed; give us a call today and our sales staff would be happy to assist you.

  • Manufactured from high-strength, lightweight aluminum
  • Measures 5" L x 100-7/8" W x 18" H
  • 20,000-lb maximum load capacity per bridge (over 48" span)
  • Weighs 55 lbs.
  • Offset stakes pocket posts have 1/2" width adjustment by pulling pin and rotating
  • 4" x 4" wood or chains sold separately
HD Ramps

This product is backed by a Five Year Warranty.
