17' 9" x 27-1/4" Retractable Posi-Step Walk Ramp

$2,444.99
Select Length
Select Width
ITEM #SG2616
3-5 Week Lead Time

Key Features:

  • Aluminum walk ramp with steel slide and track assembly
  • 1,000 lb. weight capacity
  • 17' 9" L x 27-1/4" W to fit standard truck chassis

See More…

Overview
Specifications
Made in the USA
Length:
17' 9"
Width:
27-1/4"
Height:
5-3/8"
Weight:
285 lbs.
Maximum Capacity:
1,000 lbs.
Material:
Aluminum/Steel
Usable Width:
24-3/8"
Brand:
More Information

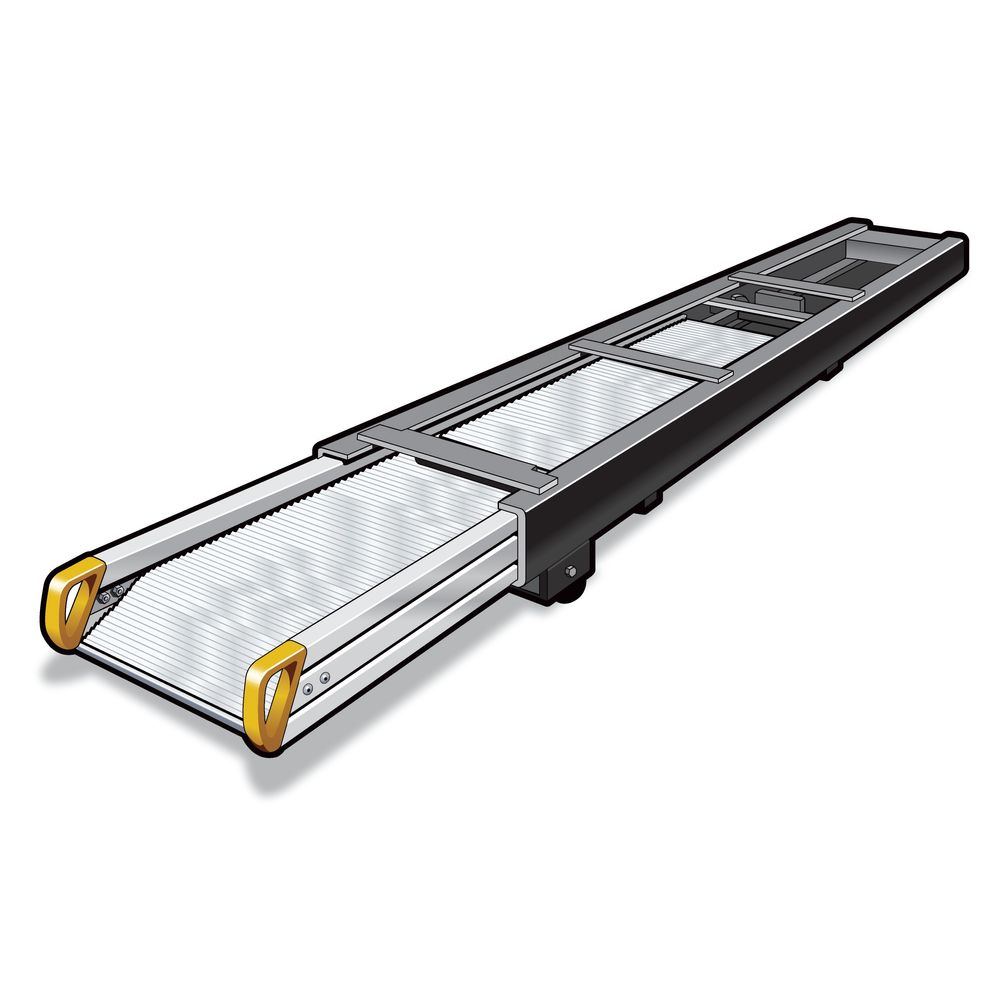

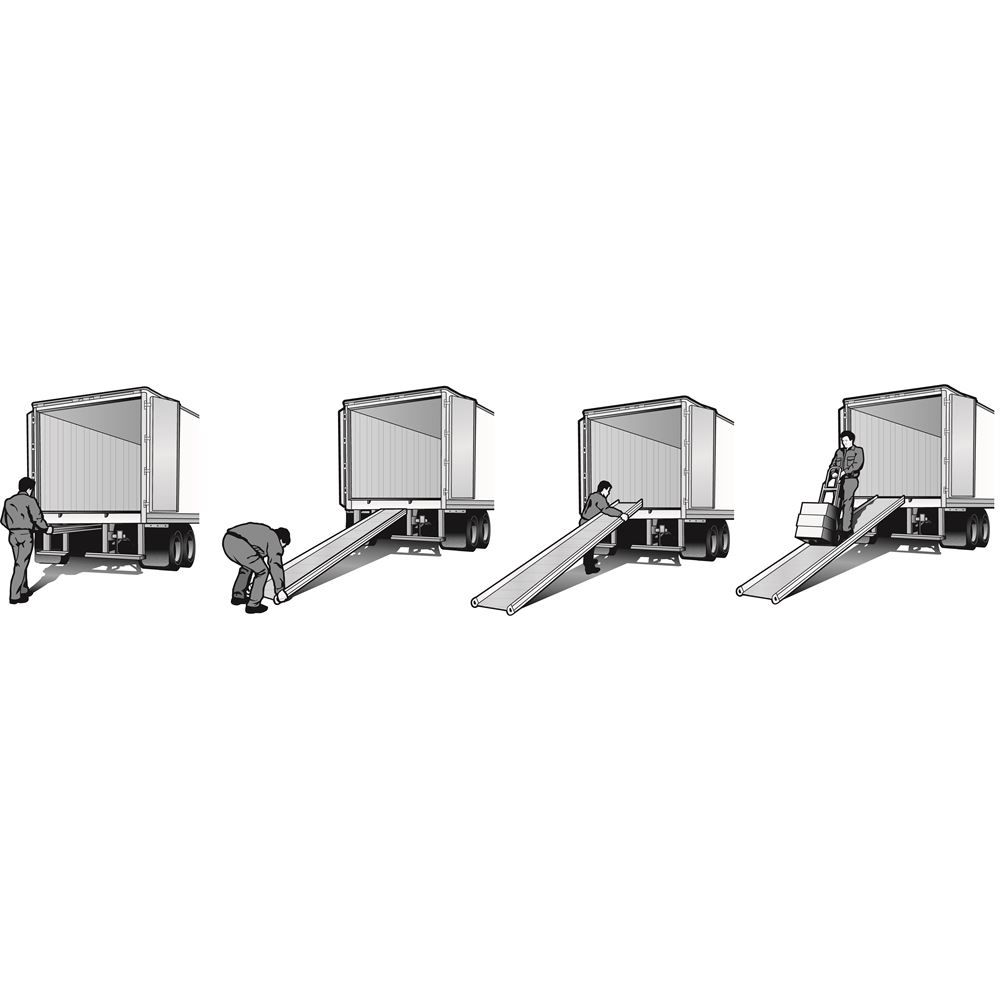

The Magliner Posi-Step retractable underbody truck ramps make loading and unloading safe and easy. A unique Posi-Step surface provides excellent traction while allowing water, small debris, and dirt to fall through and out of the walk path. Its 26" width is designed to fit a standard truck chassis. Each ramp is conveniently shipped completely assembled for quick installation. Once installed, simply roll out the ramp and securely store it underneath the truck.

These ramps also feature hook-end attachment points to prevent kick-out during use, as well as anti-rattle springs to prevent rattling and bouncing when driving. Safety locks ensure the ramp stays securely in place when stored, while the anti-theft angle stop prevents the ramp from being extended too far and reduces the risk of theft.

  • Aluminum walk ramp with steel slide and track assembly
  • 1,000 lb. weight capacity
  • 17' 9" L x 27-1/4" W to fit standard truck chassis
  • Hook end attaching points prevent kick-out during loading

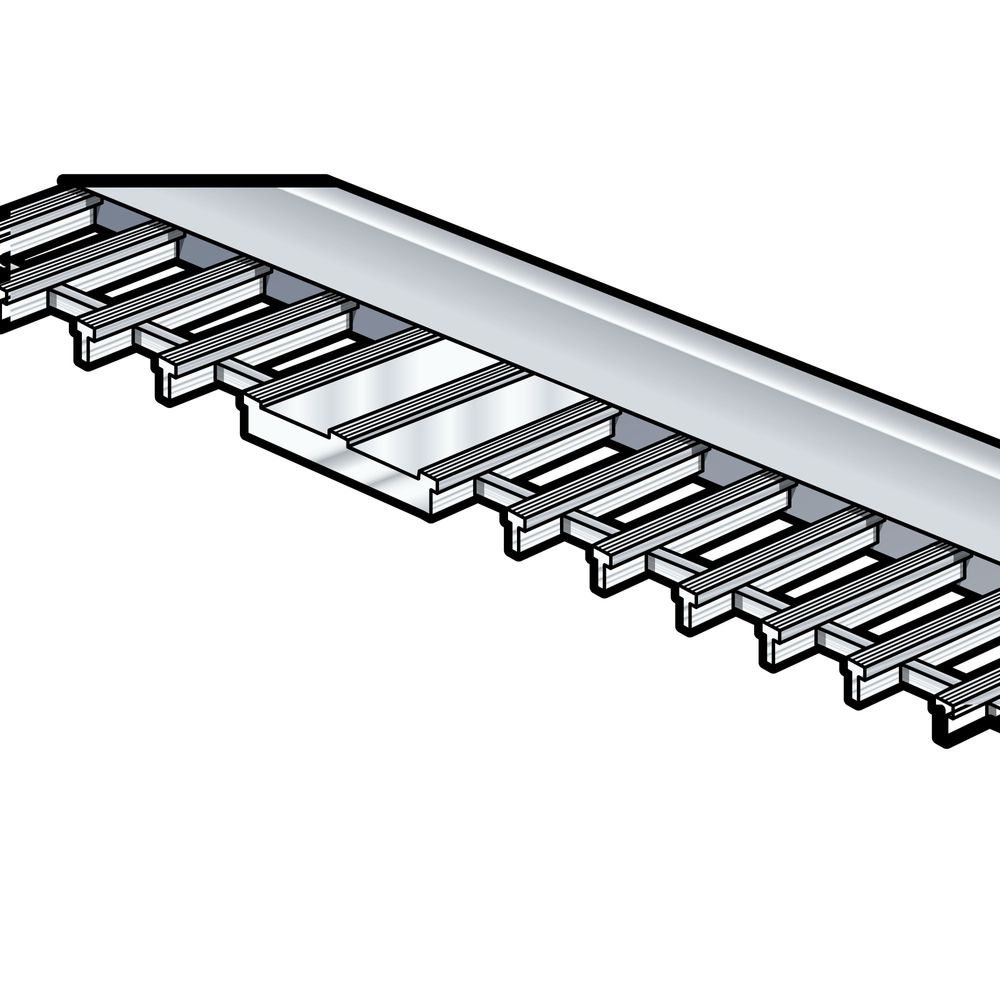

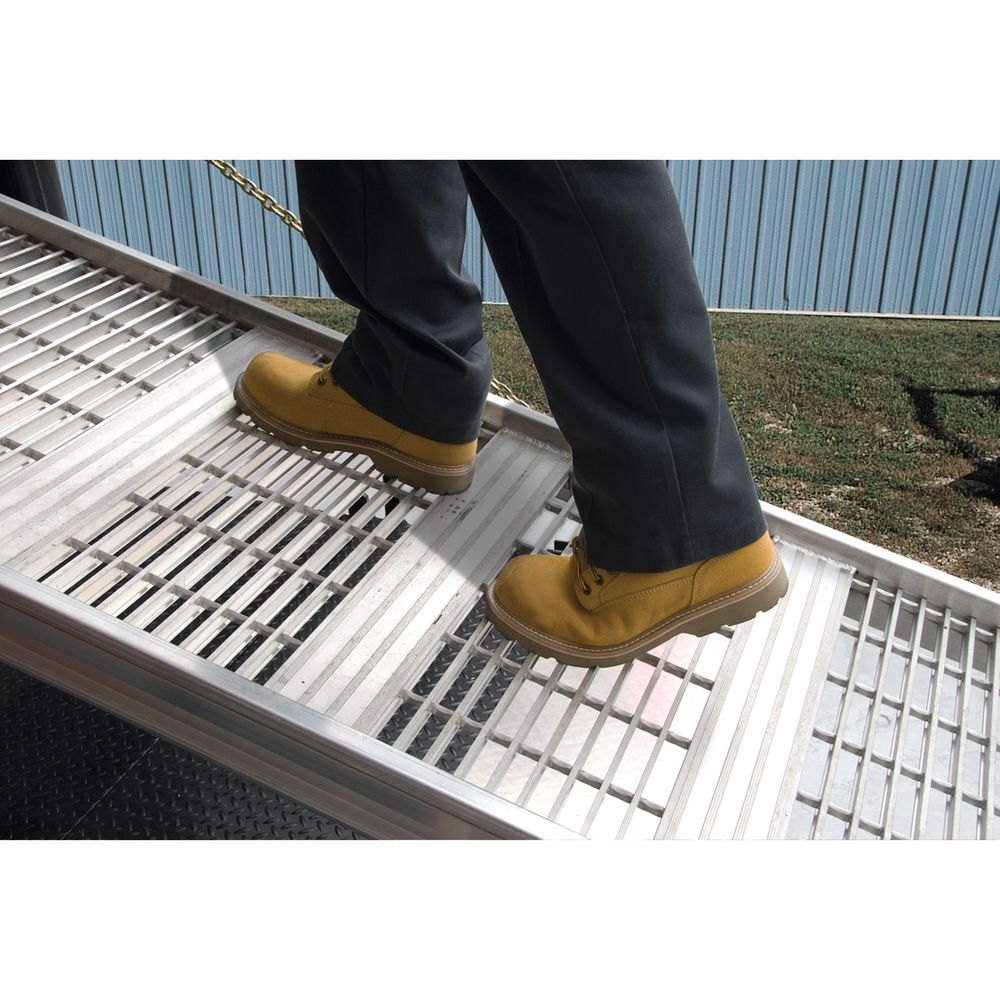

  • High-traction Posi-Step surface prevents water, dirt, and small debris from accumulating on open I-beam surface
  • Anti-rattle springs prevent ramp from bouncing or rattling when the truck is driving
  • Safety lock holds ramp securely in place when stored under truck body
Usage Guidelines

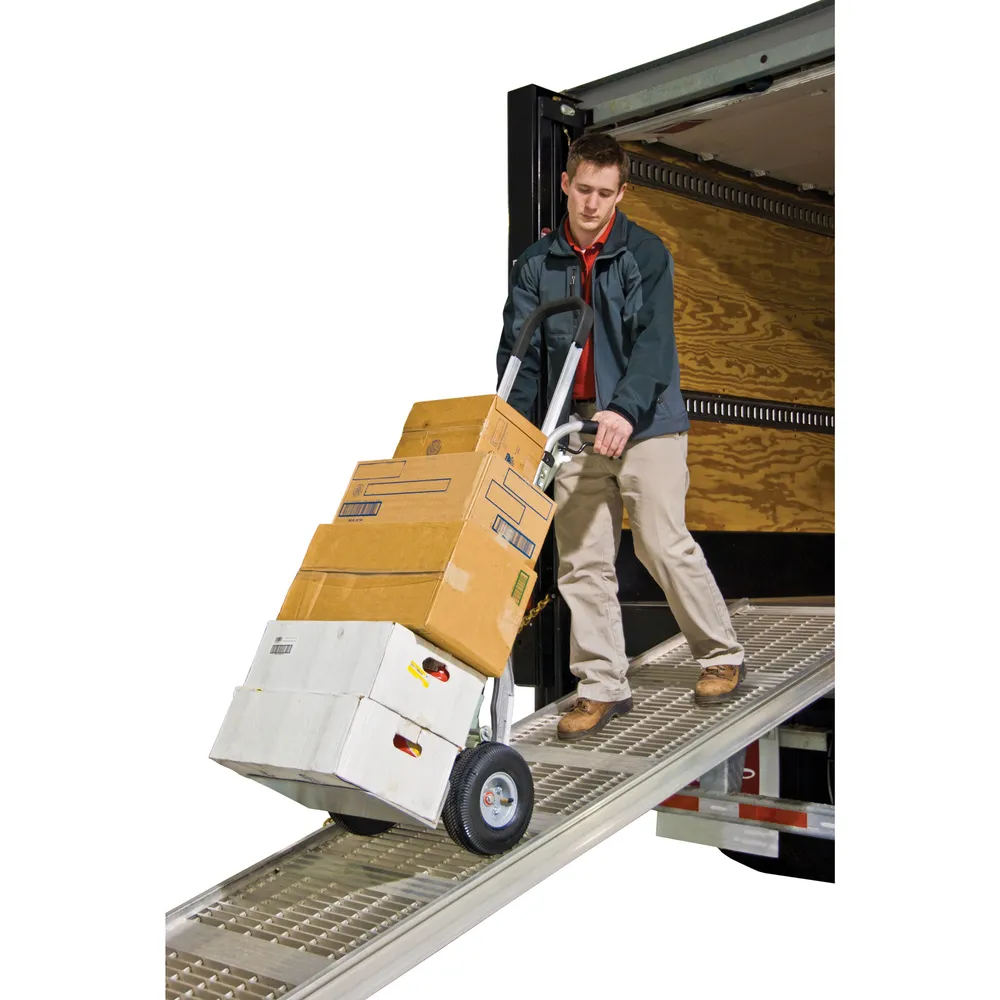

5-1/2" minimum dimension required between truck chassis and bottom of body cross members. 27-1/2" minimum dimension required between body U bolts. 18' minimum body length. Average installation time is 3 hours. Recommended for hand truck use only.
