Retractable Underbody Posi-Step Walk Ramps

Starting at
$1,099.99
SGWALK
Make a Selection
Select Length:
Select Width:
  • Aluminum walk ramp with steel slide and track assembly
  • 1,000 lb. weight capacity
  • Available in two widths to fit downsized truck chassis and standard truck chassis
  • Hook end attaching points prevent kick-out during loading
  • High-traction Posi-Step surface prevents water, dirt, and small debris from accumulating on open I-beam surface
  • Anti-rattle springs prevent ramp from bouncing or rattling when the truck is driving
  • Safety lock holds ramp securely in place when stored under truck body
Item # Length Width Height Weight Maximum Capacity Availability Price
SG2410 11' 9" 25" 5-3/8" 194 lbs. 1,000 lbs
$1,099.99
View Details
SG2412 13' 3" 25" 5-3/8" 212 lbs. 1,000 lbs
$1,224.99
View Details
SG2414 15' 6" 25" 5-3/8" 241 lbs. 1,000 lbs
$1,399.99
View Details
SG2416 17' 9" 25" 5-3/8" 275 lbs. 1,000 lbs
$1,524.99
View Details
SG2610 11' 9" 27-1/4" 5-3/8" 198 lbs. 1,000 lbs
$1,074.99
View Details
SG2612 13' 3" 27-1/4" 5-3/8" 218 lbs. 1,000 lbs
$1,199.99
View Details
SG2614 15' 6" 27-1/4" 5-3/8" 248 lbs. 1,000 lbs
$1,364.99
View Details
SG2616 17' 9" 27-1/4" 5-3/8" 285 lbs. 1,000 lbs
$1,509.99
View Details

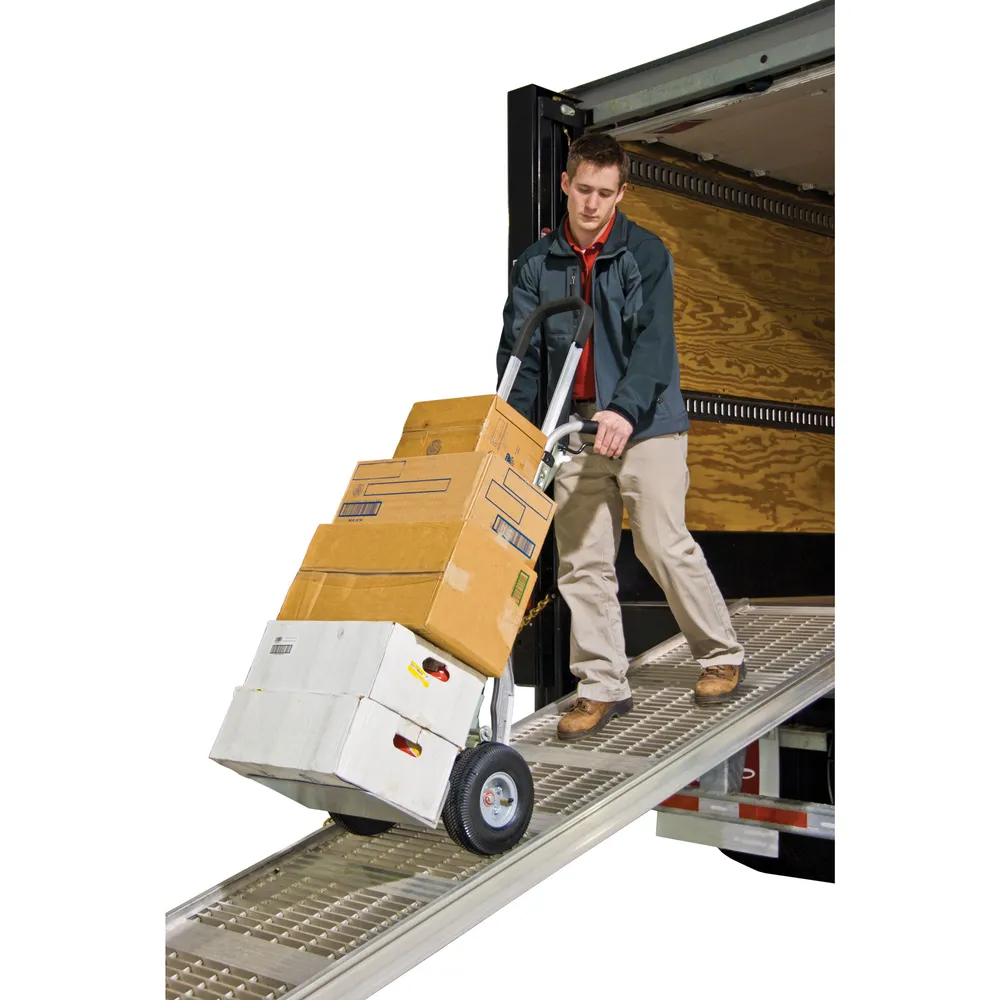

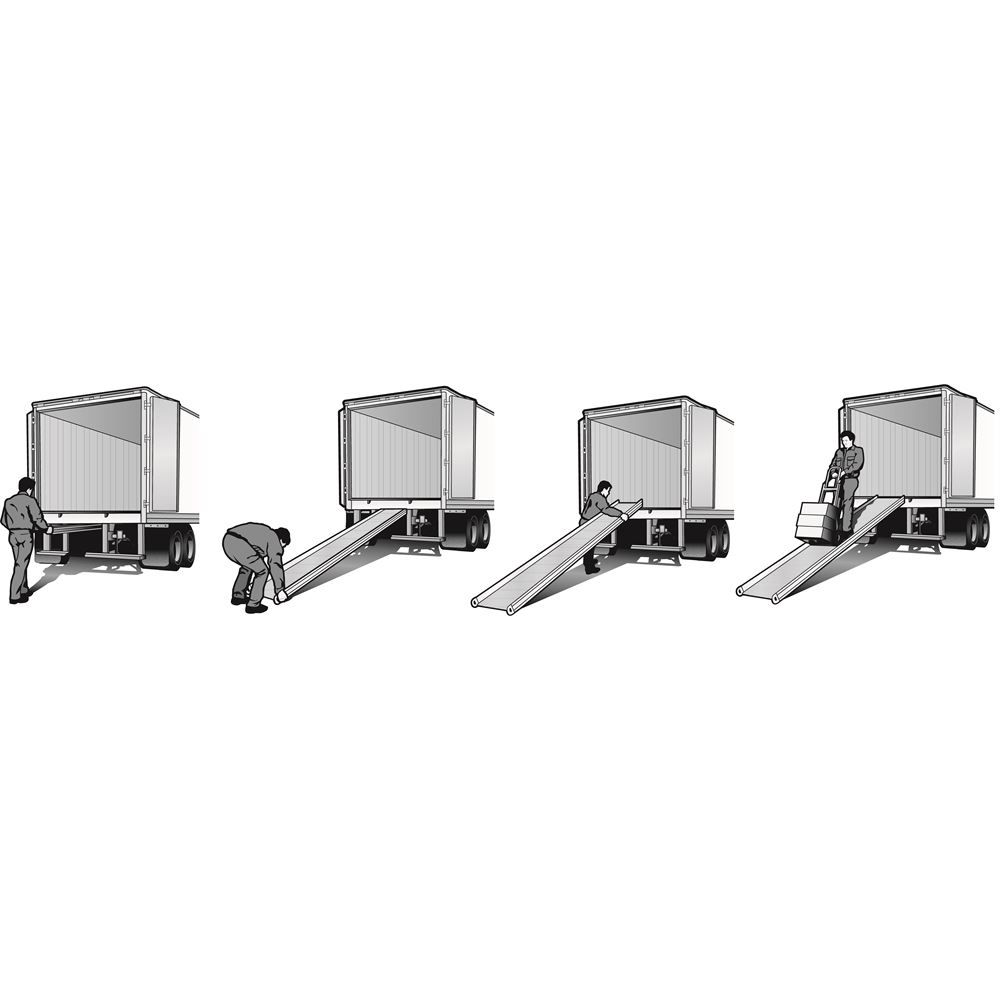

The Magliner Posi-Step retractable underbody truck ramps make loading and unloading safe and easy. A unique Posi-Step surface provides excellent traction while allowing water, small debris, and dirt to fall through and out of the walk path. Two widths are available to fit downsized and standard truck chassis. Each ramp is conveniently shipped completely assembled for quick installation. Once installed, simply roll out the ramp and securely store it underneath the truck

These ramps also feature hook-end attachment points to prevent kick-out during use, as well as anti-rattle springs to prevent rattling and bouncing when driving. Safety locks ensure the ramp stays securely in place when stored, while the anti-theft angle stop prevents the ramp from being extended too far and reduces the risk of theft.

5-3/8"
1,000 lbs
Aluminum/Steel
5-1/2" minimum dimension required between truck chassis and bottom of body cross members. 2400 Series: 25-1/4" minimum dimension required between body U bolts. 2600 Series: 27-1/2" minimum dimension required between body U bolts. Average installation time is 3 hours. Recommended for hand truck use only.
Warranty Badge
  • This product is covered by the manufacturer’s One-Year Warranty.
