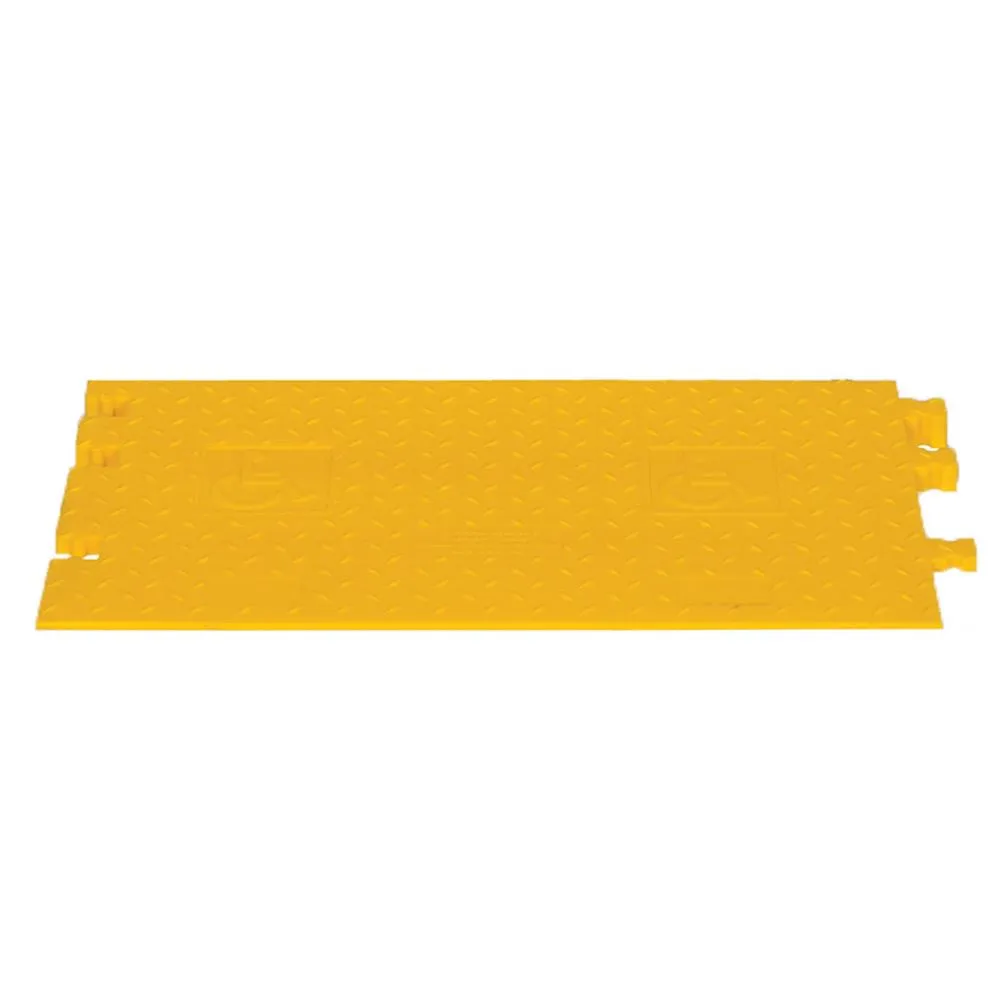

Male Ramp for 5-Channel Yellow Jacket AMS Cable Protector for 1.25" Dia. Cables
$214.62
Key Features:
- Male center ramp section creates an ADA-compliant slope for Yellow Jacket AMS Cable Protector system
- Made in the USA from all-weather polyurethane that supports up to 32,600 lb. per axle; weighs 25 lb.

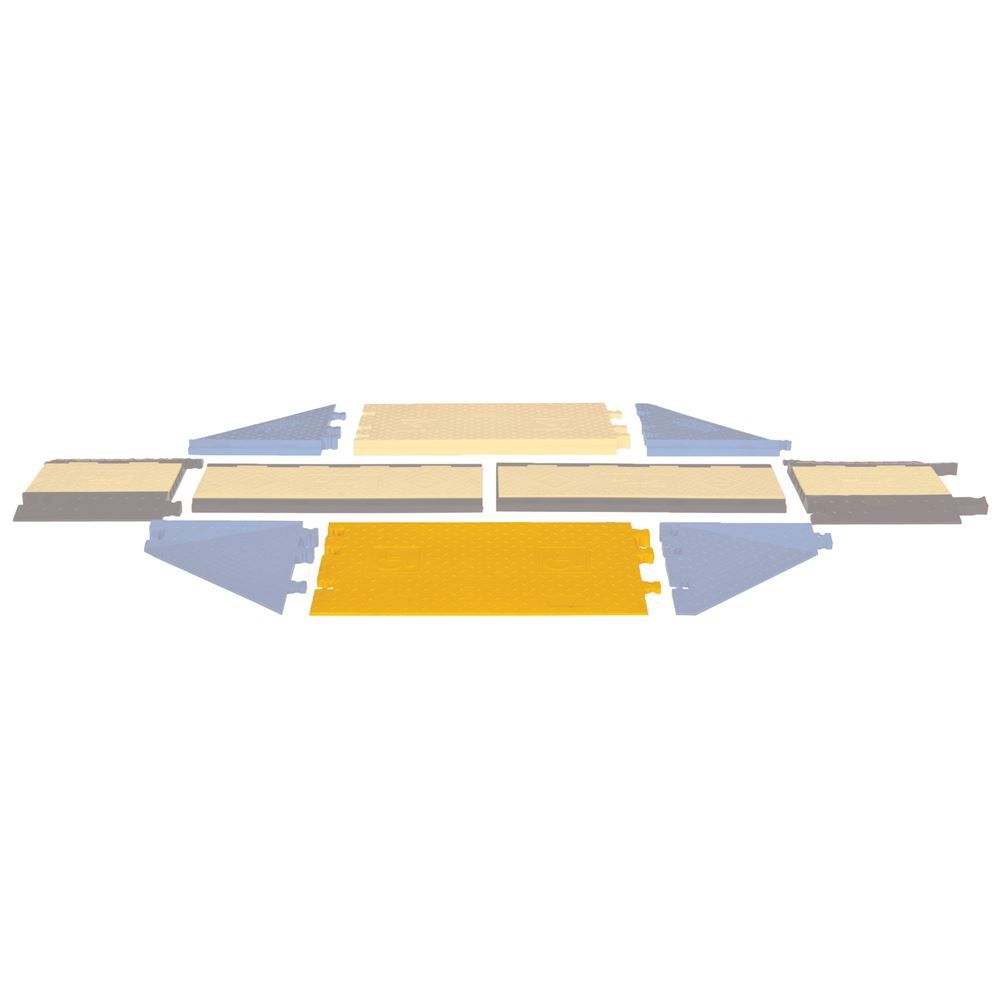

- Detachable ramps allow you to connect unlimited center sections, ADA side ramps, or corner pieces for custom applications
Similar Products
Accessories For #WSA-125-RMAH-DY
Overview
Overview
Specifications
Made in the USA
Length:
36"
Width:
20"
Height:
1-7/8"
Weight:
24.85 lbs.
Maximum Capacity:
32,600 lbs. per axle
Color:
Yellow
Outside Diameter:
1-1/4"
Connector:
Dog Bone
Brand:
More Information
Wheelchairs, carts, forklifts, and small-wheeled equipment will have no problem maneuvering over up to five 1.25" diameter cables when you configure an ADA/DDA-compliant cable protection and management system using this Male Ramp along with Yellow Jacket AMS five-channel center sections and other modular ramp sections. These industrial-strength polyurethane ramp sections support up to 32,600 lbs per axle, feature integrated slip-resistant surfaces, and will not rust or corrode. Each cable protector male ramp section features patented Hourglass connectors that attach to male side ramps and center sections. Proudly made in the USA, Yellow Jacket AMS ramps are manufactured to comply with all ADA/DDA specifications.
- Male center ramp section creates an ADA-compliant slope for Yellow Jacket AMS Cable Protector system
- Made in the USA from all-weather polyurethane that supports up to 32,600 lb. per axle; weighs 25 lb.
- Detachable ramps allow you to connect unlimited center sections, ADA side ramps, or corner pieces for custom applications
- Interlocking Dog Bone Connectors allow for multiple cable covers to be connected
- Includes a single male accessibility ramp
- Meets the Americans with Disabilities Act (ADA) requirements
