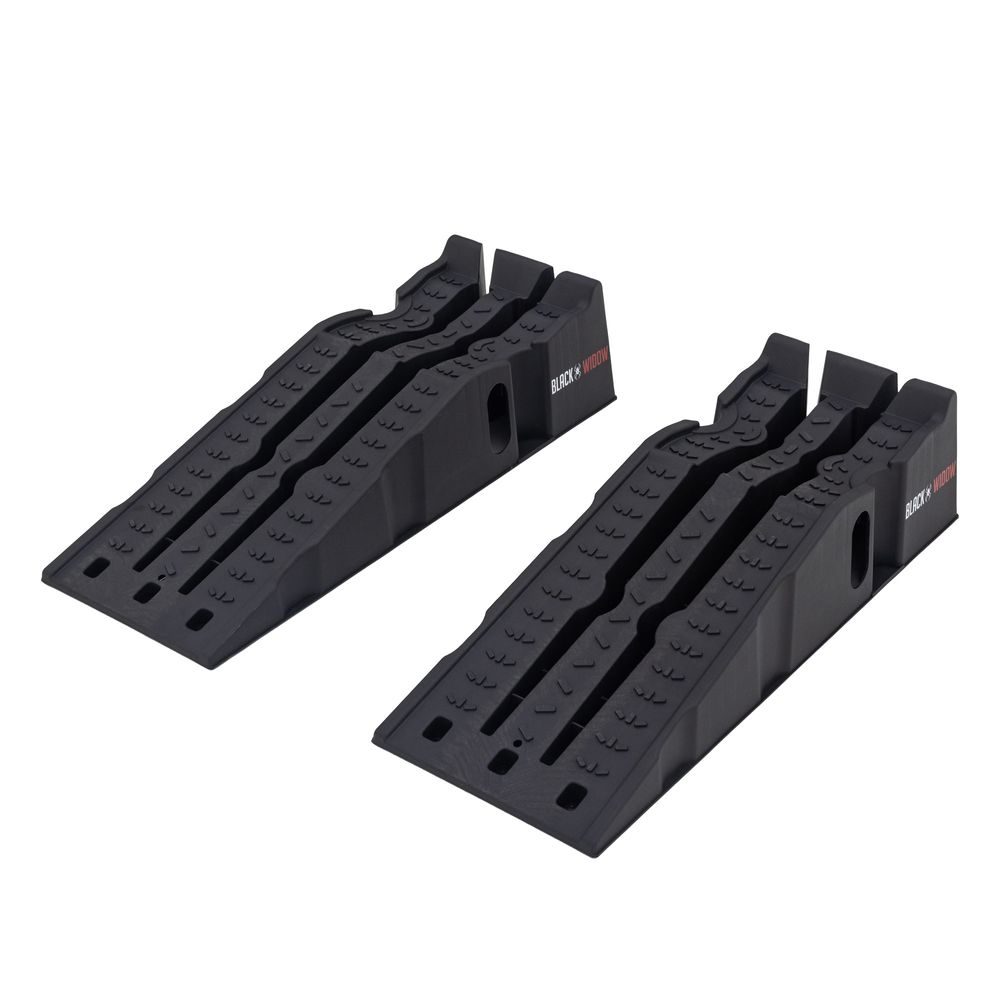

Black Widow Stackable Service Ramps - 8,000 lb. per Axle / 16,000 lb. GVW

Name: Black Widow Stackable Service Ramps - 8,000 lb. per Axle / 16,000 lb. GVW
Brand: Black Widow
SKU: TS297
Price: 79.99 USD
Rating: 5.0 (2 reviews)

$79.99

List Price: $99.99

Save $20.00

Pricing shown as of 7/25/2026. Please note that prices are subject to change without notice.

Key Features:

Lifts cars, pickup trucks, vans or SUVs up 6.25" for easy at-home service or maintenance; 17° approach angle

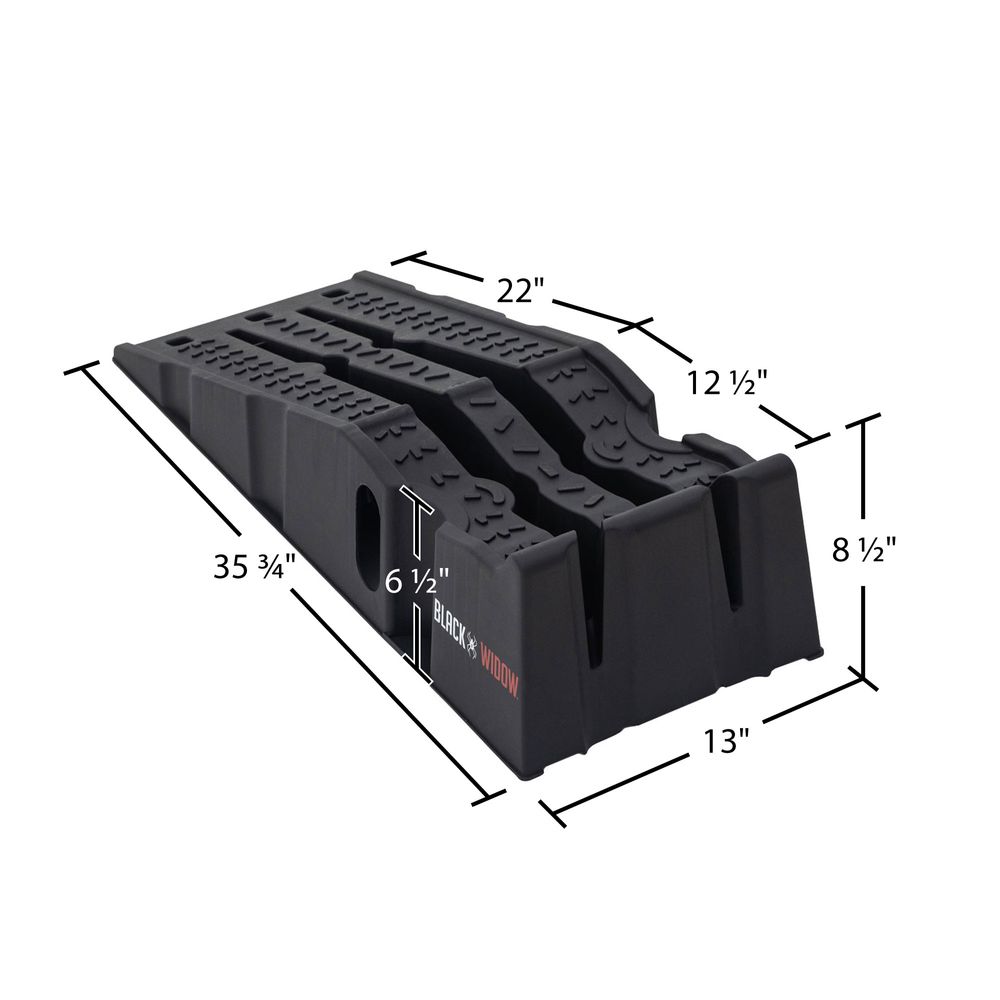

Ramps measure 35.25" L x 13" W x 8.5" H and support 8,000 lb. per axle (16,000 lb. GVW); each ramp weighs 10 lbs.
Fits tires up to 30" in diameter

Compare With Similar Items

Automobile Ramp Calculator

Fill in the form to see the minimum ramp length you need.

Wheelbase:

Please enter Wheelbase.

Ground Clearance:

Please enter Ground Clearance.

Loading Height (rise):

Please enter Loading Height.

Minimum ramp length = ft.

Overview

Specifications

Maximum Capacity:

16,000 GVW

Weight:

20 lbs.

Length:

35-1/4"

Width:

13"

Height:

6-1/4"

Lift Height:

6-1/4"

Approach Angle Degree:

17°

Material:

Plastic

Sold As:

Pair

Brand:

Black Widow

More Information

Make oil changes and routine maintenance easier by lifting cars, pickup trucks, vans and SUVs up 6.25" with the Black Widow Stackable Service Ramps. With a weight capacity of 16,000 lb. GVW, this set of two durable plastic ramps is constructed with a high-impact grid design engineered for high strength without sacrificing ease of usability.

Weighing only 10 lb. each, these lightweight service ramps can be transported and placed by a single person and feature built-in handles to make it easier to move them around. When it's time to store them, the ramps stack one of top of the other to take up less space in your garage.

The top curved platforms cradle tires for improved safety when the vehicle is driven up onto the ramps, and grooves on the top surface of each ramp diverts mud, rain, snow, ice and other debris. The molded traction pattern adds grips, and rubber pads on the underside of each ramp prevents the ramps from sliding on smooth floors.

Lifts cars, pickup trucks, vans or SUVs up 6.25" for easy at-home service or maintenance; 17° approach angle
Ramps measure 35.25" L x 13" W x 8.5" H and support 8,000 lb. per axle (16,000 lb. GVW); each ramp weighs 10 lbs.
Fits tires up to 30" in diameter
Platform cradles the tire for improved safety; grid design allows water, snow, and dirt to filter through; stackable for compact storage
Bottom rubber pads keeps ramps in place

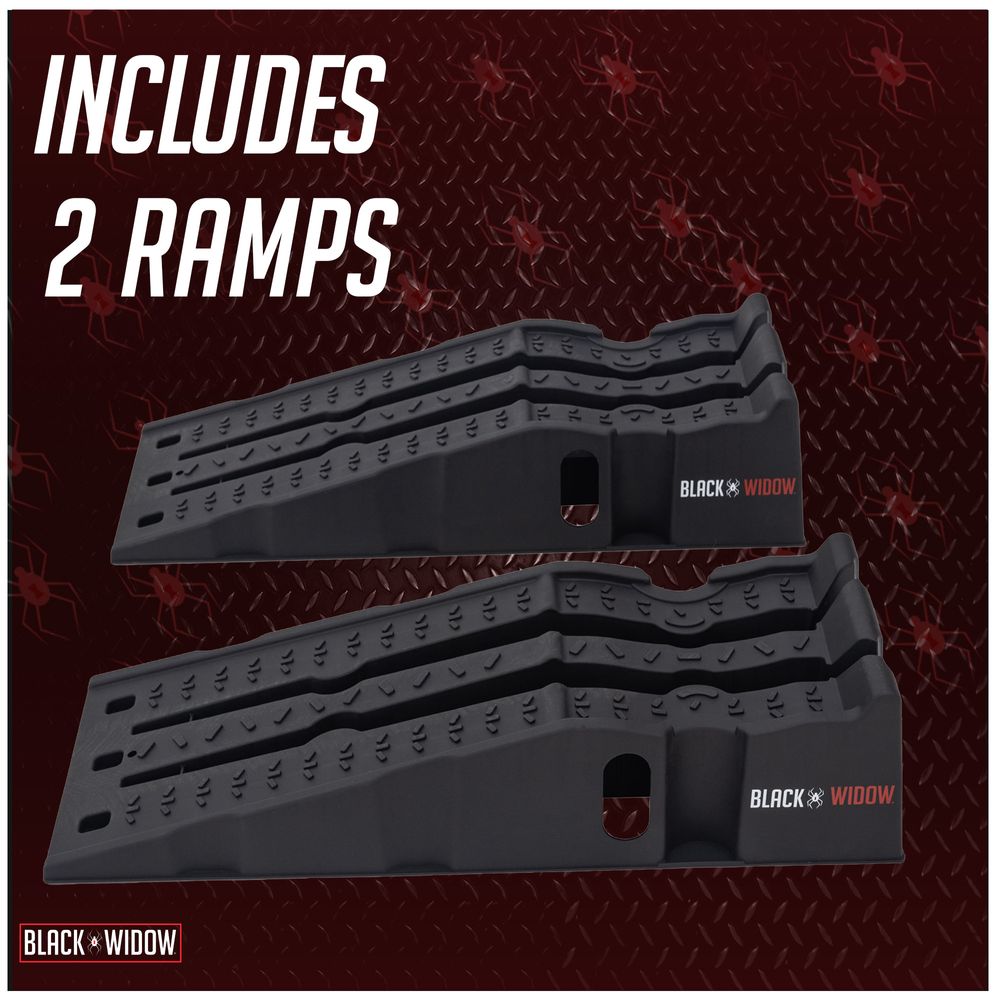

Built-in handles for easier carrying and positioning; sold in pairs
Durable high impact plastic construction; sold in pairs

Usage Guidelines

Before using the ramps, make sure they're free from damage or corrosion and that all persons are clear of the vehicle and ramps. Do not use two ramps on one side of the vehicle, only use on both front tires or both rear tires. Place the ramps in line with the wheels so that the tread is touching the incline. Make sure the steering wheel is pointed straight. Drive slowly and cautiously up the ramps. Do not accelerate or brake suddenly. Once the vehicle reaches the top of the ramps, apply brakes only to prevent overtravel.Turn the engine off, apply the parking brake, get out of the vehicle and securely chock the remaining wheels on the ground. Before starting work, walk around the vehicle ensuring it is securely positioned. Always use a jack stand if going under the vehicle. When done, check the parking brake is still firmly on and remove the chocks. Drive very slowly when coming off the ramps to prevent the car body from making contact with the car ramp. Exercise caution when using these car ramps with a trailer or three wheeled vehicles.

1 Year Warranty

This product is backed by a One Year Warranty.

Instruction Manual

Prop 65

WARNING: This product can expose you to chemicals, including Lead, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Discount Ramps Site

How to Do Your Own Oil Change

08/04/2023

Discount Ramps Site

Car Ramps vs. Jack Stands

04/27/2020

Discount Ramps Site

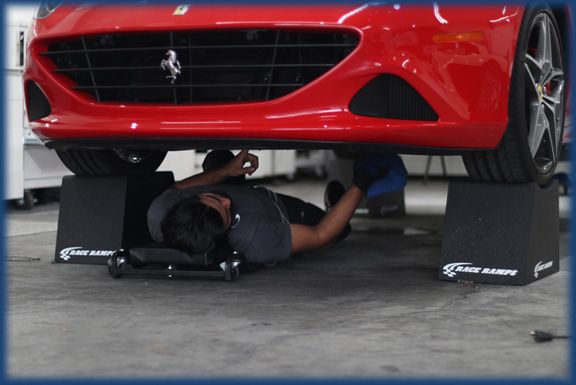

Best Car Service Ramps for 2023

10/02/2022

Safe Lift for Easier Oil Changes

Dimensions

13" W

6.25" Lift Height

Weight

16,000 lbs. GVW Cap per Pair

Weighs 20 lbs. per pair

Smart Design

Integrated Tire Cradles

Grooved Traction Surface

User Friendly

Large Handlholds

Stackable for Storage

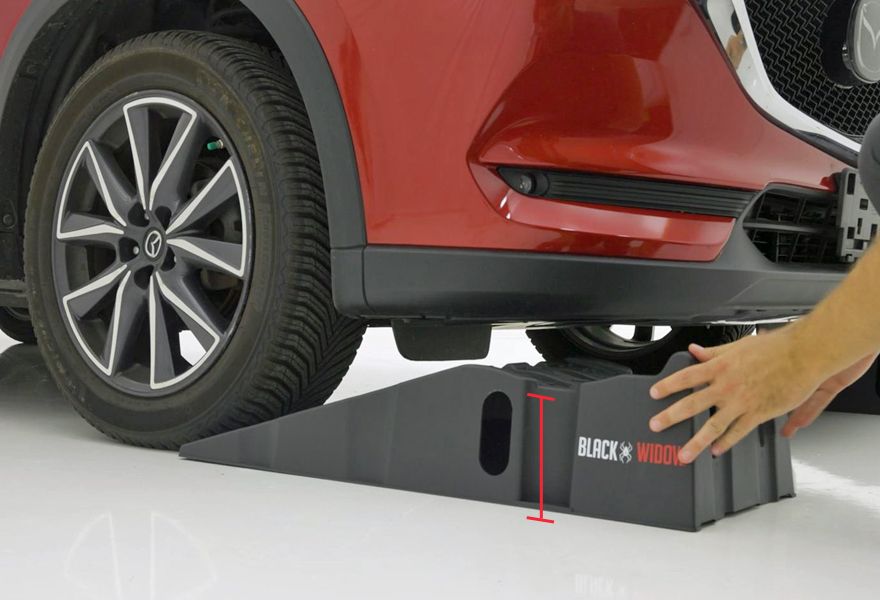

Tire Cradles Support Wheels 6.25" Off the Ground

Not only do the molded tire cradles allow your vehicle to ease into the correct position on the ramps, slight raised tire stops at the end of each ramp act as an alert to drivers as they use the ramps. The 6.25" lift height angles your vehicle up slightly for better access to the oil filter and/or underbody.

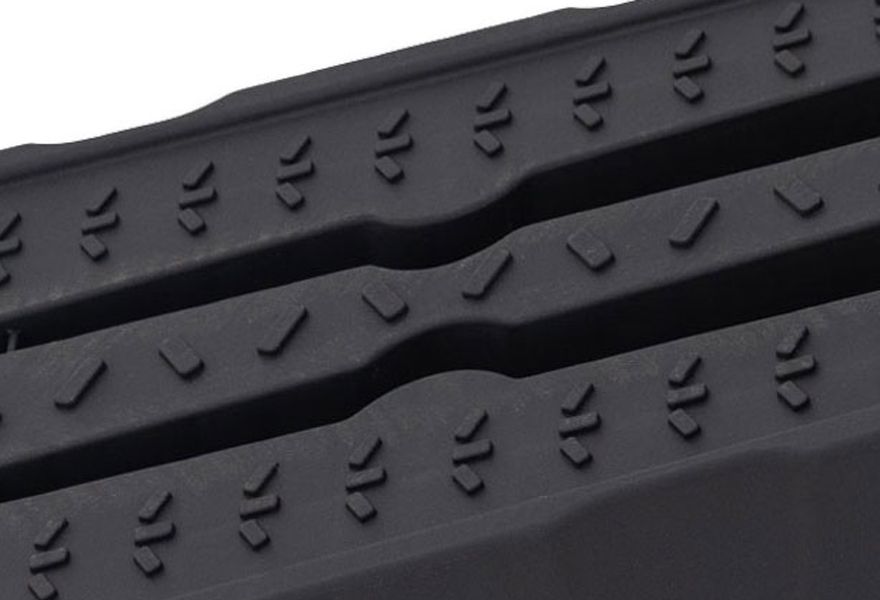

Pass-Through Surface with Molded Traction

Water, dirt, and debris divert through the built-in channels, and the molded traction design on the top surface grips tires.

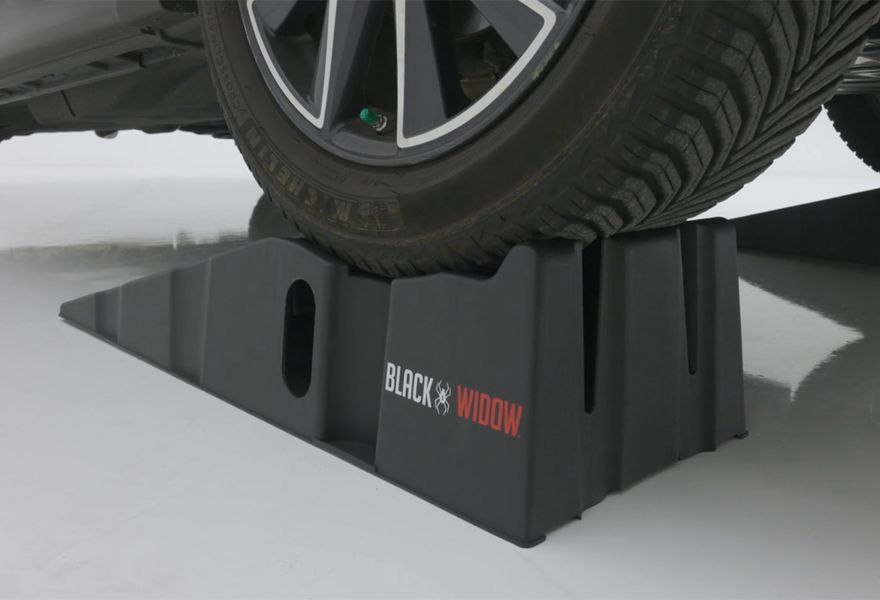

Lifts Sedans to Trucks Up to 16,000 lb. GVW

The high-impact grid design is manufactured for high strength without compromising ease of usability. The 16,000 lb. Gross Vehicle Weight (GVW) generously supports almost any car, pickup truck, van or SUV, allowing you to access the underbody without operating jacks or jack stands.
