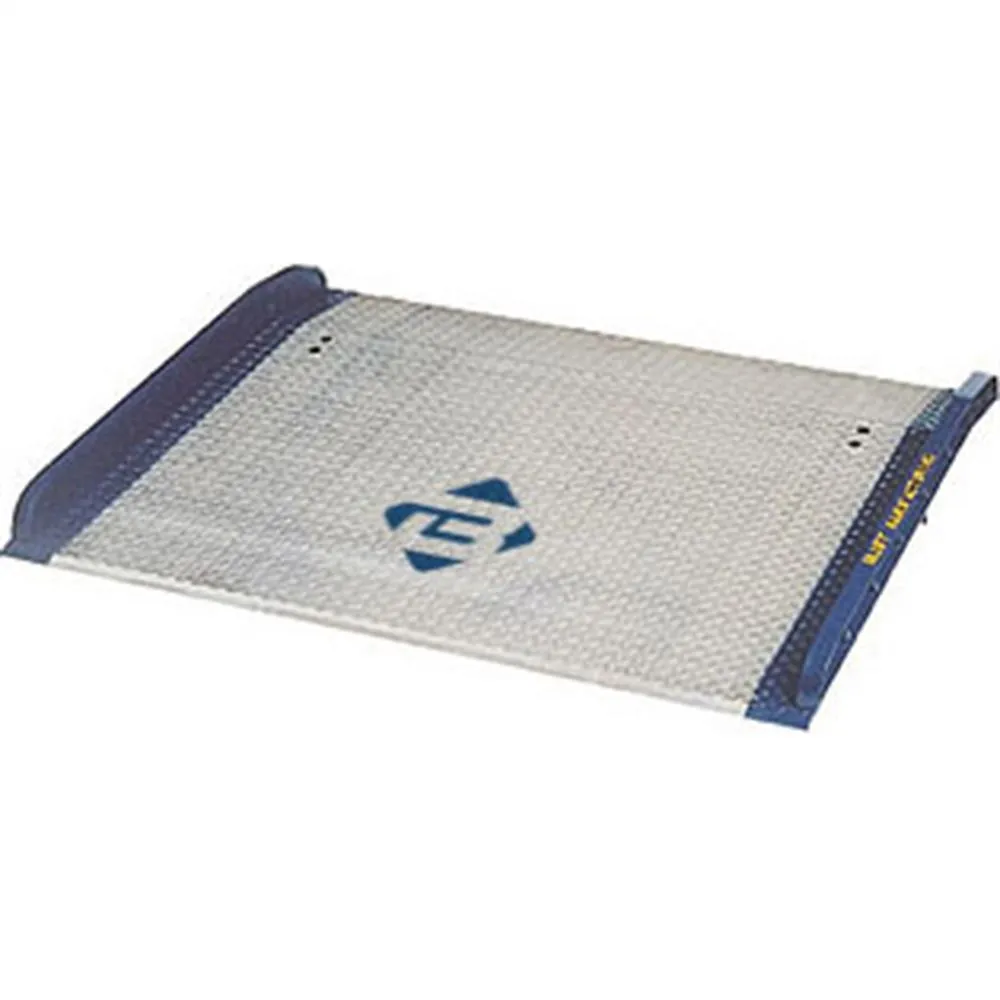

Bluff Aluminum Model AC Dock Plate with Steel Curbs - 10,000 lb. Capacity

BLUFF-AC-DOCK-PLATES-C
Make a Selection
Starting at
$649.99
Select Length:
Select Width:
NON-RETURNABLE ITEMS - Ships within 5 to 7 days
  • Manufactured from high-strength, lightweight aluminum
  • 10,000 lb. weight capacity
  • Available in 10 sizes to accommodate height differentials up to 12" high
  • Diamond plate surface for increased traction
  • Blue painted curbs ensure user is aware of edge
  • Bolted-on legs keep dock plate secure between loading dock and trailer
  • All dockplates comply with ANSI MH30.2 safety standards
Item # Length Width Height
Differential
Maximum Capacity Weight Availability Price Action
AC5448 48" 54" 5" 10,000 lbs. 146 lbs.
$774.99
View Details
AC6036 36" 60" 3" 10,000 lbs. 127 lbs.
$649.99
View Details
AC6042 42" 60" 4" 10,000 lbs. 140 lbs.
$749.99
View Details
AC6048 48" 60" 5" 10,000 lbs. 157 lbs.
$819.99
View Details
AC6060 60" 60" 7" 10,000 lbs. 198 lbs.
$969.99
View Details
AC6072 72" 60" 8-1/2" 10,000 lbs. 253 lbs.
$1,099.99
View Details
AC6078 78" 60" 9" 10,000 lbs. 257 lbs.
$1,249.99
View Details
AC6084 84" 60" 10" 10,000 lbs. 297 lbs.
$1,349.99
View Details
AC6096 96" 60" 12" 10,000 lbs. 337 lbs.
$1,499.99
View Details
AC7236 36" 72" 3" 10,000 lbs. 136 lbs.
$789.99
View Details
Similar Options To Consider

The lightweight loading docks are essential in any shipping department when trucks frequently come in and out. The 11 dock plates feature beveled diamond plating for extra traction in the rain or snow. Pallet trucks and other non-powered equipment are ideal for the variety of aluminum dock plates. All docks comply with safety standards set by the MHIA (Material Handling Institute of America).

These loading dock plates from Discount Ramps.Com feature steel full-length curbs that are bolted to aluminum diamond pattern plate for increased strength, and to help prevent runoff. Locking legs provide secure positioning. The standard lip is 11" and has a lip bend of 11° for maximum versatility. An option of a longer 14" lip for refrigerated applications is available upon request. Determine the Height Up in your application by viewing the diagram below.

There are many optional accessories to choose from for your new aluminum dock plate. There are lifting chains for allowing the transportation of your dock plate with a fork lift. Loop handles can be welded onto the plates legs for easy handling. Also available is the EZ-Roll! This device bolts onto the sides of the dock board ( drilling required on dock plates ) and allows for easy one person maneuvering without lifting the dock board! When not in use the EZ-Roll folds up and self stores on the sides of the dock plate or dock board! The The EZ-Roll option includes 2 rollers ( 1 for each side ) and is only available for aluminum dock plates and dock boards with widths of 60" or less.

10,000 lbs.
Aluminum
Reviews
Product Q&A
Warranty Badge
  • This product is covered by the manufacturer’s One-Year Warranty.
