Guardian Hydraulic Edge of Dock Levelers for Conventional Trailers

Make a Selection
Starting at
Select Width:
Select Maximum Capacity:
  • Manufactured from durable steel
  • Width options of 66", 72", 78" in either 20,000 lb. or 25,000 lb. capacities
  • Designed for use on loading docks that primarily service conventional trailers
  • Deck and lip are constructed of 55,000 lb. minimum yield steel tread plate; two-cylinder design provides smooth, quiet and dependable operation
  • Hydraulic operation with fully automated return feature; two formed steel gussets for extra support in stored position

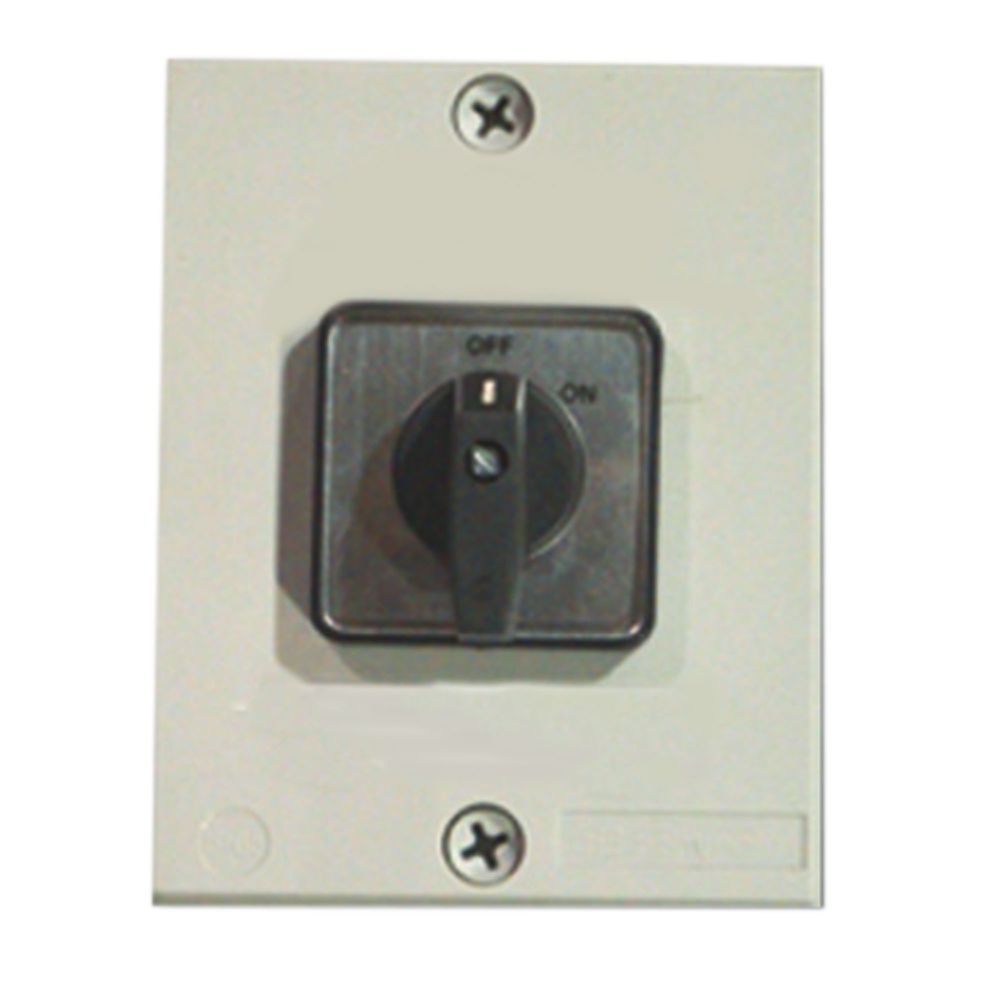

  • Working range of 5" below or above dock level; rotary switch activation for one-man operation
  • Two bumpers per dock levelers; all comply with O.S.H.A. safety standards and are made in the USA
Item # Width Maximum Capacity Availability Price Action
HED6620 66" 20,000 lbs.
View Details
HED6625 66" 25,000 lbs.
View Details
HED7220 72" 20,000 lbs.
View Details
HED7225 72" 25,000 lbs.
View Details
HED7820 78" 20,000 lbs.
View Details
HED7825 78" 25,000 lbs.
View Details

Bridge the gap between the edge of your loading area and semi-trailers or trucks with a Guardian Hydraulic Edge of Dock Leveler. Less hassle than a dock board, these levelers install directly to your loading dock for quick and easy operation when trucks back up to your dock. With multiple width options in either 20,000 lb. or 25,000 lb. capacities, these edge of dock levelers are designed to service conventional trailers and come with two bumpers on either side as a buffer. They comply with O.S.H.A. safety standards and are made right here in the USA.

The solid-state technology provides easy activation and recycling of deck and lip cylinders, with an automatic return feature that lowers the leveler back into the stored position immediately after the truck departs. This edge of dock leveler provides an operating range of 5" above and below your dock, with a minimum lip projection of 12.75" and an overall span of 27.75". The deck and lip are constructed of 55,000 lb. minimum yield steel tread plate, and comes standard with grease fittings on the continuous lip hinge. Two formed steel gussets provide structural support in the stored position.

The totally enclosed, non-ventilated industrial electric motor power pack includes a 4,000 P.S.I.-capable hydraulic pump. The formed, plate-steel bump blocks and molded cord rubber bumpers protect the dock face and leveler from incidental damage from trucks. Installation is easy; steel rivets located at either end of the centerplate hinge provides easy forklift installation. These edge of dock levelers meet or exceed the performance requirements of CS202-56, O.S.H.A. and A.N.S.I. MH14.1 - 1984.

As with all electrical equipment, this unit should not be immersed or submerged. Power unit is totally enclosed, factory wired, and tested per specifications. All 60HZ units. Remote box meets N.E.M.A. 4X (and/or N.E.M.A. 12) requirements. S.A.E. Straight Thread Porting, along with cartridge design valving integrated into a Single Valve Manifold, significantly reduces the possibility of hydraulic leakage.
