Aluminum Portable Modular Mini Yard Ramp System - 25,000 or 30,000 Capacity

Starting at
$7,930.99
Pricing shown as of 11/15/2026. Please note that prices are subject to change without notice.
Select Width
ITEM #MYR-MINI
Make a selection to see availability

Key Features:

  • Ships compactly on a single pallet; less shipping cost and smaller storage footprint with only 15-min set up time
  • Made in the USA; measures 15' 4" L for trucks or docks between 15" and 32" H
  • Two width options with corresponding weight capacities

See More…

Compare With Similar Items
Overview
Specifications
Material:
Aluminum
Brand:
More Information

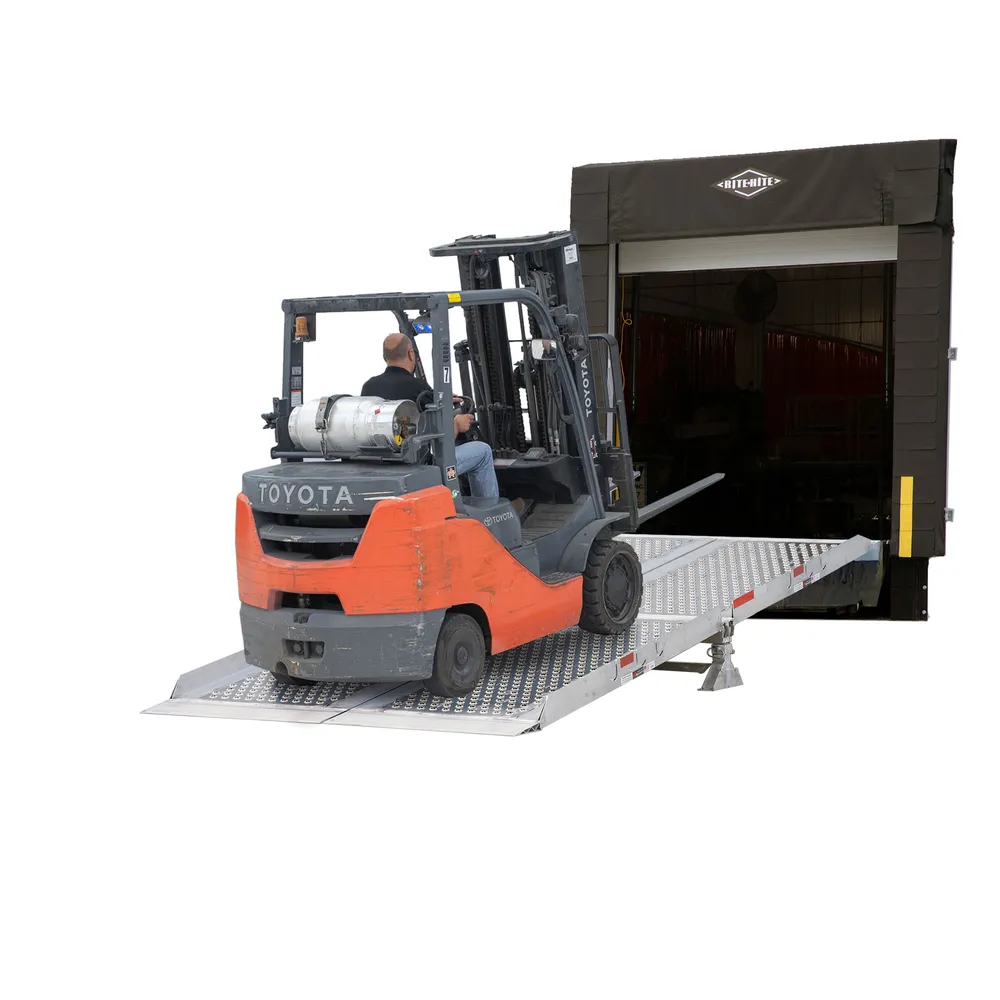

The Mini Modular Aluminum Yard Ramp System is a compact yet heavy duty solution for bridging shorter loading dock heights in applications where a full-size yard ramp is overkill. It sets up with two people in less than 15 minutes without any tools, and is suitable for outdoor or indoor use. Since it's modular, it can be used in two different length configurations: 8' or 15' 4" L.

Manufactured from aluminum, it ships economically on one pallet via common carrier and is so compact, the entire system will fit in a pickup truck bed or a 4x8 trailer. The 4" high rail guards are integrated into the ramp for added safety and maximum structural support. This system accommodates docks, trailers or trucks from 15" to 32" H.

The modular design consists of four ramps and one adjustable height support stand. The upper ramps feature a plate end for a smooth ramp to truck transition and the lower ramps terminate in a knife foot for a smooth ground to ramp transition. Two 2" x 18' ratchet straps with S-hooks are included (4,400 lb. Break Strength) to secure the ramp system. US Patent #10710824.

  • Ships compactly on a single pallet; less shipping cost and smaller storage footprint with only 15-min set up time
  • Made in the USA; measures 15' 4" L for trucks or docks between 15" and 32" H
  • Two width options with corresponding weight capacities
  • Built-in 4" guard rails and 18' ratchet straps included for added safety
  • Upper ramp angles for 15" to 32" H applications
  • Use as a ramp, or as a ramp and level-off platform by adjusting the support stands accordingly
  • Manufactured from high strength, lightweight aluminum; EZ traction punch plate traction for excellent traction in all weather conditions
