72" Usable Width, 20,000 lb. Capacity Bluff Edge Dock Leveler

In Stock
Select Width:
Select Maximum Capacity:
NON-RETURNABLE ITEMS - Ships within 5 to 7 days
  • Manufactured from durable steel
  • 20,000 lb. weight capacity
  • Measures 27-3/4" L x 94" W (usable width of 72")
  • Designed for use on loading docks that primarily service conventional trailers
  • Working range of 5" below or above dock level
  • Includes molded bumpers and a spring-operated lifting mechanism
  • All edge of dock levelers comply with ANSI MH30.1 safety standards

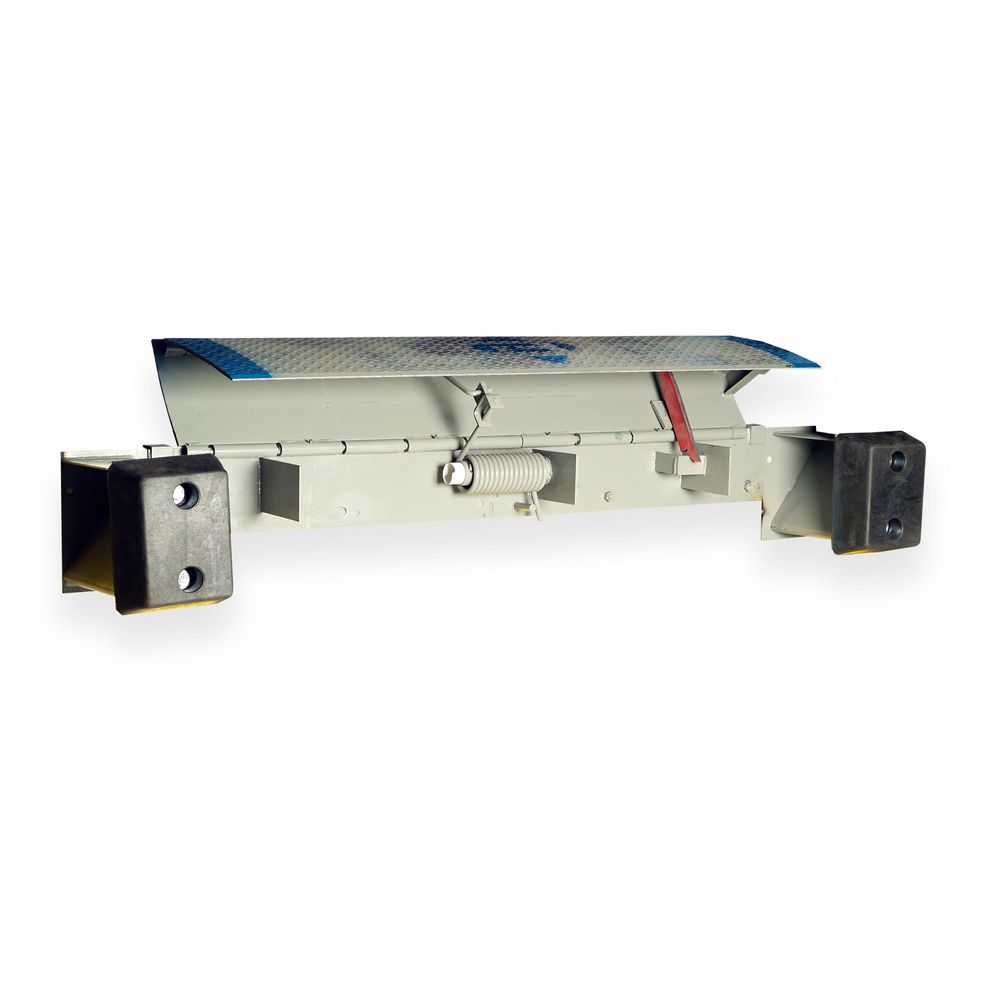

These dock levelers have a quick and easy positioning system. Just lift the self-storing handle and pull it to the dock floor. The lip of the dock leveler rests on the trailer when the handle is lifted. The handle then conveniently self-stores out of the way. The folding lip of the dock leveler then folds back in place when the trailer leaves. Bumper and bumper blocks are included with your purchase of a edge of dock leveler!

Increase the efficiency of your existing loading dock with an edge of dock leveler from Bluff Manufacturing. Designed for docks that handle refrigerated trailers, an edge of dock leveler corrects the height differences between your existing loading dock and the trailer as a semi-permanent alternative to a dock plate or board. Effectively retrofit docks that are incompatible with standard trailers by pulling the handle of the leveler to the dock floor, which projects the lip forward and onto the trailer once the handle is lifted. With a 20,000 lb. weight capacity, these levelers are designed to create a working range of 5" above or below the dock with the use of a forklift or 3" with a pallet jack. Each edge of dock leveler is designed to meet ANSI MH30.1 standards.

20,000 lbs.
476 lbs.
WARNING: This product can expose you to chemicals, including Titanium Dioxide, known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to
Product Q&A
Warranty Badge
  • This product is covered by the manufacturer’s Warranty.
