Race Ramps™ 8" H Extra-Long Trailer Ramps - 1,500 lb. per Tire Capacity

$572.85
ITEM #RR-TR-8XL
Free Shipping
Out of Stock Unfortunately, this product is temporarily unavailable. Check back soon!

Key Features:

  • Manufactured from 100% solid lightweight high-density foam with traction coating
  • Measures 6' 2" L x 14" W x 8" H
  • 1,500 lb. capacity per tire (up to 6,000 lbs. per vehicle)

See More…

Calculator
Trailer Ramp Calculator
Trailer Ramps

Is your trailer door too steep to get your car to the track or autocross? Are you tired of hauling around heavy, unsafe boards to use as a makeshift ramp extension? Race Ramps has the solution for you: simply place your trailer door on the notch of our specially-designed Trailer Ramps and decrease your angle of approach to as little as 4.3 degrees.

These hassle-free, lightweight ramps are ideal for low-ground-clearance cars with extra-wide tires. Numerous size options are available in our one- and two-piece designs, with and without flap cut-outs. Use our ramp calculator above to determine which Trailer Ramps will work best for your car and trailer, and let us know if you have any questions. We are happy to make a custom set if our standard options don't work—just give us a call!

Trailer Ramps are 100% solid, made with an exclusive patented process that coats high-density expanded foam with a traction surface for a lightweight ramp solution that is strong yet durable. The ramps will not slide, scratch, or otherwise damage any floor type and can hold up to 1,500 lbs. per ramp for a total vehicle weight capacity of 6,000 lbs.


Step 1: Your Trailer

Both enclosed and open trailers work with our Trailer Ramps. If your stock trailer ramps have an additional fold down ramp/flap, you can fold it up, remove it, or purchase a ramp that has a flap cut-out built into the ramp (check the appropriate box below).

1

Measure from the ground to the top of your current trailer door/ramp at the hinge point.

Step 1-1
2

Measure from the ground to the top of your current trailer door/ramp at the hinge point.

Step 1-2
3

Measure the thickness of trailer door/ramp.

Step 1-3
Step 2: Your Car
4

To determine the best angle of approach for your vehicle, we have devised the “yardstick test” below. If you do not have a yardstick, carefully measure out 36" with a tape measure or other straight, rigid object. You may need two sets of hands to get an accurate measurement here.

YARDSTICK TEST

  1. Place a yardstick/tape measure at the base of your front wheel.
  2. Raise up the yardstick or tape measure until it hits the underside of your car (the spoiler).
  3. Measure vertically from the ground to the end of the yardstick or 36" point on the tape measure. Record that height here (in inches).
Step 2-1
Start by completing Step 1

Service Ramp Type Angle of Approach Maximum Tire Width
trailer-side-kicks 13° 10
Overview
Specifications
Made in the USA
Length:
6' 2"
Width:
14"
Height:
8"
Weight:
14
Maximum Capacity:
1,500 lbs.
Material:
Foam
More Information

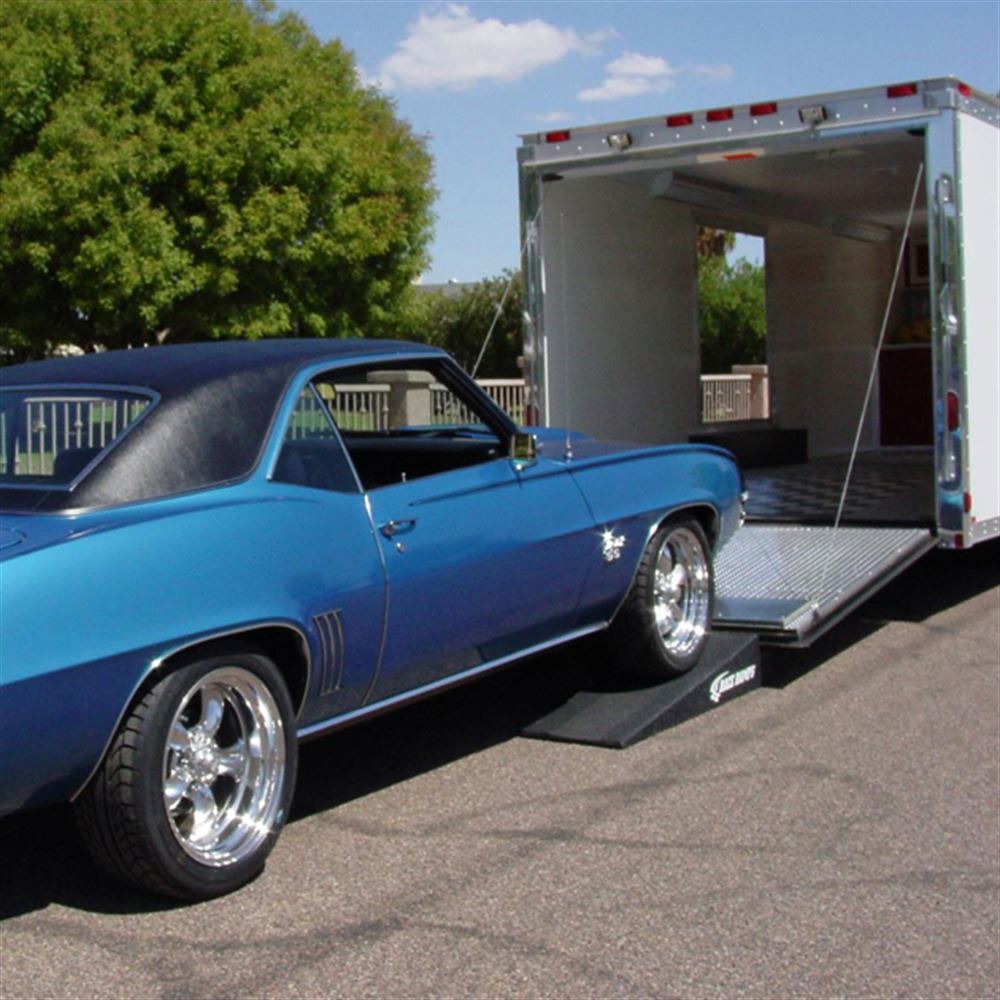

In the mood for a little racing? Load your low profile car onto a toy hauler or car trailer with the smartly designed Race Ramps™ extra long trailer ramps. Strong, yet lightweight for easy handling, these ramps have a built in notch on the edge that allows the trailer door to rest on the ramp, allowing the door to suspend 6" off the ground to gain the extra ground clearance needed. The ramps are made from a patented material that doesn't rust and is easy to clean. The coated no-slip surface won't scratch or scuff your garage floors or asphalt. To store, conveniently hang them with the attached handles located at the end of each ramp.

Use our trailer ramp calculator to make sure you're choosing the ramp that's tailored to your car and trailer needs. Both 8-inch high trailer ramps measure 74 inches long and have an 8.3-degree approach angle. Each lightweight 14-pound ramp can hold up to 1,500 pounds and comes with a built-in carrying strap. They are ideal for tire widths up to 12 inches. To use these with your trailer, simply lower your trailer door down into the 5-inch long by 3-inch high notches and drive your car up and into your trailer - it's that easy!

These trailer ramps are manufactured using an exclusive, patented process. They are constructed of 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong, yet durable.

  • Manufactured from 100% solid lightweight high-density foam with traction coating
  • Measures 6' 2" L x 14" W x 8" H
  • 1,500 lb. capacity per tire (up to 6,000 lbs. per vehicle)
  • 14" wide to accommodate cars high performance tires
  • Coated no-slip surface prevents scratches and damage to flooring

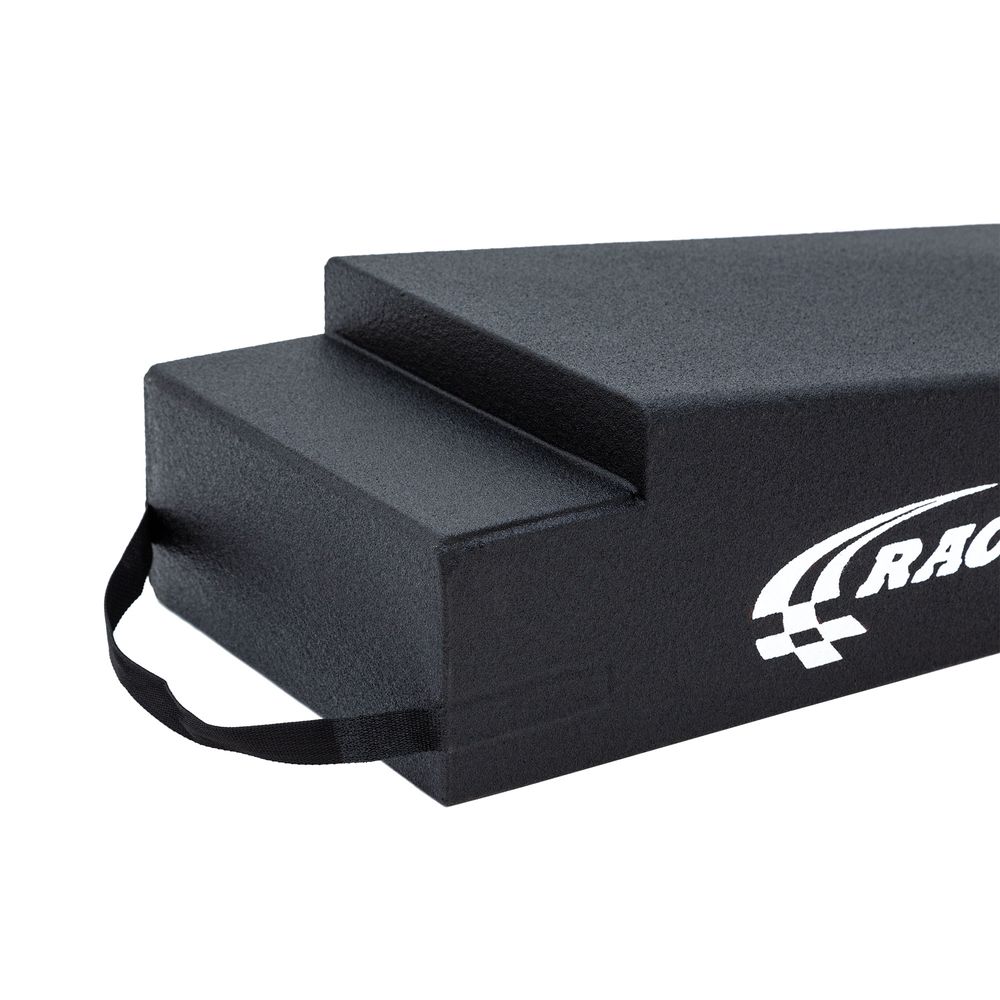

  • Built-in straps for easy transport and hanging for storage
Usage Guidelines
Before using the ramps ensure other persons are clear of the vehicle and the ramps. Ensure that the ramps are free from damage or corrosion before use. Use only a single pair of wheel ramps at the front or rear, do not use two ramps on one side of the vehicle. Position the ramps in line with the wheels, with the steering wheel pointed straight and the incline against the tire tread. Carefully drive the vehicle onto the automotive ramps until it is in the correct position. Turn the engine off, apply the parking brake, get out of the vehicle and securely chock the remaining wheels on the ground. Before starting work, walk around the vehicle ensuring it is securely positioned. Always use jack stand if a person will be going under the vehicle. On completion of the work, check the parking brake is still firmly on and remove the chocks. It is important to drive very slowly when coming off the ramps to prevent the automotive bodywork from making contact with the car ramp. Exercise caution when using these car ramps with a trailer or three wheeled vehicles.
Race Ramps Instruction Manual
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
