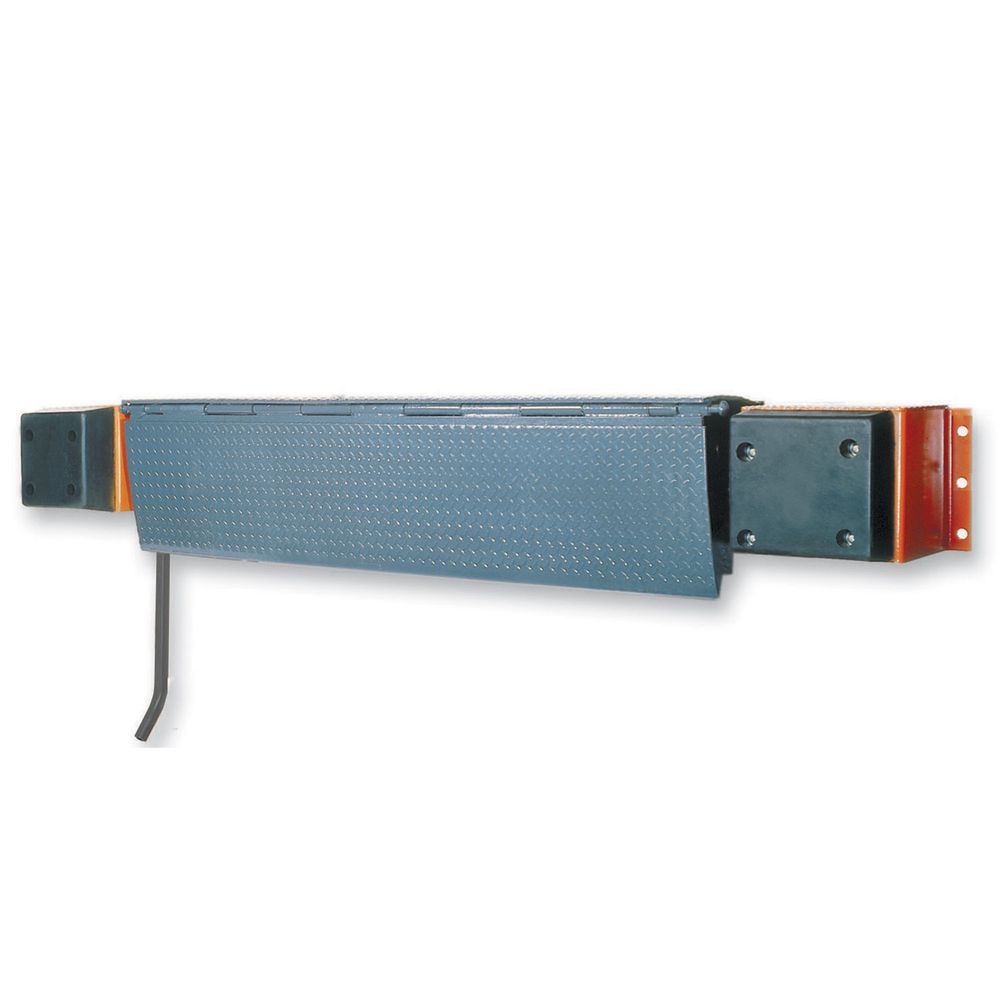

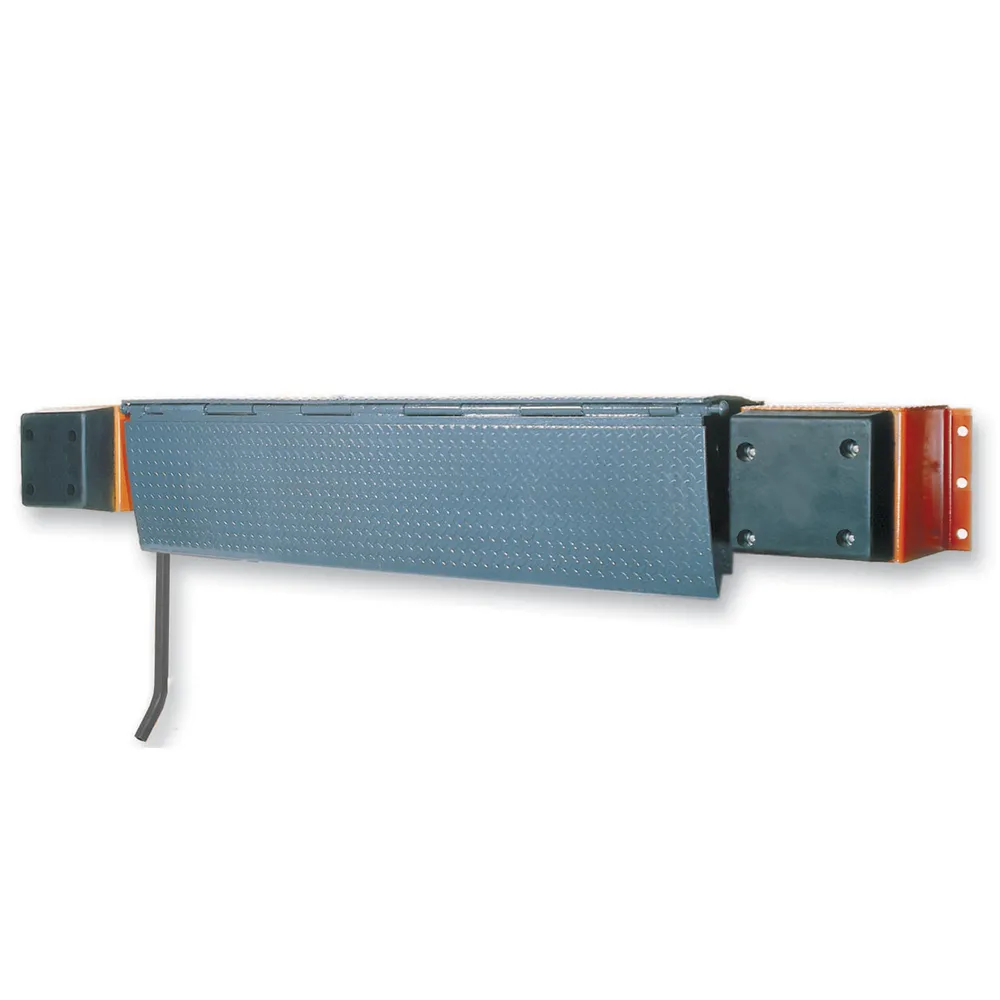

Guardian 72" W Edge of Dock Leveler for Conventional Trailer - 20,000 lb. Capacity

$1,899.99
BL7220
In Stock
Select Width:
Select Maximum Capacity:
Made to Order, 2-3 week lead time
  • Manufactured from durable steel
  • Weight capacity of 20,000 lbs.
  • Overall span of 27.75" from dock to truck
  • Designed for use on loading docks that primarily service conventional trailers
  • Working range of 5" below or above dock level

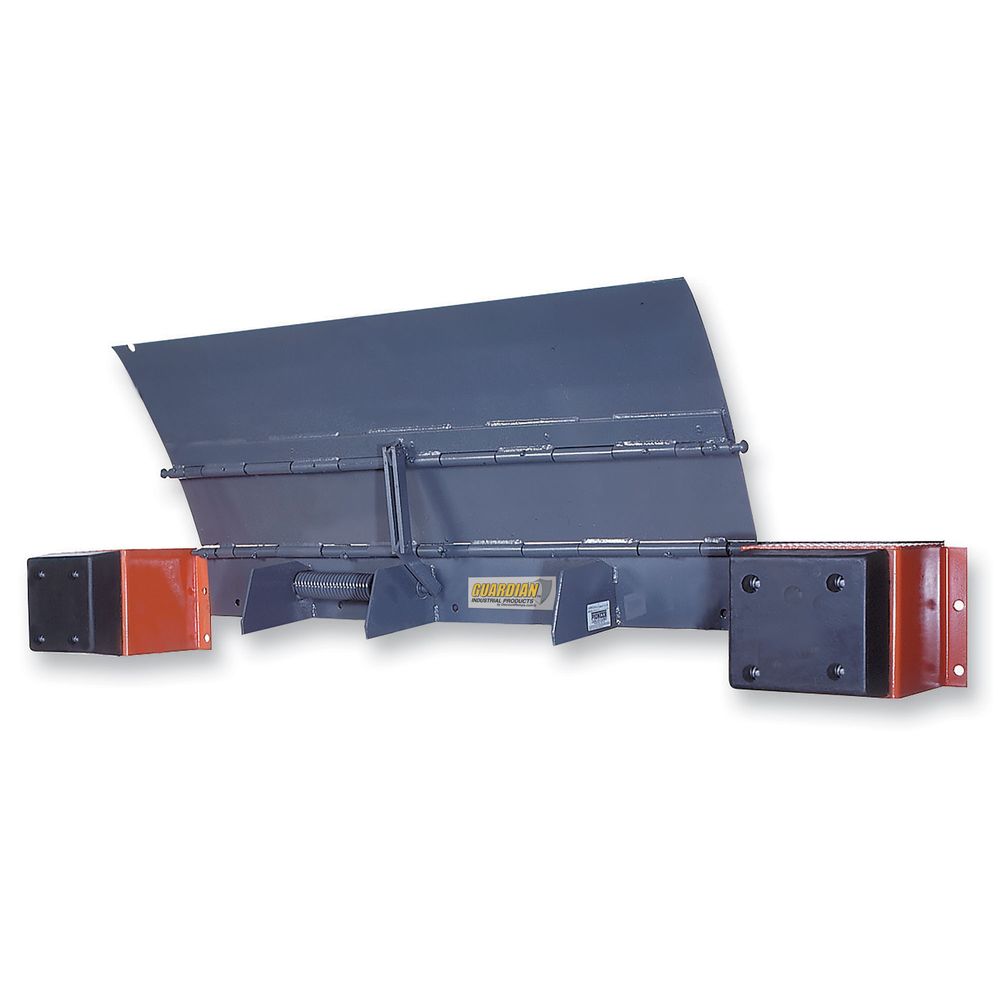

  • Torsion spring lift assist allows operation of unit with no more than 28-34 lbs. lifting torque required
  • Two bumpers per dock levelers; all comply with O.S.H.A. safety standards and are made in the USA

Bridge the gap between the edge of your loading area and semi-trailers or trucks with a 72" W Guardian Edge of Dock Leveler. Less hassle than a dock board, this leveler has a weight capacity of 20,000 lbs. and installs directly to your loading dock for quick and easy operation when trucks back up to your dock. The spring-assisted leveler requires no more than 34 lbs. of torque to lift and set the leveler into position, which allows it to span up to 27.75" from dock to truck. It has a working range of 5" below or above your dock height, and is manufactured in steel for durability.

This edge of dock leveler is designed to service conventional trailers, and comes with two bumpers on either side as a buffer. It complies with O.S.H.A. safety standards and is made right here in the USA.

72"
20,000 lbs.
Steel
