Name: Harmar Elevation 12 L-Shaped Modular Ramp with 5 Top Platform
Brand: Harmar
SKU: 12-55ST
Price: 4599.99 USD
Rating: 4.3 (13 reviews)

Questions about modular ramps? Call our certified ramp experts today at 888-651-3431

Similar Products

PVI Modular XP Aluminum Wheelchair Ramp System with Handrails

Starting at

$199.99

147 Reviews

Silver Spring Clearway Modular Wheelchair Ramp Kits

Silver Spring Folding Aluminum Wheelchair Access Ramps with Handrails

Starting at

$949.99

32 Reviews

Silver Spring Aluminum Wheelchair Access Ramps with Handrails

Overview

Specifications

Made in the USA

Description:

L-Shaped with 5' Platforms - Straight Entry

Ramp Length:

12'

Ramp Width:

36"

Platform Length:

10'

Maximum Capacity:

850 lbs.

Material:

Aluminum

Brand:

Harmar

More Information

The Elevation Modular Ramp Program by Harmar offers all-in-one accessibility at your fingertips. With a simplified shopping experience and knowledgeable customer support, you'll find it easier than ever to upgrade the entryway to your home so that steps will no longer be a barrier for you or your loved ones. These aluminum ramps are ADA-compliant for residential use to ensure a comfortable gradient whether individuals are using a wheelchair, mobility scooter, cane, or simply have limited mobility.

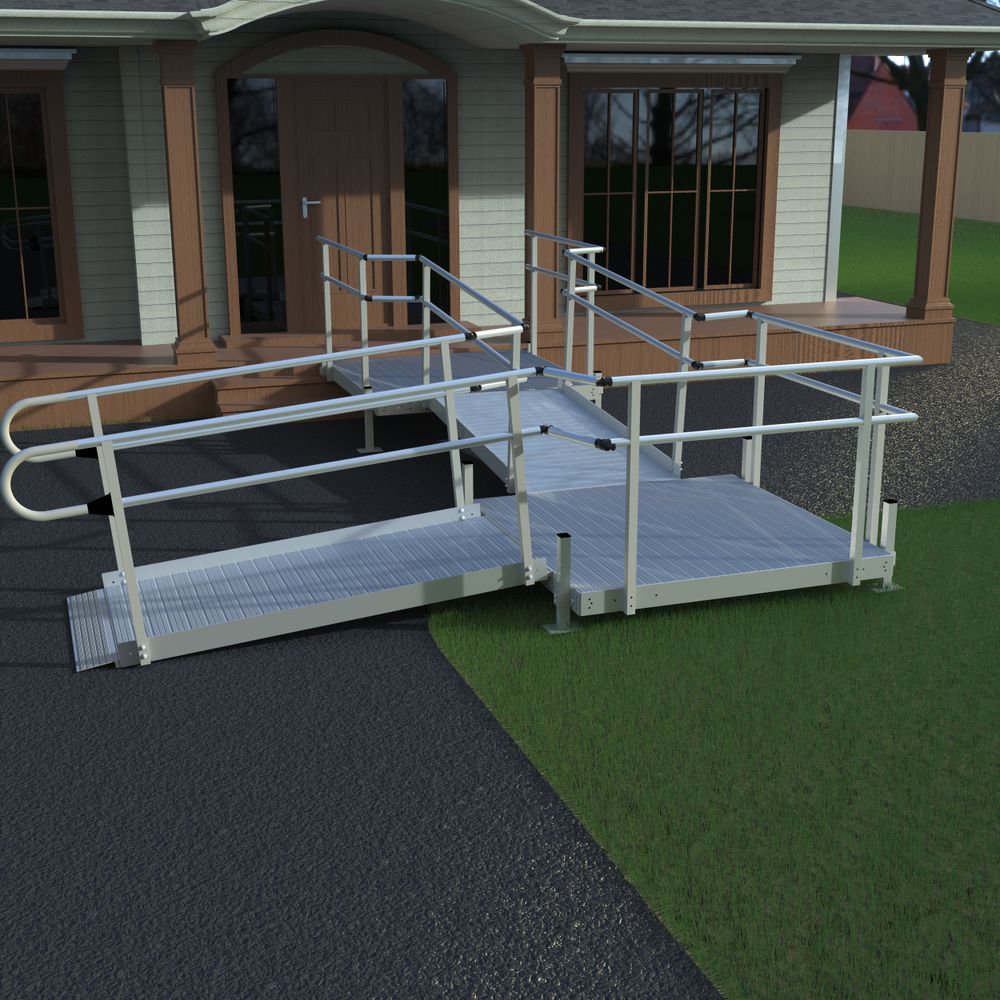

The Elevation 12' L-Shaped Modular Ramp with 5' Top Platform features a 5' x 5' top platform, a 6' middle ramp, a 5' x 5' turning platform, and one 6' lower ramp sections with support stands. The lower ramp section installs on the left or right side of the turning. The handrails are smooth and continuous so pedestrians can support and aid themselves as they walk up or down the ramp. A tapered bottom section smooths the transition for those in wheelchairs, powerchairs or on scooters.

The aluminum construction supports up to 850 pounds, and features a non-slip surface that provides grip for shoes or wheels in inclement conditions. All components needed for assembly are included, and the sections install simply with sturdy J-hook and tongue-and-groove connections. This L-shaped ramp assembles with either right- or left-side entry; please be cognizant of the configuration you will need for your location.

Modular L-shaped ramp package includes all components for easy assembly and set-up; made in the USA
Includes one 5' x 5' top platform, 6' middle ramp, one 5' x 5' turning platform, one 6' bottom ramp, accompanying handrails
850 lb. Weight capacity; ADA-compliant design (local ADA requirements vary, review your municipal guidelines)
36" Ramp width between continuous 2-line handrails
Non-slip surface for maximum performance in wet conditions
Sturdy J-hook and tongue-and-groove connections between platforms and ramps for ultimate stability
Lower ramp and platform assemble to either left or right side to accommodate your location needs

1 Year Warranty

This product is backed by a One Year Warranty.

Modular Ramp Sizes and Configurations Installation Manual Site Evaluation Form

Prop 65

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

All Products

ADA Specifications: Wheelchair Ramps

12/31/2025

All Products

How to Determine Proper Wheelchair Ramp Length and Slope

08/13/2014

All Products

Wheelchair Ramp Safety Features Worth the Investment

09/24/2020

Built-to-Fit Accessibility for Your Life

Dimensions

36" W Ramp

Lengths from 10' to 24'

For

Scooters, wheelchairs

Walkers, rollators

Weight

850 lb. Capacity

Features

All components included

Non-slip surface

Comes with everything you need

Our all-in-one mobility ramp solutions include all of the components for the ramp configuration of your choice. Every ramp section, handrails, platforms, support legs and any additional pieces. That means no extra trips to the hardware store and no online shopping for extra parts.

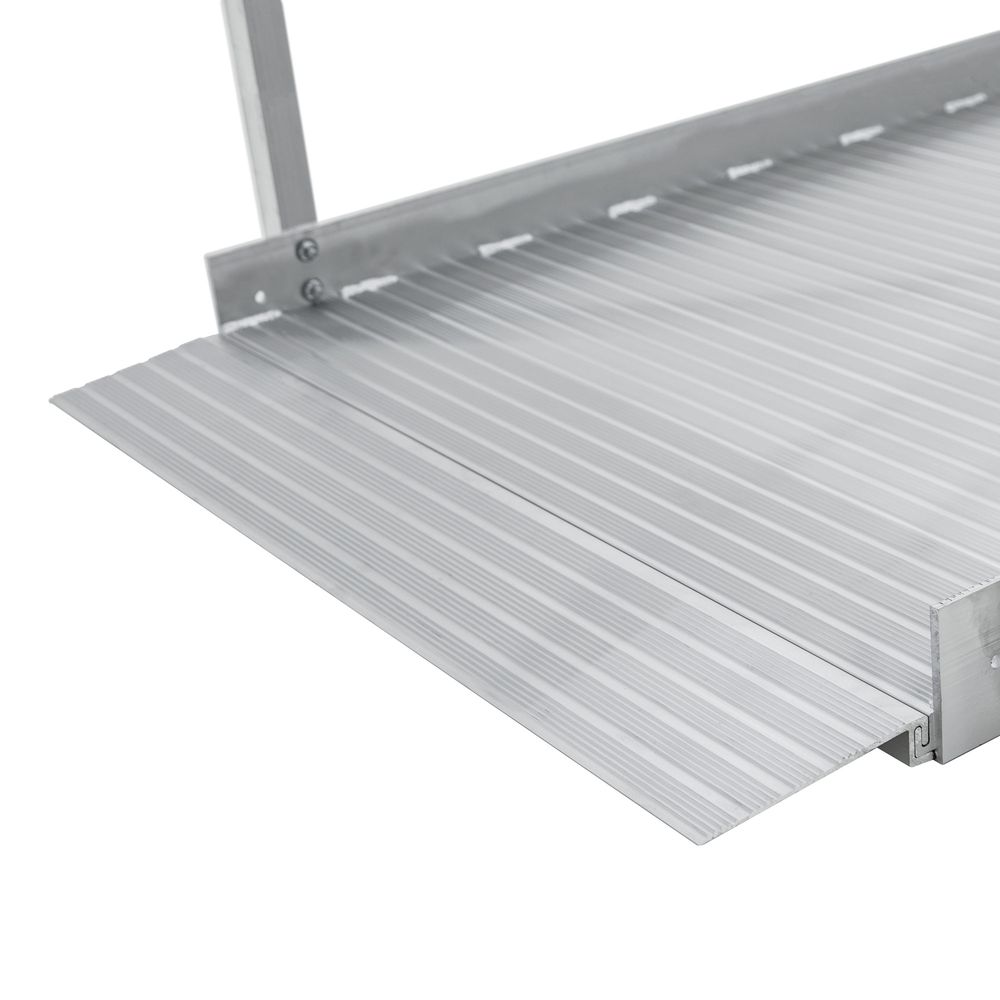

Lower ramp plate creates smooth ground-to-ramp transition

The extended aluminum plate ensures that wheels move between the ramp and the ground without jarring bumps or jolts.

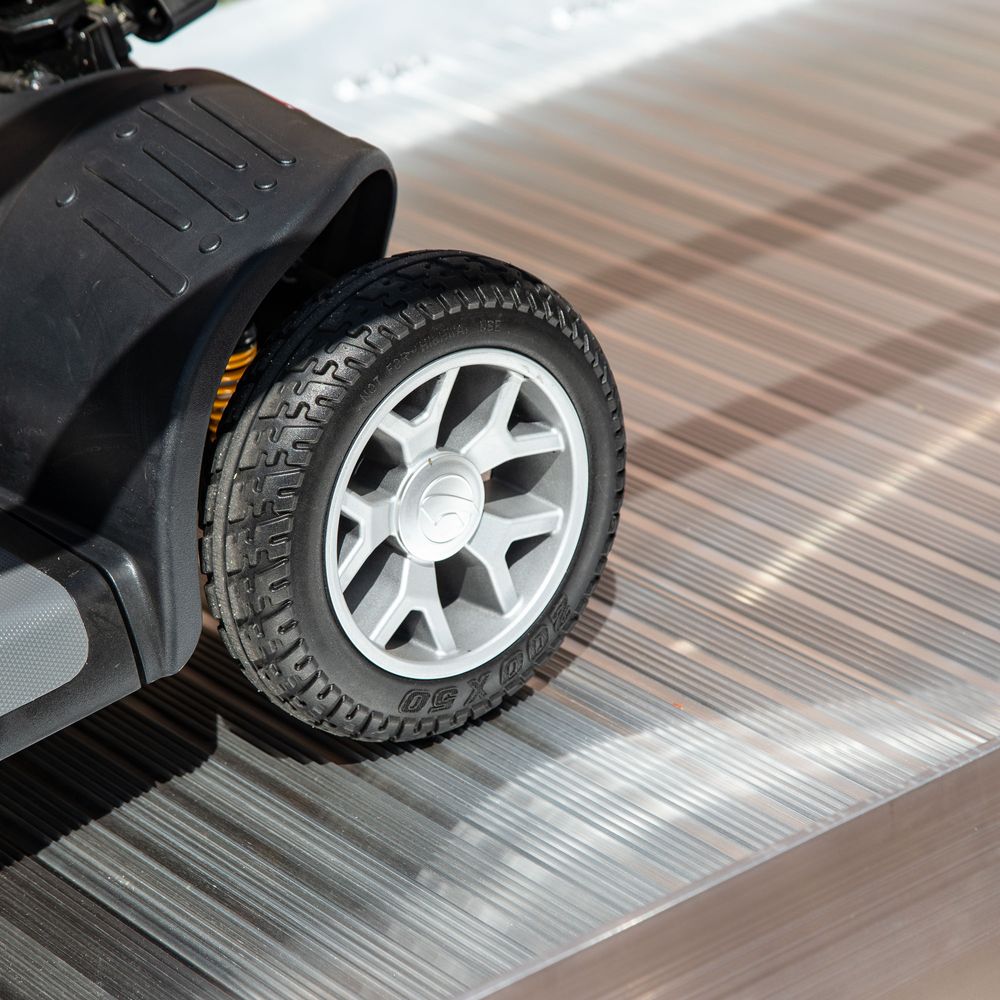

Extruded aluminum design with non-slip surface

Aluminum stays rust-free over time for a convenient low maintenance solution to your accessibility needs. The extruded surface has grooves that catch moisture and add traction for shoes or wheels.

Hook and tongue-and-groove installation creates stable connection points

When a platform is incorporated into the modular ramp design, simple J-hook and tongue-and-groove attachments make the task of assembling them much easier than having to fuss with packages of bolts and nuts.

Smooth, looped double handrails

Built to be versatile, the double handrails provide a lower bar for wheelchair users to grip if needed, as well as an upper bar for individuals who are walking independently or with a mobility device. At the end of the ramp, the handrail loops around on itself so that anyone sliding their hand along the top rail for support will not come to an abrupt stop or drop-off.

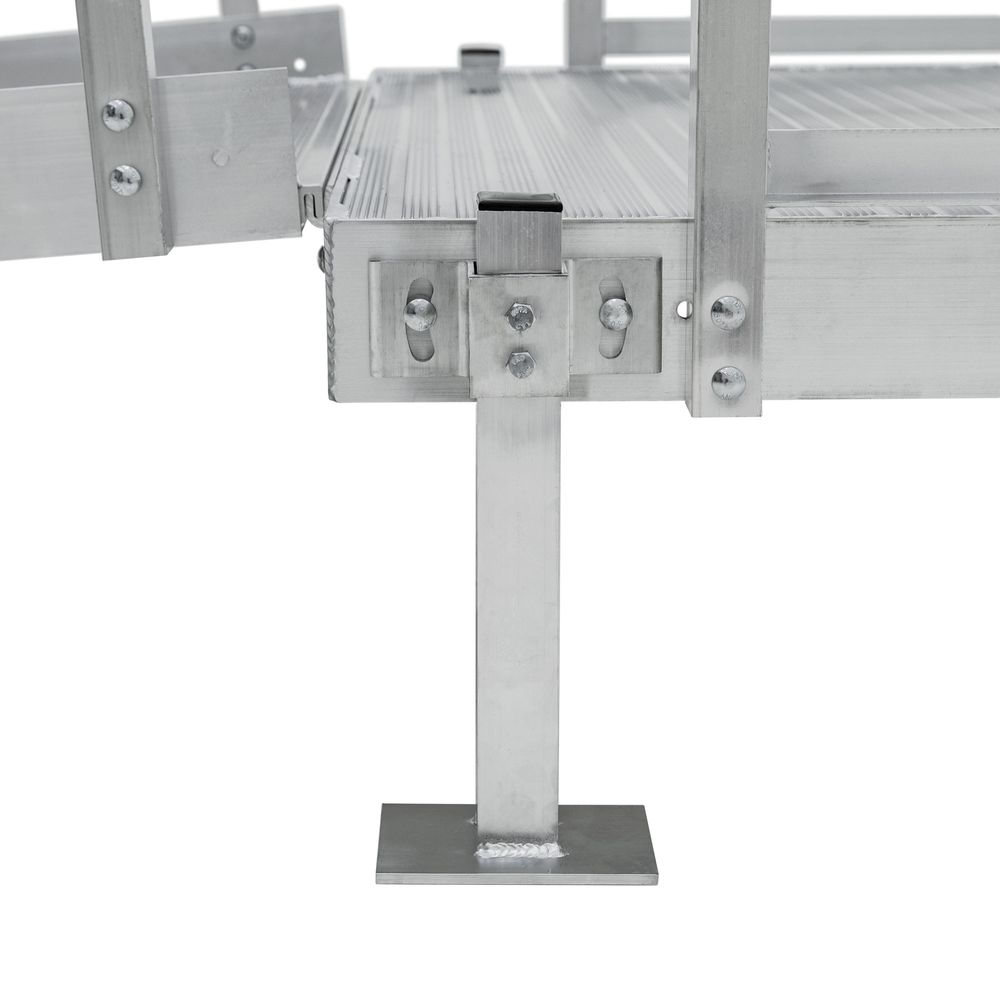

Legs are height-adjustable for the exact height you need

Legs position easily at the exact height you need for a 1:12 slope

The legs are designed to fit snugly into their bracket to set the ramp and/or platform exactly at the height needed for a 1:12 slope. The brackets tighten onto the leg to lock it into place, and the wide base prevents it from sinking into soft ground over time. Please note that legs should never be used to set ramp height higher than advertised, as this will compromise the safety design of the modular ramp and pose a risk of damage or injury.
