20' Silver Spring Roll-Tek Modular Ramp Kit

$3,599.99
Select Number of Handrails:
Select Length:
ITEM #M36-20-0
Free Shipping
In Stock - Ready to Ship This product is currently available.

Key Features:

  • Manufactured from anodized, aircraft-grade aluminum
  • Measures 20' L x 36" W
  • 1,000 lb. weight capacity with grated design for superior grip in all conditions

See More…

Overview
Specifications
Made in the USA
Description:
20' Ramp Kit - No Handrail
Length:
20'
Width:
36"
Ramp Length:
20'
Maximum Capacity:
1,000 lbs.
Material:
Aluminum
More Information

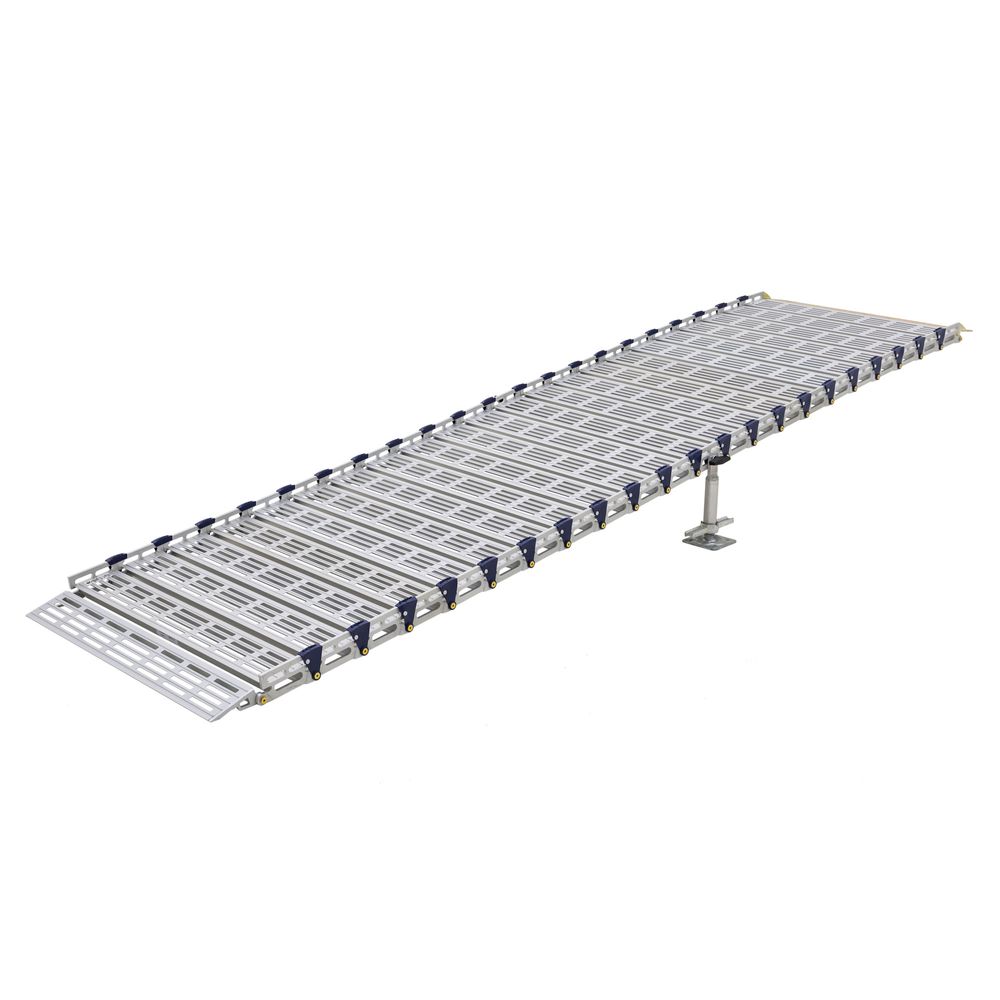

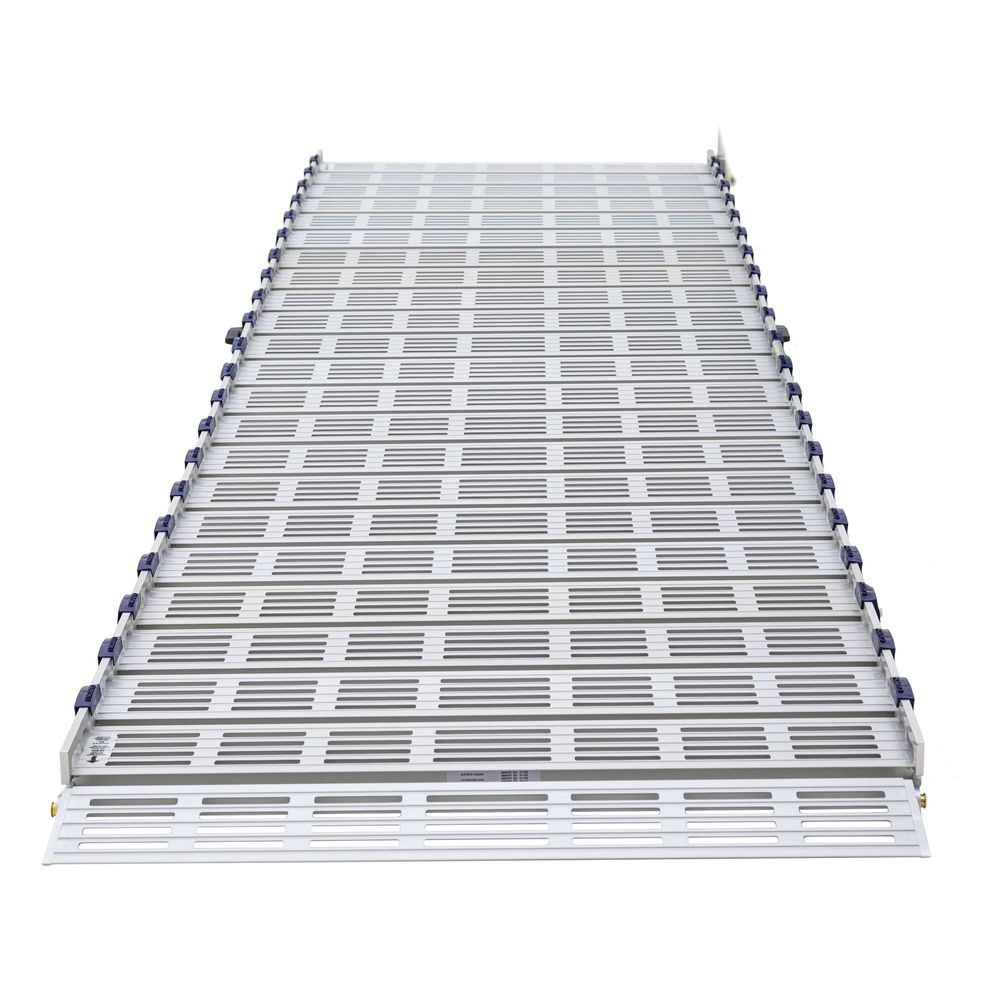

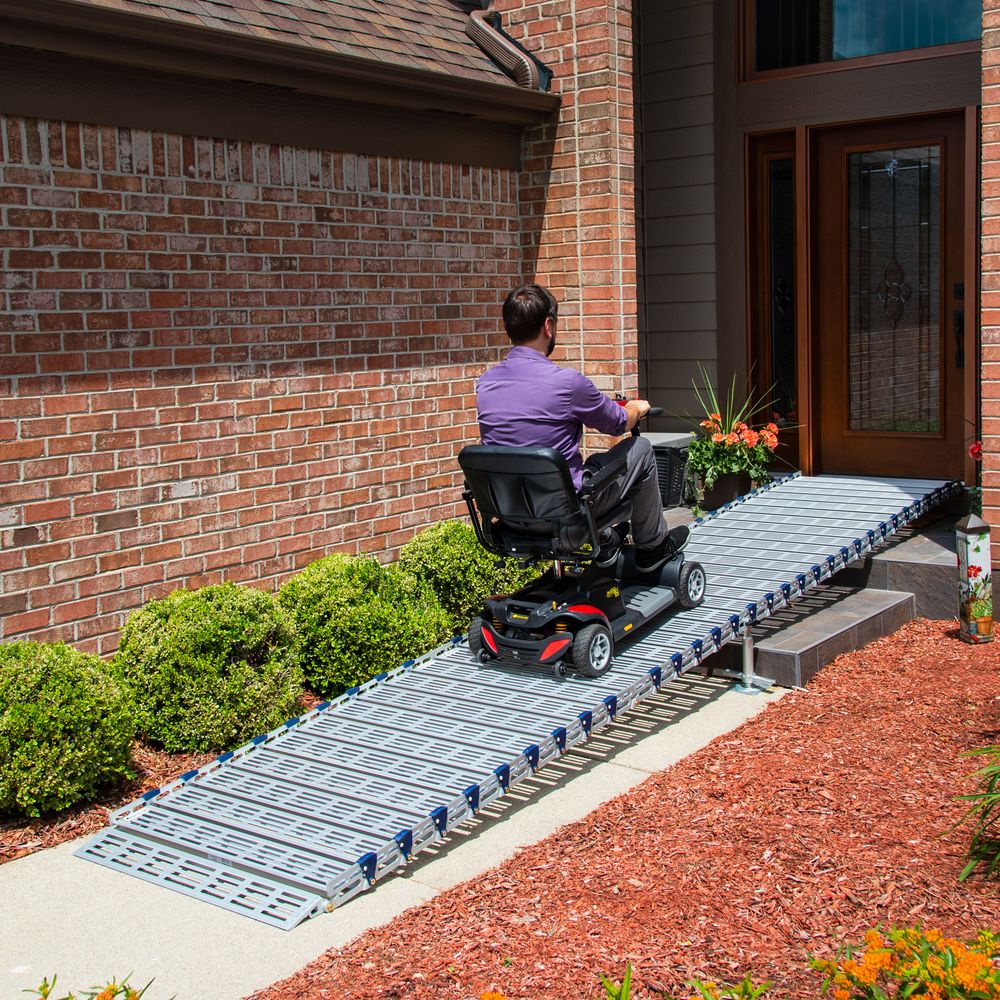

When you need a modular solution for easier access to your home or business, the 20' Silver Spring Roll-Tek Modular Ramp Kit is there for you. Manufactured from anodized, aircraft-grade aluminum, this ramp won't rust, and is lighter than steel for easier assembly. The entire ramp system breaks down for efficient storage or travel, and extra length can be added at any time by ordering extra links. Optional platforms are sold separately.

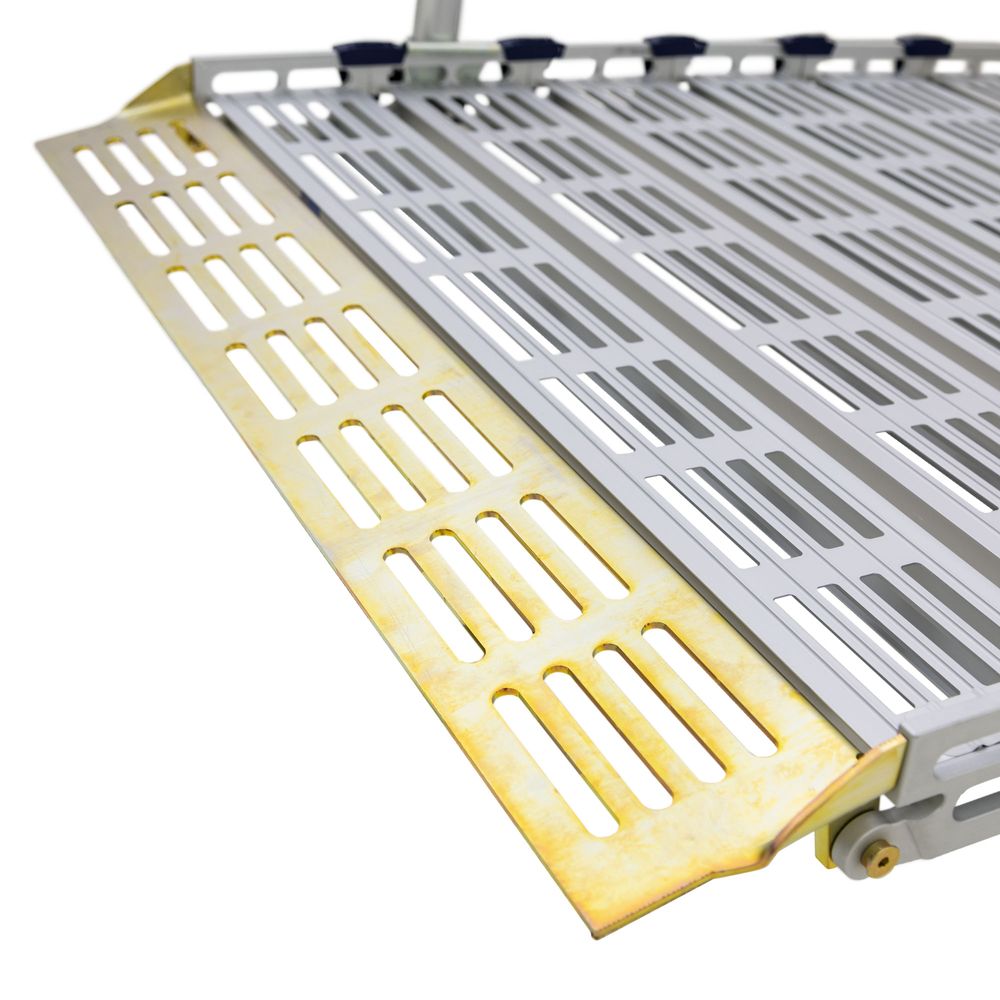

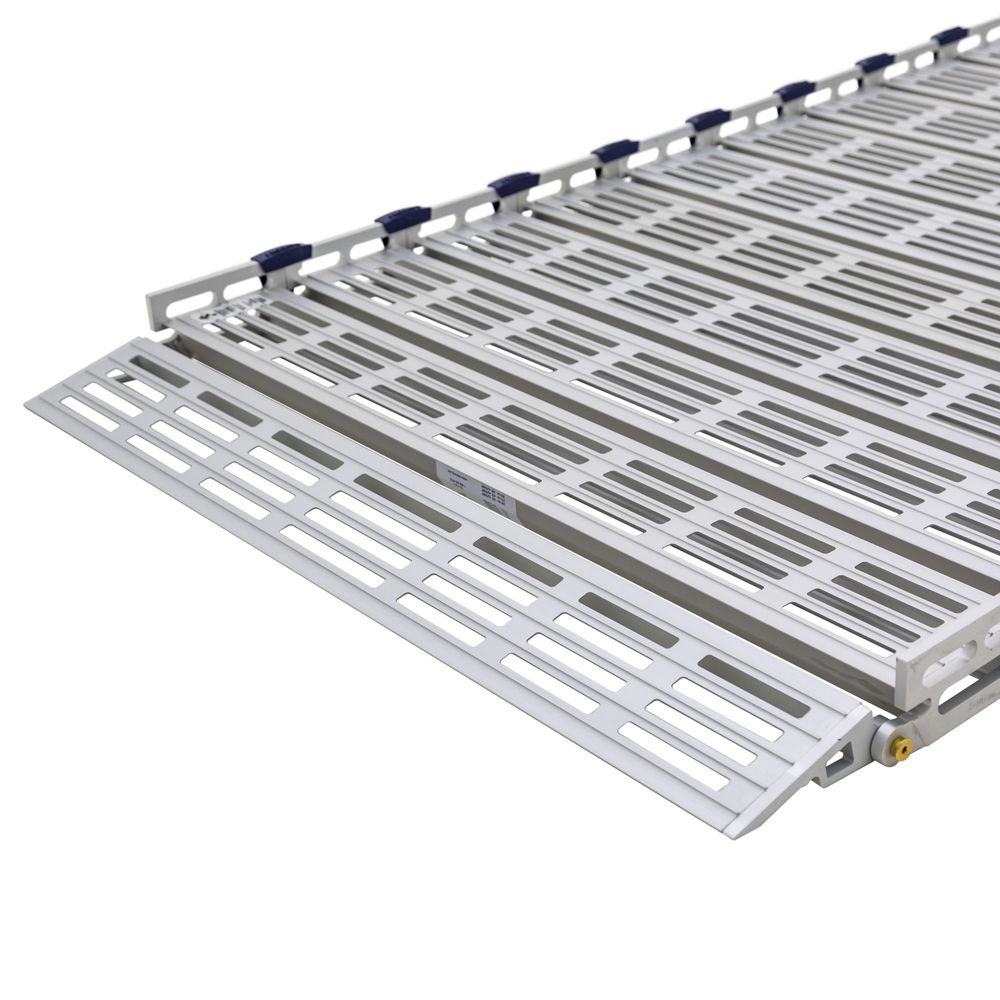

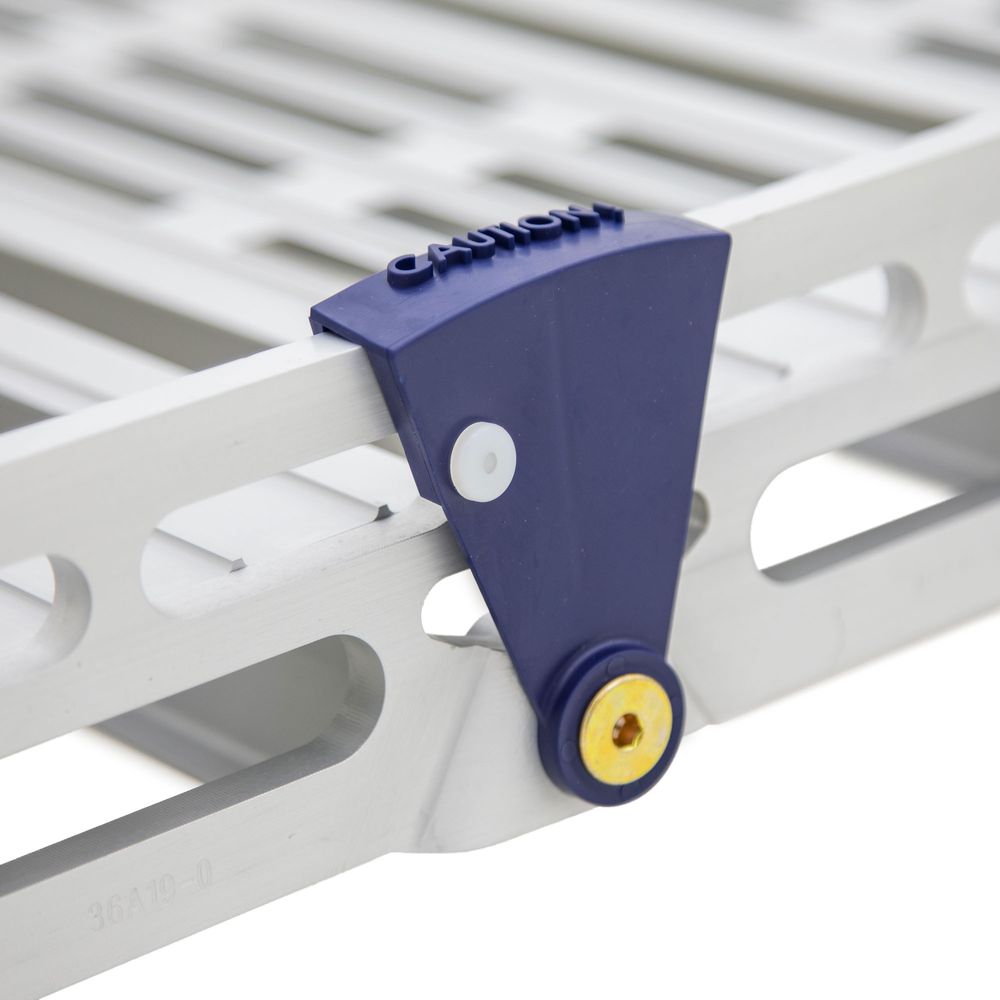

The quick-connect pins make it easy to split the ramp into shorter sections, connect them together, or break the ramp down for easy storage without tools. The lower approach plate smooths the ground-to-ramp transition, and the upper approach plate is designed to work with the first ramp link to rest on the landing for a safe, stable rise-to-ramp transition. The upper approach plate by itself is not load-bearing and in total requires 12" of landing space. The ramp can be shortened easily if your situation or needs change, for instance if you need to add handrails or make it fit to accommodate a different location.

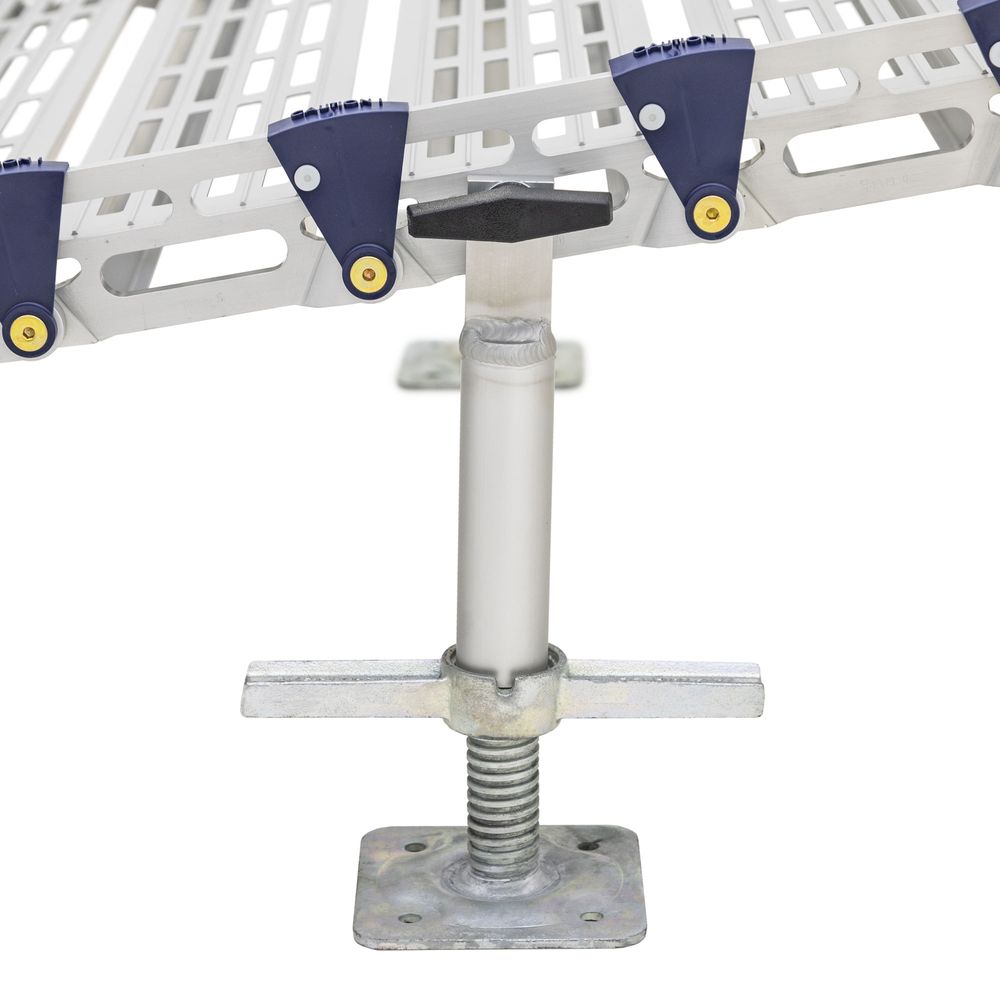

Each kit includes all of the necessary components to install your chosen ramp configuration: Ramp sections for 20' length, approach plates, support stands, and quick-connect pins. It supports up to 1,000 pounds and accommodates all wheelchairs, power chairs, three-wheel and four-wheel mobility scooters.

  • Manufactured from anodized, aircraft-grade aluminum
  • Measures 20' L x 36" W
  • 1,000 lb. weight capacity with grated design for superior grip in all conditions
  • Includes all necessary components for ramp installation: Ramp sections for 20' length, lower and upper approach plates, support stands, quick-connect pins
  • Ramp can be easily reconfigured into shorter sizes as need
  • Quick-connect pins make it easy to split into shorter sections and break down, roll up for easy storage
  • Compatible with platform kits (sold separately)
Usage Guidelines
Unlike some permanent ramp installations, this ramp system doesn't require a building permit for any US state (may vary by country or territory). The total vertical rise height of the location is crucial to determine the correct ramp supports. Platforms are sold separately.

This product is backed by a One Year Warranty.

Buying Guide Instruction Manual Length Calculation Chart
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Configurable ramp system with simple installation

Specs
36" W
1.5" Side rails
For
Individuals with limited mobility
Occupied mobility devices
Weight
Light aluminum
Supports 1,000 lbs.
Features
Breaks down for storage/travel
Quick-connect pins
