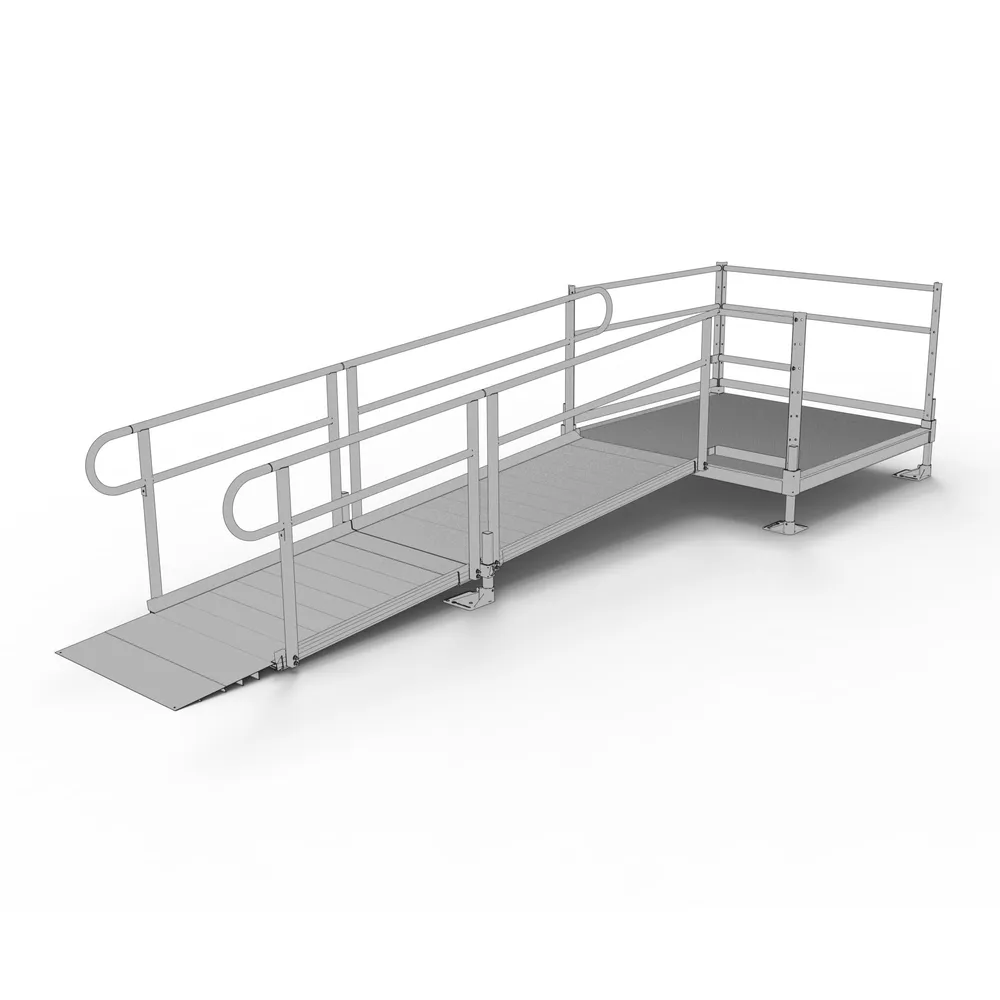

10' L x 3' W EZ-ACCESS® PATHWAY Straight Aluminum Wheelchair Ramp Kit With 5' Top Platform

FREE SHIPPING - LIMITED TIME OFFER
$2,879.99
Select Description
Select Ramp Length
ITEM #PS10S55T
Free Shipping
Ships in 1-2 Business Days

Key Features:

  • Includes: One 6' ramp, one 4’ ramp, one 5' x 5' top platform, handrails, and all other necessary components
  • Manufactured from high-strength, maintenance-free aluminum for lasting durability
  • 1,000 lb. weight capacity with extruded tread surface with raised ribs for exceptional slip resistance

See More…

Wheelchair Ramp Calculator

Fill in the form to see the minimum ramp length you need.

Need help measuring?

Please enter Loading Height.
Commercial Access:
Minimum ramp length = ft.
Click here to shop ft. ramps
Residential Access:
Minimum ramp length = ft.
Click here to shop ft. ramps
Overview
Specifications
Made in the USA

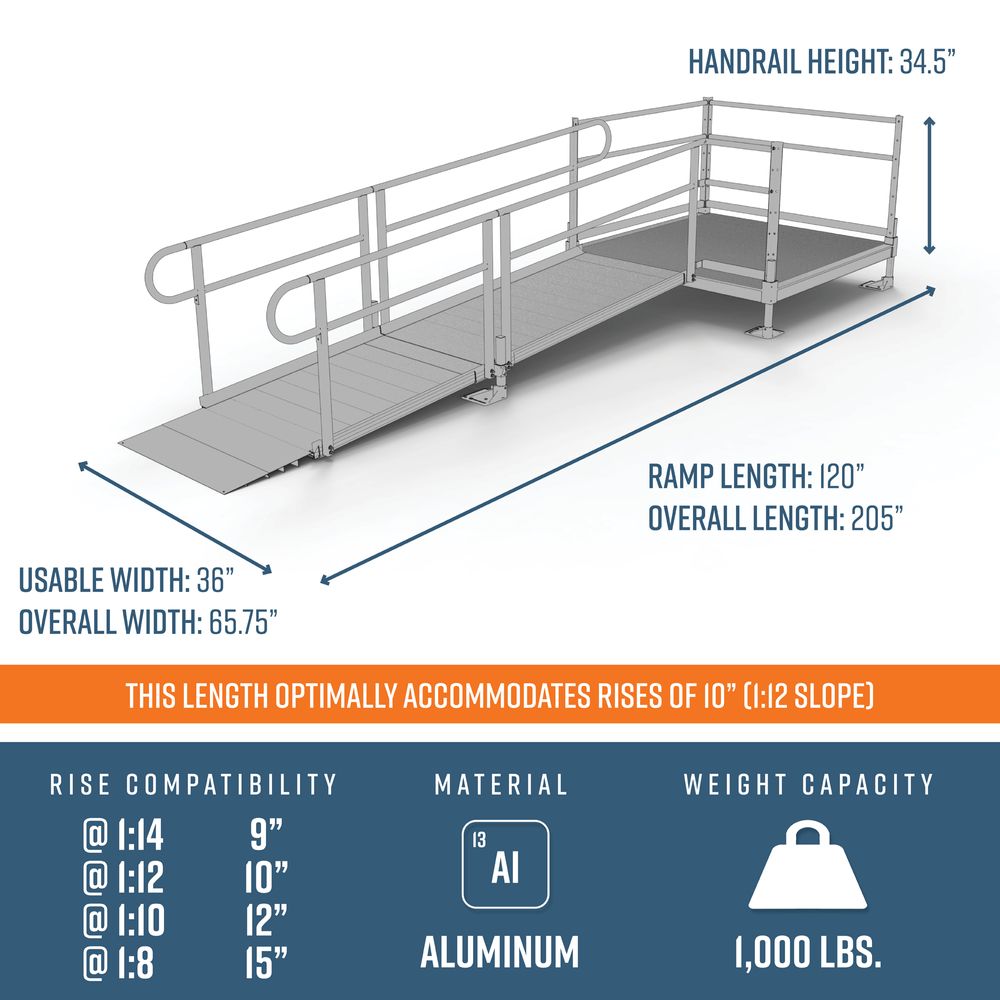

Description:
Straight with 5' Top Platform
Weight:
226 lbs.
Usable Width:
36"
Rail Height:
34-1/2"
Ramp Length:
10'
Ramp Width:
41-3/16"
Platform Length:
5' 5-3/4"
Maximum Capacity:
1,000 lbs.
Material:
Aluminum
More Information

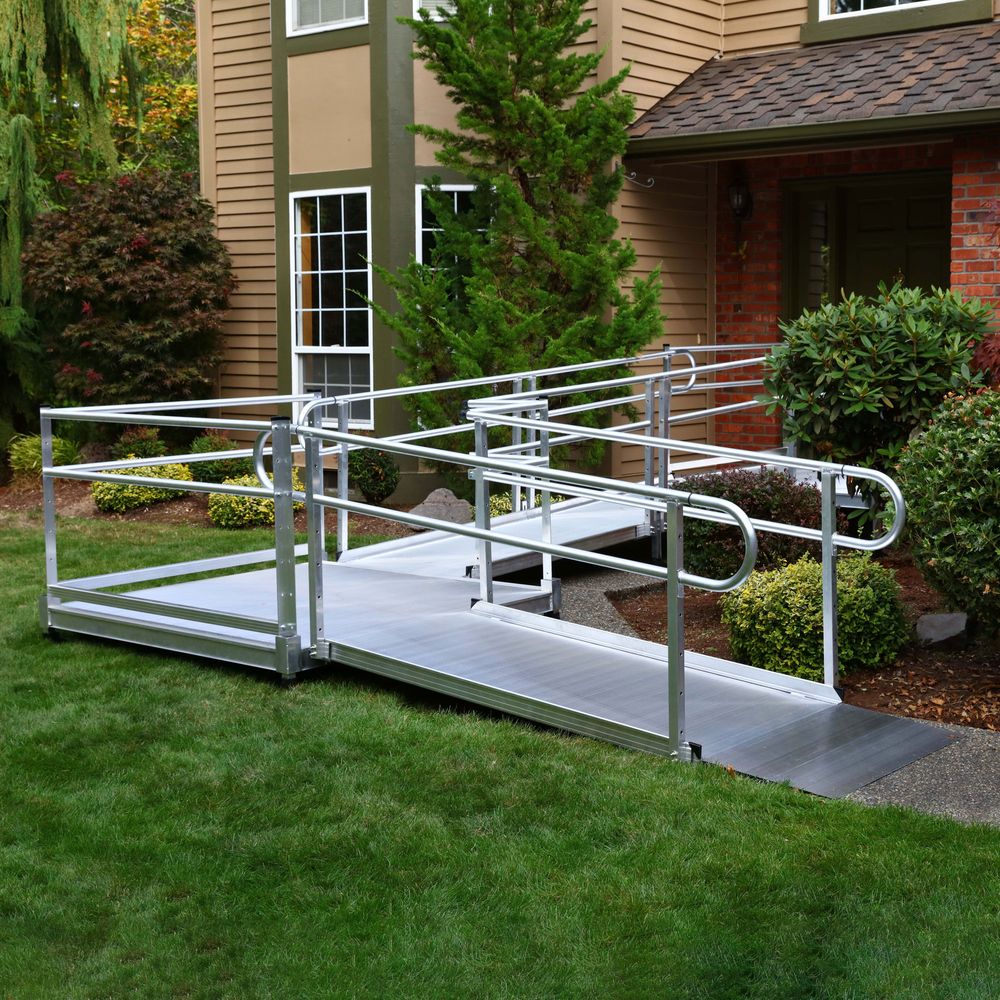

The EZ-ACCESS® PATHWAY Modular Access System is an excellent choice when your residential accessibility needs extend beyond the scope of a portable ramp. If you have an elevated doorway, porch, or pathway, this 10' L Straight Wheelchair Ramp Kit With 5' Top Platform can be installed to help provide safe access to and from your home.

Durable, dependable, and American made, the modular design installs easily with minimal tools, meaning you can have a solution that’s ready to be used the day that it arrives. Constructed from high-strength aluminum with an extruded tread for all-weather traction, the ramp kit features multi-positional base feet with independently-adjustable legs so that setting the slope and leveling the ramp is as easy as possible. A lower plate ensure smooth ramp-to-ground transitions for mobility devices, and both the 2” curbs and two-tier handrails provide additional safety and security whether wheeling or walking.

This 10' L Straight Wheelchair Ramp Kit With 5' Top Platform includes one 6' ramp, one 4’ ramp, one 5' x 5' top platform, handrails, and all other necessary components.

  • Includes: One 6' ramp, one 4’ ramp, one 5' x 5' top platform, handrails, and all other necessary components
  • Manufactured from high-strength, maintenance-free aluminum for lasting durability
  • 1,000 lb. weight capacity with extruded tread surface with raised ribs for exceptional slip resistance

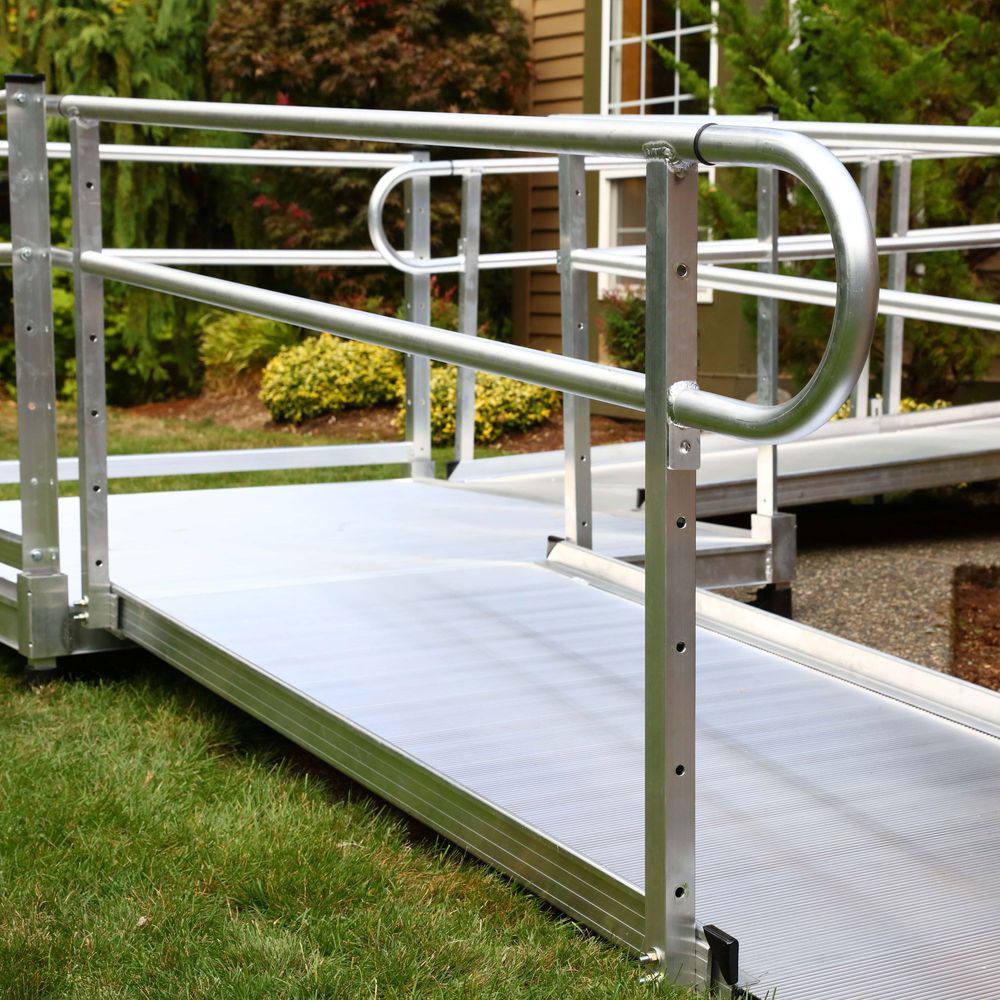

  • Two-line handrail provides an additional gripping surface by adding a second rail below the continuous top rail
  • Finished sides are flush; no protruding nuts or bolts in usable ramp area
  • Accommodates slopes ranging from 1:8 to 1:14
Usage Guidelines
Unlike some permanent ramp installations, this ramp system doesn't require a building permit for any US state (may vary by country or territory). The total vertical rise height of the location is crucial to determine the correct ramp supports. No poured footers or alterations to your home required, just assembly.

This product is backed by the manufacturer's Lifetime Warranty.
