Steel Yard Ramp Platform - 22,000 lb. Capacity

IN STOCK – SHIPS FAST
$5,249.99
$4,749.99
Save $500.00
RYR-8-22
Ships today!
Call for custom freight quote
  • Manufactured from durable steel
  • Measures 8' 3" L x 8' 6" W
  • 22,000 lb. weight capacity

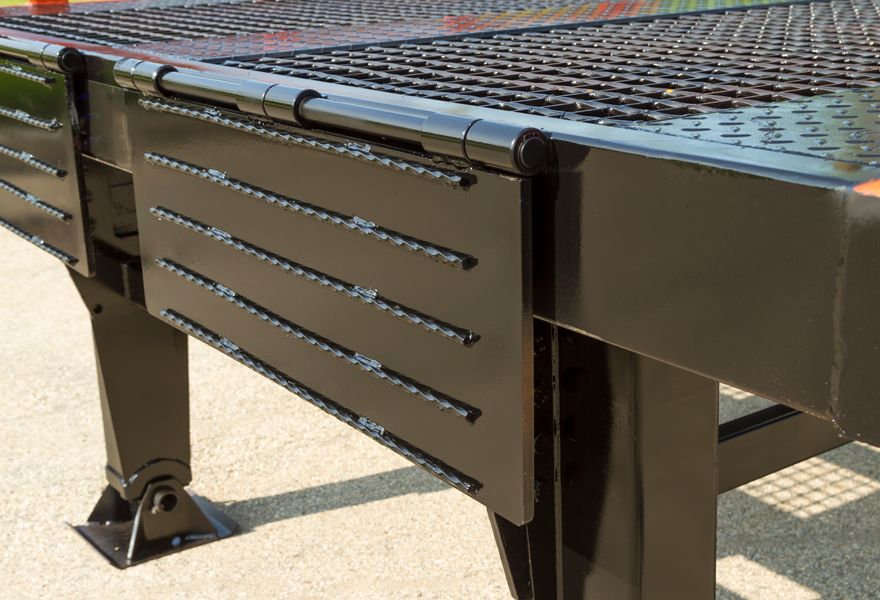

  • Two 20" x 24" flip plates provide a smooth transition on and off the platform
  • Serrated steel mesh surface allows moisture and debris to fall through and provides additional traction

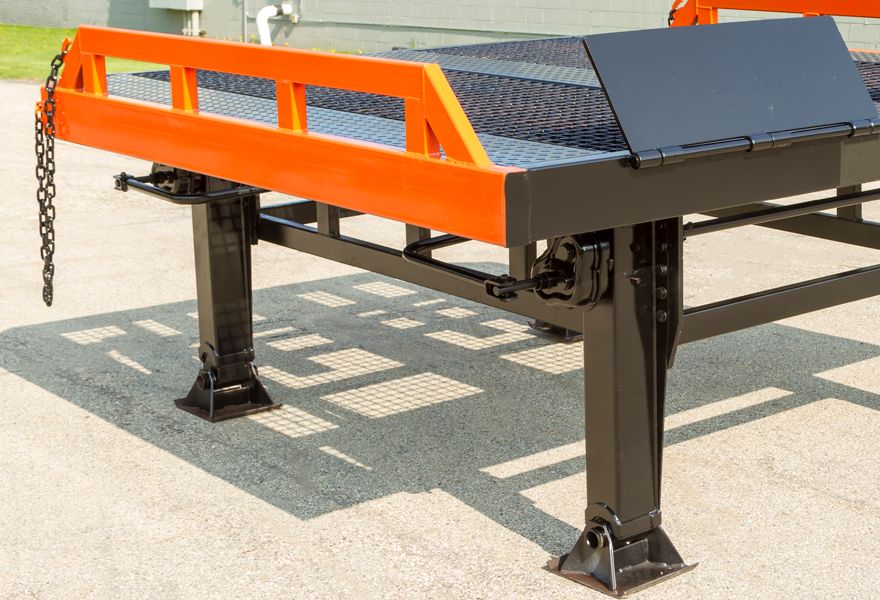

  • Adjusts from 42" to 62" to accommodate a variety of heights

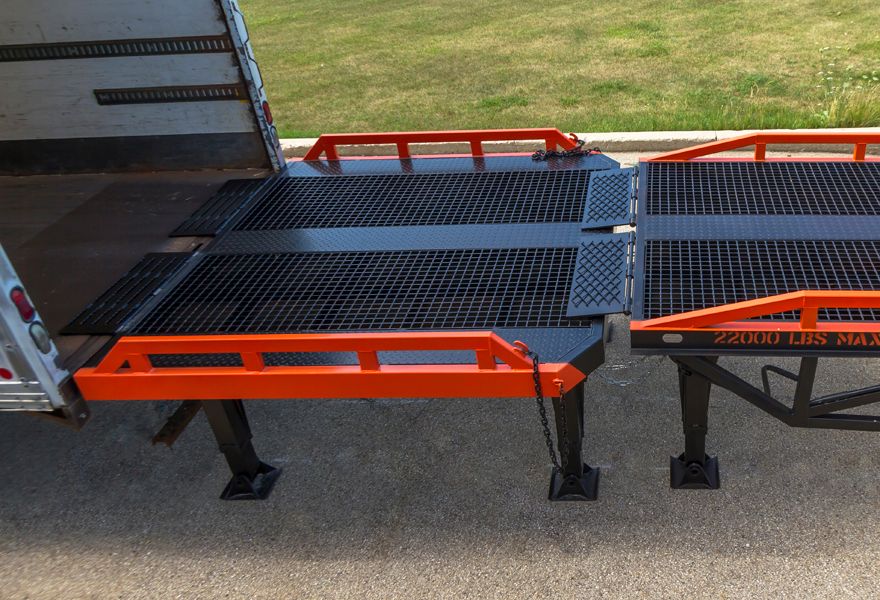

  • Designed for use in conjunction with the RYR-37-22 yard ramp
Placeholder
RYR-8-22 Steel Yard Ramp Platform - 22000 lb Capacity
Price
Rating
Availability
Brand
Material
Maximum Capacity
Length
Width
Weight
Current Item
RYR-8-22 Steel Yard Ramp Platform - 22000 lb Capacity
$5,249.99
$4,749.99
Save $500.00
Ships today!
Discount Ramps
Steel
22,000 lbs.
8' 3"
8' 6"
2,977 lbs.
16SP88 8 L x 8 W 16000 lb Capacity Bluff Steel Platform and Portable Loading Dock
$7,999.99
In Stock
Bluff Manufacturing

16,000 lbs.
8'
8'
2,450 lbs.
20SP88 8 L x 8 W 20000 lb Capacity Bluff Steel Platform and Portable Loading Dock
$7,999.99
In Stock
Bluff Manufacturing

20,000 lbs.
8'
8'
2,682 lbs.
25SP88 8 L x 8 W 25000 lb Capacity Bluff Steel Platform and Portable Loading Dock
$8,499.99
In Stock
Bluff Manufacturing

25,000 lbs.
8'
8'
2,560 lbs.
30SP88 8 L x 8 W 30000 lb Capacity Bluff Steel Platform and Portable Loading Dock
$8,999.99
In Stock
Bluff Manufacturing

30,000 lbs.
8'
8'
2,800 lbs.

Our heavy-duty all steel loading dock platform can be added to an existing yard ramp or loading dock, creating additional length and width. Manufactured from heavy-duty steel, this yard ramp platform features two flip plates for a smooth transition between the platform and loading surface. The steel mesh surface offers incredible traction in all weather conditions and makes it easy to keep clean, preventing rust and corrosion from forming. Able to accommodate up to 22,000-lbs, you can also manually adjust the height of the platform to meet dock height requirements.

8' 3"
8' 6"
42"
62"
2,977 lbs.
22,000 lbs.
Steel
Manual
