Black Widow Air/Hydraulic ATV Lift Table - 1,500 lbs. Capacity
$1,999.99
List Price: $2,049.99
Save $50.00
Pricing shown as of 4/30/2026. Please note that prices are subject to change without notice.
Key Features:
- Manufactured from durable powder-coated steel
- 78" L x 47" W diamond plate tread platform
- 1,500 lbs. weight capacity
Similar Products
Overview
Overview
Specifications
Length:
78"
Width:
47"
Height:
33-1/2"
Minimum Lift Height:
6-3/4"
Maximum Lift Height:
33-1/2"
Ramp Length:
24"
Maximum Capacity:
1,500 lbs.
Weight:
440 lbs.
Lift Type:
Pneumatic Compressed Air
Material:
Steel
Brand:
More Information
This high-quality versatile ATV lift can easily lift ATVs, motorcycles, garden tractors, and trikes for service and maintenance. The lift is operated with an easy-to-use compressed air foot pedal and features a heavy-duty hydraulic ram that can handle up to 1,500 lbs. A removable rear ramp makes it easy to load your ATV, while the diamond plate surface provides traction, and adjustable threaded levelers on the front of the lift table allow it to be leveled out on uneven surfaces. The table includes a wheel chock, safety locks, adjustable support legs, and a rear drop-out panel.
The foot pump operates at 60-150 psi uses 90 cubic inches of oil. It weighs 20 pounds.
Please Note: To be used with air, the lift table requires 90 psi minimum air pressure.
- Manufactured from durable powder-coated steel
- 78" L x 47" W diamond plate tread platform
- 1,500 lbs. weight capacity
- 6-3/4" - 33-1/2" lift height
- Includes 24" L removable loading ramp
- 18" x 20" removable rear drop-out panel
Usage Guidelines
Please note that the foot pump model may vary from what is shown.
Extra-wide stationary lift table for dual-purpose motorcycle/ATV projects
Dimensions
78” L x 47” W Platform
6.75” – 33.5” Lift Range
For
Large Motorcycles
ATVs
Weight
1,500 lb. Capacity
Weighs 440 lbs.
Features
Rear drop-out, built-in chock
Air-over-hydraulic operation
Features
Extra-wide platform fits ATVS and UTVS up to 47” W
The large platform and ramp offers plenty of room for ATV and UTV tires, so that driving up and onto the platform is easy. Once lifted, the ramp removes and a rear drop-out panel provides convenient rear underbody access.

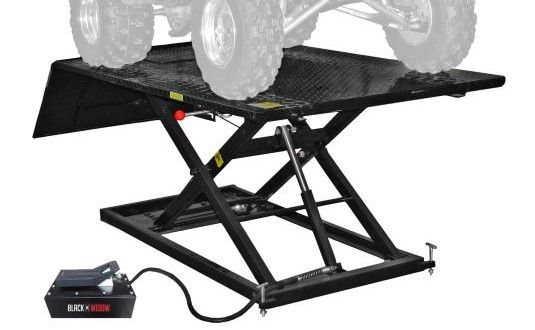

Smooth air-over-hydraulic lift height controlled with foot pedal
This lift requires a minimum of 90 psi of compressed air to operate, and raises from 6.75 to 33.5 inches. Air compressors are not included with the table. The fully stationary base has two front levelers to ensure an even work surface.
Ground-level safety locks operate automatically and release manually
For safety while the table is in use, a series of safety locks engage as the table lifts to prevent severe injury and damage.
Compare With Similar Items
Compare With Similar Items
Black Widow Air/Hydraulic ATV Lift Table - 1,500 lbs. Capacity
$1,999.99
List Price: $2,049.99
Save $50.00
Pricing shown as of 4/30/2026. Please note that prices are subject to change without notice.
Maximum Lift Height:
33-1/2"
Weight:
440 lbs.
Lift Type:
Pneumatic Compressed Air
Length:
78"
Width:
47"
Ramp Length:
24"
Current Item
Maximum Lift Height:
31-1/4"
Weight:
447 lbs.
Lift Type:
Pneumatic Compressed Air
Length:
105-1/2"
Width:
48"
Ramp Length:
20"
Maximum Lift Height:
32"
Weight:
570 lbs.
Lift Type:
Pneumatic Compressed Air
Length:
76-1/2"
Width:
47-3/4"
Ramp Length:
23"
