Black Widow Extra Wide Air/Hydraulic Motorcycle Lift Table - 1,500 lb. Capacity

$1,649.99
ITEM #BW-1500AO-V2-MC
In Stock, Ready to Ship
Delivered in 3 to 5 Business Days

Key Features:

  • Manufactured from durable, powder-coated steel
  • 1,500 lb. weight capacity
  • Platform measures 78" L x 47" W with a diamond plate surface

See More…

Overview
Specifications
Length:
78"
Width:
47"
Height:
33-1/2"
Minimum Lift Height:
6-3/4"
Maximum Lift Height:
33-1/2"
Ramp Length:
24"
Maximum Capacity:
1,500 lbs.
Weight:
440 lbs.
Lift Type:
Pneumatic Compressed Air
Wheel Clamp:
Included
Rear Service Drop-Out Panel:
Yes
Side Extensions Available:
No
Built-In Wheels:
No
Center Jack:
Optional
More Information

The Black Widow Pneumatic Motorcycle Lift Table will save you time and money by safely raising any motorcycle so you can perform routine maintenance, service check-ups, and oil changes from the convenience of your garage. Powered by compressed air (90 psi minimum required), this 1,500-lb capacity lift effortlessly raises the steel platform (78" x 47") from 6.75" to 33.5" off the ground. A series of safety locks and adjustable support legs allows you to fix it in place at the proper servicing height.

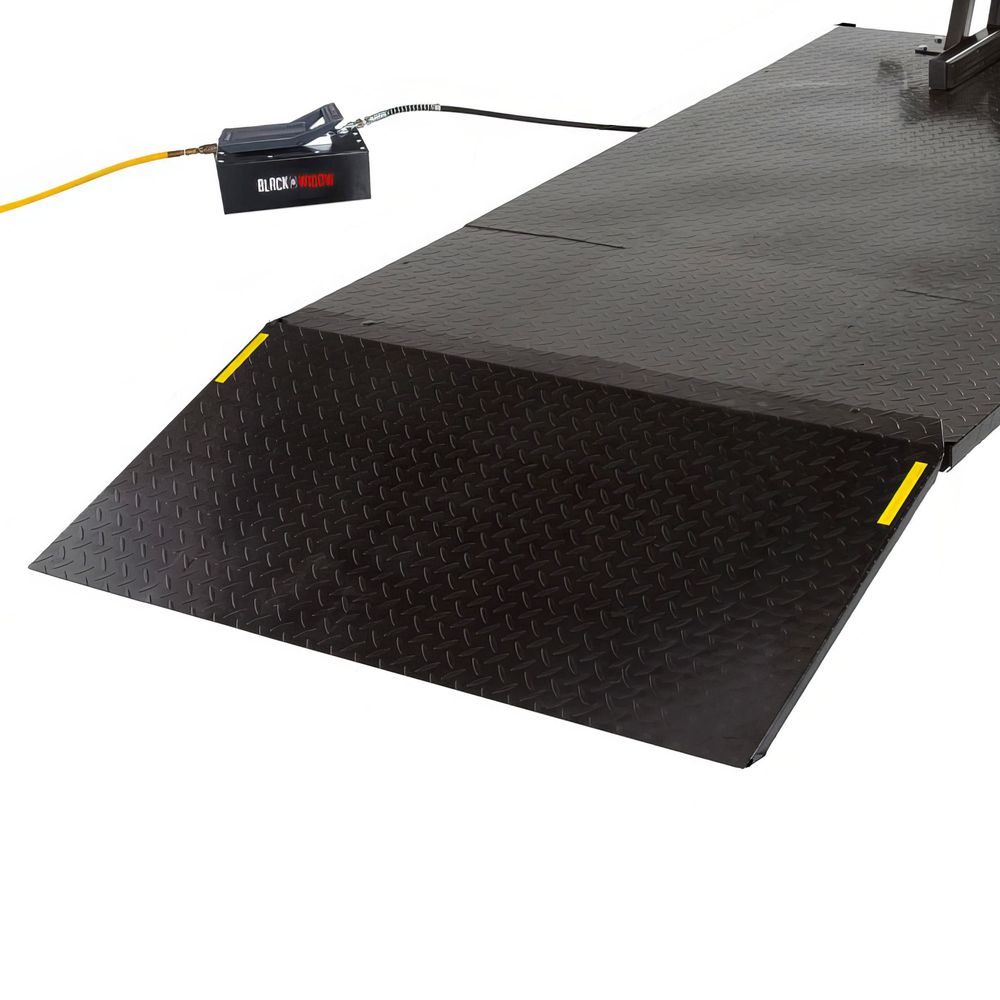

A removable 24" ramp streamlines the loading process and brings the total platform length up to 102" for servicing cruisers and touring bikes with longer wheelbases. The steel lifting platform features a diamond plate surface for superior traction and a powder-coated glossy finish to prevent rust and corrosion. To make loading a bike a simple one-person task, this Black Widow motorcycle lift features hands-free, foot-pedal operation and includes a wheel clamp that will hold your motorcycle in place while you tighten the wheel vise and secure safety straps from the bike to the lift table's integrated tie-down points.

Once your bike is secured in place and raised to the proper height, repairing or replacing tires is a breeze thanks to a convenient rear drop-down service panel (18" x 20"). Threaded levelers at the front of the lift table allow you to make slight adjustments to accommodate for uneven surfaces.

  • Manufactured from durable, powder-coated steel
  • 1,500 lb. weight capacity
  • Platform measures 78" L x 47" W with a diamond plate surface
  • Includes a 24" L removable loading ramp and built-in front wheel clamp
  • Rear drop out panel for easy access to wheels
  • Foot pedal-controlled lift requires 90 psi minimum air pressure
  • Lifting range from 6.75" to 33.5" high
Black Widow

This product is backed by a One Year Warranty.

Instruction Manual
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Extra-wide stationary lift table for dual-purpose motorcycle/ATV projects

Dimensions
78” L x 47” W Platform
6.75” – 33.5” Lift Range
For
Large Motorcycles
ATVs
Weight
1,500 lb. Capacity
Weighs 440 lbs.
Features
Rear drop-out, built-in chock
Air-over-hydraulic operation
Compare With Similar Items
Length:
78"
Width:
47"
Ramp Length:
24"
Maximum Capacity:
1,500 lbs.
Minimum Lift Height:
6-3/4"
Maximum Lift Height:
33-1/2"
Lift Type:
Pneumatic Compressed Air
Current Item
Length:
78-3/4"
Width:
44"
Ramp Length:
25-5/8"
Maximum Capacity:
1,000 lbs.
Minimum Lift Height:
8"
Maximum Lift Height:
33"
Lift Type:
Pneumatic Compressed Air
View Product
Length:
105-1/2"
Width:
48"
Ramp Length:
20"
Maximum Capacity:
1,500 lbs.
Minimum Lift Height:
7"
Maximum Lift Height:
31-1/4"
Lift Type:
Pneumatic Compressed Air
View Product
