15' 4" L x 84" W Aluminum Portable Modular Mini Yard Ramp System – 25,000 lb. Capacity
$7,411.99
Pricing shown as of 4/30/2026. Please note that prices are subject to change without notice.
Key Features:
- Ships compactly on a single pallet; less shipping cost and smaller storage footprint with only 15-min set up time
- Made in the USA; measures 15' 4" L x 84" W for trucks or docks between 15" and 32" H
- 25,000 lb. weight capacity (15,000 lb. per axle capacity) for larger vehicles or loads
Similar Products
Overview
Overview
Specifications
Made in the USA
Length:
15' 4"
Width:
7'
Minimum Height:
15"
Maximum Height:
32"
Weight:
834 lbs.
Maximum Capacity:
25,000 lb. total
Material:
Aluminum
Lift Type:
Height Adjustable Stands
Guard Rail Height:
4"
Usable Width:
6' 10"
Brand:
More Information
This 25,000 lb. Modular Aluminum Yard Ramp System is a compact yet heavy duty solution for bridging shorter loading dock heights in applications where a full-size yard ramp is overkill. It sets up with two people in less than 15 minutes without any tools, and is suitable for outdoor or indoor use. Since it's modular, it can be used in two different length configurations: 8' or 15' 4" L.
Manufactured from aluminum, it ships economically on one pallet via common carrier and is so compact, the entire system will fit in a pickup truck bed or a 4x8 trailer. The 4" high rail guards are integrated into the ramp for added safety and maximum structural support. This system accommodates docks, trailers or trucks from 15" to 32" H.
The modular design consists of four ramps and one adjustable height support stand. The upper ramps feature a plate end for a smooth ramp to truck transition and the lower ramps terminate in a knife foot for a smooth ground to ramp transition. Two 2" x 18' ratchet straps with S-hooks are included (4,400 lb. Break Strength) to secure the ramp system. US Patent #10710824.
- Ships compactly on a single pallet; less shipping cost and smaller storage footprint with only 15-min set up time
- Made in the USA; measures 15' 4" L x 84" W for trucks or docks between 15" and 32" H
- 25,000 lb. weight capacity (15,000 lb. per axle capacity) for larger vehicles or loads
- Built-in 4" guard rails and 18' ratchet straps included for added safety
- Upper ramp angles for 15" to 32" H applications
- Use as a ramp, or as a ramp and level-off platform by adjusting the angle of the top ramp
- Manufactured from high strength, lightweight aluminum; EZ traction punch plate traction for excellent traction in all weather conditions
Usage Guidelines
Ensure the vehicle is stopped and wheels are chocked before attaching the ramp. When selecting a yard ramp, first identify the weight capacity you require by combining the weight of your heaviest loading machinery and heaviest load. Also identify the widest equipment that will be used on the ramp and add 15" to determine how wide of a ramp you require.
Load and unload cars, trucks and heavy equipment
Dimensions
15' 4" L x 84" W
15" to 32" Height Range
For
Forklifts
Box Trucks
Capacity
25,000 lb. Cap (15,000 lb. per Axle)
Weighs 834 lb.
Features
Ships compactly; less shipping costs
Made in the USA
Features

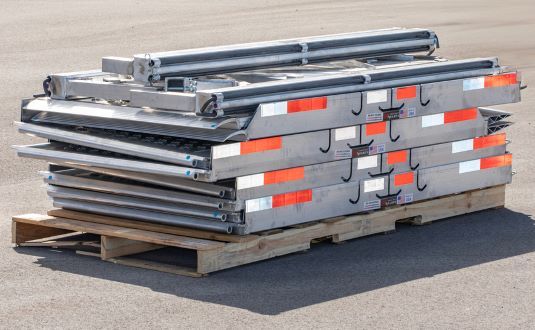

Modular design fits on single pallet
The components stack compactly and fit on a single pallet for easy storage; great for seasonal use or if the ramp needs to be transported to another location. The entire system fits in a pickup truck bed or a 4 x 8 trailer, and ships economically via common carrier because of the modular design.
Modular design fits on single pallet
The components stack compactly and fit on a single pallet for easy storage; great for seasonal use or if the ramp needs to be transported to another location. The entire system fits in a pickup truck bed or a 4 x 8 trailer, and ships economically via common carrier because of the modular design.

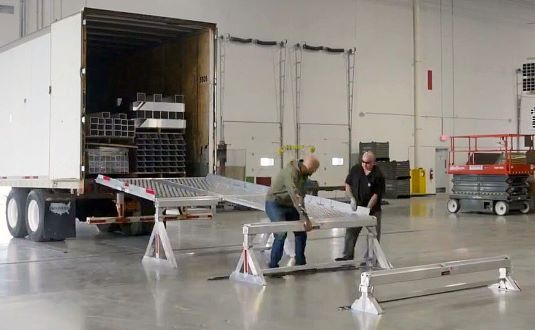

Quick 15-minute set up with two people
There are no tools required to install this ramp system, and it takes two people as little as 15 minutes to measure and position the three ramp stands, then set the eight ramp sections in place and attach the two ratchet safety straps to the upper stand of the trailer.
Quick 15-minute set up with two people
There are no tools required to install this ramp system, and it takes two people as little as 15 minutes to measure and position the three ramp stands, then set the eight ramp sections in place and attach the two ratchet safety straps to the upper stand of the trailer.

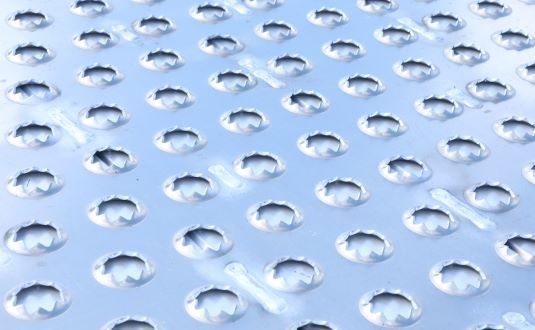

EZ Traction punch-plate surface grips tires in all weather
The raised, serrated punch plate surface design grips forklift, car or equipment tires while allowing rain, snow and mud to fall right through.
EZ Traction punch-plate surface grips tires in all weather
The raised, serrated punch plate surface design grips forklift, car or equipment tires while allowing rain, snow and mud to fall right through.

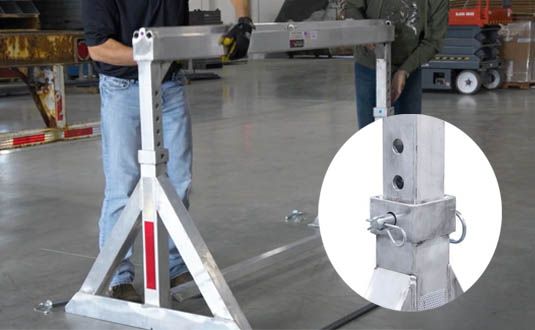

Adjust height incrementally with ramp stands
By setting the height of the ramp stand pairs, the loading height and loading angle of the yard ramp adjusts to work with dock or truck heights as low as 15" and up to 32" high.
Adjust height incrementally with ramp stands
By setting the height of the ramp stand pairs, the loading height and loading angle of the yard ramp adjusts to work with dock or truck heights as low as 15" and up to 32" high.
