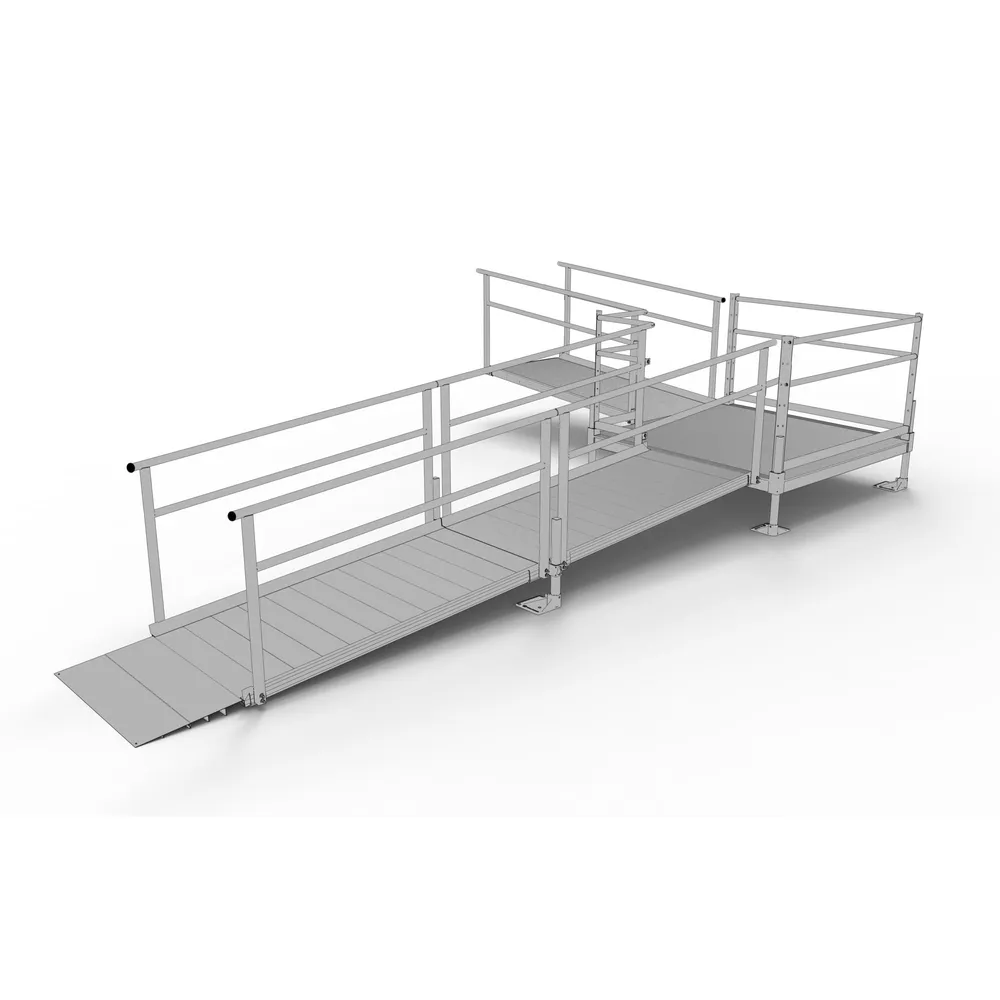

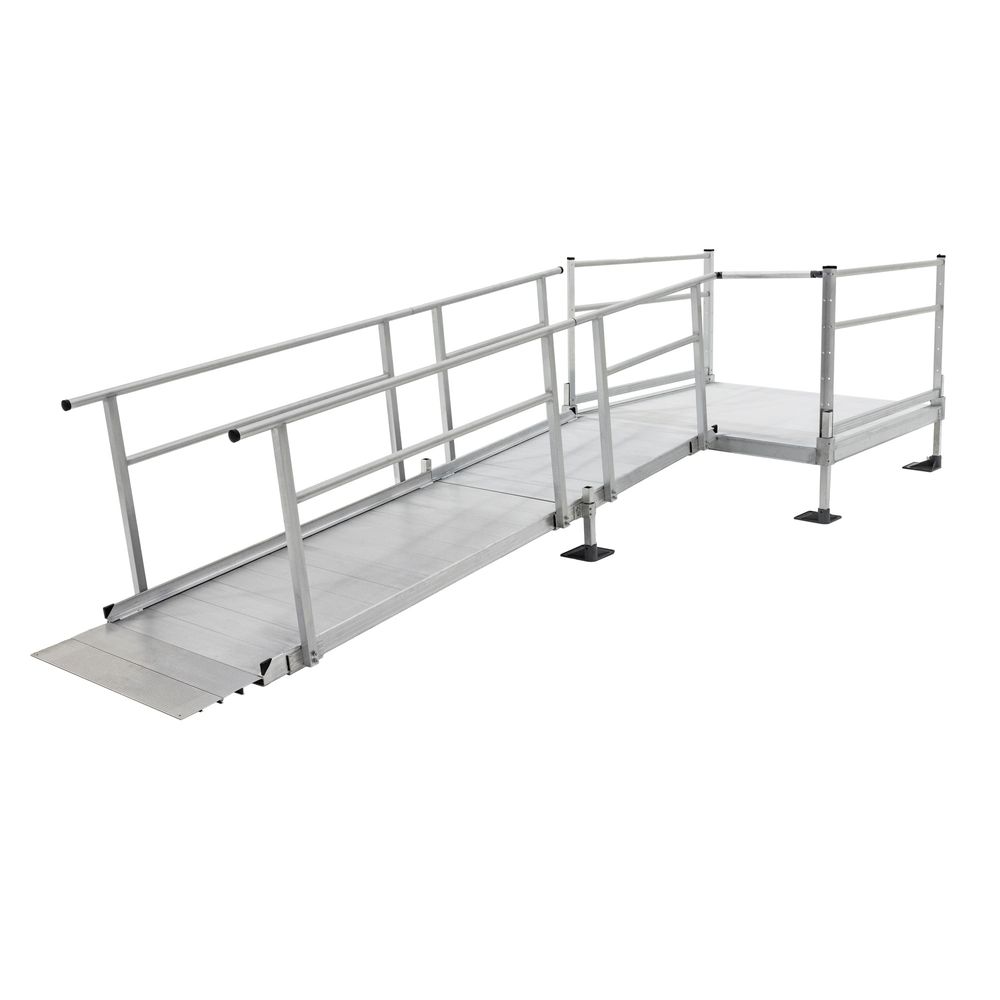

Silver Spring Clearway 19' L-Shaped Modular Ramp with 5' Turn Platform
$3,899.99
List Price: $4,229.99
Save $330.00
Key Features:
- Modular straight ramp package includes all components for easy assembly and set-up; made in the USA
- Includes one 6' ramp, one 5'x5' turn platform, one 6' ramp, one 4' ramp, one 3' ramp, and accompanying two-line brushed aluminum handrails for added support.
- 1,000 lb. Weight capacity with 36" ramp width; accommodates slopes ranging from 1:6 to 1:14
Frequently Bought Together
Similar Products
Wheelchair Ramp Calculator
Fill in the form to see the minimum ramp length you need.
Need help measuring?
Please enter Loading Height.
Overview
Overview
Specifications
Made in the USA
Description:
L-Shaped with 5' Turn Platform
Length:
19' 9-1/2"
Width:
144-1/4"
Weight:
386 lbs.
Usable Width:
36"
Ramp Length:
19'
Maximum Capacity:
1,000 lbs.
Brand:
More Information

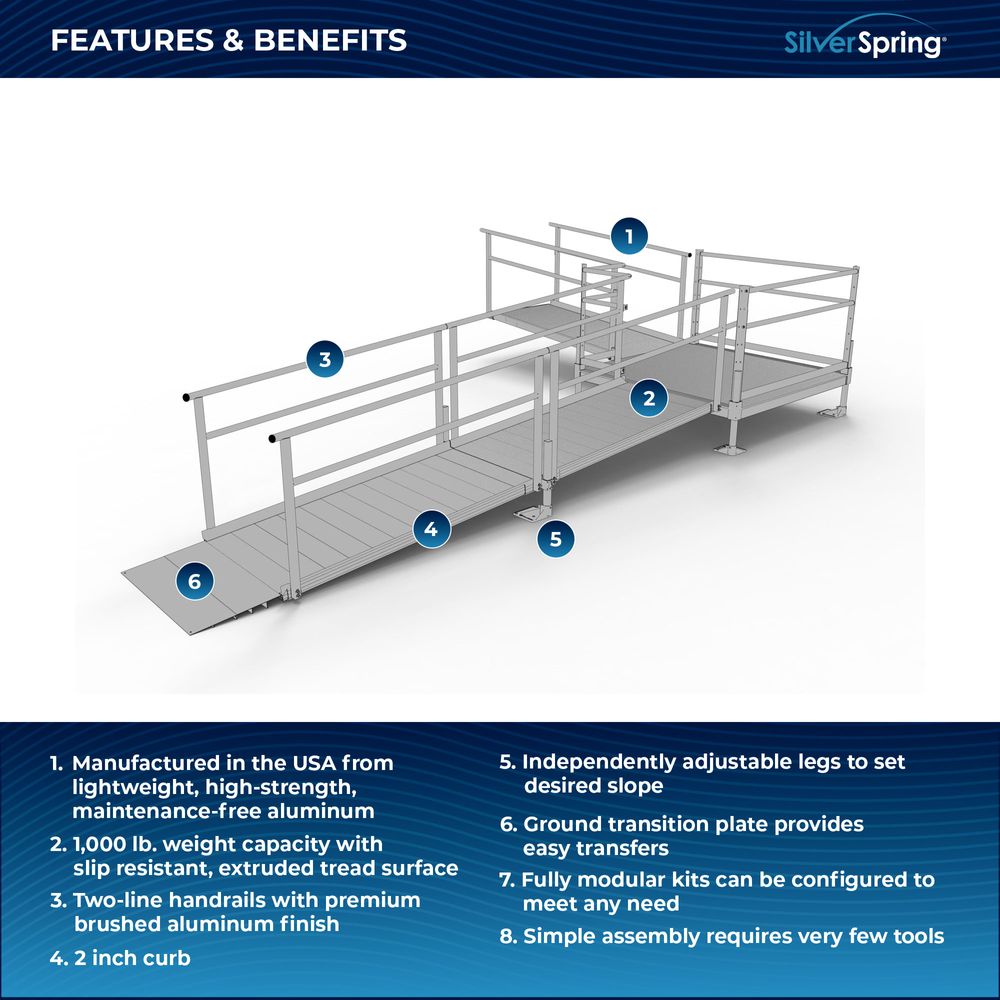

Designed with your needs in mind, the Silver Spring Clearway Modular Ramp System ships rapidly and assembles with fewer tools than other modular systems. Manufactured in the United States from high-strength, lightweight aluminum that will never rust or require painting, this system includes everything you need for installation straight out of the box. Use it to overcome rises with a slope range from 1:6 to 1:14, perfect for home entryways and similar residential applications.
This ramp system includes one 6' ramp, one 5'x5' turn platform, one 6' ramp, one 4' ramp, one 3' ramp, and accompanying handrails. During assembly, the handrails set up to accommodate a straight, left or right-side entry to the ramp. It supports up to 1,000 lbs., making it a sturdy choice for full-size scooters and/or bariatric use. The extruded tread surface features raised ribs that grip soles and tires with exceptional slip resistance.

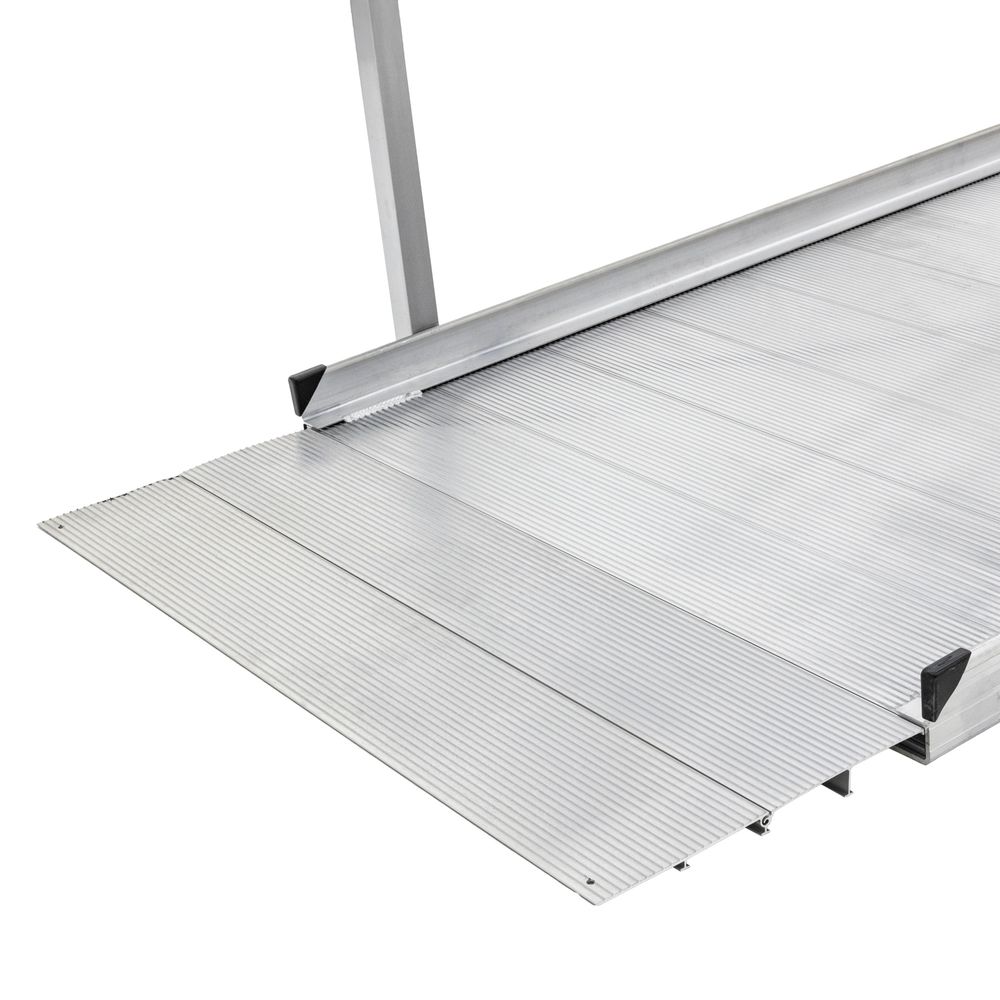

The 5'x5' platform connects to the ramp with a tongue-and-groove design that requires minimal hardware to install. Durable plastic square feet (each 7.25" x 7.25") feature two pre-drilled holes for easy mounting to any surface type (mounting hardware not included). The bottom plate moves freely to accommodate uneven surfaces and creates a smooth ground-to-ramp transition.
- Modular straight ramp package includes all components for easy assembly and set-up; made in the USA
- Includes one 6' ramp, one 5'x5' turn platform, one 6' ramp, one 4' ramp, one 3' ramp, and accompanying two-line brushed aluminum handrails for added support.
- 1,000 lb. Weight capacity with 36" ramp width; accommodates slopes ranging from 1:6 to 1:14

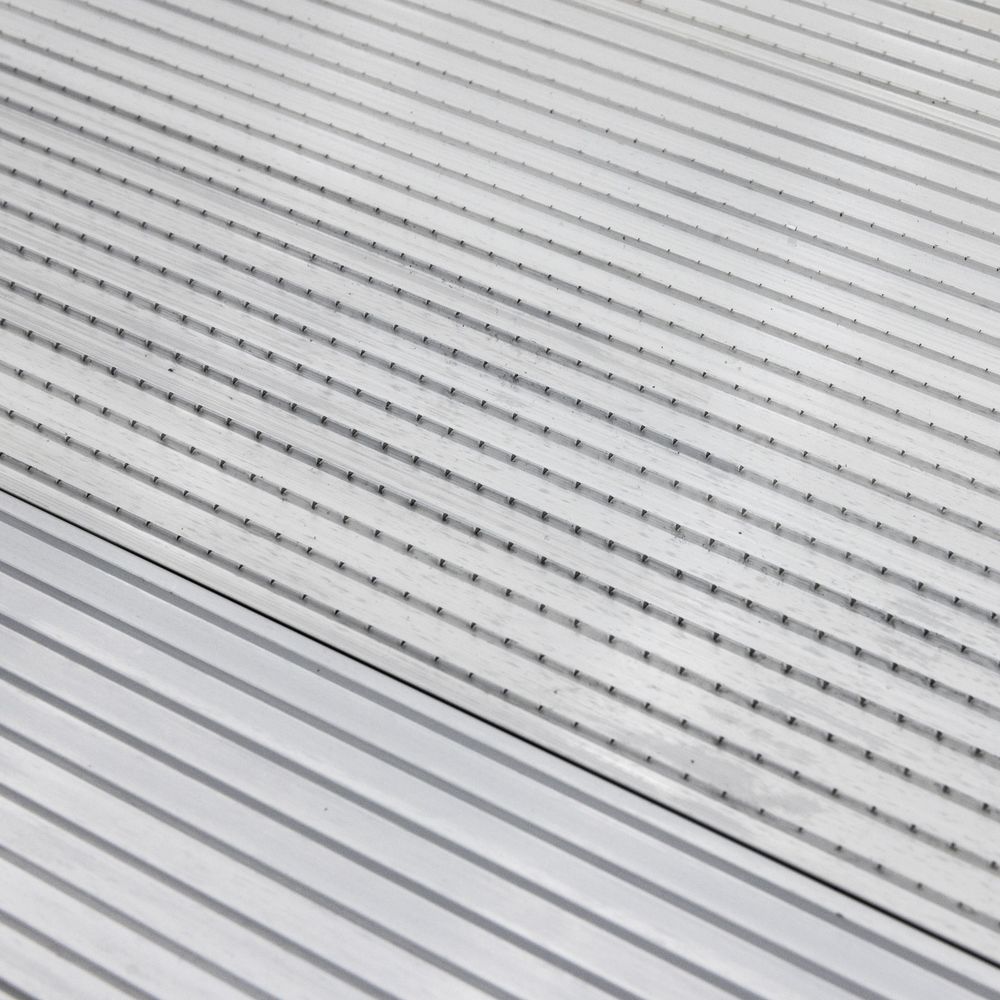

- Non-slip surface for maximum performance in wet conditions
- Sturdy tongue-and-groove connections between platform and ramps for ultimate stability
- During assembly, choose straight, left or right set up for versatile positioning in your exterior space
- 36" Ramp width
Usage Guidelines
Please note that handrail end loops are sold separately as an accessory addition. ADA Slope compliance is 1:12 or greater, please check with local law requirements if this system qualifies for ADA compliance when installed according to local regulations.
Built-to-Fit Accessibility for Your Life
Dimensions
36" W Ramp
Lengths from 10' to 24'
For
Scooters, wheelchairs
Walkers, rollators
Weight
1,000 lb. Capacity
Features
All components included
Non-slip surface
